Wooden Camera Sony FS7 Unified Accessory Kit (Pro) has been discontinued, here are some related products you might like:

Wooden Camera Sony FS7 Unified Accessory Kit (Pro)

Product #50126 | SKU 224400 | Wooden Camera
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Supports 15mm LWS rods
  • Two quick release options
  • Replaces original Sony FS7 viewfinder mount
  • Attaches to top handle of Sony FS7
  • Provides three points of adjustment

Description

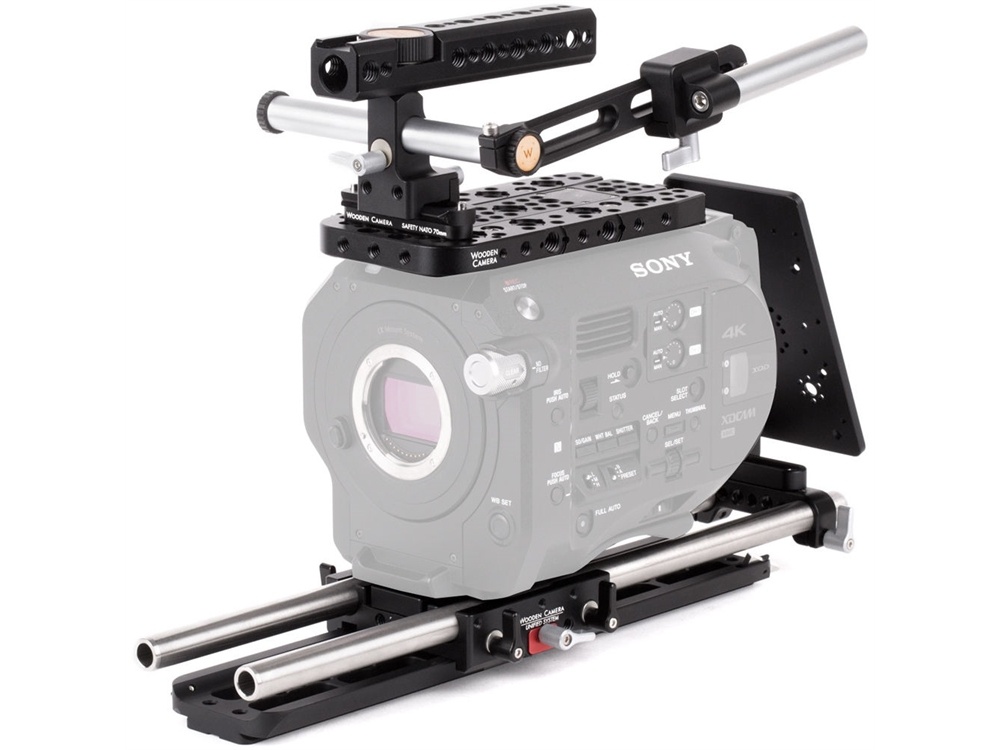

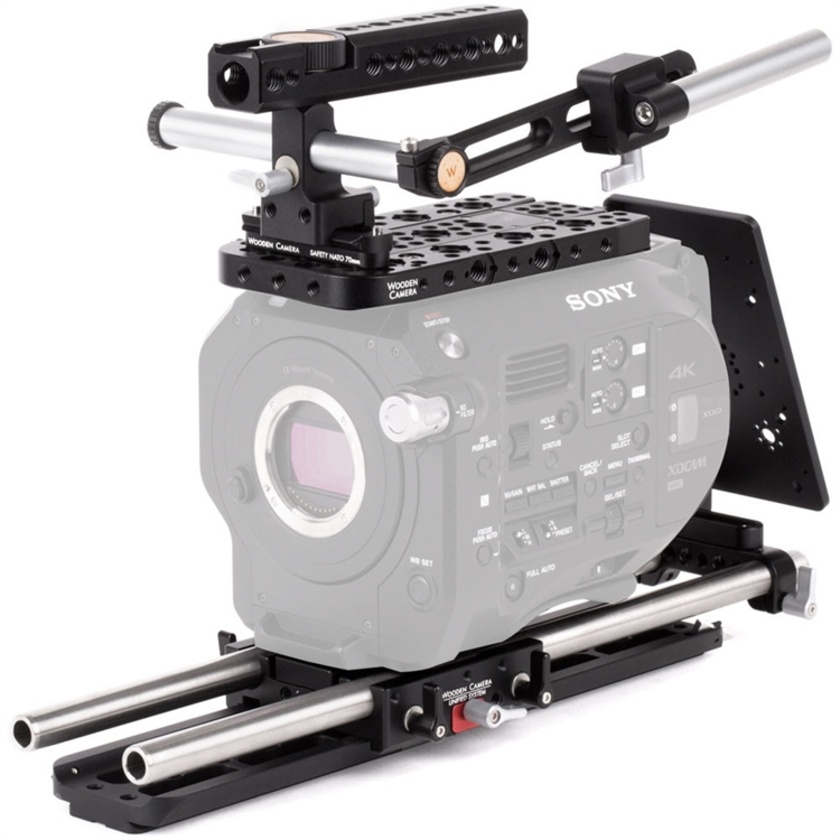

The Sony FS7 Unified Accessory Kit (Pro) is a professional camera support package designed for the Sony PXW-FS7 camera and utilises our new Unified Baseplate System. The FS7 accessory package includes: Top Plate (FS7), a top mounting camera cheeseplate for accessory attachment, Unified Baseplate (Sony FS7), a camera baseplate for holding the two 15mm Rod (15") at the correct lens height, NATO Handle Kit (Plus, 70mm), a quick release handle that attaches to the top plate, has a rotating top grip, multiple mounting points for accessories, integrated shoe mount, and a 15mm/19mm rod opening, UVF Mount (FS7, No Clamp) for holding EVFs & LCDs, the ARRI dovetail slot found on the bottom of the Unified Baseplate attaches to the included Safety Dovetail (12"), Rod Clamp (15mm LW) attaches the Battery Slide to the 15mm LW rods. The Battery Slide is an adjustable battery plate for attaching a V-Mount or Gold Mount plate to the camera.

Specifications

Top Plate for Sony PXW-FS7 Camera
Dimensions 93.3 x 93.2 x 12.2 mm
Weight 132 g
Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500
Dimensions 5 x 15 x 15 cm
Weight 363 g
15mm Support Rod (15")
Rod Size 15 mm
Rod Length 38 cm
NATO Handle Kit (Plus, 70mm Rail)
NATO Rail Length 70 mm
Rail Mounting Distance Up to 42 mm apart
Safety Dovetail Plate (12")
Dimensions 30.5 x 6.8 x 1.3 cm
Weight 0.4 kg
UVF Mount for Sony FS7 Without Clamp
Rod Diameter 15 mm
Rod Lengths NATO Rail Rod: 12.7 cm
NATO Clamp Rod: 5.2 cm
NATO Rail Length 14 cm
Dimensions 158.8 x 145.5 x 45.4 mm
Weight 282 g
15mm Rod Clamp
Dimensions 11 x 2.5 x 1.5 cm
Weight 91 g
**Battery Slide **
Dimensions 152.4 x 114.3 x 45.7 mm
Weight 226.8 g

In The Box

  • Top Plate (FS7)
  • Unified Baseplate (Sony FS7)
  • 2 x 15mm Rod (15")
  • NATO Handle Kit (Plus, 70mm)
  • UVF Mount (FS7, No Clamp)
  • Safety Dovetail (12")
  • Rod Clamp (15mm LW)
  • Battery Slide

Reviews

0.0 (no ratings yet)

Details

  • Product: Wooden Camera Sony FS7 Unified Accessory Kit (Pro)
  • Manufacturer: Wooden Camera
  • Model: 224400
  • SKU: 224400
  • RM Product #: 50126
  • Compatible With: Sony FS7
  • Warranty: 1 year manufacturer warranty
