The Wooden Camera Unified Accessory Kit for Canon C70 includes an adjustable V-Mount battery plate for hot swapping camera power with larger brick batteries, top handle for handheld camera operation, top plate (cheese plate) for accessory attachments, 180-degree tilting hinge for mounting on-camera monitors, a quick-release baseplate system, and a 12” dovetail for easy slide-mounting on larger tripod heads. All accessories feature a variety of ¼”-20 holes, standard ARRI mounts, and standard Canon Accessory Mounts for a multitude of attachment options.
Wooden Camera Unified Accessory Kit for Canon C70 (Pro, V-Mount) has been discontinued, here are some related products you might like:

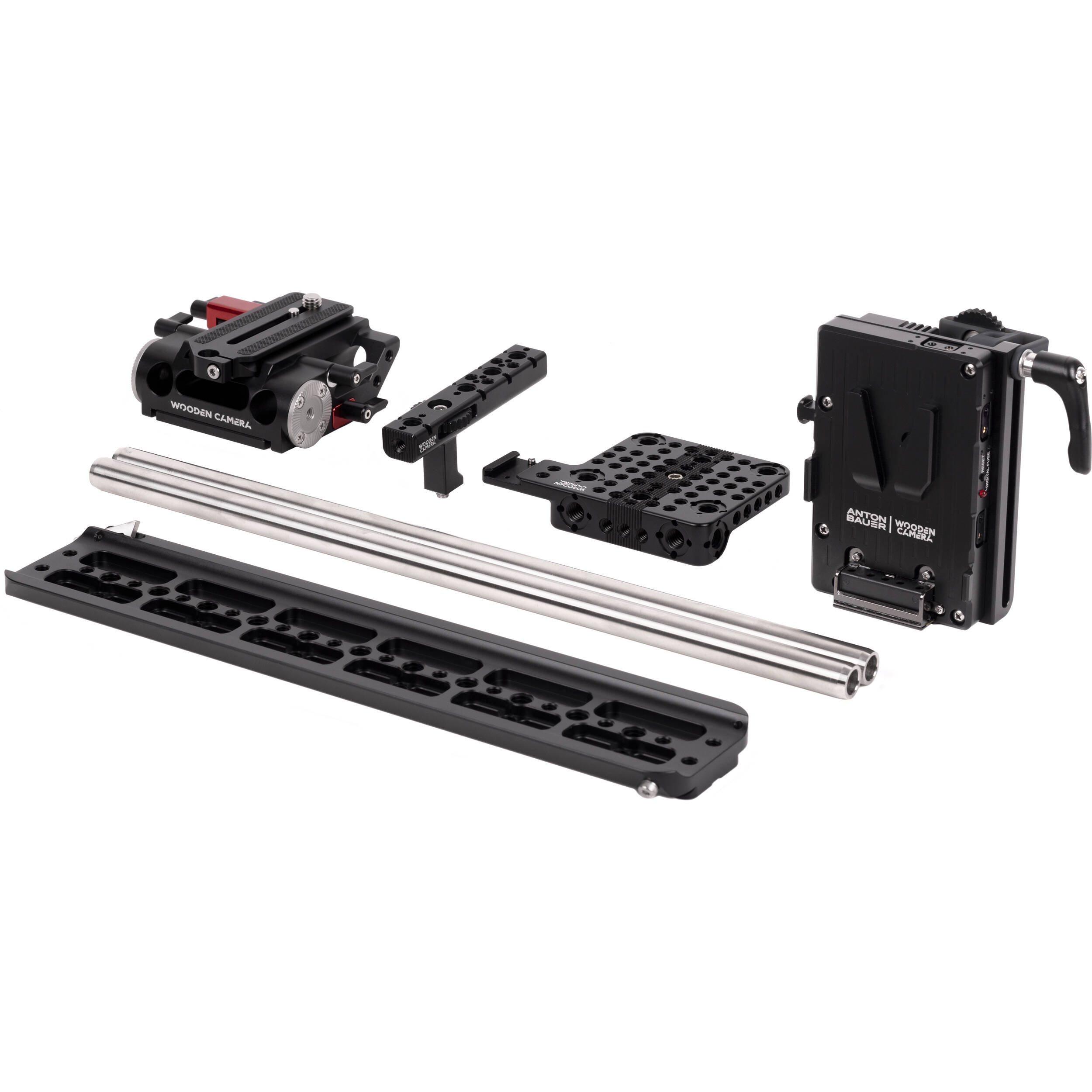

Wooden Camera Unified Accessory Kit for Canon C70 (Pro, V-Mount)
This product is no longer available
Features
- 15mm LWS Baseplate & Arca-Type QR Plate
- Top Plate, Mini Top Handle
- 2 x 12" Long 15mm Rods
- 12" Long Safety Dovetail
- V-Mount Battery Slide Pro
- Multiple Accessory Mounting Options
Description
Specifications
| Mounting | |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | Baseplate: Multiple x 1/4"-20 Thread, 1 x ARRI Anti-Twist 3/8"-16 Thread |
| Camera Mounting | Arca-Type Plate with 3/8"-16 Screw |
| Tripod Mounting | Baseplate: 1/4"-20 Thread, 3/8"-16 Thread, ARRI Dovetail, ARRI Dovetail Clamp |
| Rod Ports | Baseplate: 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | 2 x ARRI Rosette w/ M6 Thread |
| General | |
| Support Type | Baseplate, Rod Support System |
| Grip Type | None |
| Camera Compatibility | Canon EOS C70 |
| Materials | Aluminium |
| Dimensions | 4.7 x 3.5 x 1.6" / 120 x 90 x 40 mm |
| Weight | 14.1 oz / 400 g |
| Item Type | Topside Handle with Cheeseplate-Style Handle |
| Rotation | No |
| Built-In Controls | None |
| Mounting | |
| Attachment Method | Attaches via 1 x Built-In 1/4"-20 Screw |
| Accessory Mounting | 4 x 1/4"-20 Thread 4 x ARRI Anti-Twist 3/8"-16 Thread |
| Shoe Mounting | None |
| Rosettes | None |
| Rail Mounting | None |
| General | |
| Materials | Aluminium |
| Dimensions | 4.2 x 2 x 1.2" / 106.6 x 50.8 x 31.7 mm |
| Weight | 3 oz / 84 g |
| General | |
| Material of Construction | Aluminium |
| Mounting Interface | 1 x Canon Accessory Mount with 1/4"-20 Screw |
| Accessory Mounting | Multiple 1/4"-20 and 3/8"-16 ARRI-Style Accessory 1 x Shoe Mount Multiple Canon Accessory Mounts |
| Dimensions | 4.7 x 3.1 x 0.7" / 120 x 80 x 20 mm |
| Weight | 5.3 oz / 150 g |
| Dimensions | 12.0 x 2.7 x 0.5" / 30.5 x 6.8 x 1.3 cm |
| Weight | 0.9 lb / 0.4 kg |
| Power | |
| Power Output | D-Tap: VDC DC Jack: VDC |
| General | |
| Camera Power Method | Connector |
| Inputs/Outputs | 3 x D-Tap 1 x Barrel Connector |
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | 1/4"-20 Female |
| Number of Battery Bays | 1 |
| Hot-Swap Support | Yes |
| Material of Construction | Aluminium |
| Indicator | LED |
| Rod Size | 15 mm |
| Rod Length | 15" (38 cm) |
In The Box
- Wooden Camera 15mm LWS Baseplate for Canon C70
- Wooden Camera Mini Top Handle for Canon C70
- Wooden Camera Top Plate for Canon C70
- Wooden Camera Safety Dovetail Plate (12")
- Wooden Camera Battery Slide Pro for Canon C70 (V-Mount)
- Wooden Camera 15mm Support Rod (15")
Reviews
(no ratings yet)Details
- Product: Wooden Camera Unified Accessory Kit for Canon C70 (Pro, V-Mount)
- Manufacturer: Wooden Camera
- Model: 54.288900
- SKU: 54.288900
- RM Product #: 100156
- Compatible With: Canon C70
- Warranty: 1 year manufacturer warranty
