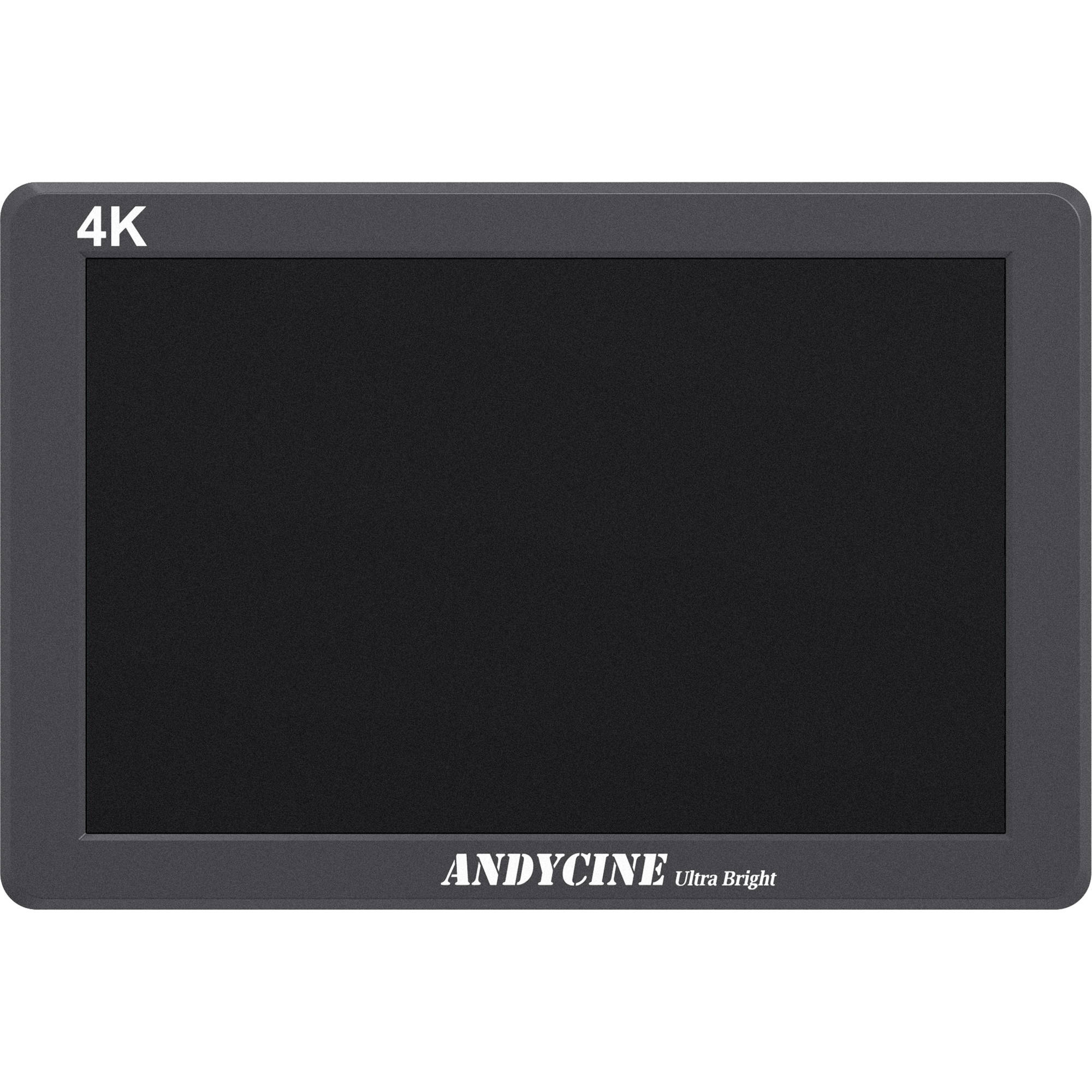

ANDYCINE X7 7" Ultra-Bright 4K HDMI Monitor

Product #103865 | SKU X7 | Andycine
Usually ships in 2 - 3 weeks what does this mean?
Our Price $629 AUD
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 7" 1920 x 1200 HDMI In/Out Monitor
  • Histogram/Focus Peaking/Zebra
  • 2200 cd/m² Brightness / 1200:1 Contrast
  • Includes Removable L-Series Plate
  • 160° Viewing Angle
  • Accepts up to DCI 4K Video

Description

High Quality with Full Rugged CNC Aluminium Housing

The ANDYCINE X7 7" Ultra-Bright 4K HDMI Monitor is a well built monitor with a full aluminium housing to protect your monitor from damage from drops and bumps from other equipment. Anti-Corrosion, Tough, Scratch-Resistant finish that will last. Constructed out of high strength aluminium material with better heat dissipation than the plastic field monitors on the market

2200nit High Brightness Meets Bright Sunlight Challenge

The ultra-bright 2200cd/m2 bright backlight makes the monitor viewable in sunny conditions. It delivers a crisp image without the bulk and viewing angle restrictions of a sun hood in a bright sunlight environment

Ideal for Pulling Focus from An HD or 4K Signal

With 1920x1200 resolution, impressive 323 PPI, 1200:1 high contrast, IPS 160 degree viewing angle, Rec.709 professional color calibration to provide a sharp image, ideal for focus pulling and image analysis on set and in the field

Lightweight, Easy to Mount with Three 1/4" Screw Mounts

Compact 7inch size and 475g (for aluminium housing) lightweight design are perfect for DSLR rig, Camcorder Kit, Handheld Stabiliser, and Video Camera Crane. THREE 1/4" screw mounts(bottom, left &right) enables the video monitor to be attached to cameras and rigs flexibly and easily

Wide Compatible for Any Camera

4K HDMI, you can connect any DSLR, prosumer or professional camera. You can monitor audio via the 3.5mm stereo headphone jack, or the built in speakers .

Specifications

Display
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:10
Viewing Angle Horizontal: 160° (80/80)
Vertical: 160° (80/80)
Touchscreen No
Maximum Brightness 2200 cd/m2
Contrast Ratio 1200:1
Dot Pitch 0.07875 x 0.07875 mm
Bit Depth / Colour Support 8-Bit (16.7 Million Colours)
HDR Compatibility None
Pixels Per Inch (ppi) 323 ppi
Colour Gamut 100% Rec. 709
Real-Time LUT Monitoring No
Image Controls Anamorphic De-Squeeze, Blue Only, Cheque Field, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, Screen Markers
Video I/O 1 x HDMI Input
1 x HDMI Output
Embedded Audio HDMI
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker 1
Power I/O 1 x Barrel (12 VDC) Input
1 x Barrel (8 VDC) Output
Media/Memory Card Slot None
Wi-Fi None
Format Support
Video Format HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i
Power
DC Input Power 7 to 24 VDC
Battery Type 1 x L-Series (Interchangeable Mount)
Power Consumption 18 W
Mounting
Mounting 3 x 1/4"-20 Female
Environmental
Operating Temperature -20 to 55°C
Storage Temperature -30 to 65°C
General
Material of Construction Aluminium, Plastic
Dimensions 180 x 120 x 22 mm
Weight 445 g
475 g, Including Battery Plate

In The Box

  • ANDYCINE X7 7" Ultra-Bright 4K HDMI Monitor
  • HDMI to Micro-HDMI Cable
  • D-Tap to DC Power Cable
  • L-Series-Type (F970) Battery Plate
  • Power Adapter (12V, 1A)
  • Carrying Case

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: ANDYCINE X7 7" Ultra-Bright 4K HDMI Monitor
  • Manufacturer: Andycine
  • Model: X7
  • SKU: X7
  • RM Product #: 103865
  • Screen Size: 7"
  • Screen Resolution: 1920 x 1200
  • Warranty: Click here for warranty terms view terms
