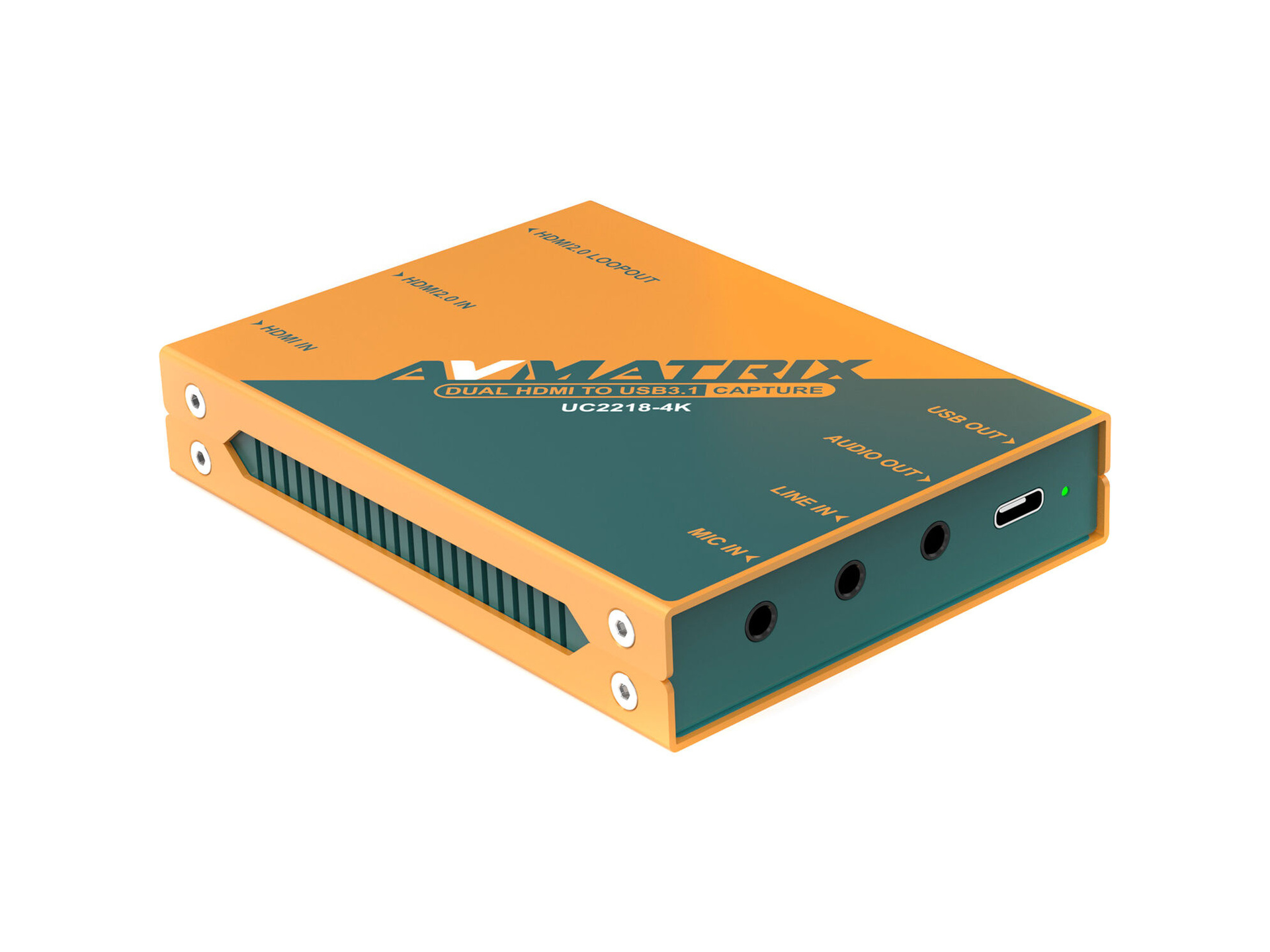

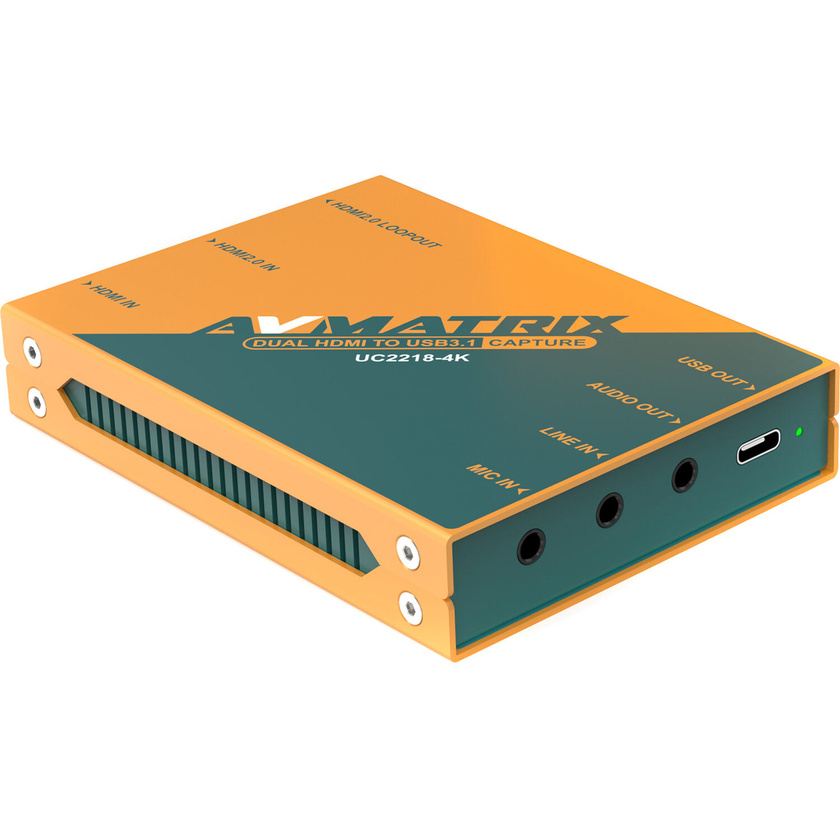

The Dual HDMI to USB-C 3.1 Gen 1 Video Capture Device offered by AVMATRIX is a device that allows for dual video signals to be transmitted to a PC, enabling seamless plug-and-play streaming. With both an HDMI 2.0 input and a standard HDMI input, it is capable of capturing both feeds simultaneously, making switching between them efficient and effective. Additionally, the device is equipped with an HDMI 2.0 output and a standard HDMI output, allowing for easy and flexible monitoring. Its extensive software support and convenient features make it a perfect solution for live video streams of various kinds.
AVMATRIX Dual HDMI to USB-C 3.1 Video Capture Device
In Stock with Supplier
Usually ships in 2 - 3 weeks
Our Price
$519
AUD
In Stock with Supplier
Usually ships in 2 - 3 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 weeks.
Deliver to
New South Wales
for $32
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
2 - 3 weeks
Click & Collect
Features
- For Streamers, Broadcast, and Business
- 4K60 Input and Loop Through via HDMI 2.0
- Up to 1440p120 or 1080p240 via HDMI 2.0
- 1080p60 Input via HDMI
- Simultaneous Capture | PIP / POP
- External MIC and Line Audio Input
Description
Specifications
| Inputs / Outputs | |
| Video Inputs | 1x HDMI (2.0) Female 1x HDMI Female |
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Stereo Female |
| Video Outputs | 1x USB-C (3.0) 1x HDMI (2.0) Female (Loop Output) |
| Audio Outputs | 1x 1/8" / 3.5 mm TRS Stereo |
| Expansion Slots | No |
| Format Support | |
| Input Video Format | HDMI DCI 4K 60 fps 1440p 144 fps 1080p 240 fps |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit |
| Output Video Format | USB-C 1080p at 60 fps WUXGA+ (1680 x 1050) at 60 fps WXGA+ (1440 x 900) at 60 fps SXGA (1280 x 1024) at 60 fps 1280 x 960 at 60 fps WXGA (1280 x 800) at 60 fps 1280 x 720 (Non-Standard WXGA) at 60 fps XGA (1024 x 768) at 60 fps SVGA (800 x 600) at 60 fps 576p at 60 fps 480p at 60 fps |
| Output Audio Format | USB Audio |
| Embedded Audio | HDMI Output: 2-Channel |
| Standards | |
| HDR Support | Not Specified by Manufacturer |
| IP Streaming | |
| Wireless | No |
| Power | |
| Power Consumption | 5.5 W |
| Environmental | |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 20 to 90% |
| General | |
| Dimensions | 4.1 x 3 x 0.7" / 104 x 75.5 x 19 mm |
| Weight | 10 oz / 284 g |
In The Box
- AVMATRIX Dual HDMI to USB-C 3.1 Video Capture Device
- USB-C to USB-A Cable
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: AVMATRIX Dual HDMI to USB-C 3.1 Video Capture Device
- Manufacturer: AVMATRIX
- Model: UC2218-4K
- SKU: UC2218-4K
- RM Product #: 114995
- Warranty: All AVMATRIX brand products come with a standard two year manufacturer warranty.
