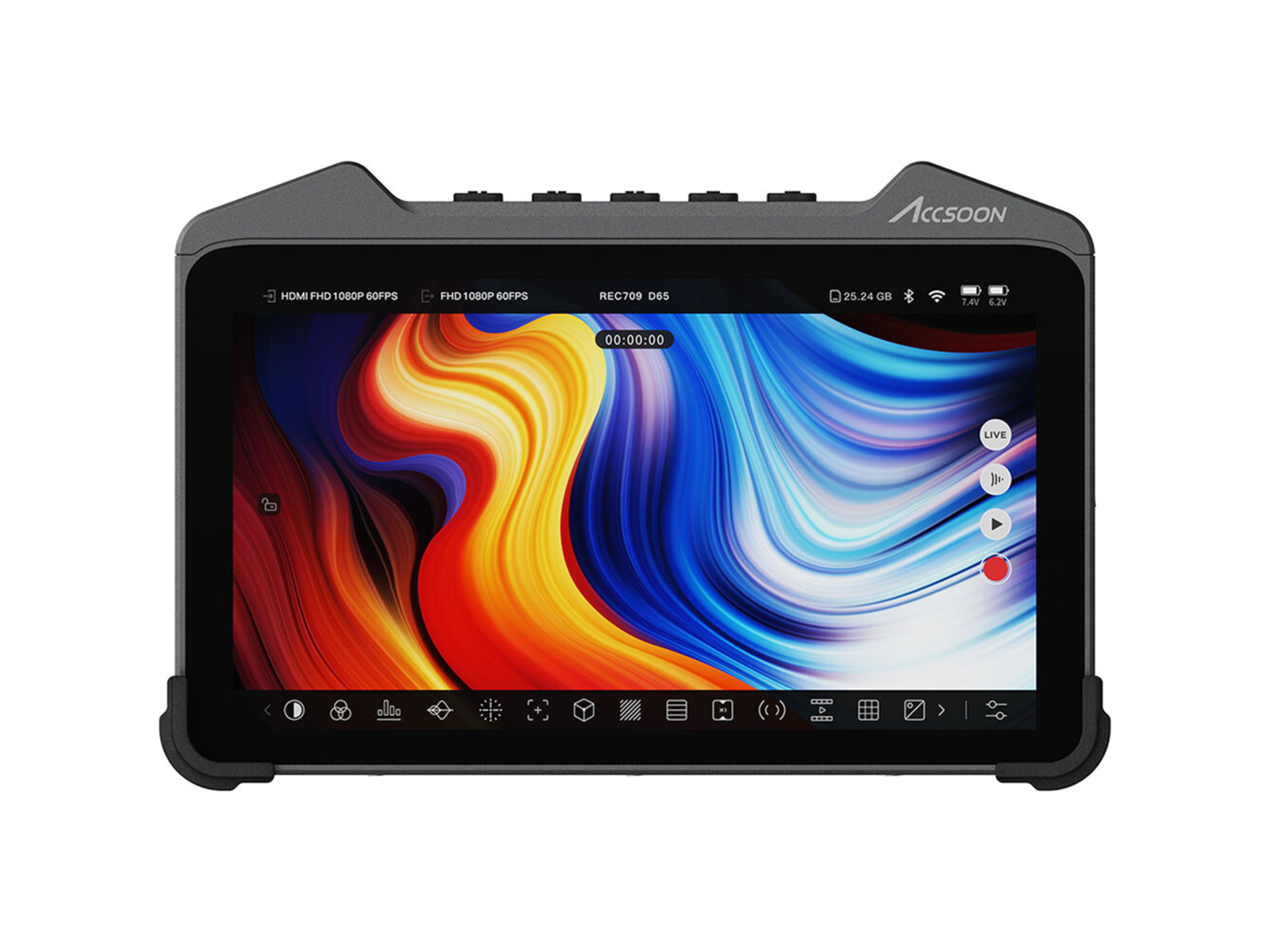

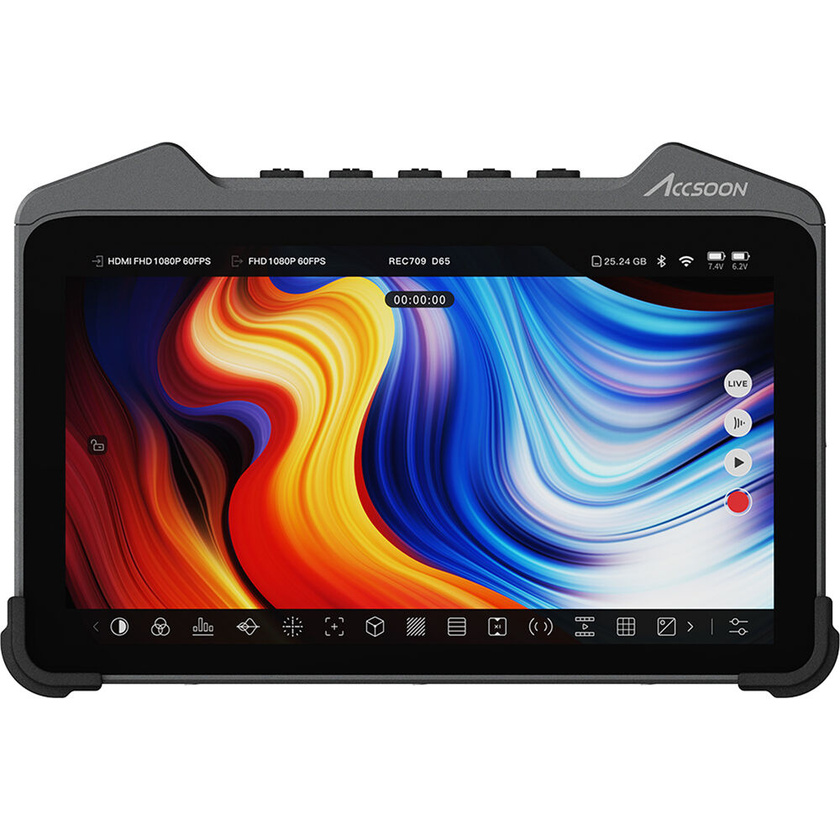

Accsoon CineView M7 7" 4K60 Recording Monitor

Name: Accsoon CineView M7 7" 4K60 Recording Monitor
Brand: Accsoon
SKU: 122249
Price: 1159.00 NZD
Availability: InStock

Product #122249 | SKU M7 | Accsoon

| Write a review

In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?

Accsoon CineView M7 7" 4K60 Recording Monitor

Our Price $1,029 AUD

In Stock with Supplier Usually ships in 2 - 4 weeks what does this mean?

Email me when stock arrives

Request price match

Talk to our experts

Shipping & Availability

Usually ships in 2 - 4 weeks. Deliver to New South Wales for $5^.90 Change location

Click & Collect

Check availability

Features

Edge-Lit 7" Multi-Touch Display
1920 x 1080 Resolution
1000 cd/m² Brightness
3G-SDI & HDMI I/O up to DCI 4K60
Up/Down & SDI to HDMI Cross Conversion
3D LUTs, Colour Grading, Image Management

Description Specifications In The Box

Description

The Accsoon CineView M7 7" 4K60 Recording Monitor is powered by 8K high-performance processors and a smart operating system, is designed to adapt to the evolving needs of modern production.

The CineView M7 delivers cinematic standard calibrated color with 127-point 3D LUT precision. Its LUT Box function enables multi-screen color consistency via SDI/HDMI outputs, revolutionizing on-set color workﬂow.

Engineered with groundbreaking architecture, CineView M7 delivers high processing ability to handle 961+ video format combinations eﬀortlessly – from 4K60 to 1080P, SDI & HDMI cross-conversion, even diﬀerent frame rate outputs

Specifications


Display
Panel Type	LCD
Display Size	7.0" / 17.8 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 176° Vertical: 176°
Touchscreen	Yes
Maximum Brightness	1000 nits / cd/m²
Contrast Ratio	1000:1
HDR Support	Yes
Colour Gamut	100% Rec. 709
LUT Support	Yes
Image Controls	False Colour, Focus Assist, Focus Peaking, Histogram, RGB Parade, Scaling, Screen Markers, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O	1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output 1 x HDMI 2.0 Input 1 x HDMI 2.0 Output
Embedded Audio	HDMI/SDI
Audio I/O	1x 1/8" / 3.5 mm Mic Input 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x Barrel 2.1 mm (16.8 VDC) Input 1x USB-C (3 A / 9 VDC) Input 1x USB-C (2 A / 5 VDC) Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [Record/LUT/Firmware]
Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI (8/10-Bit 4:4:4/4:2:2 RGB, YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50
Video Signal Conversion	SDI to HDMI
Timecode Support	Yes
Recording
Pulldown Conversion	No
Camera Trigger	No
Pre-Roll Record	No
Encoding Formats	Up to 4096 x 2160 H.264 Up to 4096 x 2160 H.265
Maximum Audio Tracks	2
Power
Input Power	6 to 16.8 VDC 9 to 15 VDC at 3 A
Battery	2x L-Series Mount on Fixed Plate
Power Consumption	12 W (Typical) 28 W (Maximum)
Mounting
Tripod/Accessory Mounting	2x 1/4"-20 Female
General
Operating Conditions	14 to 104°F / -10 to 40°C
Material of Construction	Aluminium
Dimensions	7.2 x 4.8 x 1.2" / 182.2 x 120.7 x 31.5 mm
Weight	1.1 lb / 494.3 g
