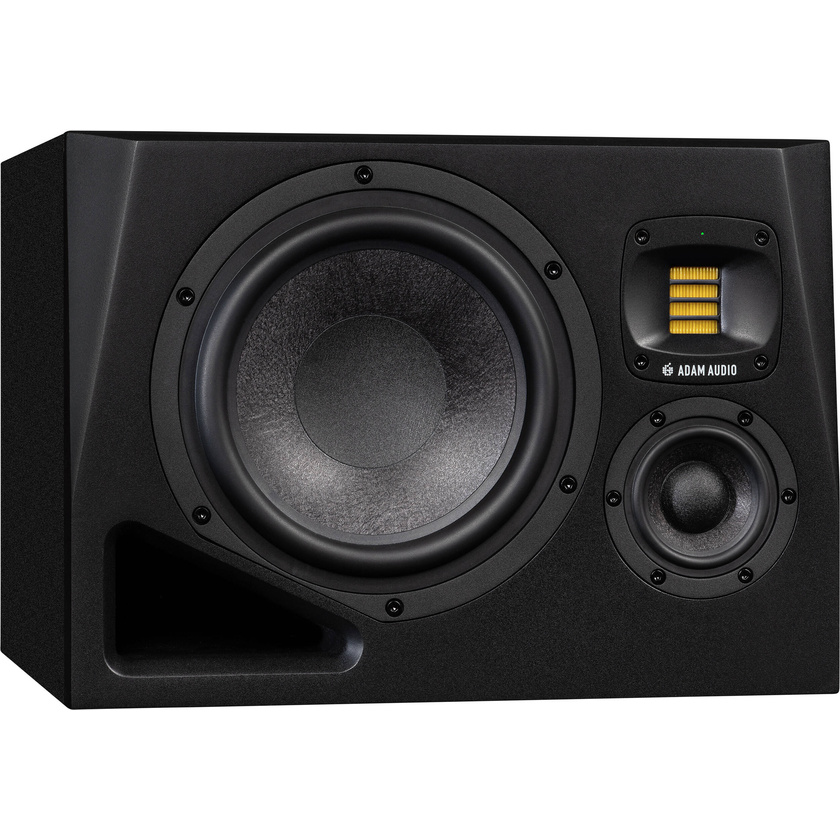

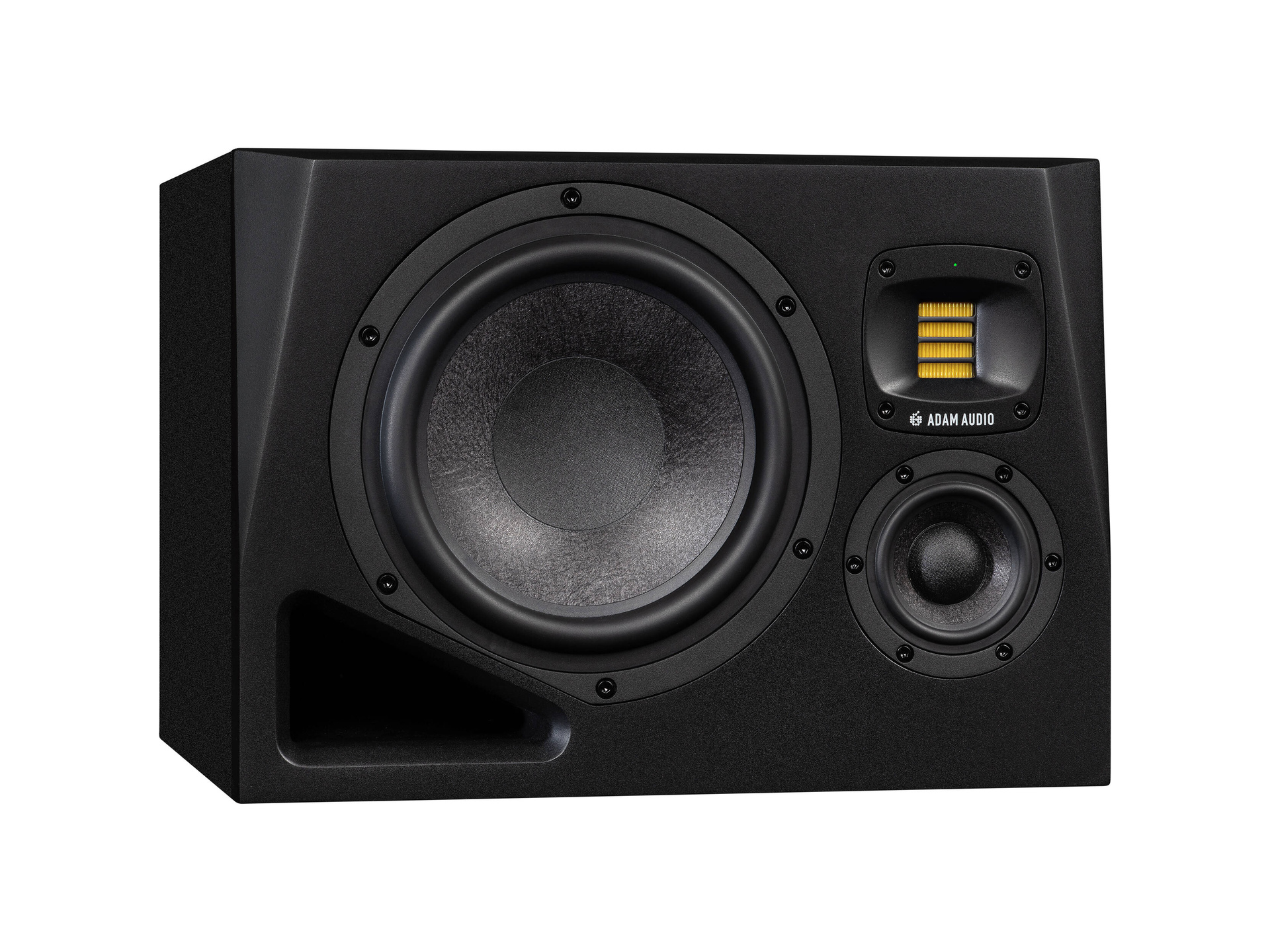

Adam Professional Audio A8H 340W 8" Active 3-Way Studio Monitor (Left)

Product #127457 | SKU A8H-L | ADAM Audio
Usually ships in 1 - 2 weeks what does this mean?
Our Price $2,439 AUD
Usually ships in 1 - 2 weeks what does this mean?
- +

Email me when stock arrives

Configuration
Left Right
Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to New South Wales for $39 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • 8" Multilayer Mineral Woofer
  • 3.5" Multilayer Midrange Driver
  • Rotatable X-ART Tweeter + HPS Waveguide
  • 250W RMS Class-D Amp for Woofers
  • 70W + 20W Class-AB Amp for Mid / X-ART
  • XLR and RCA Inputs

Description

Audio professionals who need full-range audio in mid-to-full-sized spaces will be impressed with the Adam Professional Audio A8H 340W 8" Active 3-Way Studio Monitor (Left), an extremely accurate 8" 3-way studio monitor speaker that delivers rich, spacious, and enveloping sound in critical listening environments.

Key Features

A 250W RMS Class-D amplifier powers the 8" Multilayer Mineral (MLM) woofer, while 70W + 20W Class-AB amplifiers drive the MLM midrange driver and X-ART tweeter with HPS waveguide to provide an ultrawide frequency range. The midrange driver helps produce clear sound in the most sensitive range of human hearing. The rotatable High-Frequency Propagation System (HPS) waveguide technology and onboard DSP allow you to fine-tune the speakers to your precise requirements.

Specifications

Monitor Type & Configuration Active 3-Way
Number of Included Monitors Single Monitor (Left Side)
Enclosure Bass-Reflex/Ported, Shielded
Total Power Output 340 W RMS
Drivers per Monitor
Tweeter 1x 1" / 25 mm Ribbon
Midrange 1x 3.5" / 8.9 cm Composite Cone
Voice Coil: 1.3" / 33 mm
Woofer 1x 8" / 20.3 cm Composite Cone
Voice Coil: 1.5" / 38.1 mm
Amplifiers LF: 200 W RMS / 250 W Peak Class-D
MF: 55 W RMS / 70 W Peak Class-AB
HF: 15 W RMS / 20 W Peak Class-AB
Performance
Frequency Range 31 Hz to 45 kHz ± 0 dB (-6 dB)
Frequency Response 34 Hz to 41 kHz ± 3 dB
Maximum Sound Pressure Level (SPL) 105 dB
Maximum Input Level +19 dBu
Protections and Limiting Peak Limiter, Thermal Limiting
Signal Processing
AEQ 1x HF Shelf
1x HF Notch/Peak
1x Low-Mid Notch/Peak
1x LF Shelf
Filters No
Crossover Frequency 400 Hz
3 kHz
Phase Adjustment No
App-Based Signal Processing Yes
Maximum Sampling Rate 96 kHz / 24-Bit
Connectivity
Audio I/O 1x XLR 3-Pin Balanced Line Input (9 Kilohms)
1x RCA Unbalanced Line Input (3.3 Kilohms)
Digital Audio I/O No
Network I/O 1x RJ45 Ethernet
USB No
Wireless No
Mobile App Compatible No
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
Power Consumption 500 W (Maximum)
Physical
Colour Black
Monitor Orientation Horizontal
Enclosure Material MDF
Mounting Points No
Dimensions (W x H x D) 15 x 10.8 x 13" / 38.2 x 27.4 x 32.9 cm
Weight 36.6 lb / 16.6 kg

In The Box

  • Adam Professional Audio A8H 340W 8" Active 3-Way Studio Monitor (Left)
  • Power Cable

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Adam Professional Audio A8H 340W 8" Active 3-Way Studio Monitor (Left)
  • Manufacturer: ADAM Audio
  • Model: A8H
  • SKU: A8H-L
  • RM Product #: 127457
  • Configuration: Left
