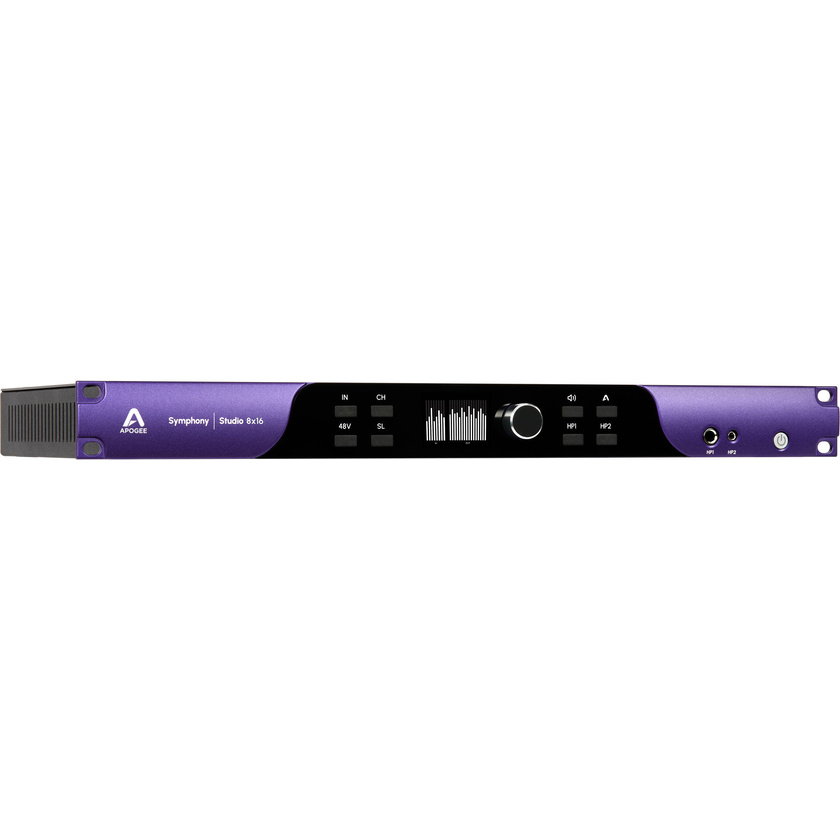

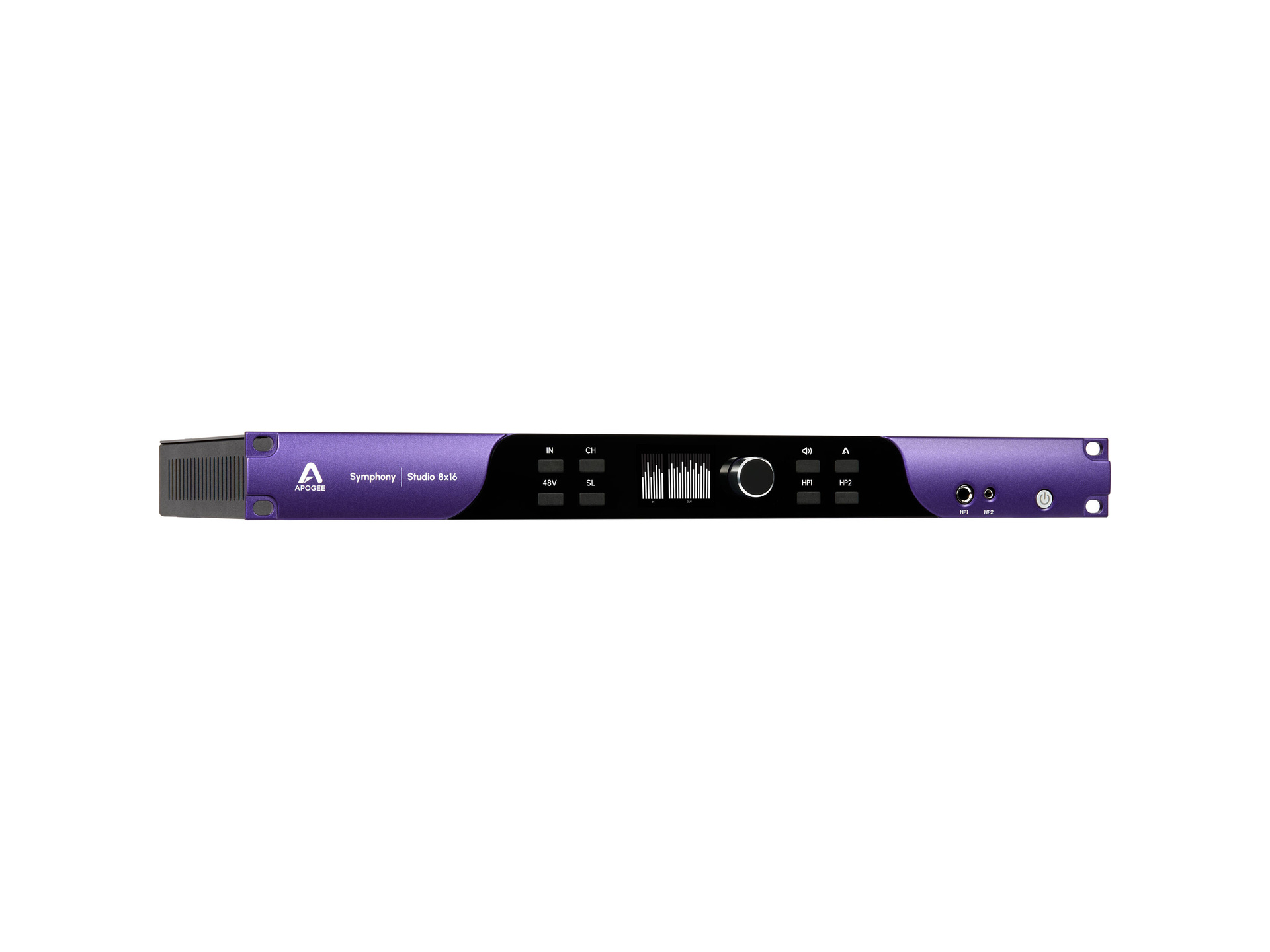

Apogee Electronics Symphony Studio 8x16 USB-C Audio Interface

Product #124094 | SKU SYMPHONY STUDIO 8X16 | Apogee
Usually ships in 2 - 3 weeks what does this mean?
Our Price $6,099 AUD
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to New South Wales for $6.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • Professional Audio Engineers & Studios
  • AC Powered, Mac/Windows
  • 8 Mic/Line In, 75 dB Preamps
  • 16 Line Out, 2 Phone Out
  • Immersive Mixing up to 9.1.6 Dolby Atmos
  • 24-Bit / 192 kHz AD/DA Conversion

Description

Engineered for producers, audio engineers, and postproduction specialists operating in professional studio environments, the Apogee Electronics Symphony Studio 8x16 USB-C Audio Interface is an 8-in / 16-out USB-C Audio Interface that brings together legendary Apogee conversion, input DSP for real-time effects during recording, Room AEQ and Bass Management, as well as support for immersive mixing formats up to 9.1.6 Atmos. This interface is designed with comprehensive connectivity in mind, offering eight highly transparent mic/line preamp inputs through XLR connectors and sixteen line outputs accessible via two DB25 ports.

Flagship-Quality Conversion

The Studio 8x16 incorporates converters from Apogee’s renowned Symphony Mk II line, delivering pristine audio fidelity with up to 24-bit / 192 kHz resolution. Its mic preamps ensure exceptional clarity, providing an impressive 75 dB of ultraclean gain to capture every detail of your source.

Versatile Monitoring and Connectivity

Equipped with two independent zero-ohm headphone outputs, the interface allows for flexible monitoring solutions for engineers and performers alike. The inclusion of a USB-C port guarantees simple, plug-and-play integration with both macOS and Windows computer systems, ensuring compatibility across a broad range of setups.

Built for Studio Excellence

The deep, extruded aluminium faceplate not only gives the Studio 8x16 a modern and sophisticated appearance, but also ensures durability suitable for the demands of professional studios. Blending top-tier performance with elegant design, this interface is built to complement any studio environment and withstand years of rigorous use.

Specifications

General
Display 1x OLED
Channels of I/O 8 Inputs / 16 Outputs
Built-In DSP No
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Inputs 8
Built-In Microphone No
Input Level Adjustment 1x Knob
Signal Processing
Pad No
Gain/Trim Range Mic Inputs:
Up to 75 dB
Line Outputs:
+4 dBu to -10 dBV (Switchable)
High-Pass Filter No
Solo/Mute No
Connectivity
Analogue Audio I/O 8x XLR 3-Pin Mic Input
1x 1/4" TRS Headphone Output (Front Panel)
1x DB-25 Balanced Line/8-Channel Output (Yamaha Pinout)
1x DB-25 Balanced Line/8-Channel Output (Yamaha Pinout)
1x 1/8" / 3.5 mm TRS Headphone Output (Front Panel)
Phantom Power 48 V
Digital Audio I/O No
Host Connection USB-C (Class-Compliant)
Host Connection Protocol No
USB (Non-Host) No
Sync I/O No
Network I/O No
MIDI I/O No
Expansion Slots No
Wireless No
Performance
Dynamic Range Outputs:
> 127 dB
EIN > 127 dB
Digital Audio
Sample Rates Up to 192 kHz
Sample Rate Conversion No
Bit Depths 24-Bit
Sync Sources Internal
Clocking Internal:
Audio Storage & Playback
Media/Memory Card Slot No
Compatibility
Mobile Device Compatibility No
Required Hardware USB-C Port
Power
Power Requirements AC Input
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 65 W
Physical
Rackmount Size 1 U

In The Box

  • Apogee Electronics Symphony Studio 8x16 USB-C Audio Interface
  • USB-C Locking Cable
  • AC Power Cable
