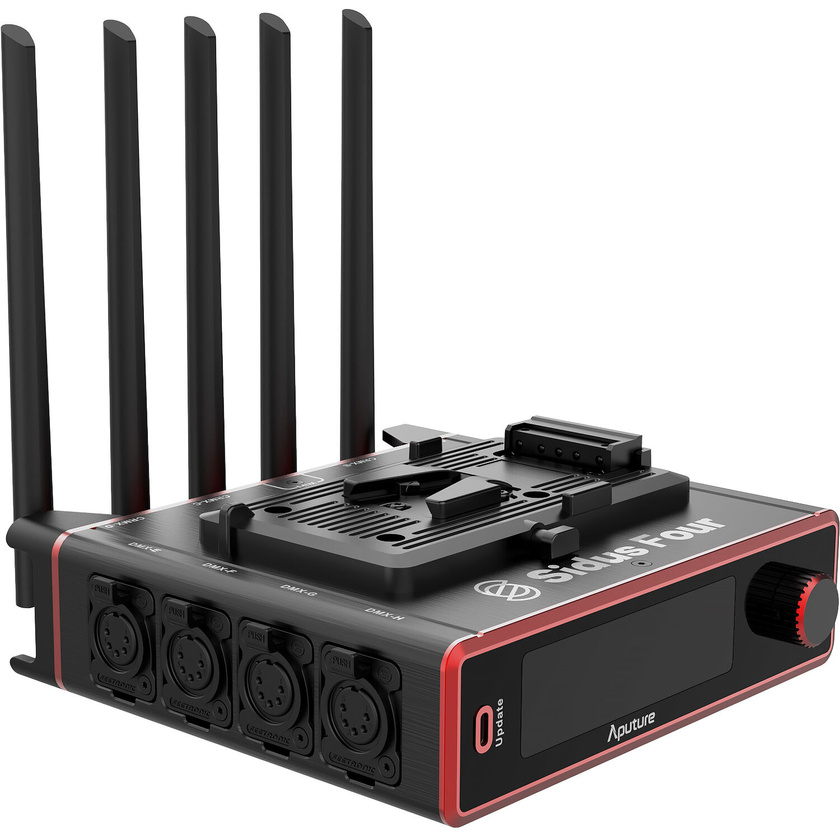

Aputure Sidus Four 4-Universe CRMX Transmitter

Product #116510 | SKU APR0317A31 | Aputure
In Stock Usually ships in 2 - 3 working days what does this mean?
Our Price $3,795 AUD
In Stock Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • Transmit to up to 8 Universes
  • Four Bidirectional Wired DMX512 Ports
  • CRMX, Sidus, Art-Nett, sACN Support
  • Built-In Wireless Router/Ethernet Node
  • 5.8 GHz over Wi-Fi; 2.4 GHz over CRMX
  • Sidus via Bluetooth

Description

Transmit control to multiple universes with the versatile Aputure Sidus Four 4-Universe CRMX Transmitter. This transmitter allows for both wired and wireless connections, supporting up to 8 universes. It features four bidirectional ports for wired connections and can also support up to four wireless outputs using various protocols such as CRMX, DMX512, Sidus, Art-Nett, and sACN. Connectivity options include Wi-Fi, Bluetooth, and Ethernet.

The Sidus Four comes with a range of useful features including a large TFT LCD display, dual band 2.4/5 GHz Wi-Fi, and a 100 Mb/s Ethernet connection. It also includes a V-mount battery plate for easy power supply and an internal 1500mAh backup battery, ensuring uninterrupted operation for up to 80 minutes. With its durable IP65-rated construction, the Sidus Four is suitable for use in any filmmaking environment.

Specifications

Key Specs
Inputs/Outputs 4x XLR 5-Pin (DMX) Female Input/Output
2x RJ45 (10/100 Ethernet) Female Input/Output
1x USB-C (Power) Female Input
1x DC Barrel (Power) Female Input
Channels 512
Wireless 5.8 GHz Radio/RF / 2.4 GHz Radio/RF / Bluetooth / ArtNet / Wireless DMX
*Built-In
Power Source Built-In Rechargeable Battery, USB Power, AC Power
Protocol ArtNet, CRMX, DMX512, sACN
General
Inputs/Outputs 4x XLR 5-Pin (DMX) Female Input/Output
2x RJ45 (10/100 Ethernet) Female Input/Output
1x USB-C (Power) Female Input
1x DC Barrel (Power) Female Input
Channels 512
Cooling System Passive
Wireless 5.8 GHz Radio/RF / 2.4 GHz Radio/RF / Bluetooth / ArtNet / Wireless DMX
*Built-In
Wireless Range 2624.7' / 800 m (Wi-Fi)
2624.7' / 800 m (CRMX)
984.3' / 300 m (Bluetooth)
Frequency 2.4 to 5.8 GHz
Power
Power Source Built-In Rechargeable Battery, USB Power, AC Power
Power Consumption 17 W
Input Power 9 VDC
Runtime 1.5 Hours
Recharge Time 3.5 Hour
Battery Chemistry Lithium-Ion Polymer (LiPo)
Battery Capacity 1500 mAh
USB Power Output 5 VDC at 2.0 A
Compatibility
Protocol ArtNet, CRMX, DMX512, sACN
Environmental
Operating Temperature -4 to 131°F / -20 to 55°C
Environmental Resistance Weather/Water-Resistant (IP65)
Physical
Dimensions 7.4 x 7.3 x 2.7" / 18.7 x 18.6 x 6.9 cm
Weight 49.4 oz / 1.4 kg

In The Box

  • Aputure Sidus Four 4-Universe CRMX Transmitter
  • Dual-Band Antenna
  • 3/8" to Baby Pin Receiver Adapter
  • 18W / 9V Power Adapter
  • Power Plug Set
  • 5-Pin XLR Male to 5-Pin XLR Male Adapter
  • Hard-Shell Case
