Expand your production studio or on-site OB truck monitoring setup with the Atomos AV-19M 19" Shogun Rackmount 4K HDR Monitor, the newest workhorse in the Atomos Shogun range of camera video monitors. This large 19" rackmount display delivers 4K monitoring on a bright capacitive touchscreen. Its hybrid onboard I/O and IP-based design supports HDMI and 12G-SDI input and output, along with NDI HX3 over Gigabit Ethernet, making it an excellent fit for cinema capture, live events, and broadcast production.

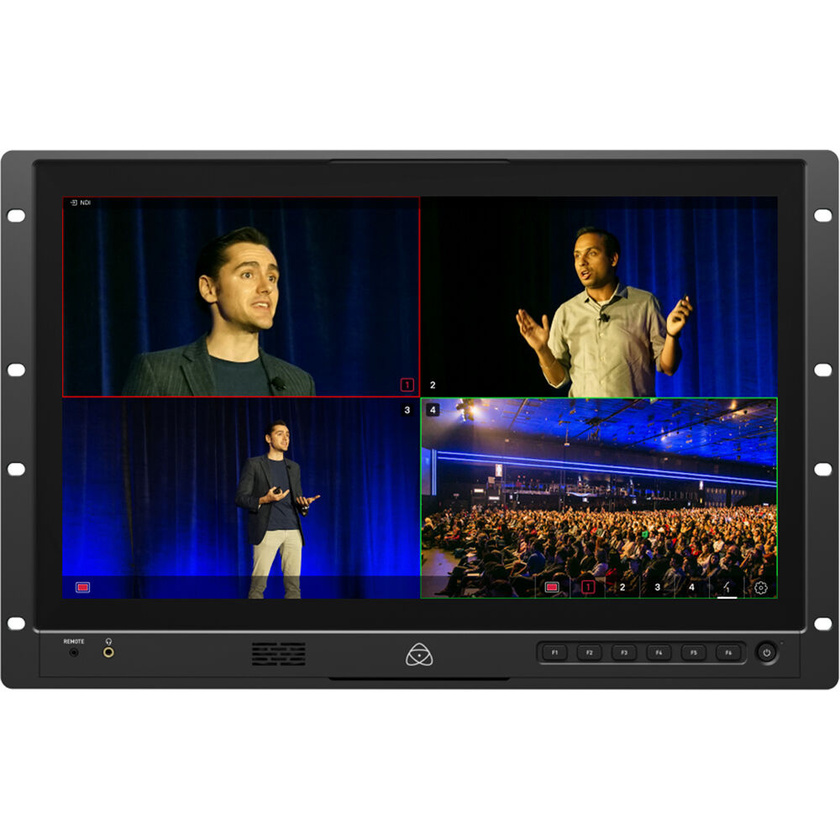

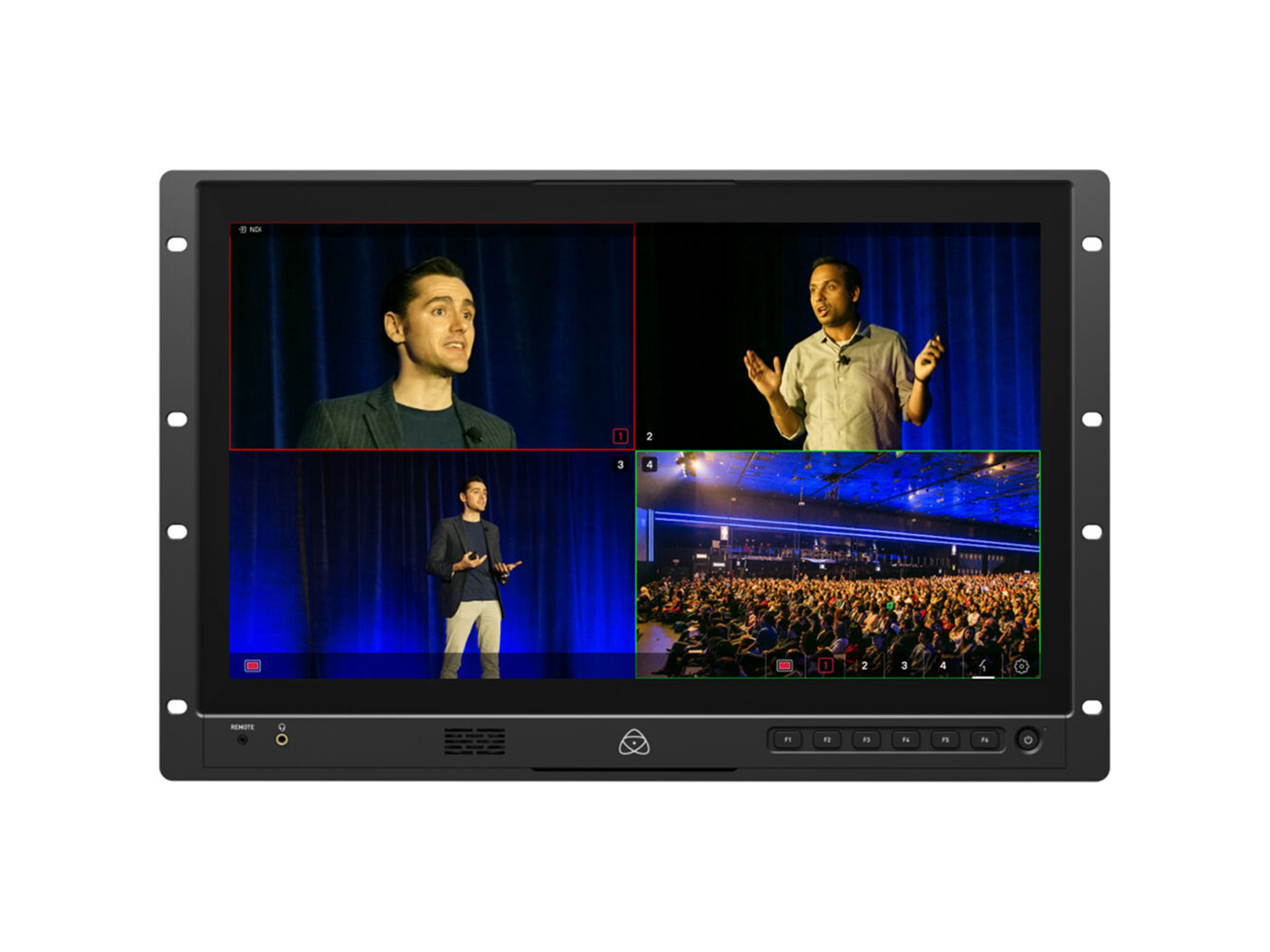

Atomos AV-19M 19" Shogun Rackmount 4K HDR Monitor
Coming Soon ETA to be confirmed
Our Price
$3,299
AUD
Coming Soon ETA to be confirmed
Email me when stock arrives
Shipping & Availability
ETA to be confirmed.
Deliver to
New South Wales
for $6.90
Change location
Click & Collect Availability
Sydney
Out of stock.
ETA to be confirmed
Click & Collect
Features
- Hybrid IP/Video Studio Monitor
- 19" 3840 x 2160 Capacitive Touchscreen
- HDMI and 12G-SDI Video I/O
- NDI HX3 Quad-View
- 1200 cd/m² Brightness
- Custom 3D LUTs, 10-Bit HDR Support
Description
Specifications
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 19.00" / 48.26 cm |
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 1200 nits / cd/m2 |
| Colour Support | 1.07 Billion Colours (10-Bit) |
| HDR Support | Yes: Hybrid Log Gamma |
| Colour Gamut | 100% Rec. 709 99% DCI-P3 87% Rec. 2020 99% NTSC |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, False Colour, Focus Peaking, Image Flip, RGB Parade, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Video I/O | 1x HDMI 2.0 Input 1x BNC (12G-SDI) Input 1x HDMI 2.0 Output 1x BNC (12G-SDI) Output 2x USB-C 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 (NDI) Input/Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 2x XLR Monitor/Line Output 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x XLR 4-Pin (16.8 VDC) Input |
| Other I/O | 1x 2.5 mm (LANC) Input/Output |
| Media/Memory Card Slot | No |
| Wireless | |
| Wireless | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI/SDI DCI 4K: 60 UHD 4K: 60 DCI 2K: 60 1080p: 120/60 1080i: 60/50 720p: 60 |
| Video Signal Conversion | HDMI to SDI SDI to HDMI |
| Power | |
| Input Power | 12 to 16.8 VDC |
| Battery | No |
| Power Consumption | 75 W |
| Mounting | |
| Rack Form Factor | 7 RU |
| General | |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40°C |
| Material of Construction | Aluminium, Plastic |
| Dimensions | 19 x 12.2 x 2.4" / 482 x 310 x 60 mm |
| Weight | 11.51 lb / 5.22 kg |
In The Box
- Atomos AV-19M 19" Shogun Rackmount 4K HDR Monitor
- 4-Pin XLR Power Supply
- IEC Power Cable Kit (5 International Plugs)
- 10 x Rackmount Nut
- 10 x Rackmount Bolt
- Cleaning Cloth
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Atomos AV-19M 19" Shogun Rackmount 4K HDR Monitor
- Manufacturer: Atomos
- Model: ATOMSHGAVM
- SKU: ATOMSHGAVM
- RM Product #: 127853
- Screen Size: 19"
- Screen Resolution: 3840 x 2160
- Warranty: 1 year manufacturer warranty view terms
