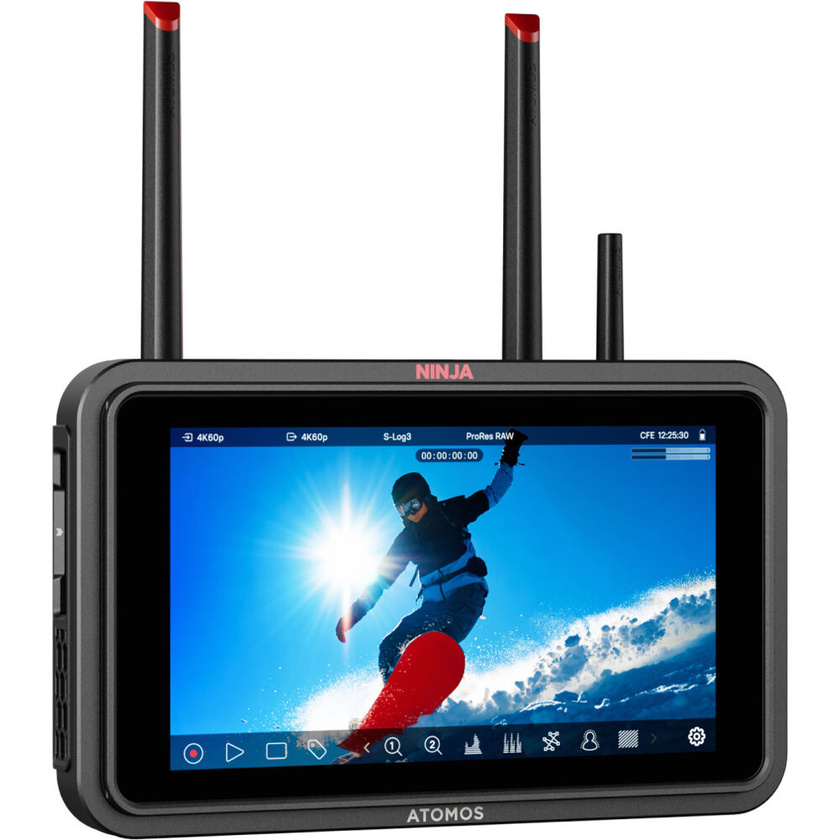

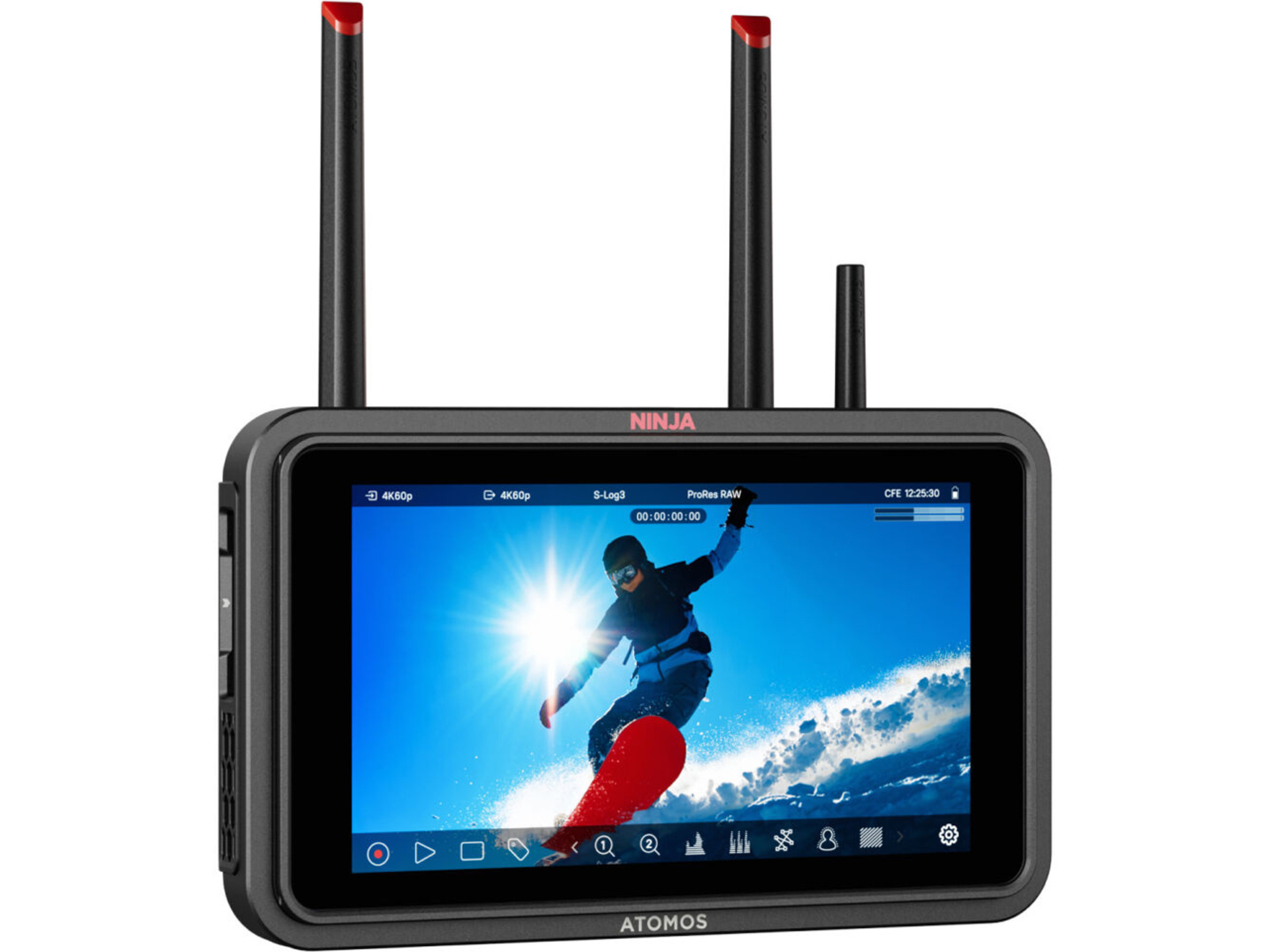

Atomos Ninja TX 5.2" Camera to Cloud Monitor/Recorder

Product #122357 | SKU ATOMNJTX01 | Atomos
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $1,699 AUD
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • 1920 x 1080 IPS Touchscreen, 4K60 I/O
  • All Codecs + NDI Licence Preloaded
  • Locking 12G-SDI/HDMI 2.0 Input/Output
  • Records to CFexpress Type B Slot, USB-C
  • 1500 cd/m² Brightness
  • Integrated Wi-Fi/TC Sync/Uploading

Description

The Atomos Ninja TX 5.2" Camera to Cloud Monitor/Recorder is equipped with 12G-SDI and HDMI, so now you can monitor & record from any pro camera to ultra-fast CFexpress media or external USB-C storage. You also get built in Wi-Fi for C2C workflows and AirGluTM timecode for multicam projects, all in a lightweight, compact 5-inch form factor.

Ninja TX combines SDI and HDMI inputs and outputs, Apple ProRes/RAW recording to ultra-fast CFexpress or external USB media, with a full suite of professional monitoring tools. It features built-in camera-to-cloud with free ATOMOSphere membership, supports NDI 6 streaming, and runs on the lightning-fast AtomOS Linux platform. No other monitor-recorder packs so much performance and compatibility into such a compact, connected device.

Features
  • Record in Apple ProRes, Avid DNx or H.265/H.264
  • Capture to CFexpress Type B or USB-C storage
  • Super-bright, 1500nit 5-inch touchscreen display
  • HDMI 2.0, 12G-SDI & Wi-Fi 6E input and output
  • Direct upload to ATOMOSphere, Frame.io, Dropbox
  • Timecode sync over RF or Bluetooth
  • Powered by USB-C, NP-F battery or AC adaptor
  • Get 20GB cloud storage FREE with ATOMOSphere

Specifications

Display
Panel Type IPS-Type LCD
Display Size 5.2" / 13.2 cm
Native Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 1500 nits / cd/m2
Colour Support 1.07 Billion Colours (8-Bit+FRC)
HDR Support Yes: Hybrid Log Gamma
Colour Gamut 100% Rec. 709
LUT Support Yes
Image Controls Anamorphic De-Squeeze, Blue Only, False Colour, Focus Peaking, Image Flip, OSD Flip, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Inputs/Outputs
Antenna I/O 3x RP-SMA
Video I/O 1 x HDMI 2.0 Input
1 x HDMI 2.0 Output
1 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Output
Embedded Audio HDMI/IP/NDI/SDI/USB
Audio I/O 1x 1/8" / 3.5 mm Input
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker No
Power I/O 1x USB-C (16.8 VDC) Input
Other I/O 2x USB-C Input/Output [Shared with Firmware/LUT Upload/Record/Power]
1x 2.5 mm (LANC) Input
Media/Memory Card Slot Single Slot: CFexpress Type B [Record/LUT/Firmware]
Wireless
Wi-Fi Wi-Fi 6E (802.11ax)
Bluetooth Yes
Mobile App Compatible Yes: iOS Only
App Name: AtomRemote
Format Support
Video Format HDMI (8/10/16-Bit 4:2:2)
8K Raw: 30
6K Raw: 60
3.5K Raw: 60
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 60/59.94/50
720p: 60/59.94/50
Video Signal Conversion HDMI to SDI

SDI to HDMI
Audio Format 24-Bit
Wireless Video Compression Compressed
Timecode Support Yes
Recording
Pulldown Conversion 2:2, 3:2
Camera Trigger SDI, HDMI
Pre-Roll Record Full HD: 8 Seconds
4K: 2 Seconds
Encoding Formats x
DNxHD 36, 145, 220x
DNxHR HQ, HQX, LB, SQ
ProRes 422, 422 HQ, LT, Raw, Raw HQ
H.265 420, 422, HQ, LQ, MQ
Maximum Audio Tracks 8
Metadata Tagging Yes
Reference Input No
Power
Input Power 6.2 to 16.8 VDC
Battery 1x L-Series Mount on Fixed Plate
Power Consumption 30 W
Mounting
Tripod/Accessory Mounting 1x ARRI Anti-Twist 1/4"-20
2x 3/8"-16 Female
General
Operating Conditions Up to 104°F / 40.0°C
Material of Construction Aluminium, Plastic
Dimensions 5.9 x 3.6 x 1.4" / 151 x 92 x 36 mm
Weight 14.1 oz / 400.00 g

In The Box

  • Atomos Ninja TX 5.2" Camera to Cloud Monitor/Recorder
  • USB-C Locking Cable Adapter
  • HDMI Locking Cable Adapter
  • Antenna Tip Set (Black, White, Yellow, Green, Red)
  • AirGlu Antenna
  • Antenna Cap Set
  • USB-C PD Locking Cable (17.7")
