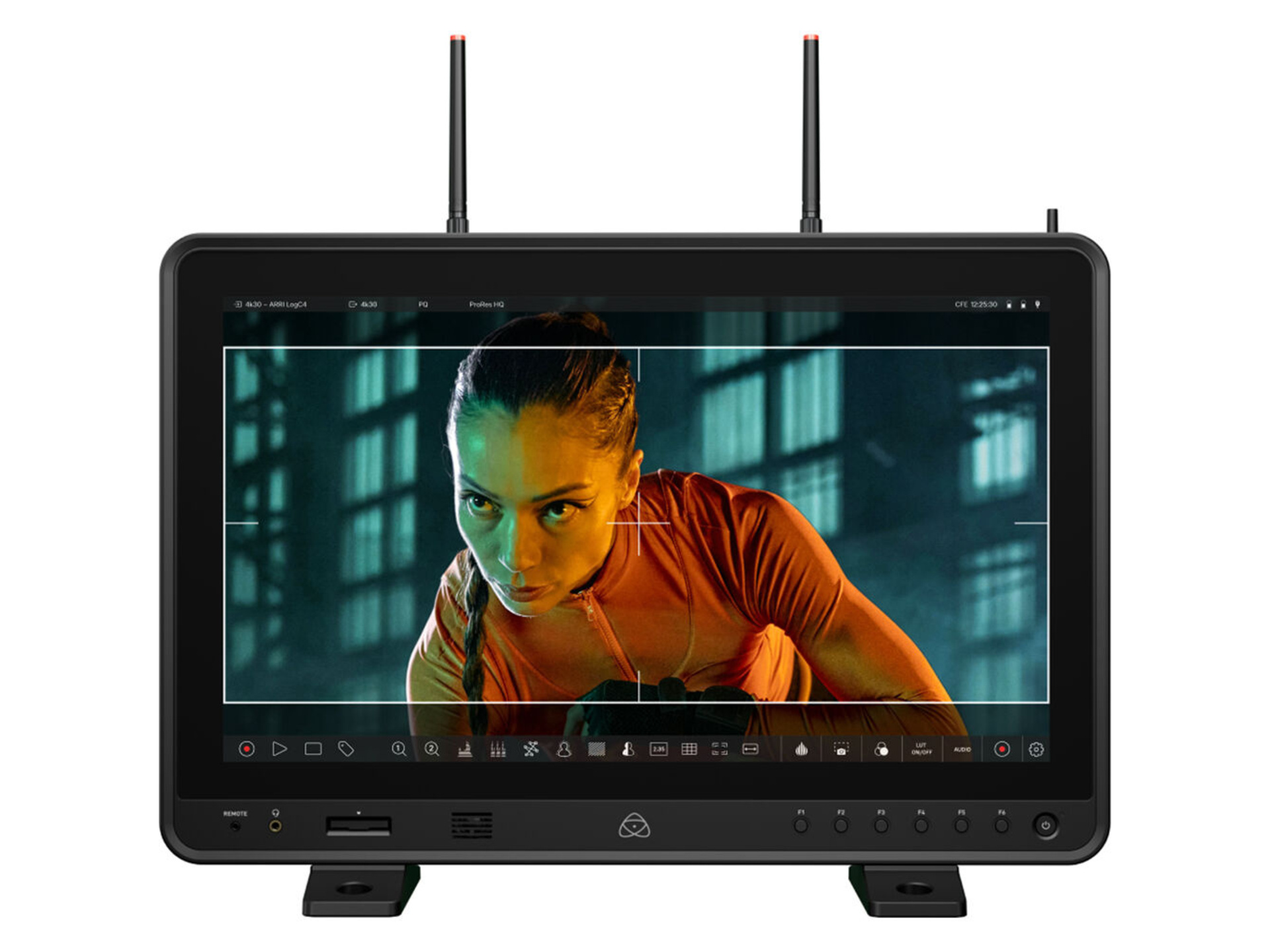

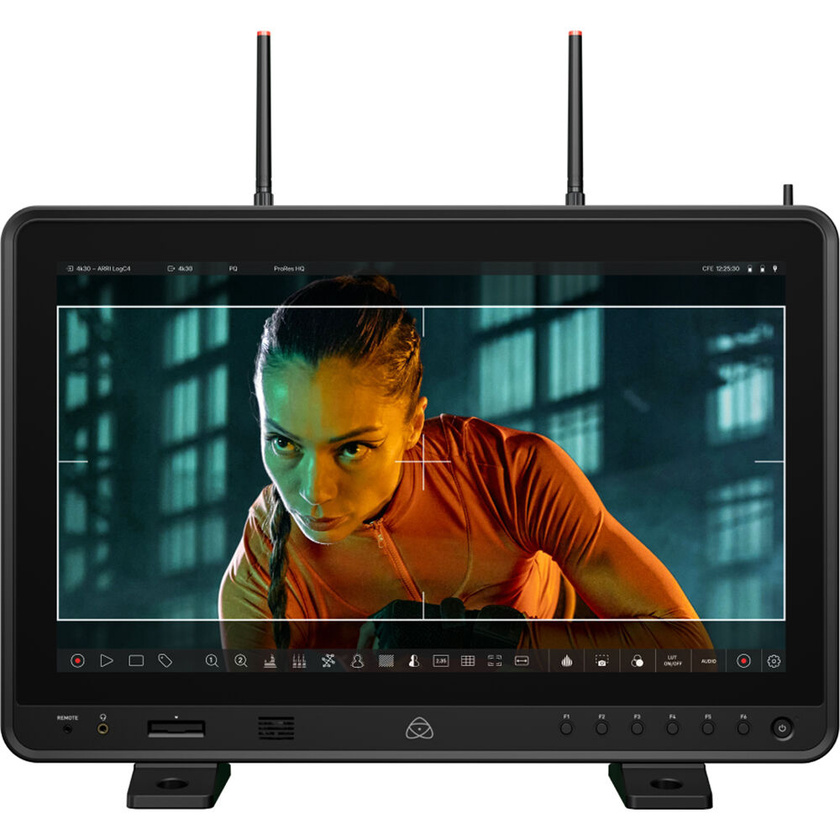

Atomos Sumo PRO-19 4K HDR Monitor Recorder Switcher

Product #125545 | SKU ATOMSMPR19 | Atomos
Coming Soon ETA to be confirmed
NEW
Our Price $4,149 AUD
Coming Soon ETA to be confirmed
NEW
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to New South Wales for $6.90 Change location
Click & Collect Availability
Sydney Out of stock. ETA to be confirmed
Click & Collect

Features

  • 3840 x 2160 HDR Touchscreen Display
  • HDMI 2.0 and 12G-SDI Inputs/Outputs
  • CFexpress Type B Slot, USB-C Recording
  • Quad-Split or Switch between 4 Inputs
  • 1200 cd/m² Brightness, High Bright Mode
  • Record ProRes 12-Bit, Raw, or DNx

Description

Featuring a spacious, luminous, and colour-accurate 19" HDR display along with advanced 4K recording functions, the Atomos Sumo PRO-19 4K HDR Monitor Recorder Switcher is designed to enhance professional video workflows across both production and post-production environments.

HDR and Colour Accuracy

The Sumo's high dynamic range technology empowers cinematographers to capture and appreciate a broader span of their cinema camera’s dynamic range, particularly when shooting in log or raw modes. This results in more vibrant, realistic imagery while preserving the subtle details in shadows and highlights.

Multicamera Operations

Offering more than just monitoring, the Sumo PRO-194K provides the ability to view all incoming video feeds simultaneously. Its built-in switching and recording capabilities make it ideal for complex multicamera projects, enabling seamless transitions between sources and synchronized recording for efficient post-production.

Streamlined Workflow Integration

Designed to fit seamlessly into demanding professional environments, this monitor-recorder-switcher supports a wide array of video production needs, ensuring that image integrity is maintained from acquisition to final output. With its robust feature set, the Sumo PRO-194K stands as a versatile tool for high-end video creation.

Specifications

Display
Panel Type IPS-Type LCD
Display Size 19.00" / 48.3 cm
Native Resolution 3840 x 2160
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 1200 nits / cd/m2
Colour Support 1.07 Billion Colours (8-Bit+FRC)
HDR Support Yes
Colour Gamut 100% Rec. 709
99% DCI-P3
99% NTSC
87% Rec. 2020
LUT Support Yes
Image Controls Anamorphic De-Squeeze, False Colour, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O 2x BNC (12G-SDI) Input
2x BNC (3G-SDI) Input
1x BNC (12G-SDI) Output
1x HDMI 2.0 Input
1x HDMI 2.0 Output
2x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Embedded Audio HDMI: 8-Channel
SDI: 12-Channel
Audio I/O 2x XLR Input
2x XLR Output
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker No
Power I/O 1x XLR 4-Pin Input
Other I/O 1x BNC (LTC) Input
1x 2.5 mm (LANC) Input
1x RJ45 (Gigabit Ethernet) Input/Output
Media/Memory Card Slot Single Slot: CFexpress Type B [Record/LUT/Firmware]
Wireless
Wi-Fi Wi-Fi 6E (802.11ax)
Bluetooth Yes
Mobile App Compatible No
Format Support
Video Format SDI (8/10-Bit 4:2:2)
8K Raw: 30
6K Raw: 30
4K Raw: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
2K Raw: 240/120/60/50/30/25/24
1080p: 120/60/50/30/25/24
1080i: 60/50
720p: 60/50
HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/60/50/30/25/24
1080i: 60/50
720p: 60/50
Video Signal Conversion HDMI to SDI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/60/50/30/25/24
1080i: 60/50
720p: 60/50
SDI to HDMI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/60/50/30/25/24
1080i: 60/50
720p: 60/50
Timecode Support Yes
Recording
Pulldown Conversion 2:2, 3:2
Camera Trigger SDI, HDMI
Pre-Roll Record Full HD: 8 Seconds
4K: 2 Seconds
Encoding Formats Up to 4096 x 2160
ProRes 422, 422 HQ, HQ, LT, Raw, Raw HQ at up to 60 fps
DNxHD 36, 145, 220x at up to 60 fps
DNxHR HQ, HQX, LB, SQ at up to 60 fps
H.265 HQ, LQ, MQ, SQ 8/10-Bit at up to 60 fps
Maximum Audio Tracks 12
Phantom Power +48 V
Power
Input Power 12 to 16 VDC
Battery Interchangeable Mount (No Plate Included)
Power Consumption 75 W
Mounting
VESA Mounting-Hole Pattern 100 x 100 mm
Tripod/Accessory Mounting Top
4x 1/4"-20 Female
2x 3/8"-16 Female
Bottom
6x 1/4"-20 Female
3x 3/8"-16 Female
Right
4x 1/4"-20 Female
2x 3/8"-16 Female
Left
2x 1/4"-20 Female
1x 3/8"-16 Female
General
Operating Conditions 32 to 104°F / 0 to 40°C
Material of Construction Aluminium, Plastic
Dimensions 18.7 x 12.4 x 2.4" / 47.4 x 31.5 x 6.2 cm
Weight 15.7 lb / 7.1 kg

In The Box

  • Atomos Sumo PRO-19 4K HDR Monitor Recorder Switcher
  • 4-Pin XLR Power Supply
  • Antenna Tip Set (Black, White, Yellow, Green, Red)
  • 2 x Wi-Fi Antenna
  • AirGlu Antenna
  • 3 x Antenna Cap
  • Desktop Feet Set
  • Hex Wrench
  • Cleaning Cloth
  • Screw Set

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Atomos Sumo PRO-19 4K HDR Monitor Recorder Switcher
  • Manufacturer: Atomos
  • Model: SUMO PRO-19
  • SKU: ATOMSMPR19
  • RM Product #: 125545
  • Screen Size: 19"
  • Screen Resolution: 3840 x 2160
  • Warranty: 1 year manufacturer warranty view terms
