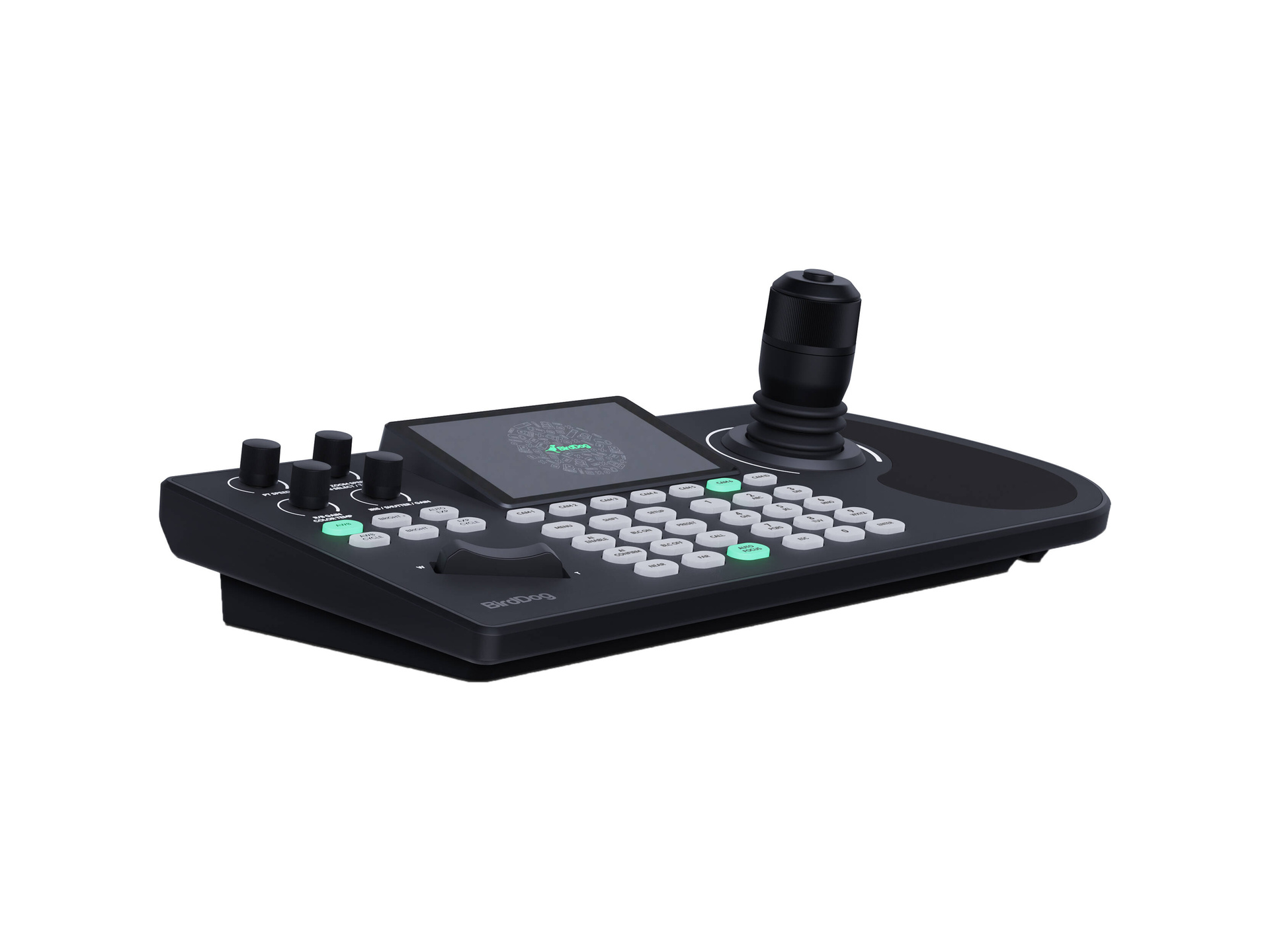

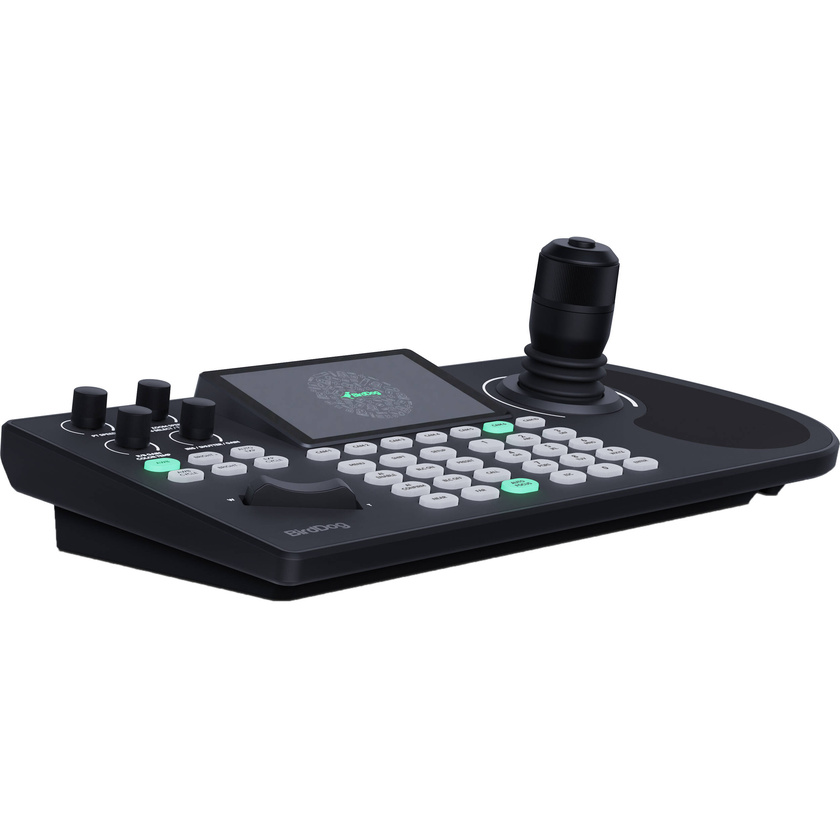

The BirdDog KBD PTZ Controller with Integrated Screen offers PTZ camera operators a rugged, ergonomic design, a large multi-camera display, and direct access to essential functions. With a built-in tally display and physical feedback for camera switching, it’s intuitive and eco-friendly, made with Ocean-Bound Plastics and recyclable Aircraft-grade Aluminum. NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity ensure versatility no matter what language you speak.
BirdDog KBD PTZ Controller with Integrated Screen
Coming Soon
Estimated to ship March
Our Price
$2,419
AUD
Coming Soon
Estimated to ship March
Email me when stock arrives
Shipping & Availability
Estimated to ship March.
Deliver to
New South Wales
for $6.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Estimated to ship March
Click & Collect
Features
- PTZ Controller with 1280 x 720 Display
- Monitor up to 4 Cameras Simultaneously
- Effortless Camera Settings Sync
- NDI|HX2 & NDI|HX3 Support
- Integrated Tally Borders
- Streamlined Access
Description
Specifications
| General | |
| Number of Supported Cameras | 255 Channels via IP |
| Supported Control Protocols | IP NDI NDI/HX2 NDI/HX3 ONVIF Pelco-D Pelco-P RS-232 RS-422 VISCA |
| IP Streaming | NDIHX, ONVIF: UHD 4K |
| Control I/O | 1x D-Sub 9-Pin (RS-232) Input/Output 1x Phoenix (RS-422) Input/Output 1x RJ45 (IP Control, LAN) Input/Output |
| Other I/O | 1x USB-A Input/Output |
| Controls | 1x 3-Axis, Pan/Tilt, Programmable, Multifunction, Auto-Focus, Manual-Focus, Camera Movement Speed, Focus Speed, White Balance Joystick Focus, Auto-Focus, Manual-Focus, Gain, Camera Selection, Preset Selection, Menu Buttons |
| Presets | 255 via IP, RS-232, VISCA, Pelco-P, Pelco-D |
| Display | |
| Native Resolution | 1280 x 720 |
| Touchscreen | No |
| Power | |
| PoE Support | PoE 802.3af |
| Power Connectors | 1x Barrel / Coaxial |
| Power Consumption | ≤5 W |
| Input Power | 12 VDC |
| Physical | |
| Operating Conditions | 14 to 130°F / -10 to 54°C at 20 to 80% Humidity |
| Storage Conditions | 14 to 130°F / -10 to 54°C at 0 to 90% Humidity |
| Security Lock Support | No |
| Dimensions | 14.8 x 7 x 4.6" / 377 x 177 x 118 mm |
In The Box
- BirdDog KBD PTZ Controller with Integrated Screen
