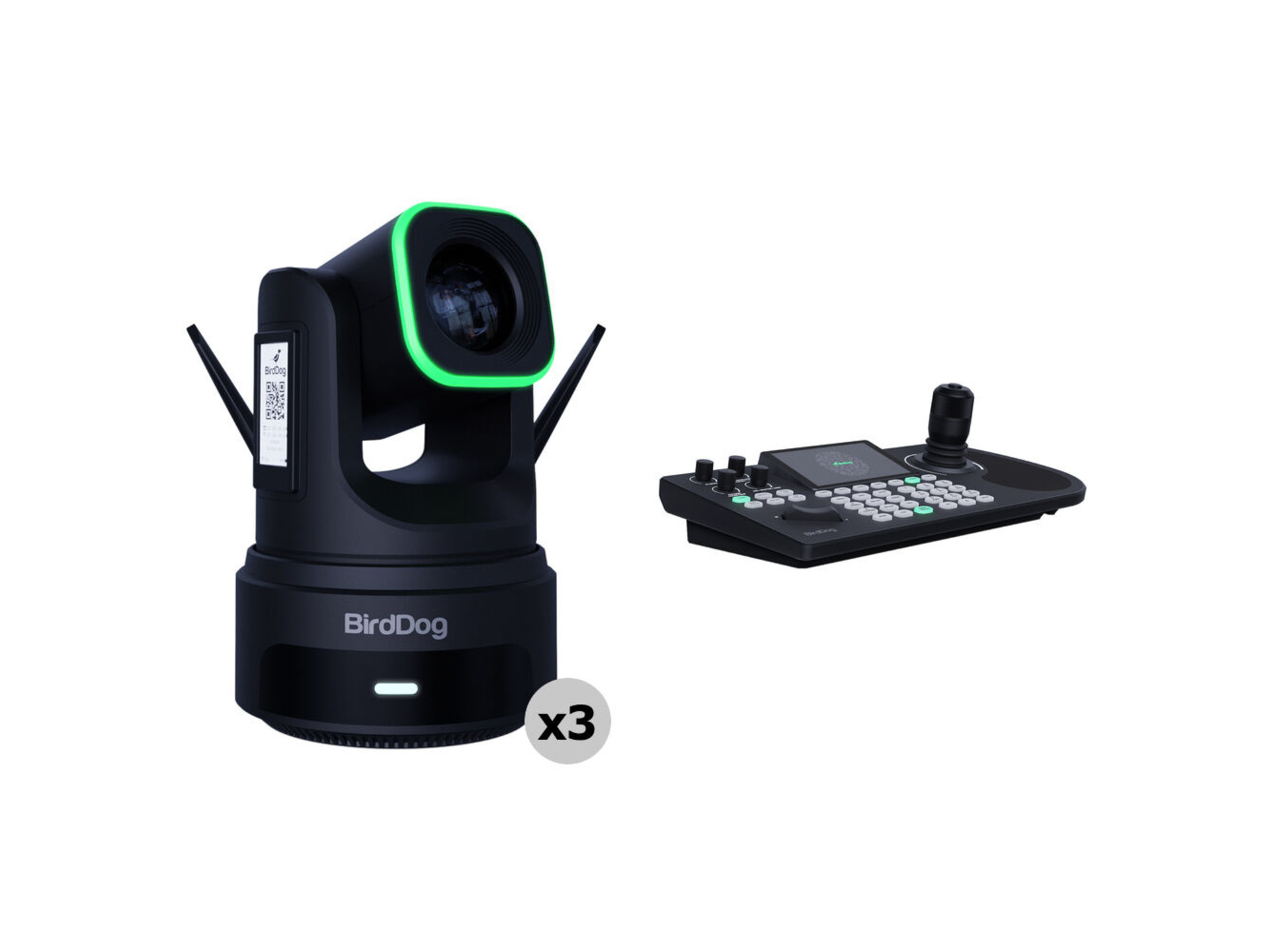

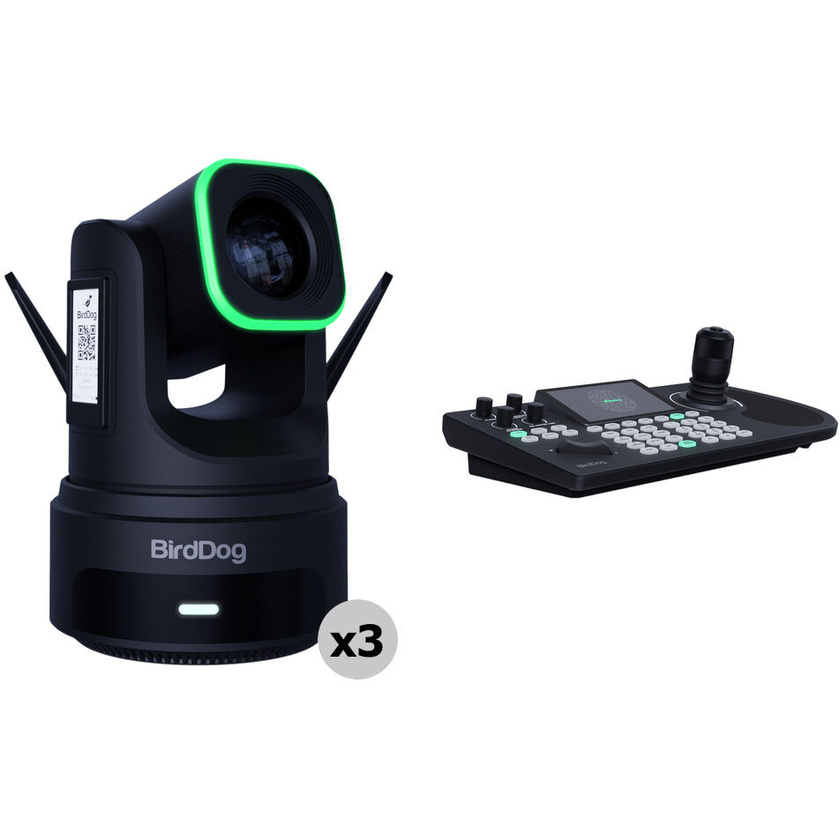

| BirdDog X4 Ultra 4K PTZ Camera with AI Tracking (Black) |
|
|
|
| Imaging |
|
|
|
| Image Sensor |
1/1.8"-Type CMOS |
|
|
| Horizontal Resolution (TV Lines) |
2160 TV Lines |
|
|
| Effective Sensor Resolution |
8.42 Megapixel |
|
|
| Focus Control |
Autofocus
Manual Focus |
|
|
| Exposure Control |
|
|
|
| Shutter Speed |
1/10000 to 1 Second |
|
|
| Signal-to-Noise Ratio |
45 dB |
|
|
| Lens |
|
|
|
| Focal Length |
6.25 to 125mm |
|
|
| Max Optical Zoom |
20x |
|
|
| Field of View |
Horizontal: 60 to 3.5°
Vertical: 35 to 2°
Diagonal: 66.6 to 4° |
|
|
| Maximum Aperture |
f/1.58 to 3.95 |
|
|
| Video Capture |
|
|
|
| Video Output |
via HDMI / RJ45 / USB
3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 59.94/60.00 fps
via SDI/BNC
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 59.94/60.00 fps |
|
|
| Embedded Audio |
HDMI/LAN (RJ45)/NDI/SDI/USB/Wireless/NDI |
HX2 |
|
| Internal Recording |
No |
|
|
| Broadcast Output |
NTSC/PAL |
|
|
| IP Streaming |
NDI HX2/NDI HX3/RTMP/RTSP/SRT
3840 x 2160 at 25p, 29.97p, 30p, 50p, 59.94i, 59.94p, 60p |
|
|
| Control |
|
|
|
| Presets |
255 |
|
|
| Pan/Tilt |
Pan: 340° (-170 to 170°) at 1.7 to 80°/s
Tilt: 120° (-30 to 90°) at 1.7 to 60°/s |
|
|
| Tally Light |
Yes |
|
|
| Networking |
|
|
|
| Wireless |
Wi-Fi 6 (802.11ax) / IR |
|
|
| Interface |
|
|
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output
1x USB-C Output |
|
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input on Camera Body
1x 1/8" / 3.5 mm TRS Stereo Line Output on Camera Body |
|
|
| Other I/O |
1x RJ45 (Ethernet)
1x RJ45 (RS-232) Control |
|
|
| Built-In Microphone |
No |
|
|
| Power |
|
|
|
| PoE Support |
Yes: PoE+ 802.3at |
|
|
| Power I/O |
1x Barrel (12VDC at 5 A) Input |
|
|
| Environmental |
|
|
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity |
|
|
| General |
|
|
|
| Dimensions (W x H x D) |
8 x 7.4 x 5.5" / 203.2 x 188.9 x 140.2 mm |
|
|
| Weight |
4.83 lb / 2.19 kg (Body Only) |
|
|
| BirdDog KBD PTZ Controller with Integrated Screen |
|
|
|
| General |
|
|
|
| Number of Supported Cameras |
255 Channels via IP |
|
|
| Supported Control Protocols |
IP
NDI
NDI |
HX2
NDI |
HX3
ONVIF
Pelco-D
Pelco-P
RS-232
RS-422
VISCA |
| IP Streaming |
NDIHX, ONVIF: UHD 4K |
|
|
| Control I/O |
1x D-Sub 9-Pin (RS-232) Input/Output
1x Phoenix (RS-422) Input/Output
1x RJ45 (IP Control, LAN) Input/Output |
|
|
| Other I/O |
1x USB-A Input/Output |
|
|
| Controls |
1x 3-Axis, Pan/Tilt, Programmable, Multifunction, Auto-Focus, Manual-Focus, Camera Movement Speed, Focus Speed, White Balance Joystick
Focus, Auto-Focus, Manual-Focus, Gain, Camera Selection, Preset Selection, Menu Buttons |
|
|
| Presets |
255 via IP, RS-232, VISCA, Pelco-P, Pelco-D |
|
|
| Display |
|
|
|
| Native Resolution |
1280 x 720 |
|
|
| Touchscreen |
No |
|
|
| Power |
|
|
|
| PoE Support |
Yes: PoE 802.3af |
|
|
| Power Connectors |
1x Barrel / Coaxial |
|
|
| Power Consumption |
≤5 W |
|
|
| Input Power |
12 VDC |
|
|
| Physical |
|
|
|
| Operating Conditions |
14 to 130°F / -10 to 54°C at 20 to 80% Humidity |
|
|
| Storage Conditions |
14 to 130°F / -10 to 54°C at 0 to 90% Humidity |
|
|
| Security Lock Support |
No |
|
|
| Dimensions |
14.8 x 7 x 4.6" / 377 x 177 x 118 mm |
|
|
