Convert your 12G-SDI broadcast equipment to meet SMPTE-2110 standards using the Blackmagic 2110 IP Converter 4x12G PWR. This convertor facilitates bidirectional video conversion from 12G-SDI to SMPTE-2110 IP, and allows connectivity with up to four Studio 6K Pro cameras through its 10G Ethernet connections, with a dedicated 12G-SDI input for each connection. Additionally, it offers power supply through each 10G Ethernet connection and features a 1 RU design that can be easily installed in a standard studio rack, including a 12G-SDI return input.

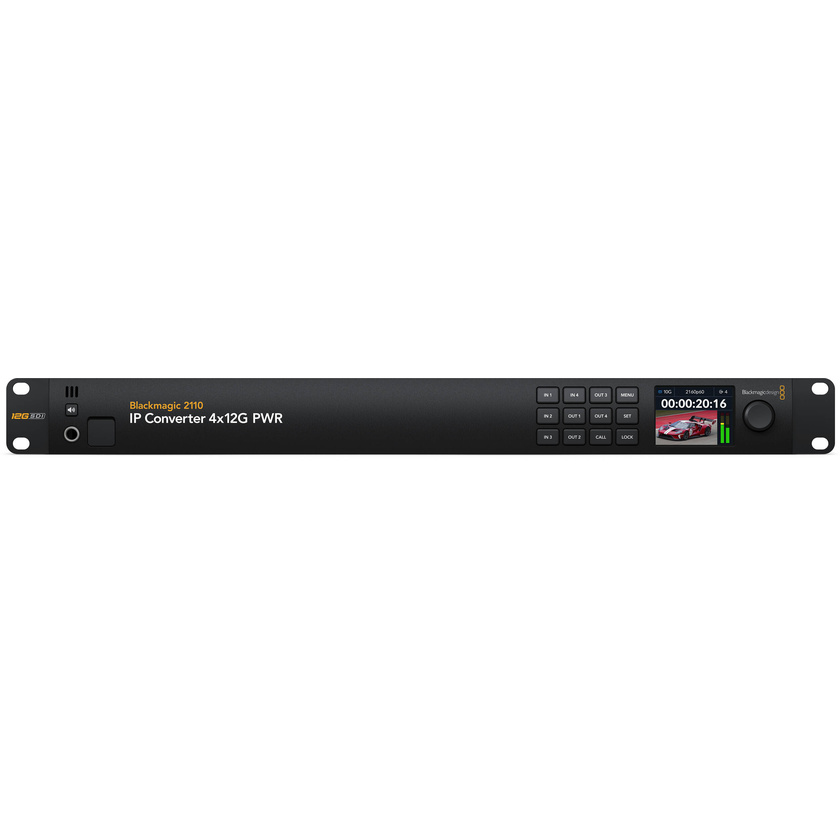

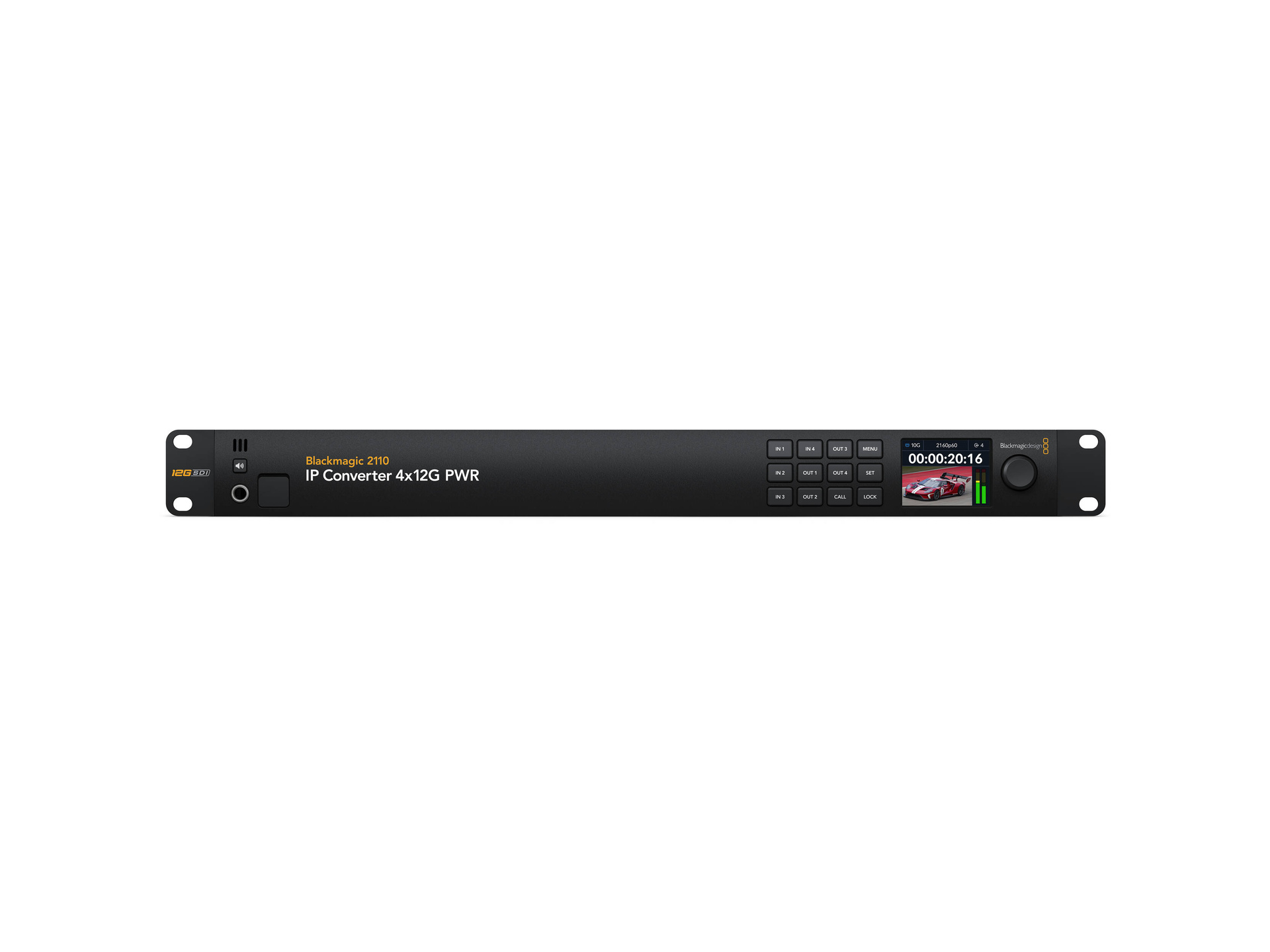

Blackmagic 2110 IP Converter 4x12G PWR
In Stock with Supplier
Usually ships in 2 - 3 working days
Our Price
$3,011
AUD
In Stock with Supplier
Usually ships in 2 - 3 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 working days.
Deliver to
New South Wales
for $6.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
3 - 4 working days
Click & Collect
Features
- Converts Four 2110 IP Devices to 12G-SDI
- Simultaneously Powers Devices
- UHD 4K Resolution Support
- One 12G-SDI Programme Return Feed
- Redundant Power
Description
Specifications
| Key Specs | |
| Video I/O | Input 4x BNC (12G-SDI) Female 1x BNC (12G-SDI) Female (Programme) Output 4x BNC (12G-SDI) Female 1x BNC (12G-SDI) Female (Loop Output) |
| Audio I/O | Output 1x 1/4" TRS Stereo Analogue Female |
| Video Resolution | BNC Input/Output 4096 x 2160 at 24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Wireless | No |
| OS Compatibility | macOS 13 or Later Windows 10 to 11 |
| Audio I/O | Output 1x 1/4" TRS Stereo Analogue Female |
| Other I/O | Input 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output 4x RJ45 (10 GbE) Input/Output 1x RJ45 (10/100/1000 Ethernet) |
| Expansion Slots | No |
| Video Resolution | BNC Input/Output 4096 x 2160 at 24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Embedded Audio | LAN (RJ45)/SDI |
| Standards | |
| Video Standard Compliance | SMPTE: ST-2110 |
| HDCP Support | No |
| HDR Support | Yes |
| Hardware | |
| Wireless | No |
| OS Compatibility | macOS 13 or Later Windows 10 to 11 |
| Display | 2.2" LCD |
| Power | |
| Power I/O | 2x IEC C14 (100 to 240 VAC ) Input |
| PoE Support | PoE Proprietary |
| General | |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Rack Form Factor | 1 RU |
| Dimensions | 19 x 9.22 x 1.74" / 48.3 x 23.42 x 4.42 cm |
| Weight | 8.22 lb / 3.73 kg |
In The Box
- Blackmagic 2110 IP Convertor 4x12G PWR
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Blackmagic 2110 IP Converter 4x12G PWR
- Manufacturer: Blackmagic
- Model: 2110 IP Converter 4x12G PWR
- SKU: CONVNVIPB4/12GPWR
- RM Product #: 113566
