The ATEM 1 M/E Constellation UHD 4K Live Production Switcher enhances its predecessor's switcher design by incorporating UHD 4K capabilities and 12G-SDI ports. This switcher is specifically designed to facilitate robust UHD 4K switching during live events. It is equipped with ten individual 12G-SDI inputs, which are compatible with 12G/3G/HD-SDI signals. These inputs can be routed to six 12G-SDI outputs or the webcam USB-C output. Furthermore, the switcher offers a multiview output that supports up to 16 routable windows. These windows can display various elements, such as inputs, keyed video, graphics, stills from the media pool, and the programme output. Another noteworthy feature of the switcher is its built-in Fairlight audio mixer, which can handle up to 28 audio channels.

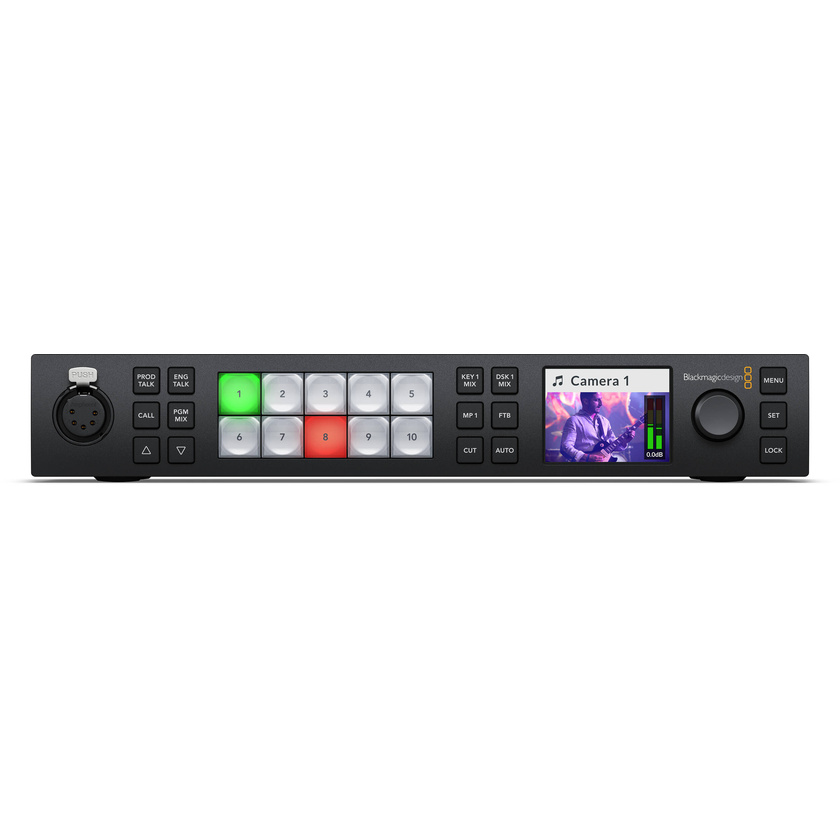

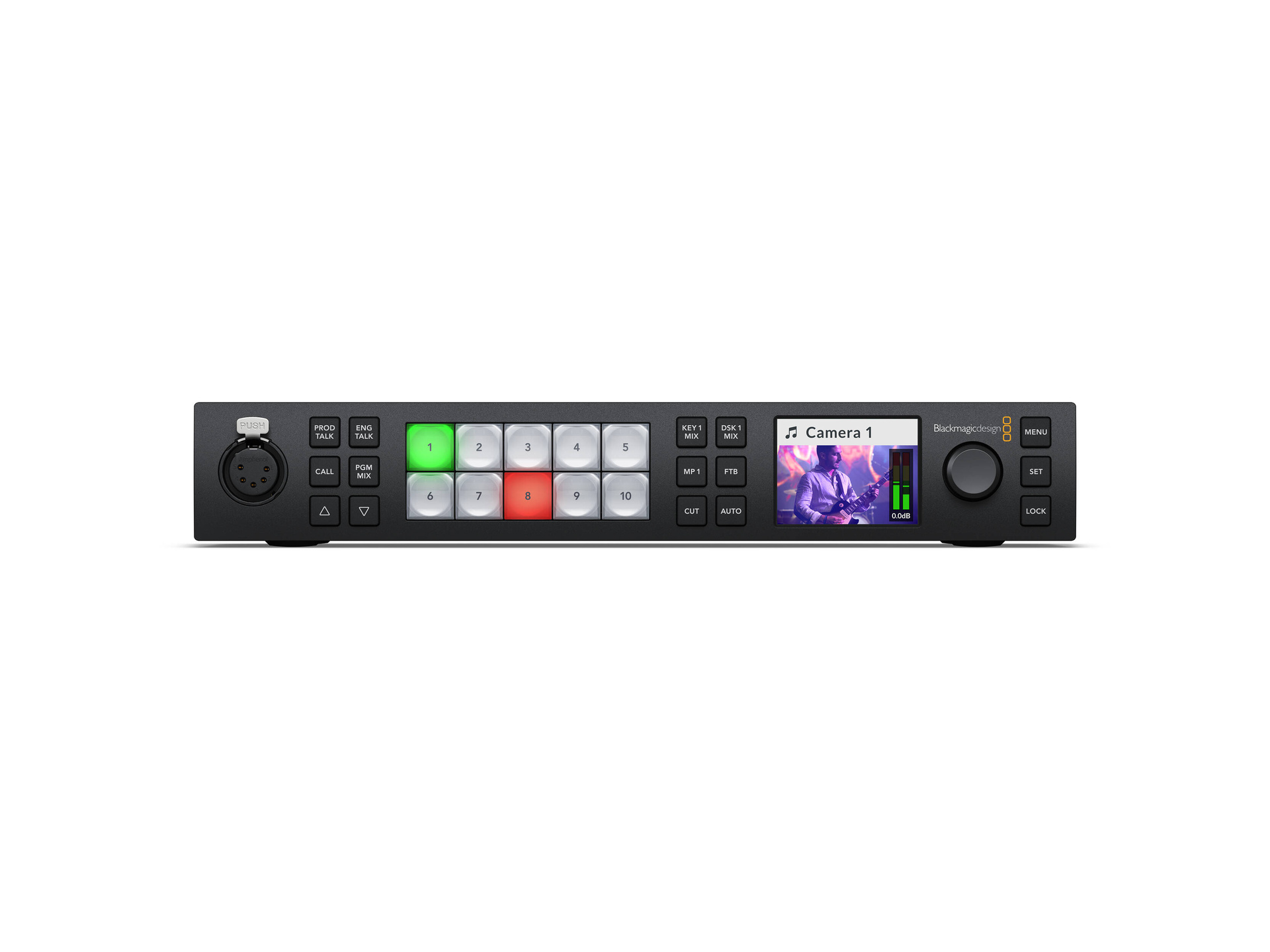

Blackmagic ATEM 1 M/E Constellation UHD 4K Live Production Switcher (1 RU)
In Stock with Supplier Usually ships in 2 - 3 working days
Our Price
$2,589
AUD
In Stock with Supplier Usually ships in 2 - 3 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 working days.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- Supports 12G/3G/HD-SDI at 10-Bit
- 10 x 12G-SDI Inputs, 6 x 12G-SDI Outputs
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB-C
- Frame Rate/Format Convertor per Input
- 28-Channel Audio Mixer
Description
Specifications
| Available M/E Layers | 1 M/E |
| Effect Types | 4x Chroma Key 5x Luma Key 1x DVE, Stinger 1x DVE |
| Downstream Keys | 1x Chroma, Luma, DVE |
| Generators | 2x Colour 5x Pattern |
| Audio Mixing | 48-Channel Mixing |
| Processing | |
| Switching Type | Pushbutton, Software |
| Latency | 10 Lines |
| Processing Resolution | UHD 4K |
| Colour Processing | 10-Bit 4:2:2 |
| Input | |
| Number of Video Input Sources | 10 |
| Video Inputs | 10x BNC (12G-SDI) Female |
| Input Video Format | SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
| Audio Inputs | 2x 1/4" TRS |
| Embedded Audio Input | SDI: 16-Channel |
| Output | |
| Video Output Channels | 6 |
| Video Outputs | 6x BNC (12G-SDI) Female |
| Output Video Format | SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
| Embedded Audio Output | SDI: 16-Channel |
| Multiview Output | 16-Way Multiview |
| Connectivity | |
| Other I/O | 1x USB-C 1x XLR 5-Pin Talkback Input 1x XLR 5-Pin Talkback Output 1x RJ45 Control, LAN Input/Output 1x RJ45 Talkback Input/Output 1x BNC Blackburst, Reference, Tri-Level Sync Input |
| Video Standard Compliance | SMPTE 292M/296M/424M/424M-A/424M-B/ST 2081-10/ST-2081-1/ST-2082-1/ST-2082-10 |
| Display | |
| Display Size | 2.2" |
| Hardware | |
| OS Compatibility | Windows 10 to 11 macOS 13.0 to 14.0 |
| Processor | Not Specified by Manufacturer |
| Wi-Fi | Yes |
| Bluetooth | No |
| Power I/O | 1x IEC C13 Input |
| Power Consumption | Device: 100 to 240 VAC (90 W) |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| General | |
| Rack Form Factor | 1 RU |
| Dimensions | 11 x 8.91 x 1.74" / 27.9 x 22.63 x 4.42 cm |
| Weight | 4.12 lb / 1.87 kg |
In The Box
- Blackmagic Design ATEM 1 M/E Constellation UHD 4K Live Production Switcher (1 RU)
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Blackmagic ATEM 1 M/E Constellation UHD 4K Live Production Switcher (1 RU)
- Manufacturer: Blackmagic
- Model: Atem Constellation 4K 1 M/E
- SKU: SWATEMSCN2/2ME1/4K
- RM Product #: 113545
