The Blackmagic Design ATEM 4 M/E Constellation 4K Plus has a wide range of features that make it a versatile solution for connecting multiple cameras and sources. This switcher offers 80 12G-SDI inputs and 48 independent 12G-SDI ISO AUX outputs, allowing for high-quality video delivery at resolutions of up to 10-bit UHD 4K60 through 12G-SDI programme outputs. In addition, it supports 1080p and 720p webcam outputs via USB-C. With four multiview outputs that can display up to 16 routable windows, users can view inputs, keyed video, graphics, and stills from the media pool, as well as the programme output. Each input is connected to a built-in FairLight audio mixer that can support up to 298 channels of audio. For audio mixing and routing, there are two MADI inputs and four MADI outputs available.

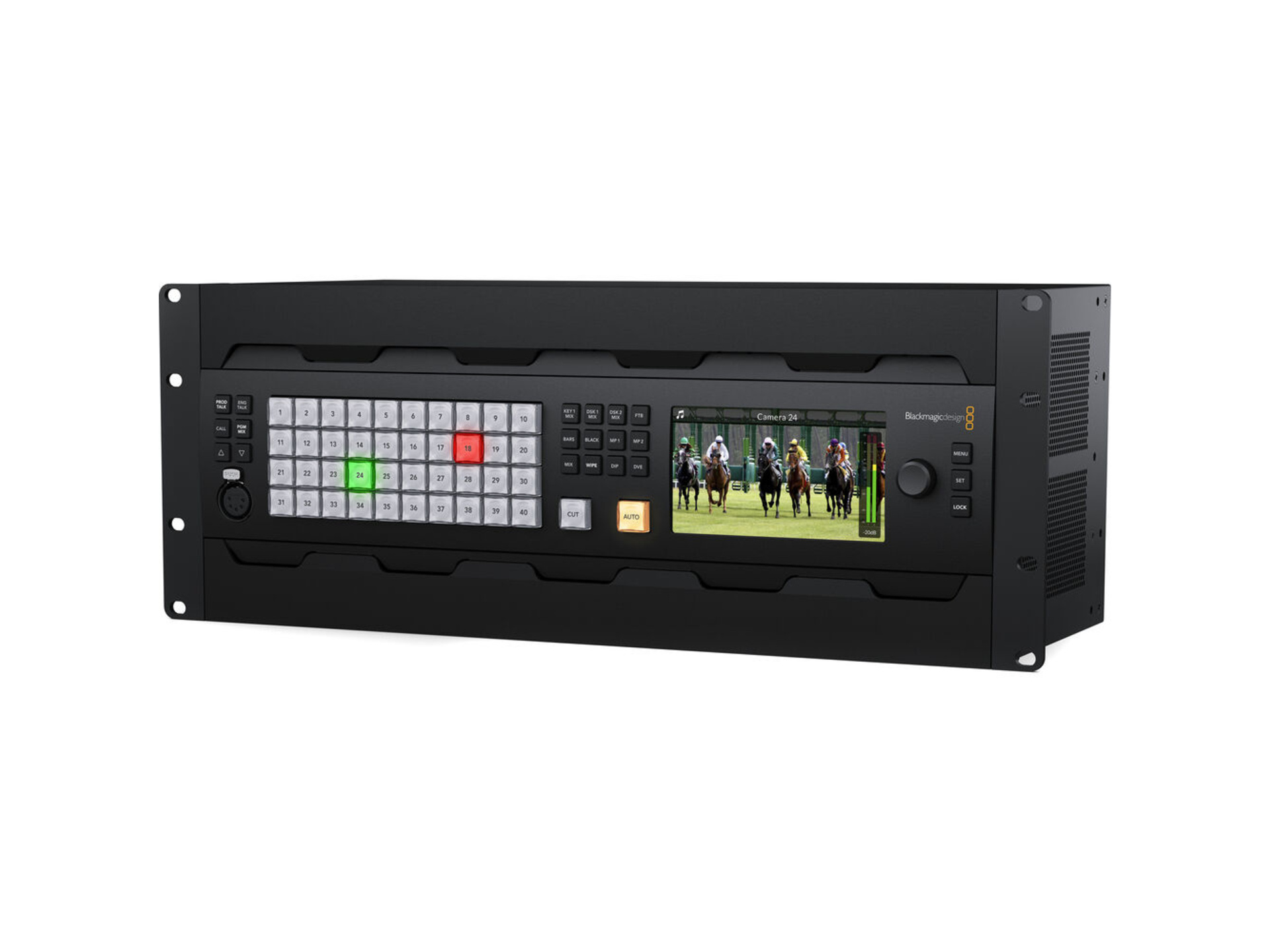

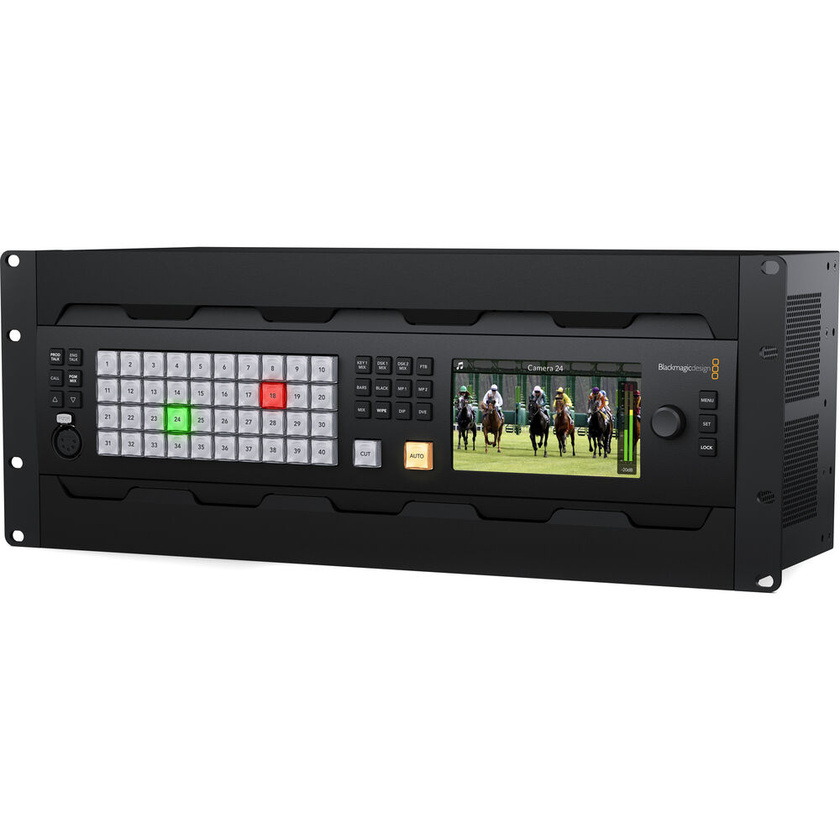

Blackmagic Design ATEM 4 M/E Constellation 4K Plus
Coming Soon
Estimated to ship June
Our Price
$19,549
AUD
Coming Soon
Estimated to ship June
Email me when stock arrives
Shipping & Availability
Estimated to ship June.
Deliver to
New South Wales
for $6.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Estimated to ship June
Click & Collect
Features
- Twice the I/O of Original Model
- Supports 12G-SDI at 10-Bit
- 80 x 12G-SDI In, 48 x 12G-SDI Out
- 2 x MADI Inputs, 4 x MADI Outputs
- Webcam Output via USB-C
- Frame Rate/Format Convertor per Input
Description
Specifications
| Available M/E Layers | 4 M/E |
| Effect Types | 16x Chroma Key 21x Luma Key 4x Stinger 4x DVE |
| Downstream Keys | 4x Chroma, Luma, DVE |
| Generators | 2x Colour 21x Pattern |
| Audio Mixing | 298-Channel Mixing |
| Processing | |
| Switching Type | Pushbutton, Software |
| Processing Resolution | UHD 4K at 60 |
| Colour Processing | 10-Bit 4:2:2 |
| Input | |
| Number of Video Input Sources | 80 |
| Video Inputs | 80x BNC (12G-SDI) |
| Input Video Format | SDI (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
| Audio Inputs | 2x 1/4" TRS Stereo Analogue Female 1x BNC Stereo MADI |
| Input Audio Format | Analogue |
| Embedded Audio Input | SDI: 2-Channel (per Input) |
| Output | |
| Video Output Channels | 52 |
| Video Outputs | 48x BNC (12G-SDI) 1x USB-C (USB Video) (Programme) |
| Output Video Format | SDI (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps USB-C 1080p 720p |
| Audio Outputs | 2x 1/4" TRS 2x BNC Stereo MADI |
| Output Audio Format | Analogue |
| Embedded Audio Output | SDI USB-C |
| Multiview Output | 4-Way Multiview via SDI |
| Connectivity | |
| Other I/O | 1x BNC Blackburst, Reference, Tri-Level Sync Input 1x RJ45 Control 1x RJ12 Control 1x RJ45 Talkback Input/Output 1x XLR 5-Pin Talkback Input/Output |
| Video Standard Compliance | SMPTE 292M/296M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
| HDCP Support | No |
| IP Video | 1280 x 720 to 1920 x 1080 Encoding |
| Display | |
| Screen Resolution | 1366 x 768 |
| Hardware | |
| Operating System | macOS, Windows 10 Home, Windows 11 Home |
| OS Compatibility | macOS 12 or Later / Windows 10 or Later |
| Processor | Not Specified by Manufacturer |
| Wi-Fi | No |
| Bluetooth | No |
| Power I/O | 2x IEC C14 Input |
| General | |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Rack Form Factor | 4 U |
| Dimensions | 19 x 8.9 x 7" / 48.3 x 22.6 x 17.8 cm |
| Weight | 26.99 lb / 12.24 kg |
In The Box
- Blackmagic Design ATEM 4 M/E Constellation 4K Plus
