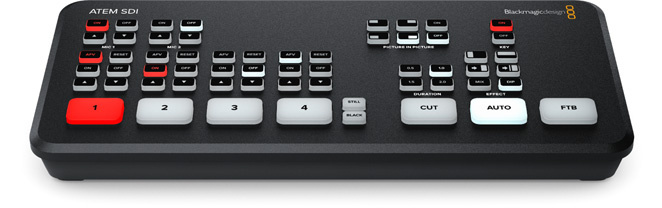

| Connections |
|
| Total Video Inputs |
4 |
| Total Outputs |
3 |
| Total Aux Outputs |
2 |
| Total Audio Inputs |
2 x 3.5mm stereo mini jack. |
| Total Audio Outputs |
None, embedded audio only. |
| Timecode Connection |
None |
| SDI Video Inputs |
4 x 3G-SDI, 10-bit HD switchable.
2 channel embedded audio. |
| Video Input Re-Sync |
On all 4 SDI inputs. |
| Frame Rate and Format Converters |
On all 4 SDI inputs. |
| SDI Program Outputs |
2 |
| Ethernet |
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. |
| Computer Interface |
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. |
| Standards |
|
| HD Video Input Standards |
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60 |
| HD Video Output Standards |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Video Streaming Standards |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards |
None |
| Video Sampling |
4:2:2 YUV |
| Colour Precision |
10-bit |
| Colour Space |
Rec 709 |
| Colourspace Conversion |
Hardware based real time. |
| Product Specifics |
|
| Upstream Keyers |
1 |
| Downstream Keyers |
1 |
| Advanced Chroma Keyers |
1 |
| Linear/Luma Keyers |
2 |
| Transition Keyer |
DVE only. |
| Total Number of Layers |
5 |
| Pattern Generators |
1 |
| Colour Generators |
2 |
| DVE With Borders and Drop Shadow |
1 |
| Interface |
Minimum monitor resolution of 1366 x 768. |
| Audio |
|
| Audio Mixer |
6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
| Analog Input |
Unbalanced stereo |
| Analog Input Delay |
Up to 8 frames |
| Input Impedance |
1.8k |
| Max Input Level |
+6dBV |
| Mic Plug In Power |
Available on both 3.5mm mini jack connections. |
| Media Player |
|
| Media Players |
1 |
| Channels |
Fill and key for each Media Player. |
| Media Pool Still Image Capacity |
20 with fill and key. |
| Media Pool Still Image Format |
PNG, TGA, BMP, GIF, JPEG and TIFF. |
| Control |
|
| Control Panel |
Built in control panel. Software control panel included. Supports optional hardware panel. |
| Control Panel Connection |
Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection. |
| Control Panel Compatibility |
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel. |
| Control Panel Included |
ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11. |
| Software |
|
| Software Updates |
Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility. |
| Configuration |
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis. |
| Operating Systems |
Mac 11.0 Big Sur; Mac 12.0 Monterey or later.
Windows 10, 64-bit; Windows 11. |
| Power Requirements |
|
| Power Supply |
1 x External 12V power supply. |
| Power Usage |
18W |
| Environmental Specifications |
|
| Operating Temperature |
5° C to 40° C |
| Storage Temperature |
-10° to 60° C |
| Relative Humidity |
0% to 90% non-condensing |
