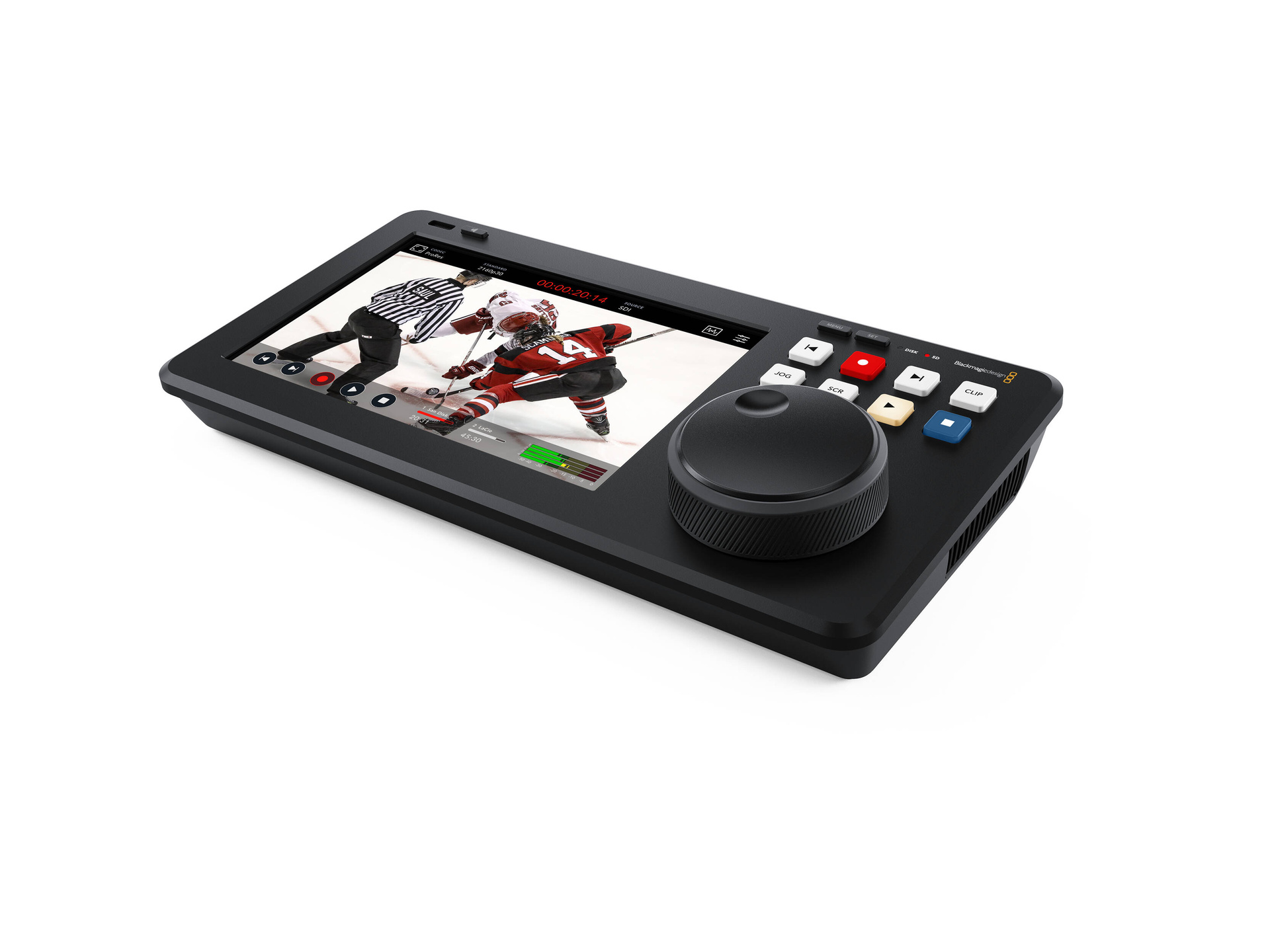

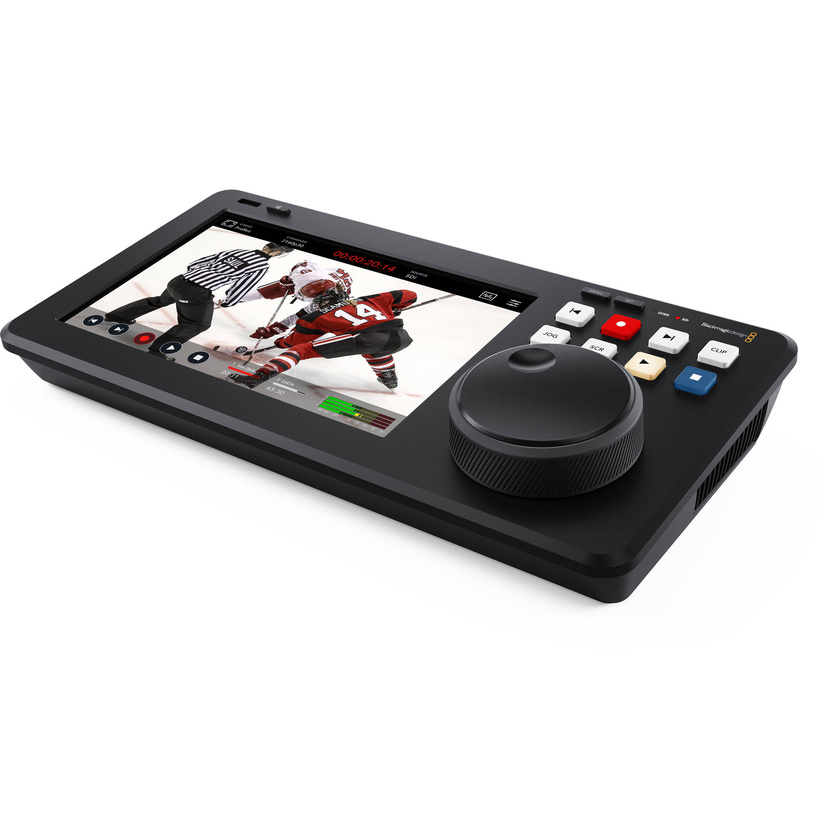

The Blackmagic Design HyperDeck Shuttle 4K Pro (2TB) is an advanced recorder and player with a large 7" LCD touchscreen for monitoring and scopes. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT and network recording via fast 10G Ethernet.
Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
Coming Soon
Estimated to ship June
Our Price
$3,069
AUD
Coming Soon
Estimated to ship June
Email me when stock arrives
Shipping & Availability
Estimated to ship June.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Estimated to ship June
Click & Collect
Features
- 7" Touchscreen Display
- Broadcast Deck Controls with Search Dial
- Includes 2TB M.2 Card
- Records to SD and USB-C Disk
- DCI 4K Video, HDR Colour Space
- H.264/265, ProRes, and DNx File Formats
Description
Specifications
| General | |
| Video Resolution | DCI 4K at 23.98, 24, 25, 30 UHD 4K at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 DCI 2K at 23.98, 24, 25, 29.97, 30 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 1080PsF at 23.98, 24, 25, 29.97, 30 720p at 50, 59.94, 60 625i at 50 525i at 59.94 |
| Sampling Rate | Audio 24-bit, 48 kHz Video 4:2:2 YUV |
| Video Codecs | ProRes, DNx, H.265, H.264 |
| Audio Format | AAC 2-Channel PCM 2/4/8/16/32/64-Channel |
| Display | |
| Panel Type | LCD |
| Display Size | 7" |
| Touchscreen | Yes |
| Inputs/Outputs | |
| USB I/O | 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Output |
| Video I/O | 1x HDMI Input 1x HDMI Output 1x HDMI Output ( Monitor ) 1x BNC Input 1x BNC Output ( Loop Output ) 2x BNC Output 1x BNC Output ( Monitor ) |
| Audio I/O | 1x 1/4" Headphone Input |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) Single Slot: M.2 SSD |
| Other I/O | 1 x DB-9 RS-422 Input 1 x RJ45 10G Ethernet 1 x BNC Reference/Tri-Sync/Blackburst Input 1 x BNC Reference/Tri-Sync/Blackburst Output |
| Wireless | |
| Wireless | Yes |
| Power | |
| Power Source | DC Input |
| DC Input Power | 12 VDC |
| Power Consumption | 60 W (Maximum) |
| Physical | |
| Colour | Black |
| Operating Conditions | 32 to 72°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C up to 90% Humidity |
| Dimensions | 10.55 x 5.98 x 2.83" / 26.8 x 15.19 x 7.19 cm |
| Weight | 2.39 lb / 1.08 kg |
In The Box
- Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
- M.2 PCIe NVMe Card (2TB)
- 12 VDC Universal Power Supply
