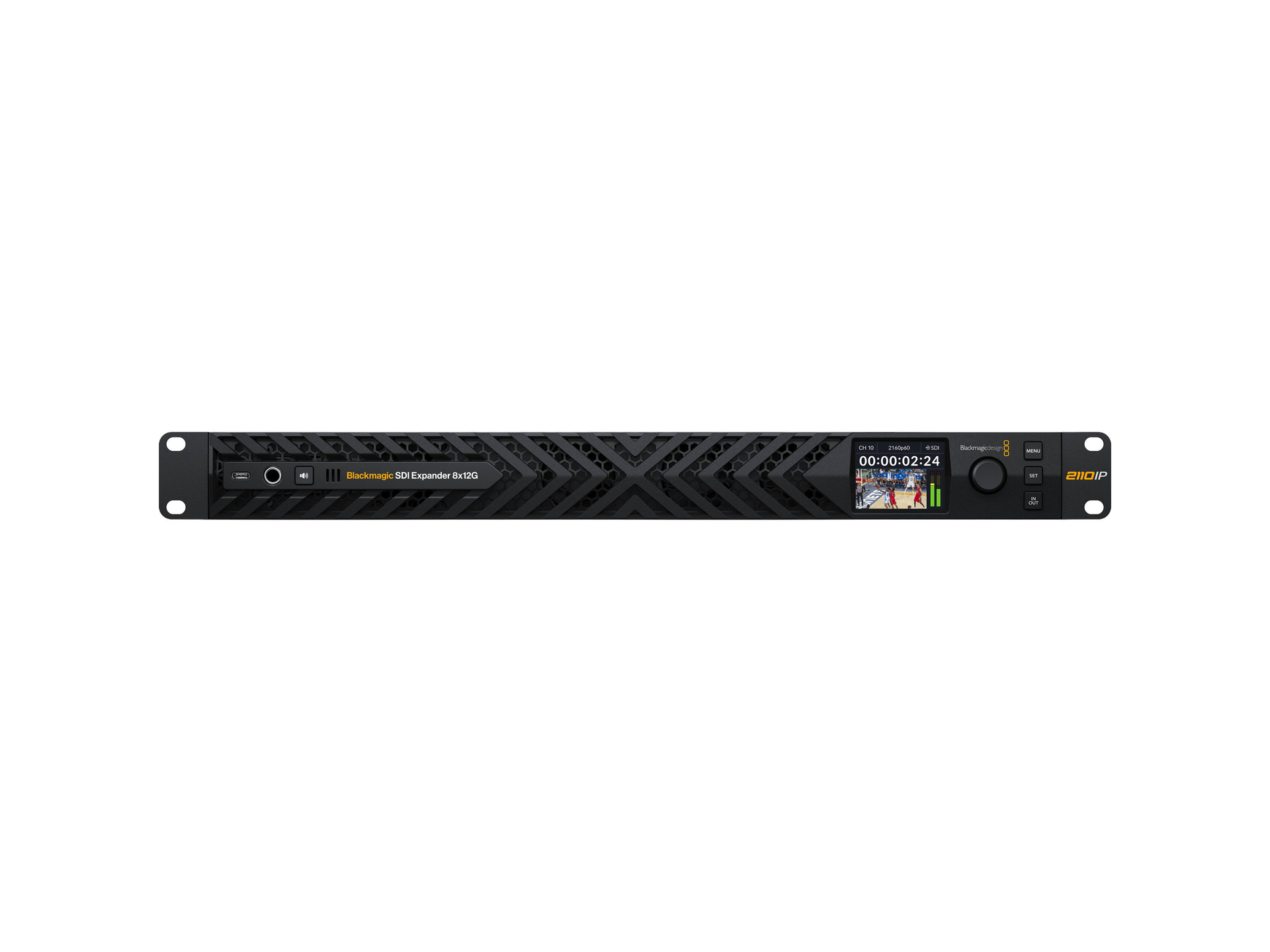

The Blackmagic Design SDI Expander 8x12G is a compact, 1 RU bidirectional SMPTE 2110 IP converter that enables seamless integration of 12G-SDI workflows with high-bandwidth 100GbE broadcast systems. Designed to support up to 16 simultaneous channels of 10-bit 4:2:2 video conversion, the device transforms eight independent 12G-SDI inputs into SMPTE 2110 IP streams while concurrently converting eight SMPTE 2110 IP inputs back to 12G-SDI outputs. With dual 100GbE QSFP28 connections, the expander offers SMPTE ST 2022-7 redundancy, guaranteeing uninterrupted signal transmission in modern IP-based production environments.
Advanced Hybrid SDI/IP Integration
Crafted for hybrid infrastructures, the SDI Expander 8x12G accommodates SD, HD, and Ultra HD formats up to 4K60 with automatic detection, ensuring broad compatibility with a variety of broadcast standards. Each SMPTE 2110 IP video stream supports up to 16 channels of embedded audio, providing comprehensive audio-video integration for complex live production or playout operations.
Intuitive Control and Real-Time Monitoring

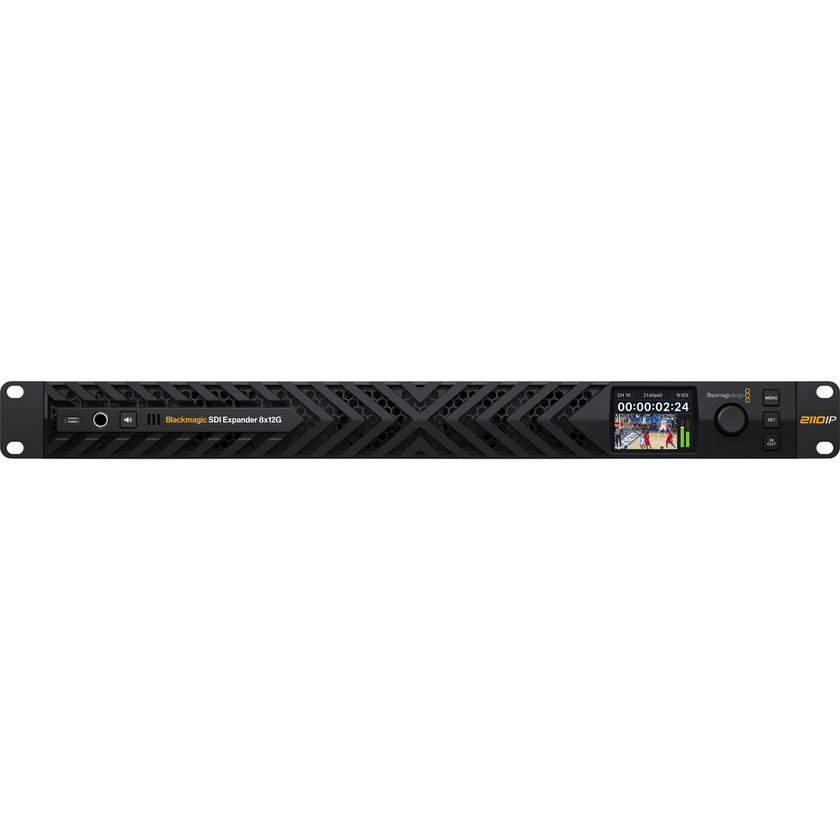

A front-panel 2.2-inch LCD display, combined with an integrated control knob and dedicated buttons, allows operators to monitor video, audio, and critical system parameters directly from the device. For added confidence, the expander features a built-in speaker and a headphone output, facilitating direct audio monitoring and immediate verification of system status.
Flexible Configuration and Robust Redundancy
External control and configuration are enabled through a dedicated RJ45 port that supports NMOS-based management, and a USB-C interface simplifies setup and firmware updates. To ensure uninterrupted operation, the unit includes dual IEC power inputs, offering full power redundancy and maintaining reliable performance in mission-critical scenarios.
