The Blackmagic Design Streaming Encoder 4K is powerful self-contained streaming processor with H.264 and H.265 streaming in HD or Ultra HD via SRT or RTMP protocols. Stream directly to services such as YouTube, Facebook, X and more. Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data. Includes USB webcam, standards converted 12G-SDI input and streaming monitoring output.

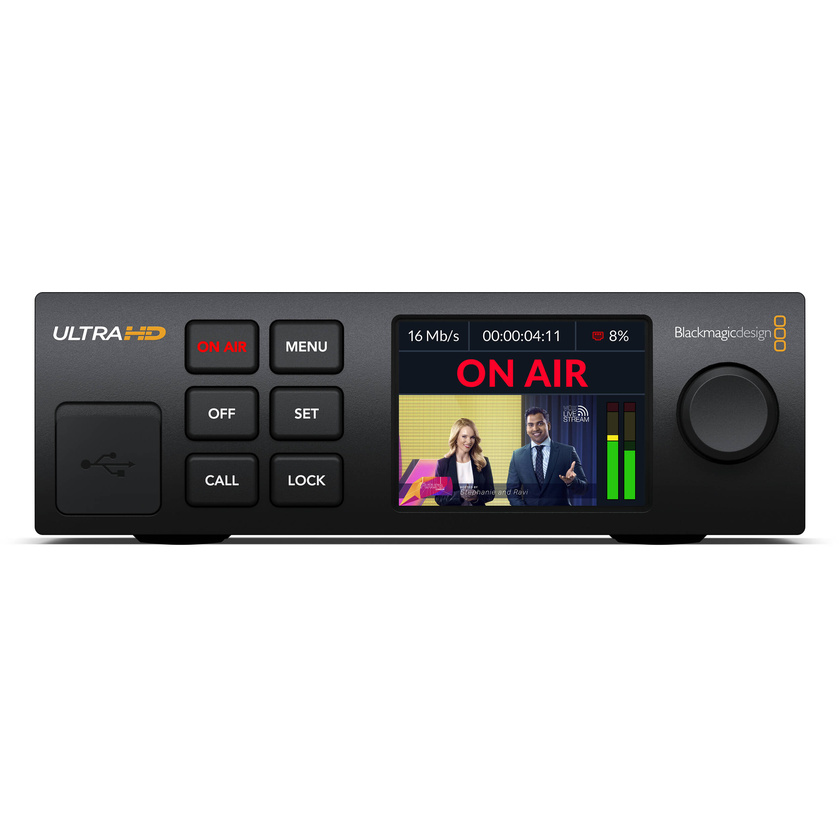

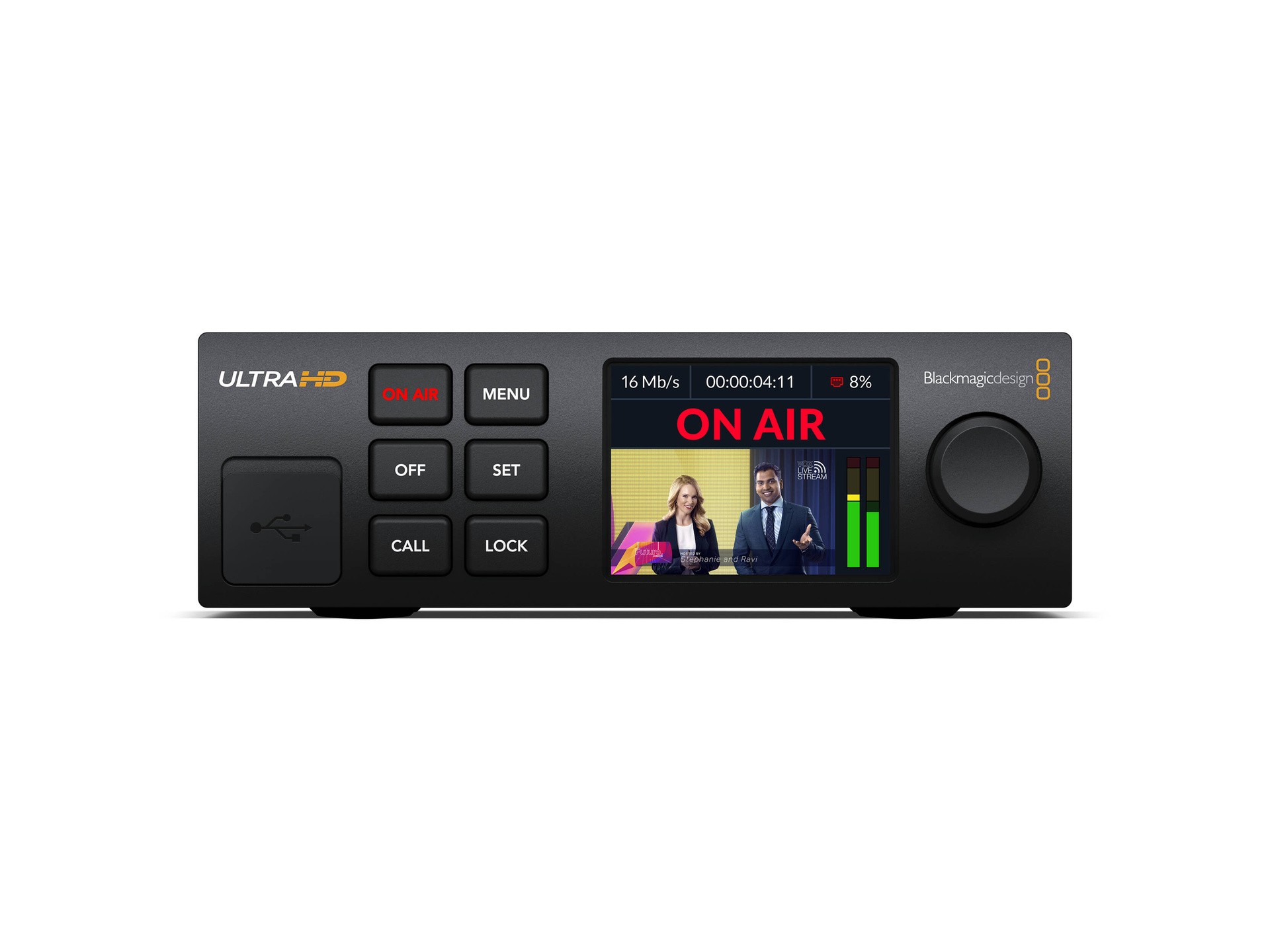

Blackmagic Design Streaming Encoder 4K
In Stock with Supplier Usually ships in 2 - 3 working days
Our Price
$979
AUD
In Stock with Supplier Usually ships in 2 - 3 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 working days.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- H.264 & H.265 Streaming to SRT or RTMP
- 12G-SDI Input & Loop Output
- DCI 4K Streaming up to 60 fps
- Ethernet 10/100/1000BASE-T Support
- SDI & HDMI Monitor Outputs
- Integrated 2.2" LCD Screen
Description
Specifications
| IP Encoding/Decoding | |
| IP Video | H.264/H.265: 4096 x 2160 Encoding |
| Transport Protocols | RTMP, SRT |
| Compatible Services | Facebook Live, Twitch, YouTube Live |
| Wireless | |
| Wireless | No |
| Wi-Fi | No |
| Bluetooth | No |
| Cellular Support | 5G NR / 4G LTE via Unspecified SIM Type |
| Interfaces | |
| Video I/O | 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Monitor Output 1x HDMI Monitor Output |
| Other I/O | 1x RJ45 Fast Ethernet Input/Output 1x USB-C Output 1x USB-C Input/Output |
| Embedded Audio | SDI Input: 16-Channel SDI Output: 16-Channel HDMI Output: 2-Channel LAN (RJ45)/USB Output |
| Power | |
| Power I/O | 1x IEC C14 Input 1x XLR 4-Pin Input |
| Power Consumption | (25 W) |
| General | |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C at 0 to 90% Humidity |
| Display | LCD |
| Rackmount Size | 1 U |
| Dimensions | 6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm |
| Weight | 1.66 lb / 753 g |
In The Box
- Blackmagic Design Streaming Encoder 4K
- Welcome Wallet with QR Code for Software Download
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Blackmagic Design Streaming Encoder 4K
- Manufacturer: Blackmagic
- Model: Streaming Encoder 4K0
- SKU: BDLKWEB/D/SED4K
- RM Product #: 122416
