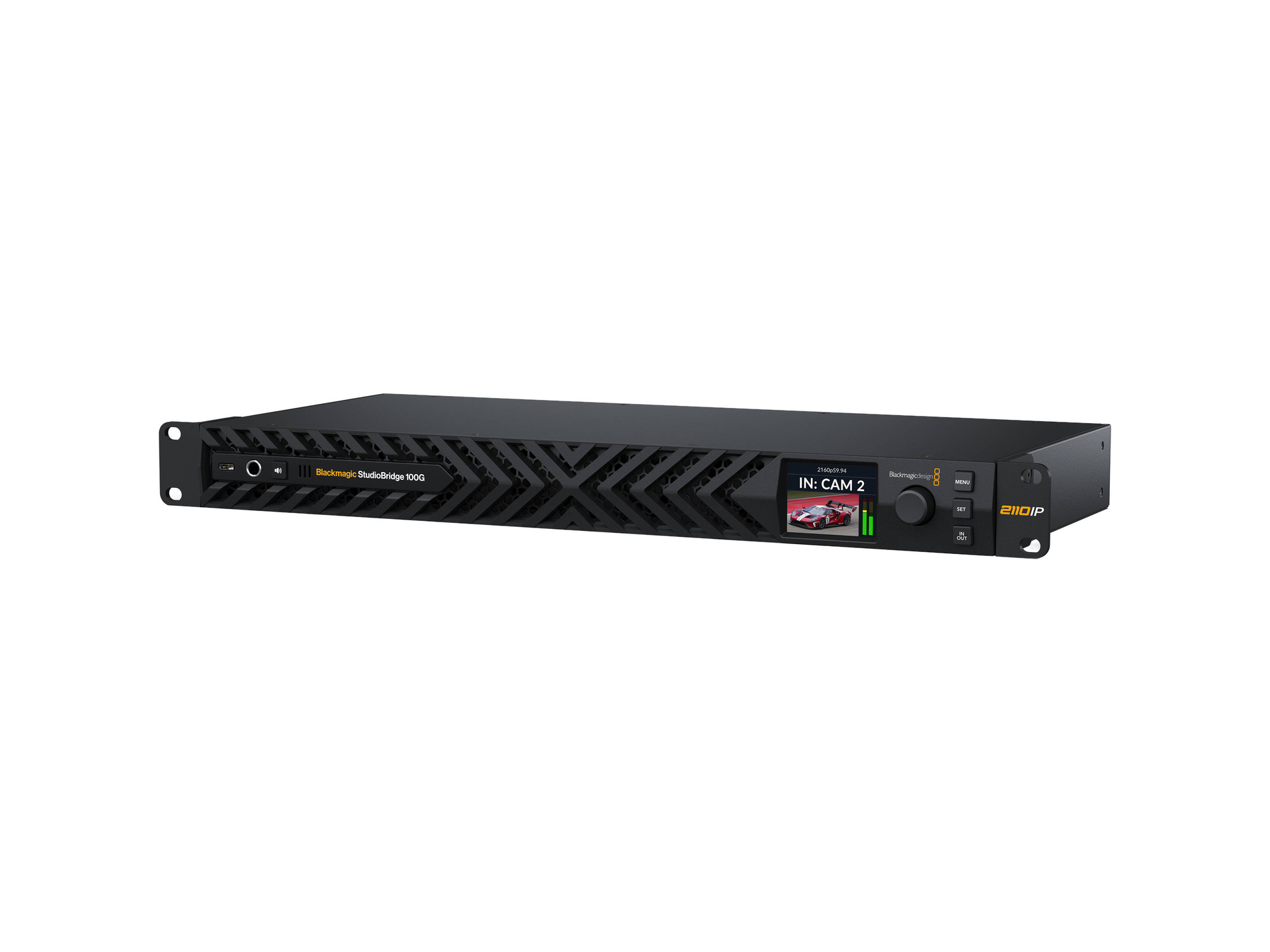

The Blackmagic Design StudioBridge 100G is built to seamlessly integrate one or two high-bandwidth camera streams into robust 100G broadcast networks. As a 1 RU IP video bridge, it accommodates up to two channels of SMPTE 2110 video at resolutions up to 4K60, making it compatible with demanding live production and broadcast requirements. The device efficiently converts a single 100GbE IP video stream or up to two streams—provided their combined bandwidth does not exceed 100Gb/s—into dual 100GbE QSFP28 outputs, utilizing SMPTE 2022-7 redundancy to ensure consistent, uninterrupted signal delivery.
Flexible Video and Audio Support
Each input on the StudioBridge 100G features automatic format detection, supporting both HD and Ultra HD standards to maximize operational flexibility. It also incorporates 16 channels of embedded audio per stream, catering to complex production environments where multi-channel audio integration is essential and guaranteeing a match with contemporary IP-based production workflows.
Comprehensive Connectivity
For accessory integration, the unit offers two 10G RJ45 ports and two 10G SFP optical fiber interfaces, providing a wide range of expansion and connection options. A dedicated RJ45 port enables external control via NMOS-based configuration, while a USB-C port facilitates both setup and firmware updates, allowing for straightforward system management and maintenance.
User-Friendly Monitoring and Operation

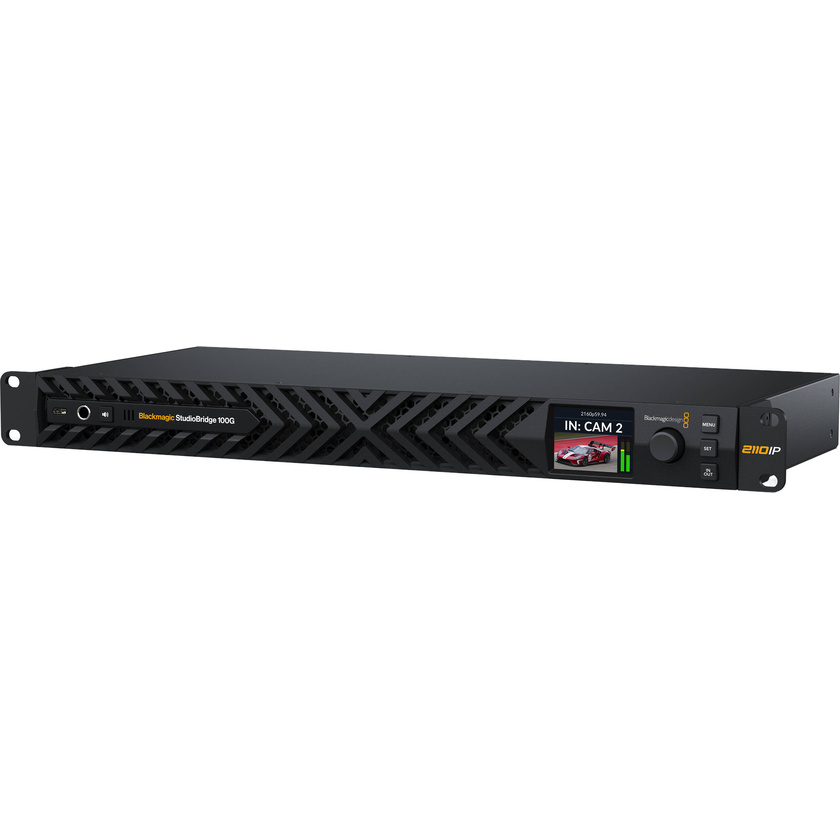

On the front panel, users will find a 2.2" LCD paired with an integrated control knob and buttons, enabling real-time overview and adjustment of video, audio, and overall system status. The built-in speaker and headphone output empower operators with immediate, reliable audio confidence monitoring directly from the device.
Power Redundancy for Reliability
To safeguard against unexpected disruptions, the StudioBridge 100G is equipped with dual IEC power inputs, delivering power redundancy and ensuring reliable operation in mission-critical broadcast installations. This comprehensive feature set makes the StudioBridge 100G a robust solution for high-end IP video production environments, where reliability, flexibility, and seamless integration are paramount.
