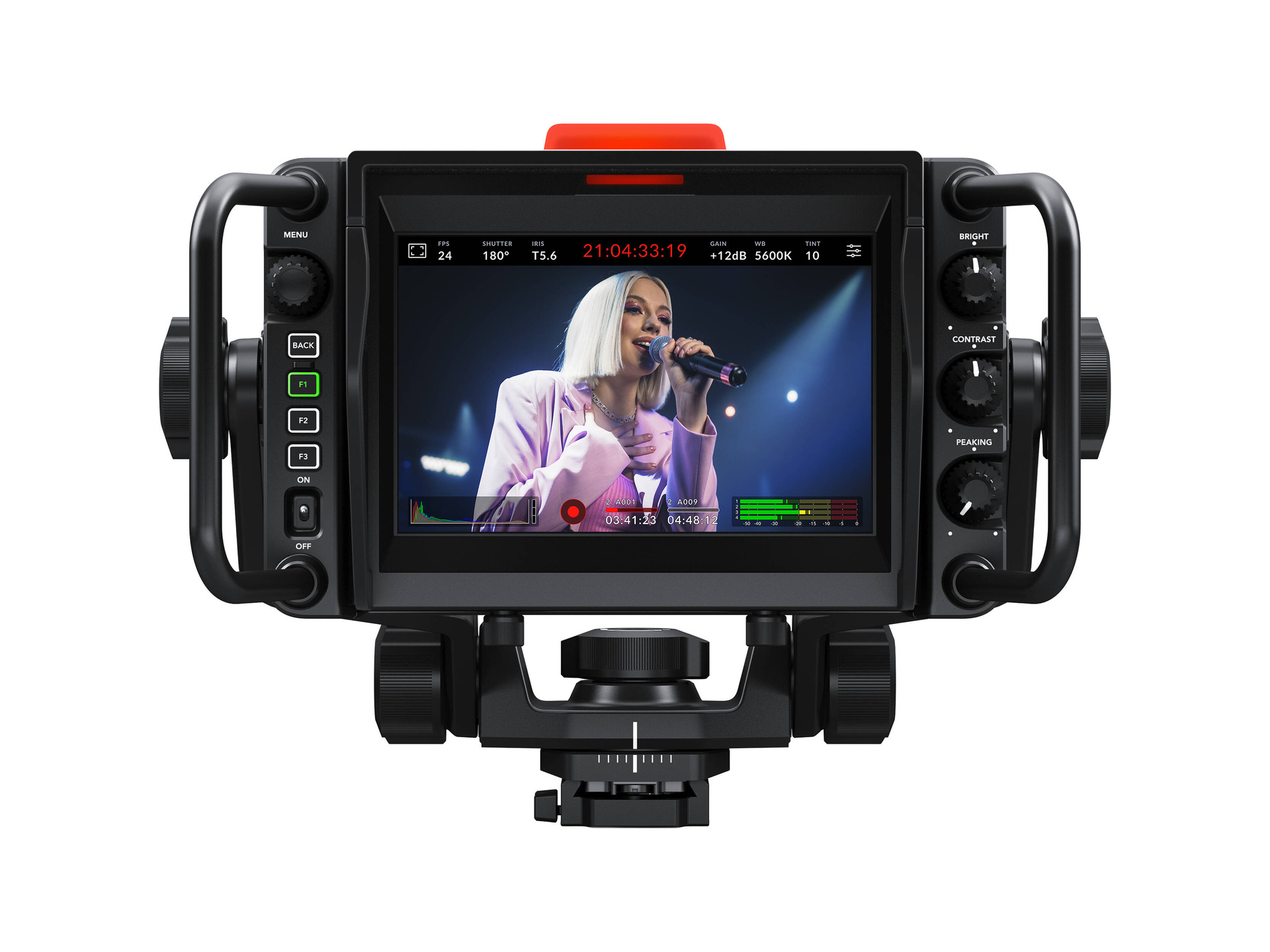

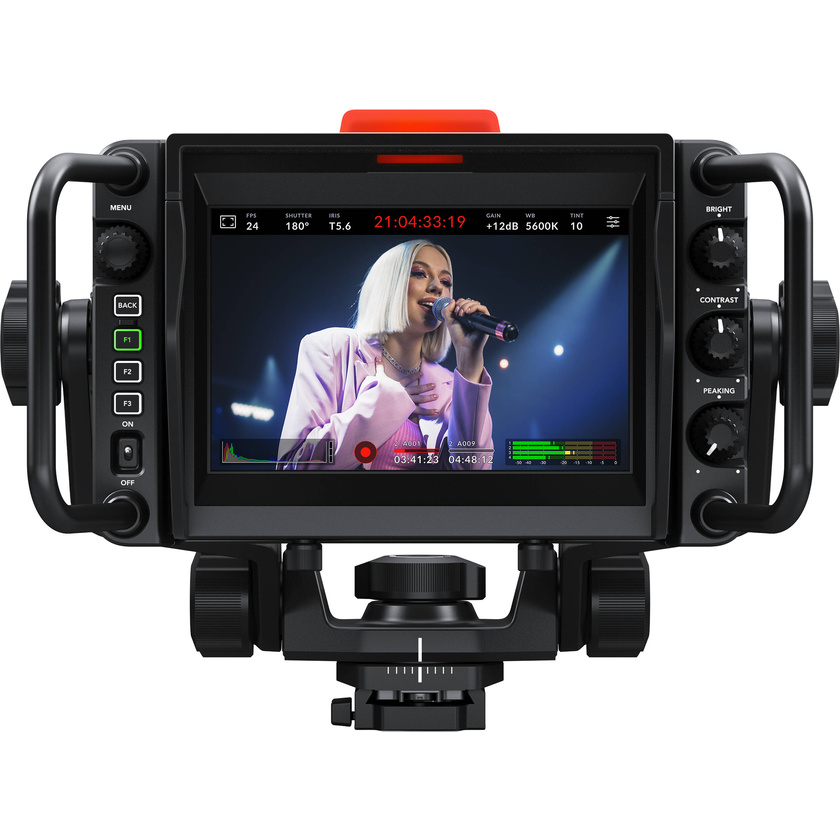

Blackmagic Design URSA Cine Studio Viewfinder

Product #125411 | SKU CINEURSAB/EVFST7 | Blackmagic
Coming Soon ETA to be confirmed
NEW
Our Price $2,169 AUD
Coming Soon ETA to be confirmed
NEW
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to New South Wales for $7.90 Change location
Click & Collect Availability
Sydney Out of stock. ETA to be confirmed
Click & Collect

Features

  • Designed for URSA Cine 12K Cameras
  • 7" 1920 x 1200 TFT LCD Touchscreen
  • Locking USB-C Video/Power Connector
  • 2000 cd/m² Brightness
  • Rotary Dials, Three Customisable Buttons
  • V-Lock Mount Interface

Description

Designed for high-resolution monitoring during live URSA Cine event capture, the Blackmagic Design URSA Cine Studio Viewfinder delivers a clear and detailed viewing experience. With a generous 7" display, this viewfinder/monitor offers a 1920 x 1200 TFT LCD touchscreen, making it easy to review footage and navigate controls. It includes convenient built-in grab handles for easy maneuvering on set and a detachable sun hood to reduce glare in bright environments.

Comprehensive Controls and Connectivity

There are useful screen overlays to assist with framing and focus, along with multiple control options for efficient operation. A single USB-C cable simplifies setup by providing video, power, and control in one connection, helping to keep your rig organized and reducing cable clutter.

Secure, Versatile Mounting

Mounting the viewfinder onto your URSA Cine 12K camera is straightforward, thanks to its bottom V-lock mount. This allows for a secure and versatile attachment, making the viewfinder a seamless addition to your professional camera setup.

Specifications

Display
Panel Type TFT LCD
Display Size 7.0" / 17.8 cm
Screen Resolution 1920 x 1200
Aspect Ratio 16:10
Touchscreen Yes
Maximum Brightness 2000 nits / cd/m2
Pixels Per Inch (ppi) 323 ppi
Image Controls False Colour, Focus Assist, Focus Peaking, Screen Markers
Inputs / Outputs
Inputs/Outputs 1x USB-C Video Input
1x Barrel Power Input
Video Format USB (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Input Power 12 VDC
General
Operating Conditions 32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions -4 to 140°F / -20 to 60°C up to 90% Humidity
Tripod/Accessory Mounting Bottom/Bracket
1x V-Lock
Dimensions 11.97 x 9.17" / 30.4 x 23.29 cm (Including Bracket)
Weight 5.27 lb / 2.39 kg

In The Box

  • Blackmagic Design URSA Cine Studio Viewfinder
  • Sun Hood
  • Mounting Plate
