The Blackmagic Design Videohub Mini 4x2 12G Router is a compact zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 4 12G-SDI inputs and 2 12G-SDI outputs in a tiny 1/3 rack width size. The front panel control panel lets you quickly route a video connection and even includes an emergency 12G-SDI connection for patching in external gear and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.

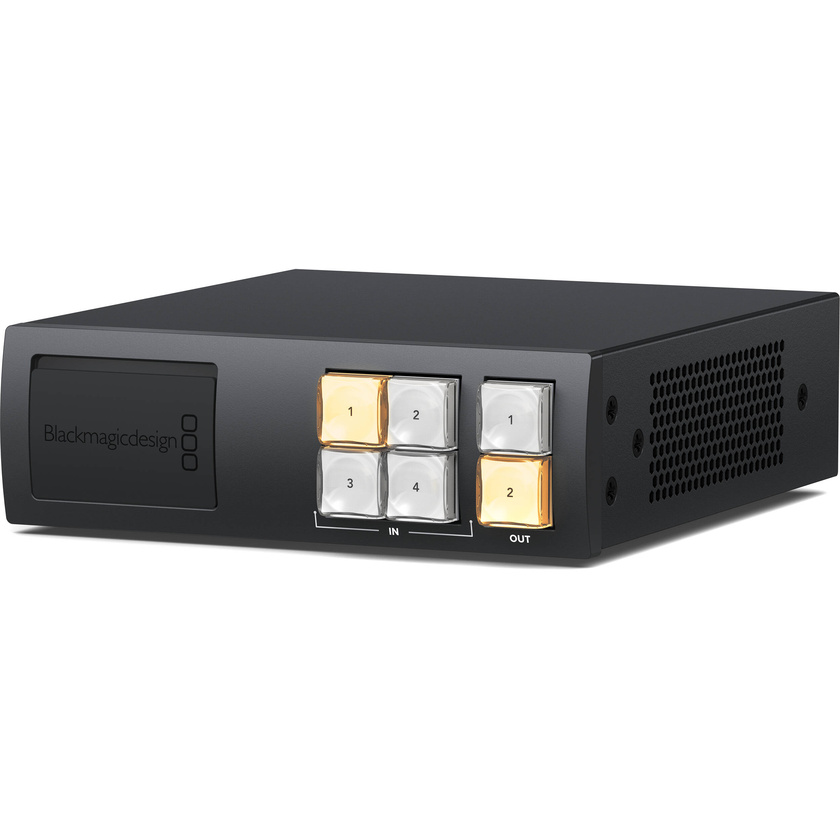

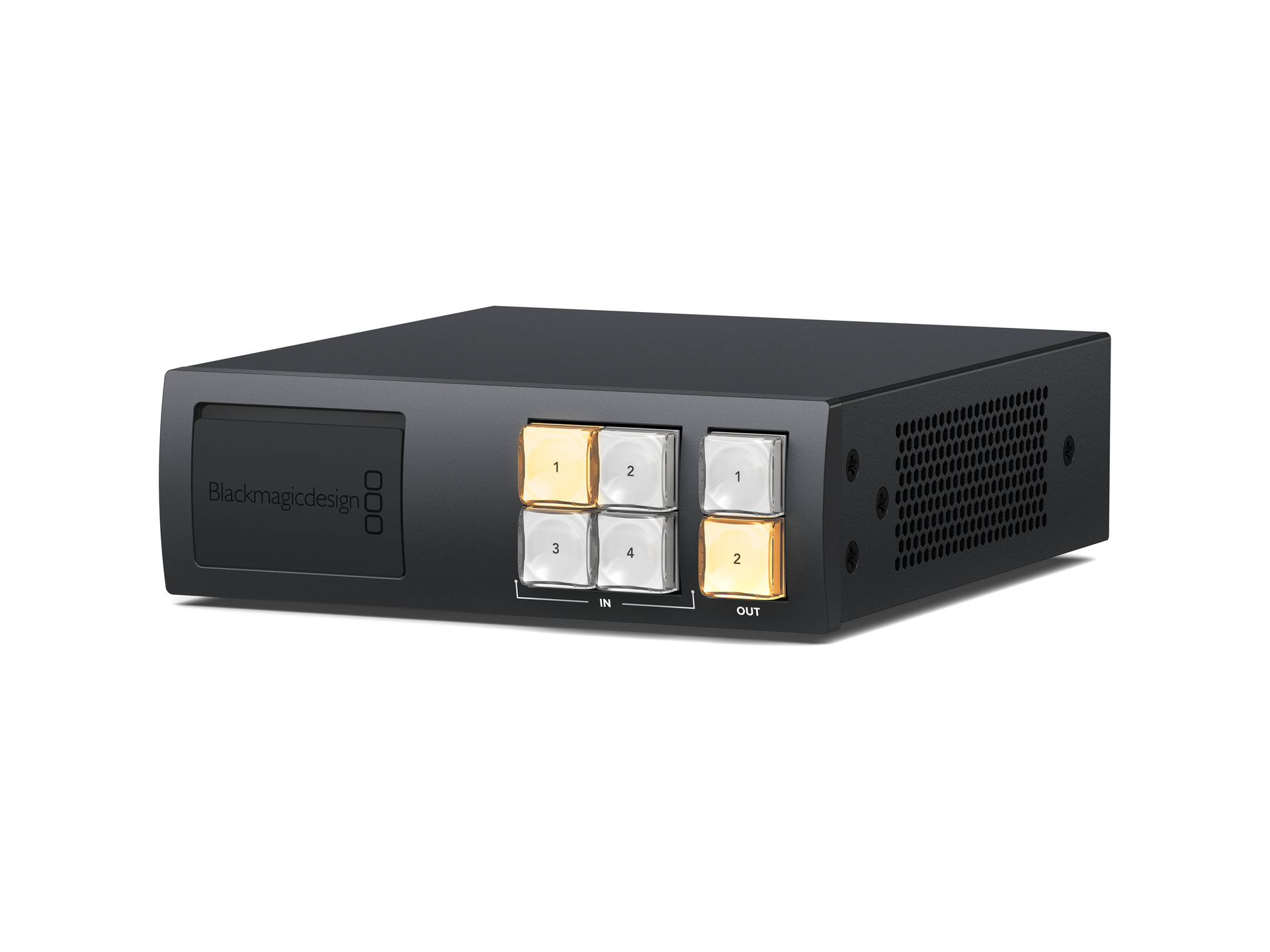

Blackmagic Design Videohub Mini 4x2 12G Router
Coming Soon
Estimated to ship April
Our Price
$929
AUD
Coming Soon
Estimated to ship April
Email me when stock arrives
Shipping & Availability
Estimated to ship April.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Estimated to ship April
Click & Collect
Features
- 4 x 12G-SDI Inputs, 2 x 12G-SDI Outputs
- Combines SD, HD, UHD 4K & DCI 4K Video
- Push-Button, Knob & Ethernet Control
- Front 12G-SDI Input, USB-C Output
- Front SDI Port Overrides Back Inputs
- Output Clean Switch Function
Description
Specifications
| Input | |
| Video Inputs | 4x BNC (12G-SDI) 1x BNC (12G-SDI) |
| Input Video Format | SDI DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Embedded Audio Input | SDI |
| Output | |
| Video Outputs | 2x BNC (12G-SDI) 4x BNC (12G-SDI) (Loop Output) |
| Output Video Format | SDI DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Embedded Audio Output | SDI |
| Connectivity | |
| Inputs/Outputs | 1x RJ45 |
| Other I/O | 1x USB-C Output |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M/424M-A/424M-B/ST-2081-1/ST-2081-10/ST-2082-10 ITU -R BT.601/BT.656 |
| Hardware | |
| Wi-Fi | Yes |
| Bluetooth | No |
| Power | |
| Power I/O | 1x Barrel (12 VDC ) Input 1x IEC C13 (100 to 240 VAC ) Input |
| Power Consumption | Device: 17 W |
| General | |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C up to 90% Humidity |
| Dimensions | 6.82 x 5.51 x 1.82" / 17.32 x 14 x 4.62 cm |
| Weight | 32.35 oz / 917 g |
In The Box
- Blackmagic Design Videohub Mini 4x2 12G Router
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Blackmagic Design Videohub Mini 4x2 12G Router
- Manufacturer: Blackmagic
- Model: VHUBSMTG12G0402
- SKU: VHUBSMTG12G0402
- RM Product #: 121061
