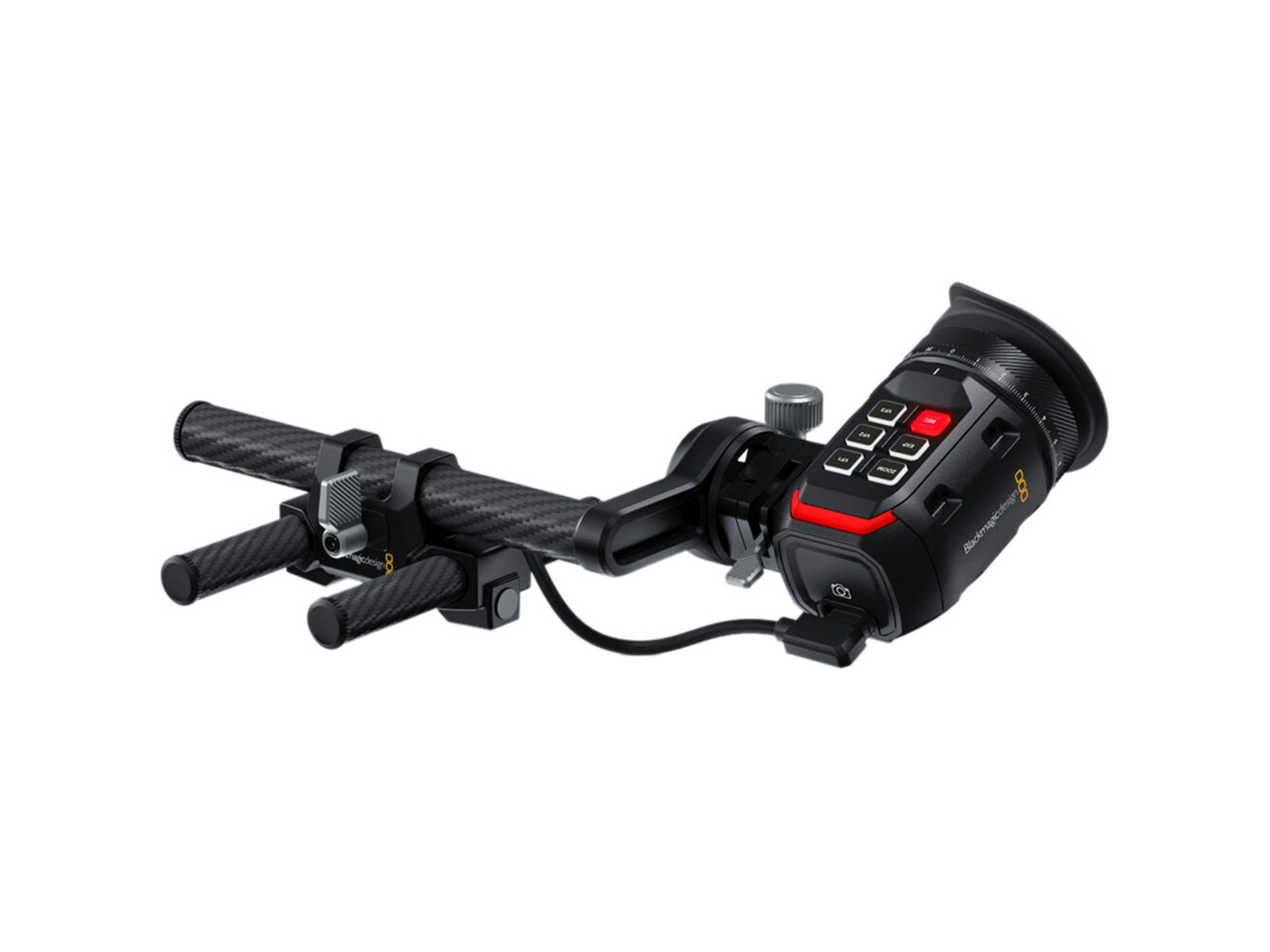

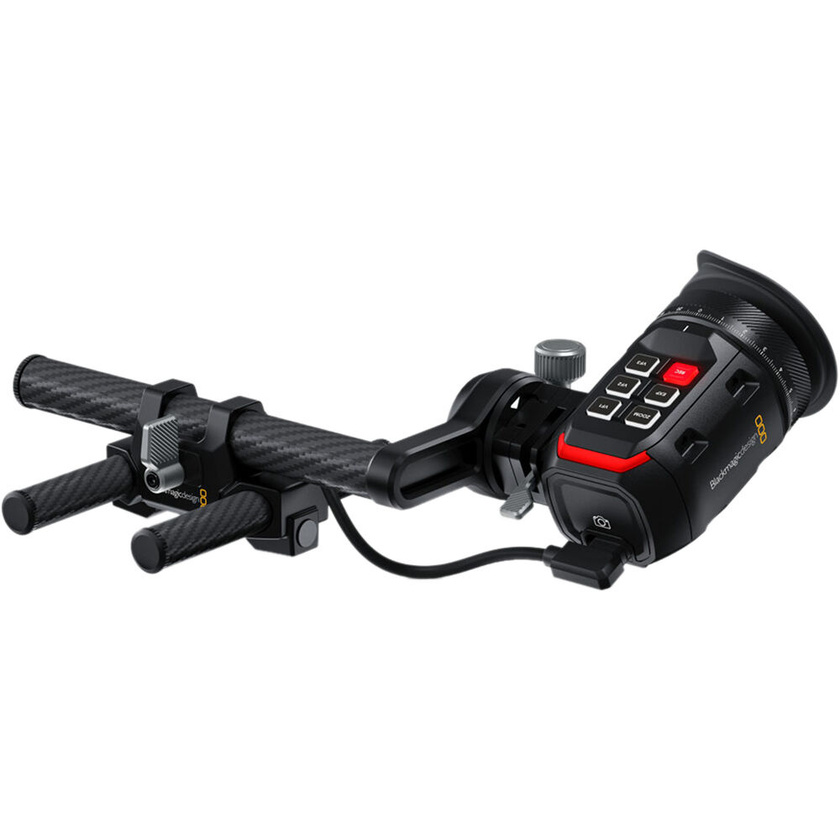

Blackmagic URSA Cine EVF

Product #114070 | SKU CINEURSAB/EVF | Blackmagic
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $2,439 AUD
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • For URSA Cine 12K Cinema Camera
  • Also Works with PYXIS 6K Cameras
  • 1920 x 1080p60 Resolution OLED Display
  • USB-C Connection to Camera
  • Zoom, Exposure, Record Buttons
  • Rotating Bracket, Tally LED

Description

Add the high-resolution Blackmagic URSA Cine EVF to your Blackmagic URSA Cine 12K or PYXIS 6K camera for enhanced image quality and ease of shooting in any environment. The EVF boasts a 1920 x 1080 colour OLED display with a frame rate of up to 60 fps, providing you with clear visuals accompanied by helpful status information, frame guides, and even a built-in focus chart to assist with achieving the sharpest focus. Mounting the EVF on top of your camera is made simple with the included bracket assembly, comprising a 15mm rod clamp, a 19mm cross rod, and two carbon fibre 15mm rods. To ensure you never miss the action, a tally light is incorporated, clearly indicating when the camera is rolling.

Designed for optimal power efficiency, the EVF employs a built-in proximity sensor that activates only when in use. Furthermore, it offers a 4-element glass dioptre that allows for a range of adjustments. Connecting the EVF to your URSA Cine 12K or PYXIS 6K camera is a breeze with the included USB-C cable, which also serves the purpose of firmware updates. For added flexibility, the package includes two rubber eyecups of different sizes for your comfort.

NOTE: The Blackmagic URSA Cine Handle is a prerequisite for mounting the EVF onto both Blackmagic URSA Cine 12K and Blackmagic PYXIS 6K cameras.

Specifications

Key Specs
Panel Type OLED
Screen Resolution 1920 x 1080
Video I/O 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input
Video Format USB
DCI 4K: 60
Dioptre Correction -5.0 to +5.0
Mounting 1x Accessory Rail
Display
Colour/Monochrome Colour
Panel Type OLED
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen No
Bit Depth / Colour Support 6-Bit+FRC (16.2 Million Colours)
Inputs / Outputs
Video I/O 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input
Video Format USB
DCI 4K: 60
Optics
Dioptre Correction -5.0 to +5.0
Environmental
Operating Humidity 0 to 90%
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Humidity 0 to 90%
Storage Temperature -4 to 140°F / -20 to 60°C
General
Mounting 1x Accessory Rail

In The Box

  • Blackmagic Design URSA Cine EVF
  • Rotating Bracket
  • Carbon Fibre Rod (19mm)
  • Carbon Fibre Rod (15mm)
  • Extension
  • Right-Angle to Right-Angle USB Viewfinder Cable (Short)
  • Right-Angle to Straight USB Viewfinder Cable (Short)
  • Right-Angle to Straight USB Viewfinder Cable (Long)
  • Rubber Eyecup
  • Fabric Cloth
  • Sticker

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Blackmagic URSA Cine EVF
  • Manufacturer: Blackmagic
  • Model: CINEURSAB/EVF
  • SKU: CINEURSAB/EVF
  • RM Product #: 114070
