BrightSign AU335 Audio Only Player

Product #114284 | SKU AU335 | BrightSign
Usually ships in 1 - 2 weeks what does this mean?
Our Price $399 AUD
Usually ships in 1 - 2 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to New South Wales for $32 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • High Bandwidth Audio
  • Audio Routing and Mixing
  • CEC Commands
  • Multi-Player Sync
  • B-Deploy
  • ARC/eARC

Description

The BrightSign AU335 is equipped with cutting-edge sound technologies that enable the playback of high-quality, high-bandwidth audio on a cost-effective, cloud-based platform. With its ARC/eARC support, it facilitates the seamless distribution of 24-bit audio, including Dolby Atmos ™, while also providing capabilities for audio routing, audio mixing, CEC commands, and interactive controls. These features make it ideal for delivering immersive sound experiences for various applications.

  • Distributes quality high bandwidth, 24-bit audio including Dolby Atmos®, Dolby Audio™ and PCM audio to ARC/eARC soundbars & AV receivers
  • Performs audio routing for individual audio file playback via the left or right channel**
  • Supports simultaneous playback of up to 3 audio files with audio mixing**
  • Controls interactive devices via USB, GPIO & Ethernet (USB host mode supports firmware updates on connected devices)
  • Provides soundbar volume control and input switching via CEC commands
  • Synchronizes with additional BrightSign players, lighting and other devices to create unique experiences
  • Includes a free Control Cloud subscription to BSN.cloud for access to real time player health and remote player controls
  • Supports presentation authoring through free BrightAuthor:connected, BrightScript, JavaScript, and node applications Integrates with your choice of a partner CMS solution

** Requires OS 8.3.46 & BrightAuthor:connected version 1.6.44 or higher

Specifications

Media Formats
Audio decoding WAV, AAC, TS, MP2, MP3, MP4, MOV, MP2TS
Audio pass through EAC3, AC3
Scripting JavaScript & Node.js

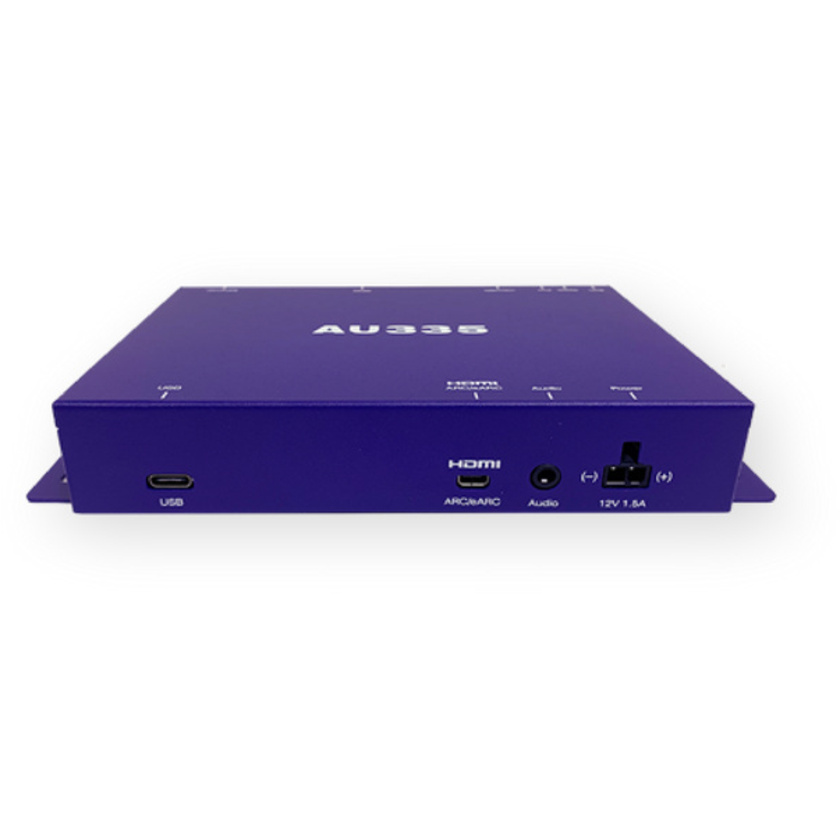

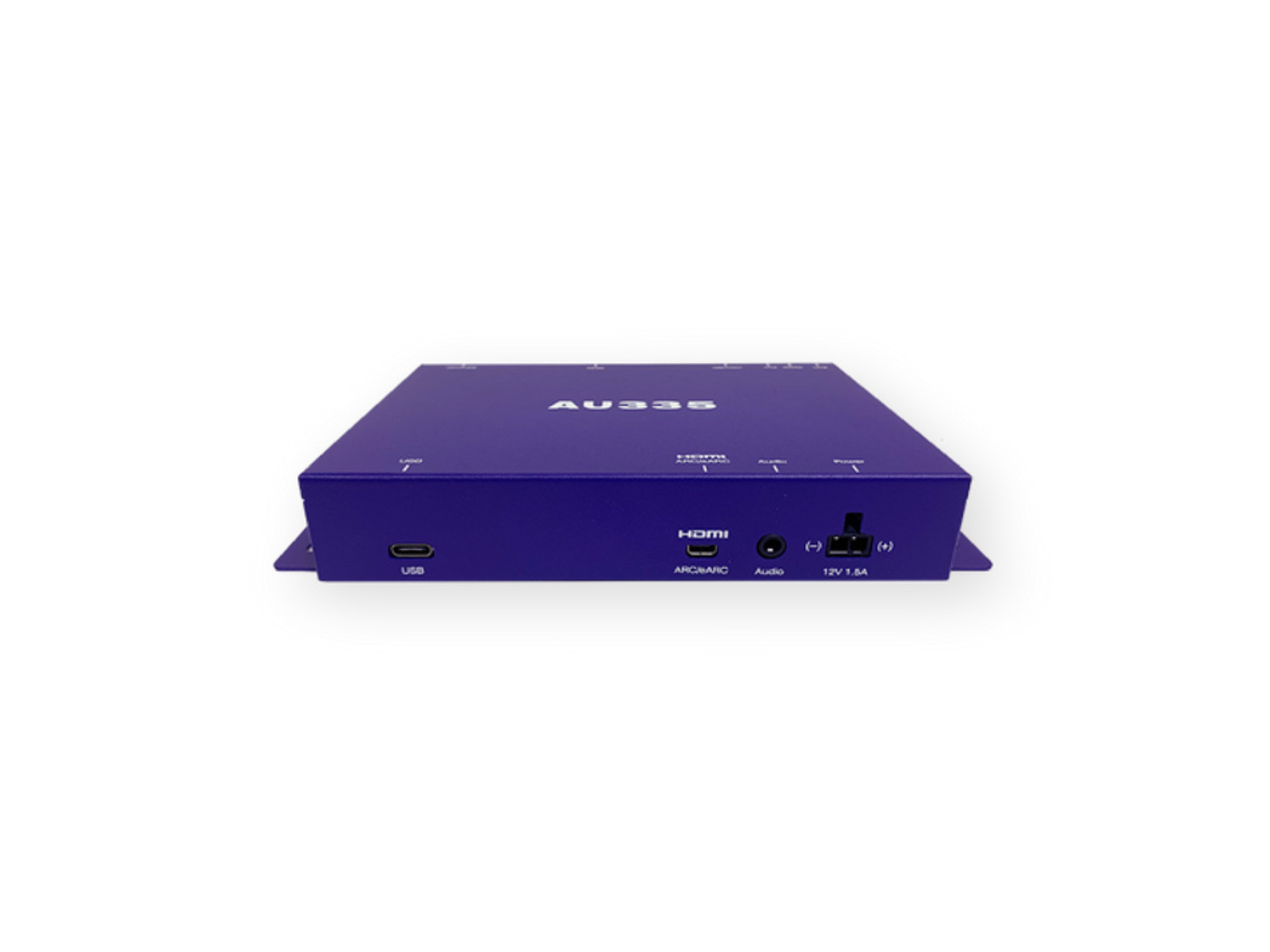

Hardware Interfaces
Locking Power Connector Yes
External micro SD Slot (SDHC and SDXC); SDHC Storage via SDXC (up to 2TB) Yes
USB High Speed Host Port (also supports content updates) Yes - Type C
12-pin Phoenix GPIO port with 8 bi-directional GPIOs Yes
3.5mm Audio Out (analog) Yes
ARC/eARC Yes - Micro-HDMI
Ethernet 100baseT Yes
Status LED Yes
Reset and Services Button Yes
Real Time Clock Yes
Features
High Bandwidth Audio Supports up to 24-bit lossless audio
including Dolby Atmos support Yes
Audio Routing Plays up to three audio files at once & routes audio files to play via left or right channels
Multi-Player Sync Synchronized playback across multiple BrightSign players
Audio Mixing Plays one audio track on top of another
Interactivity Connect virtually any interactive device to a multitude of ports - (USB, GPIO, Ethernet)
CEC Commands To control soundbar volume and input switching
Tagging Brightsign Network users can assign media andplayer tags for highly targeted content distribution
Networking update and schedule audio presentations and manage your player network
B-deploy A setup feature to deploy many players at once
Software
Free BrightAuthor:connected Software Yes
BSN.cloud Networking Options Yes
Accessories
USB Button Pads Yes
Wireless Module Yes
MicroSD Class 10 Cards (various capacities) Yes
Physical
Dimensions (W x H x D) 173.4mm X 27.9mm X 99.9mm
Weight 13.3 oz (0.4kg)
Power 12V / 3A (36 Watts)
Built-in Wall Mounting Brackets Yes

In The Box

  • BrightSign AU335 Audio Only Player

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: BrightSign AU335 Audio Only Player
  • Manufacturer: BrightSign
  • Model: AU335
  • SKU: AU335
  • RM Product #: 114284
