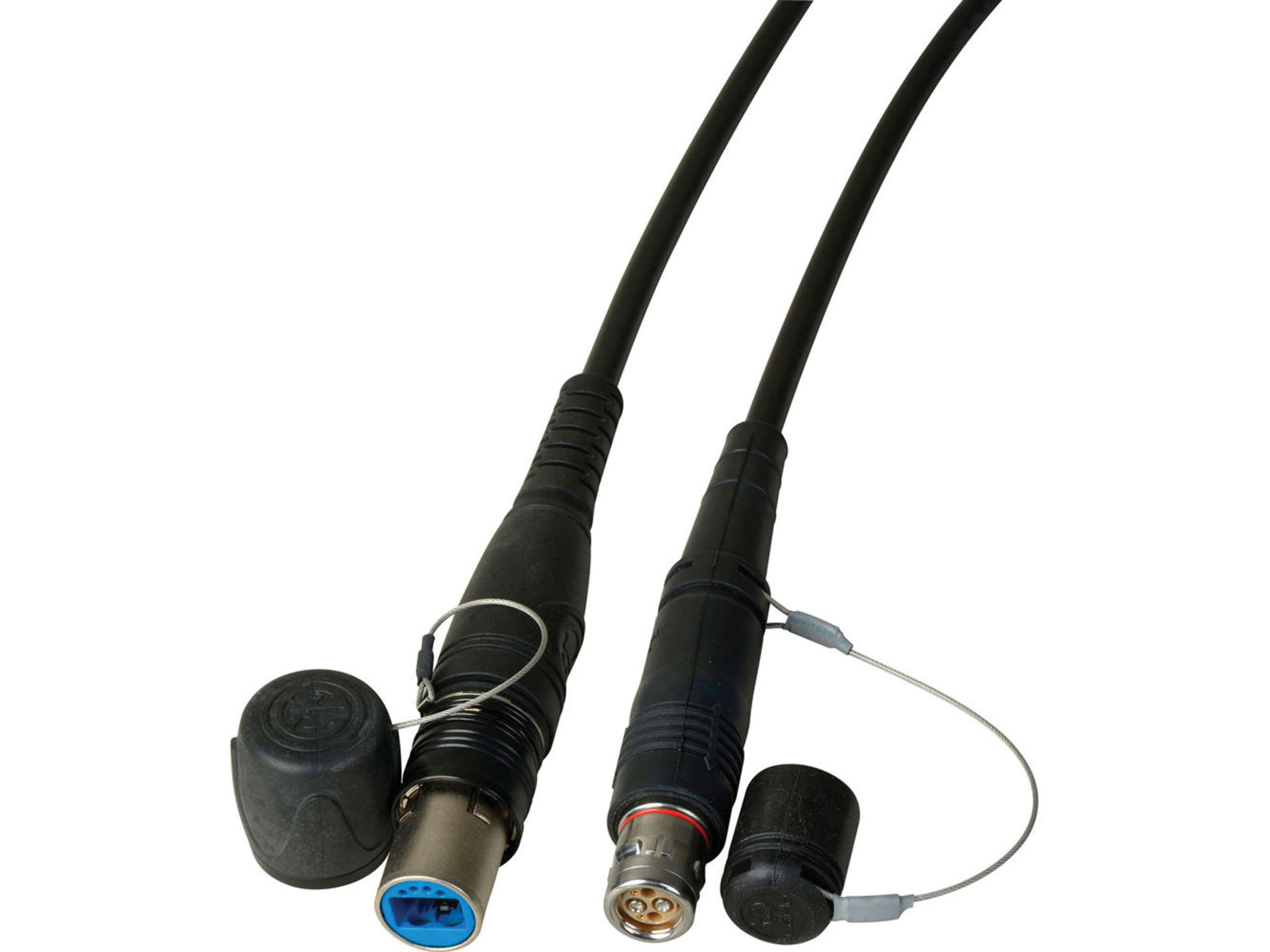

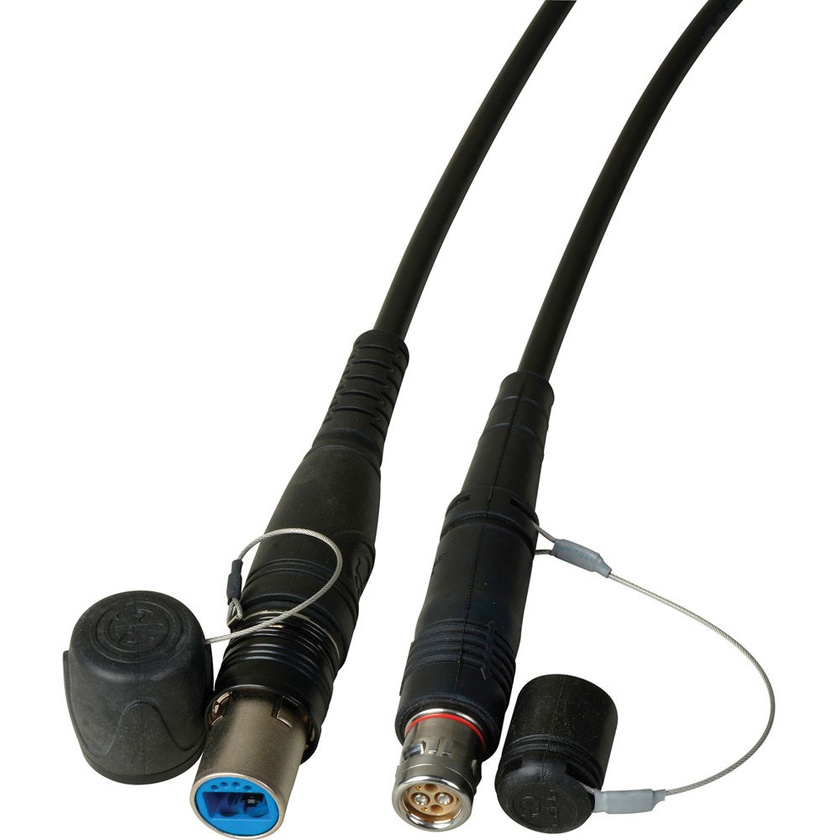

This Camplex SMPTE Hybrid opticalCON DUO to FUW LEMO Singlemode Outdoor Fibre Cable offers SMPTE 311M compliance for seamless broadcast interconnectivity indoors and outdoors. Equipped with a Neutrik OpticalCON DUO NO2SX connector and FUW LEMO connector, the cable boasts COCA factory terminations, GR-326-CORE endface standards, common LC contacts, and a protective mechanical shutter system. Tested for < -55dB typical return and accompanied by diagnostics documentation, this cable ensures top-notch performance. Assembled using the Neutrik opticalCON ADVANCED system, the cable features lockable, waterproof metal caps and rubber guards for enhanced durability and water resistance, ideal for extended outdoor use.
Camplex SMPTE Hybrid opticalCON DUO to FUW LEMO Singlemode Outdoor Fibre Cable (30.5m)
Contact us for an ETA
Price On Request
Contact us for more information
Contact us for an ETA
This product can't be purchased at this time, please
contact us
for more information.
Email me when stock arrives
Features
- 311M Compliant Interconnect Cable
- OpticalCON DUO NO2SX / FUW LEMO
- COCA Factory Terminated
- GR-326-CORE Endface Standards
- Neutrik opticalCON ADVANCED System
- Tested for < -55dB Return Loss
Description
Specifications
| Key Specs | |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable Length | 100' / 30.5 m |
| Fibre Type | Single Mode |
| Connector 2 | LC |
| Coupling Type | LEMO (SMPTE), OpticalCON DUO |
| Cable Length | 100' / 30.5 m |
| Fibre Type | Single Mode |
| Core Size | 9 µm |
| Return Loss | -55 to -45 dB |
| Attenuation | < 0.45 dB/km @ 1310 nm < 0.45 dB/km @ 1550 nm |
| Operating Conditions | -13 to 167°F / -25 to 75°C |
In The Box
- Camplex SMPTE Hybrid opticalCON DUO to FUW LEMO Singlemode Outdoor Fibre Cable (100 ft)
- Diagnostics Documentation
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Camplex SMPTE Hybrid opticalCON DUO to FUW LEMO Singlemode Outdoor Fibre Cable (30.5m)
- Manufacturer: Camplex
- Model: HF-OC2FUW-0100
- SKU: HF-OC2FUW-0100
- RM Product #: 120227
- Cable Connector: LC Optical
- Cable Connector: LC Optical
- Length Meters: 30.5 m
- Length Feet: 100 ft
- Length Meters: 30.5 m
- Connector count: 2
