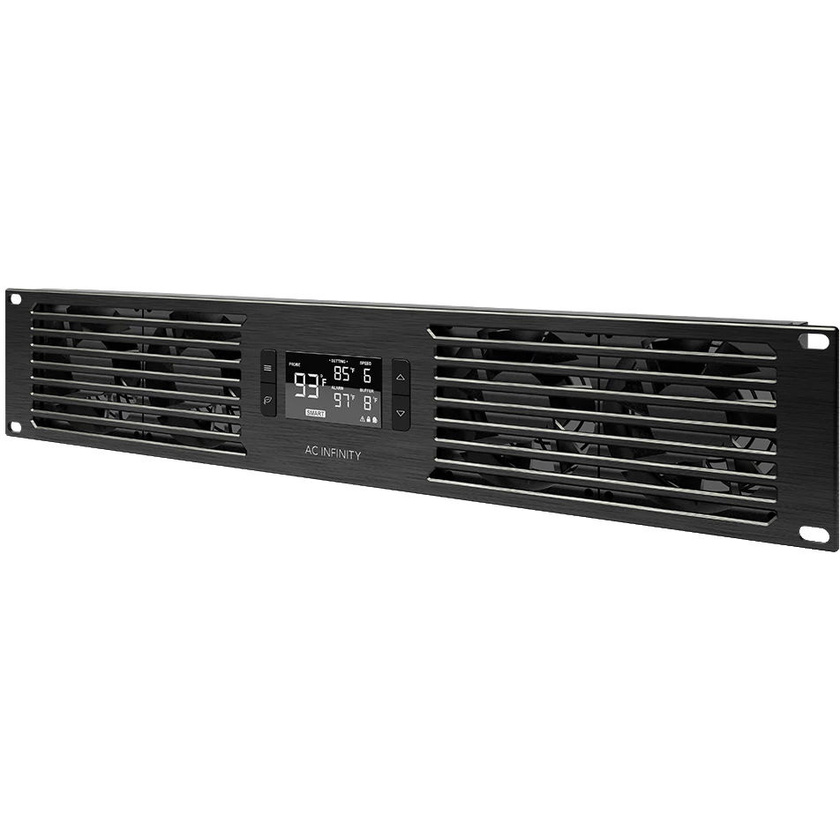

Cloudplate T7 Quiet Rack Cooling Fan System, 2RU, Exhaust
Features
- For Cooling Audio Video, DJ, Server, Network, & IT Racks
- Programmable Thermostat Controller
- Premium Anodized Aluminium Construction
- CNC-Machined Detailing
- 2U Rack Space
- Exhaust Design
Description
Cloudplate T7 Quiet Rack Cooling Fan System, 2RU, Exhaust is an intelligent cooling fan system designed to be mounted onto a wide range of 19-inch racks requiring quiet or high airflow cooling. Maintaining an optimal temperature for rack-mount equipment prevents overheating, ensures constant performance, and extends their lifespan. The LCD digital controller features a programmable thermostat with automated speed control, alarm warnings, status alerts, and backup memory.
The system is housed in a solid aluminium construction that takes up two rack units of space (2U). Each aluminium frame is anodized with a light-brush finish, then the corners CNC-machined and edges chamfered for a high-end professional appearance. This model holds three custom-engineered dual-ball bearing fans rated at 67,000 hours, and certified by CE, UL, TUV, and RoHS. The fans are set to exhaust out heated air and should be positioned near the top of the rack; an intake version of this model is available, sold separately. This complete kit includes the 2U fan unit, corded 6-ft thermal probe, user’s manual, rack mount screws, cage nuts, and corded 6-ft power supply.
Key Features:
- An intelligent fan system designed for cooling audio video, DJ, server, network, and IT equipment racks.
- Protects rack-mount equipment from overheating, performance issues, and shortened lifespans.
- Programmable thermostat controller with automated speed control, alarm warnings, and backup memory.
- Premium anodized aluminium construction with CNC-machined detailing for a professional appearance.
- Size: 2U Rack Space, Design: Exhaust, Airflow: 50 to 220 CFM, Noise: 10 to 36 dBA, Technical Data Tab
Specifications
Manufacturer | AC Infinity Inc. |
Product Name | CLOUDPLATE T7 |
Product Model | AI-CP2L |
UPC Code | 854759004501 |
Product and Mounting Dimensions | |
Total Dimensions | 19.0 x 3.5 x 1.5 in. (48.3 x 8.9 x 3.8 cm) |
Rack Mount Size | Two Rack Units (2U) |
Screw Hole Size | Ø .24 x 0.35 in. (Ø 6.1 x 9.0 mm) Obround |
Hole to Hole Distance | 18.2 x 3.0 in. (46.4 x 7.6 cm) |
Display Size | 2.25 x 1.25 in. (4.7 x 3.2 cm) |
Probe Length | 72 in. (6 feet) / 182.88cm |
Cord Length | 72 in. (6 feet) |
Product Performance and Technical Specs | |
Design | Intake |
Total Airflow | 50 to 220 CFM |
Total Noise | 10 to 36 dBA |
Static Pressure | 2.56 mm-H2O |
Operating Voltage | 12V DC |
Power | 10 W |
Current | 0.83 A |
Wall Adapter | Input 100 to 240V AC |
Operating Humidity | 35 to 85% RH |
Operating Temperature | 14 to 230°F |
Fan Bearings | Dual Ball |
L10 Life Expectancy | 67,000 Hours |
Fan Quality Approvals | UL, CE, TUV, RoHS |
