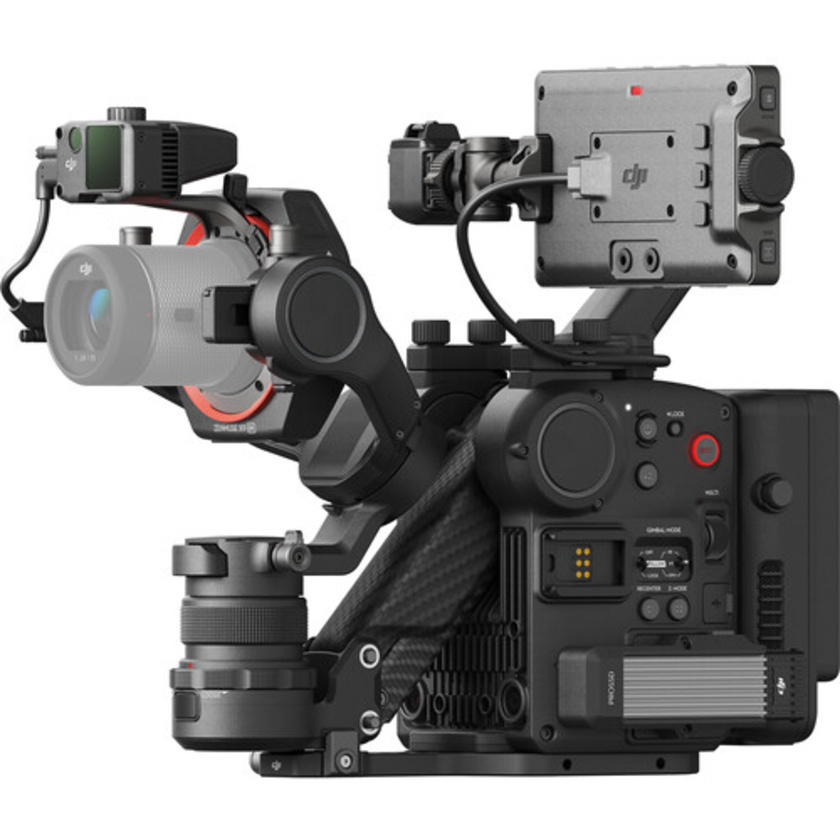

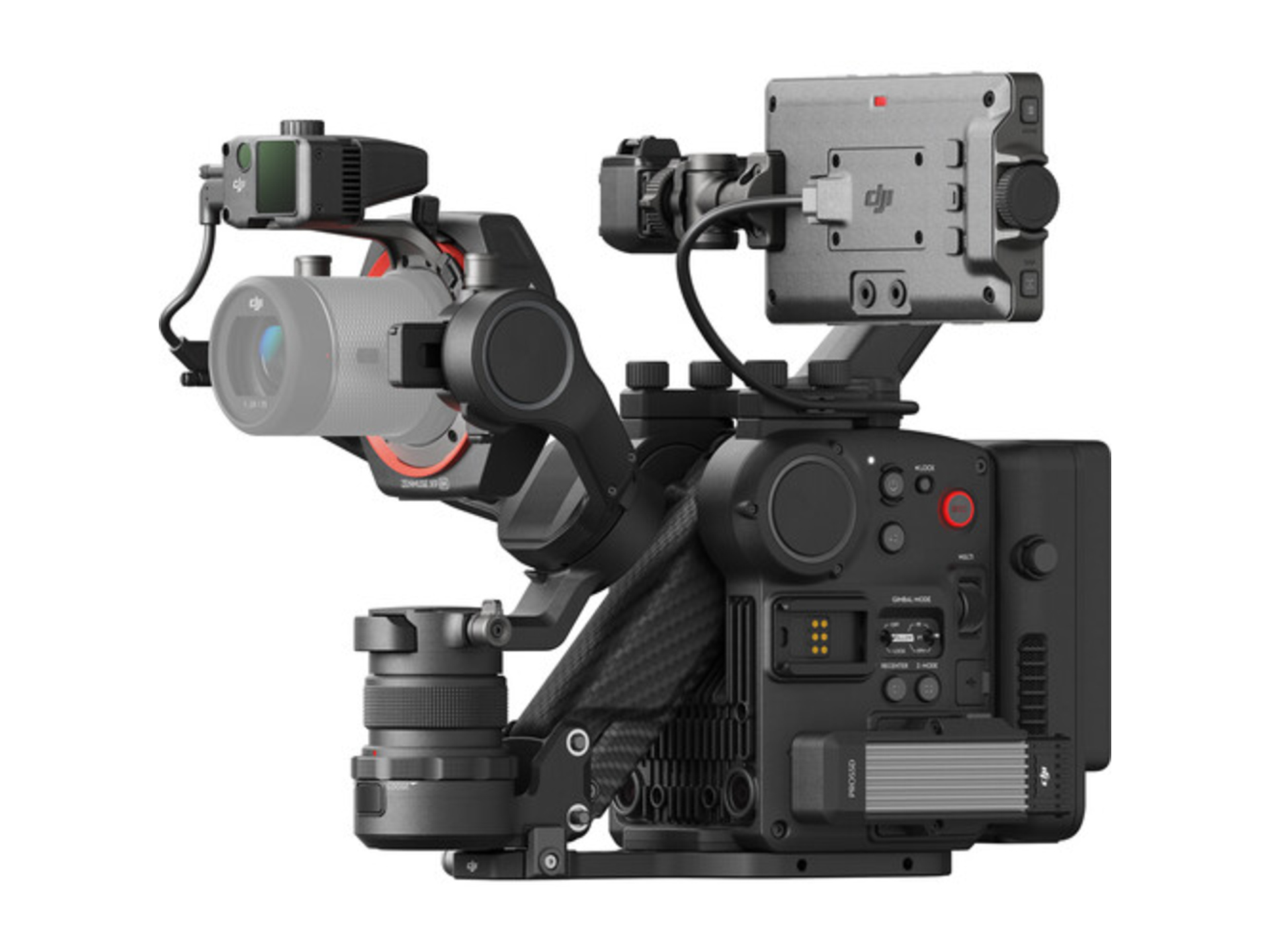

The no-lens Ronin 4K 4-Axis 8K Cinema Camera Combo from DJI combines imaging, stabilization, and focusing in a lightweight, uniquely flexible gimbal/camera rig. This 4D X9-8K version pairs the Ronin 4D gimbal with the Zenmuse X9-8K camera, a LiDAR range finder, a low-pass filter, and a RAW license that requires activation via DJI; wireless video transmission is available separately. With support for up to 8K60 17:9 video in Apple ProRes RAW, along with 8K30 17:9 and 8K75 2.39:1 in ProRes 422 HQ, the X9-8K delivers the high imaging standards required for visual effects, cinematic capture, and broadcasting, while helping reduce setup time through its all-in-one design.
RAW License Key and PROSSD 1TB
The Zenmuse X9-8K supports up to 8K video capture and includes a RAW license key, which requires activation via DJI, as well as the DJI PROSSD 1TB drive, DJI PROSSD mount, and USB-C high-speed data cable needed for raw recording.
Low-Pass Filter
In addition to the RAW license key, this X9-8K Combo includes a DL lens mount and a built-in OLPF (optical low-pass filter) for maximum color accuracy.
Included Components
- Left and right control handgrips
- LiDAR range finder
- Integrated 5.5" monitor
- TB50 battery and charging adapter
- Top handle
- Baseplate
- Hard carrying case
NOTE: This camera version does not include a lens or the high-bright main monitor.
Separately Available Components
- 7" high-bright, touchscreen monitor
- Wireless video transmitter
- X9 focus motor
- 3-channel FIZ lens control unit
- Expansion plate with SDI, XLR, and timecode ports
- DJI Leica L and M lens mounts
- Third-party ARRI PL and Sony E lens mounts
Z-Axis Camera/3-Axis Gimbal Stabilizing
- Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dolly moves.
- Z-axis stabilization is built into the camera, with 4-axis stabilization in the gimbal.
- Tilt stabilization uses dual, symmetrical motors.
- Pan and X (roll) axes feature additional stiffness buffering.
- Includes a downward ToF (time of flight) sensor.
- Includes forward and downward-facing dual-vision sensors.
- Built-in IMU (inertial measurement unit) and barometer.
- New and improved stabilization algorithm.
Advanced Image Processing with DCCS and ACES
- Support for the industry-standard ACES workflow provides easy compatibility with other cinema cameras.
- DJI DCCS color science reproduces vivid, natural skin tones across a wide range of lighting conditions and creates looks compatible with ARRI footage.
- The full-frame Zenmuse X9-8K camera uses a proprietary chip for advanced processing and high-performance computing.
Zenmuse X9-8K Camera with DL Lens Mount
The D4's DL lens mount supports full-frame capture with DJI's current lineup of lightweight carbon fiber 18, 24, 35, and 50mm lenses.
- Interchangeable lens mounts are available for use with Sony E-mount or Leica M-mount lenses.
- Supports ultrawide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses.
- Please refer to the current lens compatibility list for supported options.
ProRes RAW, 422 HQ, and H.264 4:2:0 10-Bit Capture
- Up to 8K60 ProRes RAW in 17:9 full frame or 5.5K 60 fps ProRes RAW in 17:9 Super 35.
- RAW activation required with DJI.
- Up to 8K30 ProRes 422 HQ in 17:9 full frame.
- Up to 8K75 ProRes RAW in 2.39:1 full frame.
- Up to DCI 4K60 ProRes 422 HQ or H.264 in 17:9 full-frame or Super 35.
- Up to UHD 4K120 ProRes HQ, HQ LT, or H.264 in full frame.
LiDAR Focus Control
- The LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range.
- Delivers excellent focusing performance even in low-light environments.
- Focus pulling can be viewed graphically thanks to a built-in depth meter.
- Intuitive and highly accurate focusing system.
- Modular LiDAR focusing module attaches to the front of the D4 rig.
Dual Native ISO
- With Dynamic Range Expansion off: Dual native ISO 320/1600.
- With Dynamic Range Expansion on: Dual native ISO 800/4000.
- EI 200 to EI 6400.
- 14.7 stops of dynamic range produce nuanced imaging across a wide range of lighting conditions.
Autofocus Features
- Maintains focus even when motion blur is produced by fast-moving subjects.
- Separately available focus motor supports use with manual lenses.
- Continuous autofocus is compatible with ActiveTrack Pro, making it especially useful for solo operators.
Automated Manual Focus
The AMF (Automated Manual Focus) function combines the precision of manual focus with the ease of autofocus.
- Operators can grab the focus wheel of the right handgrip at any time for manual focus control.
- The handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes.
In-Camera ND Filters
- Built-in ND 0.3 to ND 2.7 filters let you quickly adapt to changing lighting conditions.
- Especially useful for outdoor shoots with shifting cloud cover.
- Motorized filter system.
ActiveTrack Pro
DJI's ActiveTrack Pro combines continuous autofocus with composition adjustment to create professional-looking tracking shots right from the start.
- ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system.
Dual Focus, Iris, and Control Grips
- The right-hand grip features a focus wheel that also serves as a control for main camera adjustments such as menus and exposure.
- The left-hand grip includes a full-range joystick to control pan and tilt, useful for adjusting headroom and more during follow mode.
Single-User or Crew-Assisted Operation
- Delivers top-tier stabilization in a lightweight form.
- Ideal for both solo operators and shoots with assistant support.
- Designed to counter footsteps from inexperienced gimbal operators.
- Works equally well with a single grip, dual grips, shoulder support, or tripod mounting.
- Sport mode is available at the touch of a button for faster-paced action.
- Can be used in standard, underslung, jib, and crane setups.
Media Storage Options
- Requires a ProSSD 1TB drive, which is included, to capture raw footage.
- USB-C port supports external recording, with no reader needed to offload footage.
- Integrated CFexpress Type-B card slot.
Built-In 5.5" Touchscreen Monitor
- 5.5" 1920 x 1080 monitor
- 1000 cd/m² display
- Touchscreen control
Audio Recording
- Integrated stereo microphones capture dual-channel 24-bit audio.
- Built-in 3.5mm audio input port and XLR support via the expander plate.
Power Options
- Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2.
- Each battery provides up to 2.5 hours of capture time.
- Batteries charge fully in approximately 1.5 hours.
- Supports auto-heating for cold-weather use.
- AC adapter support enables uninterrupted shooting.
