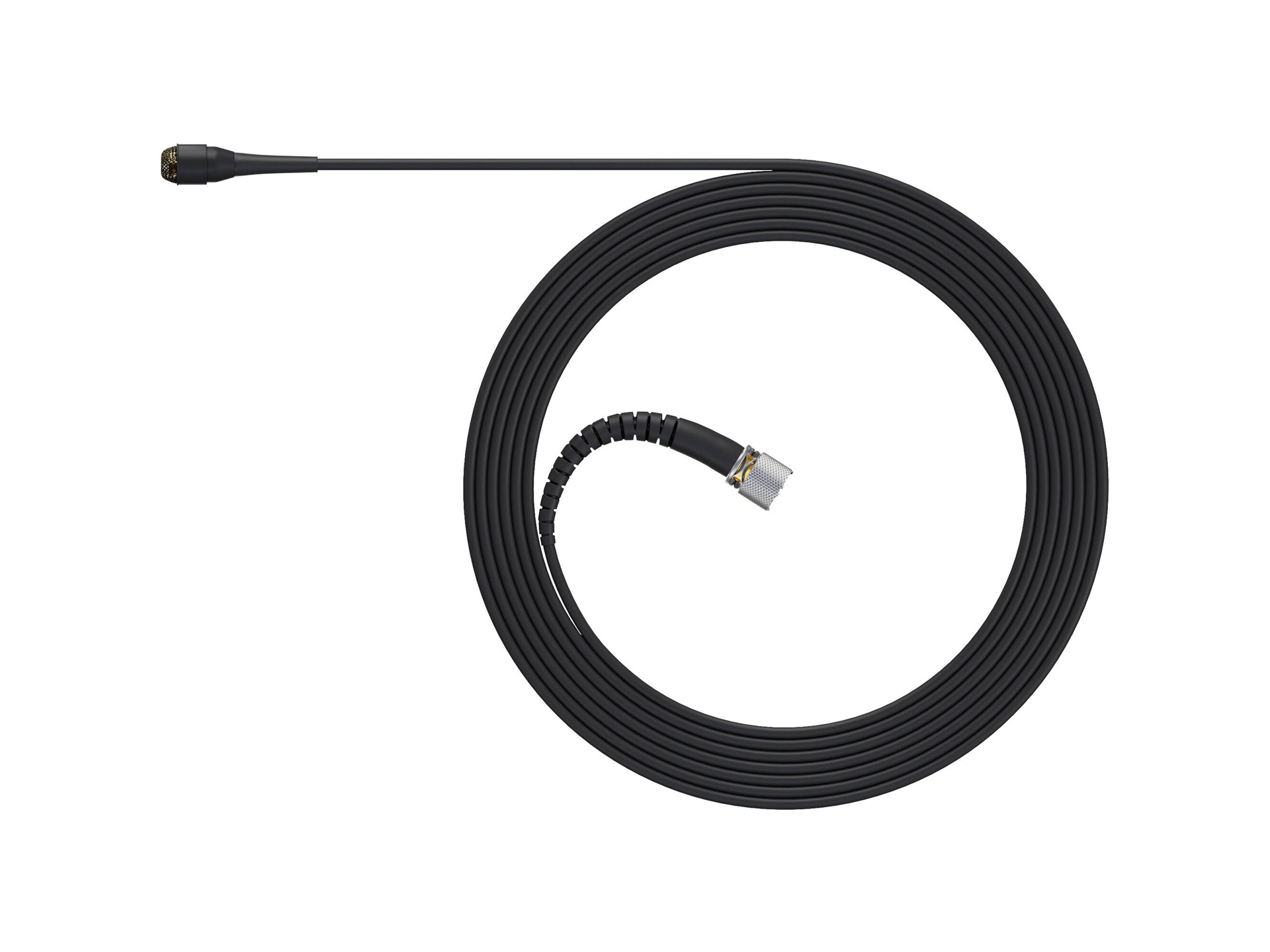

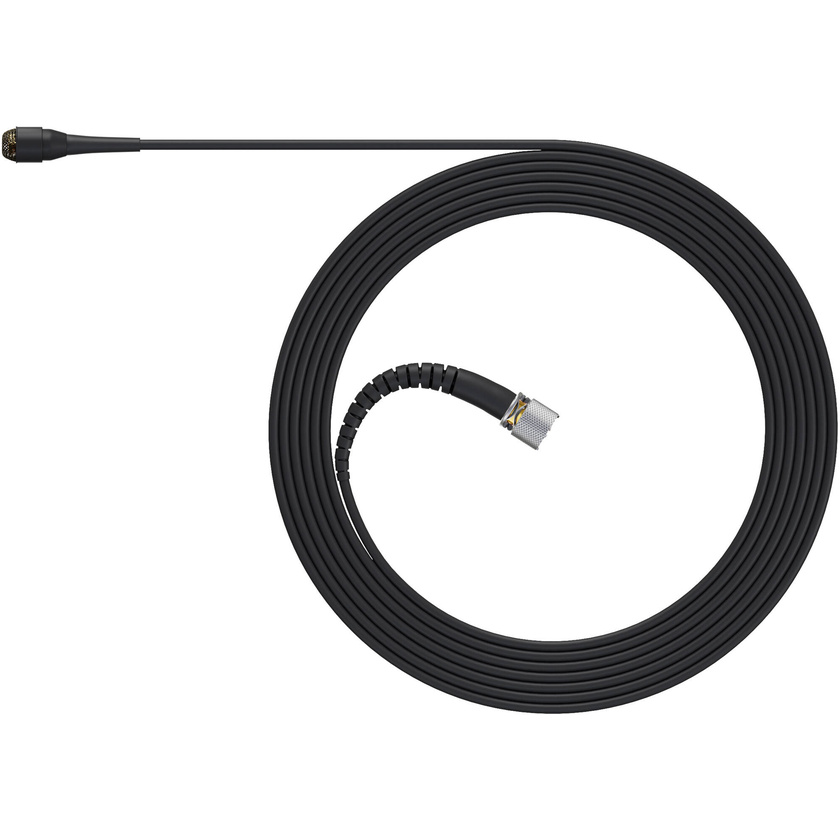

DPA Microphones 4060 CORE+ Normal Sensitivity Omni Lavalier Microphone with MicroLock Connector (Black)

Product #125174 | SKU 4060-OP-C-B90 | DPA Microphones
In stock Ships tomorrow
Our Price $769 AUD
In stock Ships tomorrow
- +

this item may be nonreturnable
Shipping & Availability
Ships tomorrow. Deliver to New South Wales for $4.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • For Stage, Film, TV, and Presentation
  • Omnidirectional for Consistent Levels
  • MicroLock Connector with Adapter Options
  • CORE+ for No Distortion up to 126 dB SPL
  • Handles Speech/Vocals up to 128 dB SPL
  • IP58-Certified Dust & Moisture Resistant

Description

The DPA Microphones 4060 CORE+ Normal Sensitivity Omni Lavalier Microphone with MicroLock Connector (Black) is a moisture-resistant, miniature lavalier microphone designed for demanding professional environments, including broadcast, performance, and theatrical settings. Its compact form factor and unobtrusive profile make it an excellent choice for live stage work and presentations, ensuring both discretion and durability. The microphone is equipped with a reliable MicroLock connector, making it compatible with a broad selection of wireless transmitters through the use of separately available adapters. Its electret-condenser capsule is engineered to produce crisp, clear, and intelligible speech, meeting the high standards required for professional audio applications.

CORE+ Technology and Dynamic Range

At the heart of the DPA 4060 CORE+ is CORE+ technology, which delivers a wide dynamic range and virtually eliminates distortion—even at sound pressure levels up to 126 dB RMS. This ensures clean, natural, and highly detailed sonic performance, even on the loudest stages. To enhance versatility, the microphone comes with two interchangeable capsule protection grids. These grids allow users to modify the sonic character, optimizing microphone performance for various placement positions and audio requirements.

Sensitivity, SPL Handling, and Versatility

The 4060 is wired for normal sensitivity, enabling it to handle peak sound pressure levels up to 131 dB with less than 1% distortion. This capability makes it suitable for a variety of applications, from standard speaking roles and vocal performances to instrument miking. Such flexibility also makes the DPA 4060 CORE+ an invaluable tool for houses of worship, live event production, and presentations that demand both reliability and high audio fidelity.

Power Requirements and Included Accessories

Power for the DPA 4060 CORE+ is supplied via 5 to 10V plug-in power from a wireless microphone transmitter, allowing seamless integration within most professional wireless systems. The package includes two capsule protection grids, further enhancing the microphone's adaptability to different environments and use cases.

Specifications

Microphone
Compatible Transmitters Not Specified by Manufacturer
Polar Pattern Omnidirectional
Included Tone/Pattern Caps +4 dB Bright, +8 dB Very Bright
Performance
Frequency Response 20 Hz to 20 kHz
Maximum SPL 126 dB (RMS, 1% THD)
129 dB (Peak, 1% THD)
131 dB (Peak, 10% THD)
Sensitivity 20 mV/Pa (at 1 kHz)
Dynamic Range 106 dB (Typical)
Equivalent Noise Level 23 dB (A-Weighted)
Connectivity
Analogue Output Connector 1x Microlock Coaxial (Locking)
Cable Length 5.9' / 1.8 m
Power
Power Sources Plug-In Power
Operating Voltage 5 to 10 V
Physical
Colour Black
Environmental Resistance Dust/Water-Resistant to 3.28' / 1 m (IP58)
Dimensions L: 0.5" / L: 12.7 mm (Microphone)
Weight 0.26 oz / 7.5 g (with Cable)

In The Box

  • DPA Microphones 4060 CORE+ Normal Sensitivity Omni Lavalier Microphone with MicroLock Connector (Black)
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: DPA Microphones 4060 CORE+ Normal Sensitivity Omni Lavalier Microphone with MicroLock Connector (Black)
  • Manufacturer: DPA Microphones
  • Model: 4060 CORE+
  • SKU: 4060-OP-C-B90
  • RM Product #: 125174
  • Length Meters: 1.8 m
  • Length Feet: 5.9 ft
