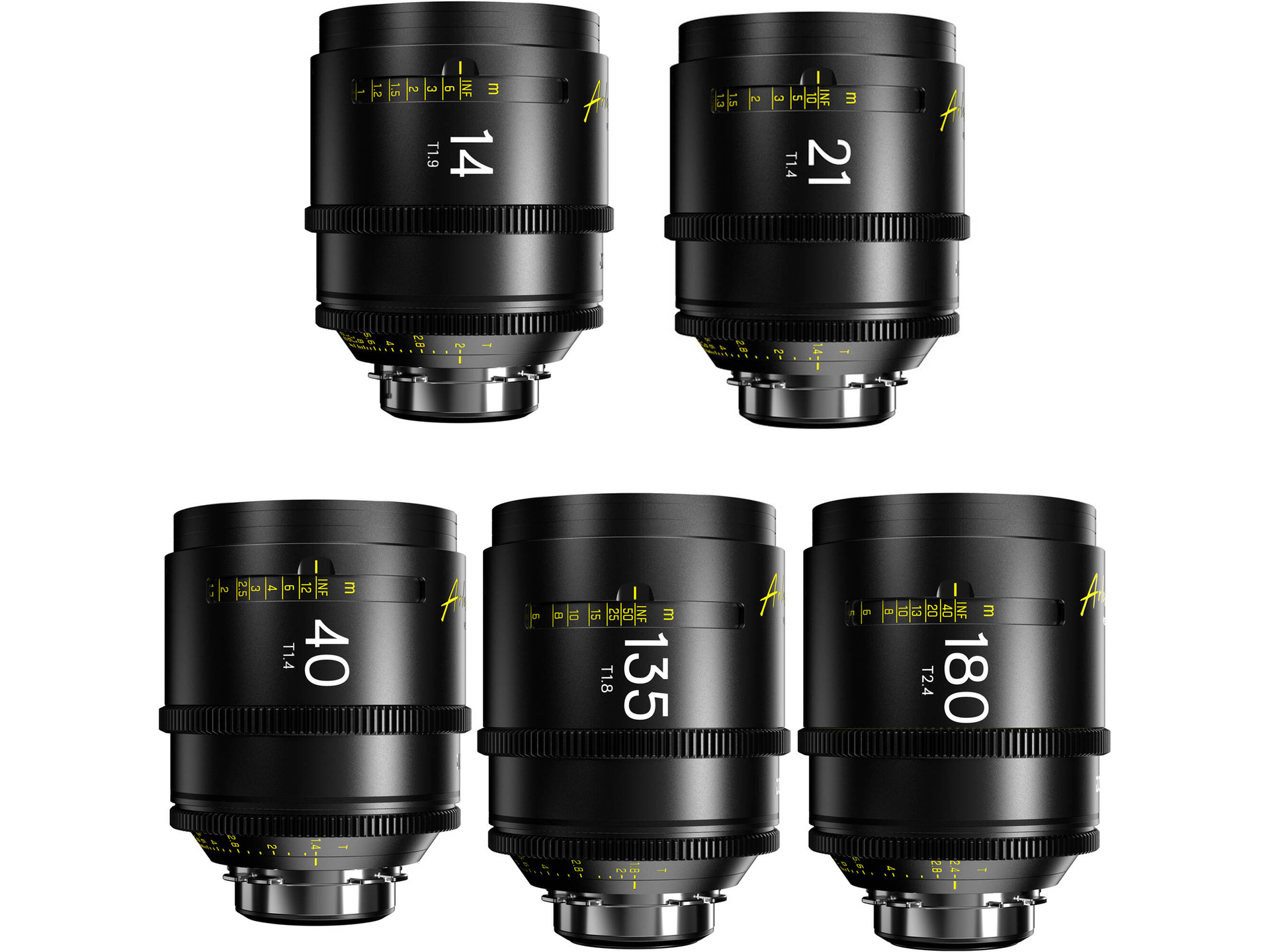

DZOFilm Arles FF/VV Prime Cine 5-Lens 14/21/40/135/180mm Set (ARRI PL)

Product #117317 | SKU DZO-SAP5B14MPL | DZOFilm
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
Our Price $15,349 AUD
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to New South Wales for $6.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 14, 21, 40, 135, and 180mm Lenses
  • All Lenses Cover Full-Frame Format
  • T1.4 to T22 Aperture Range
  • 16-Blade Iris, M86 Filter Thread
  • 95mm Front Diameter
  • Cinema-Standard Gearing

Description

This DZOFilm Arles FF/VV Prime Cine 5-Lens 14/21/40/135/180mm Set is a comprehensive kit that includes five different focal lengths, ranging from wide to telephoto. The set is compatible with ARRI PL full-frame cameras and features lenses with focal lengths of 14mm, 21mm, 40mm, 135mm, and 180mm. Each lens shares similar specifications, with matching gearing, iris blades, front diameters, and aperture ranges that allow for easy switching between lenses. Please continue reading to learn more about each lens included in this versatile kit.

DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens (ARRI PL)

Designed for use with full-frame ARRI PL-mount cameras, the Arles 14mm T1.9 FF/VV Prime Cine Lens from DZOFilm offers exceptional image quality. With a wide aperture range of T1.9 to T22, this lens enables impressive low-light performance and allows for creative control over depth of field. The lens features a 16-blade iris and an optical construction that consists of multiple grouped elements, resulting in a pleasing bokeh and natural-looking imagery. The focus ring offers a rotation of 270°, while the iris ring provides a 77° range for precise manual adjustments.

DZOFilm Arles 21mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

The Arles 21mm T1.4 FF/VV Prime Cine Lens from DZOFilm is specifically designed for full-frame ARRI PL-mount cameras, offering consistent sharpness and natural-looking imagery. With an aperture range of T1.4 to T22, this lens excels in challenging lighting conditions and allows for effective shallow depth of field. Its 16-blade iris and optical construction with multiple grouped elements deliver a soft and natural bokeh, complementing the high-quality imagery produced. For easy manual adjustments, the focus ring rotates 270°, while the iris ring has a 77° range.

DZOFilm Arles 40mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

The Arles 40mm T1.4 FF/VV Prime Cine Lens by DZOFilm is designed to be used with full-frame ARRI PL-mount cameras, providing consistently sharp and natural-looking imagery. With an aperture range of T1.4 to T22, this lens excels in low-light situations and allows for precise control over depth of field. The lens features a 16-blade iris and an optical construction with multiple grouped elements, resulting in a soft and natural bokeh that enhances the overall quality of your images. The focus ring offers a 270° rotation, while the iris ring allows for intuitive manual adjustments with a 77° range.

DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Enhance your full-frame ARRI PL-mount camera with the Arles 135mm T1.4 FF/VV Prime Cine Lens from DZOFilm, which delivers consistently sharp and natural-looking imagery. Designed with a longer focal length of 135mm, this lens offers an aperture range of T1.4 to T22, allowing for exceptional performance in low-light conditions and creating stunningly shallow depth of field effects. The lens incorporates a 16-blade iris and an optical construction that includes multiple grouped elements, producing a soft and natural bokeh in your images. You can easily make manual adjustments with the 270° rotation of the focus ring and a 77° range of the iris ring.

DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

The Arles 180mm T1.4 FF/VV Prime Cine Lens from DZOFilm is specifically designed for full-frame ARRI PL-mount cameras, enabling you to capture sharp and natural-looking imagery. With a longer focal length of 180mm, this lens offers an aperture range of T1.4 to T22, ensuring excellent performance in low-light situations and allowing for precise control over depth of field. The lens features a 16-blade iris and an optical construction that consists of multiple grouped elements, resulting in a soft and natural bokeh that enhances the overall quality of your images. The focus ring provides a rotation of 270°, while the iris ring allows for intuitive manual adjustments with a range of 77°.

Specifications

DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens
Key Specs
Focal Length 14mm
Maximum Aperture T1.9
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.9
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Not Specified by Manufacturer
Focus Scales Metric
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Coatings Multi-Coating
Diameter 3.7" / 95 mm
Length Not Specified by Manufacturer
DZOFilm Arles 21mm T1.4 FF/VV Prime Cine Lens
Key Specs
Focal Length 21mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Electronic Communication No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Focus Scales Metric
Filter Thread 86 mm
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Electronic Communication No
Coatings Multi-Coating
Diameter 3.7" / 95 mm
DZOFilm Arles 40mm T1.4 FF/VV Prime Cine Lens
Key Specs
Focal Length 40mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Electronic Communication No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Focus Scales Metric
Filter Thread 86 mm
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Electronic Communication No
Diameter 3.7" / 95 mm
DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens
Key Specs
Focal Length 135mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Focus Scales Metric
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Coatings Multi-Coating
Diameter 3.7" / 95 mm
DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
Key Specs
Focal Length 180mm
Maximum Aperture T1.4
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 86 mm
Image Stabilisation No
Electronic Communication No
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Focus Scales Metric
Filter Thread 86 mm
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus: 270° (Manual Only)
Iris: 77° (Manual Only)
Electronic Communication No
Coatings Multi-Coating
Diameter Front: 3.7" / 95 mm

In The Box

  • DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 21mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 40mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • DZOFilm Hard Case for Arles 5-Lens Set

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: DZOFilm Arles FF/VV Prime Cine 5-Lens 14/21/40/135/180mm Set (ARRI PL)
  • Manufacturer: DZOFilm
  • Model: DZO-SAP5B14MPL
  • SKU: DZO-SAP5B14MPL
  • RM Product #: 117317
  • Lens Type: Wide to Telephoto
  • Maximum Aperture: T1.9
  • Lens Mount: Arri PL
  • Zoom or Prime Lens: Prime
  • Maximum Aperture: T1.4
