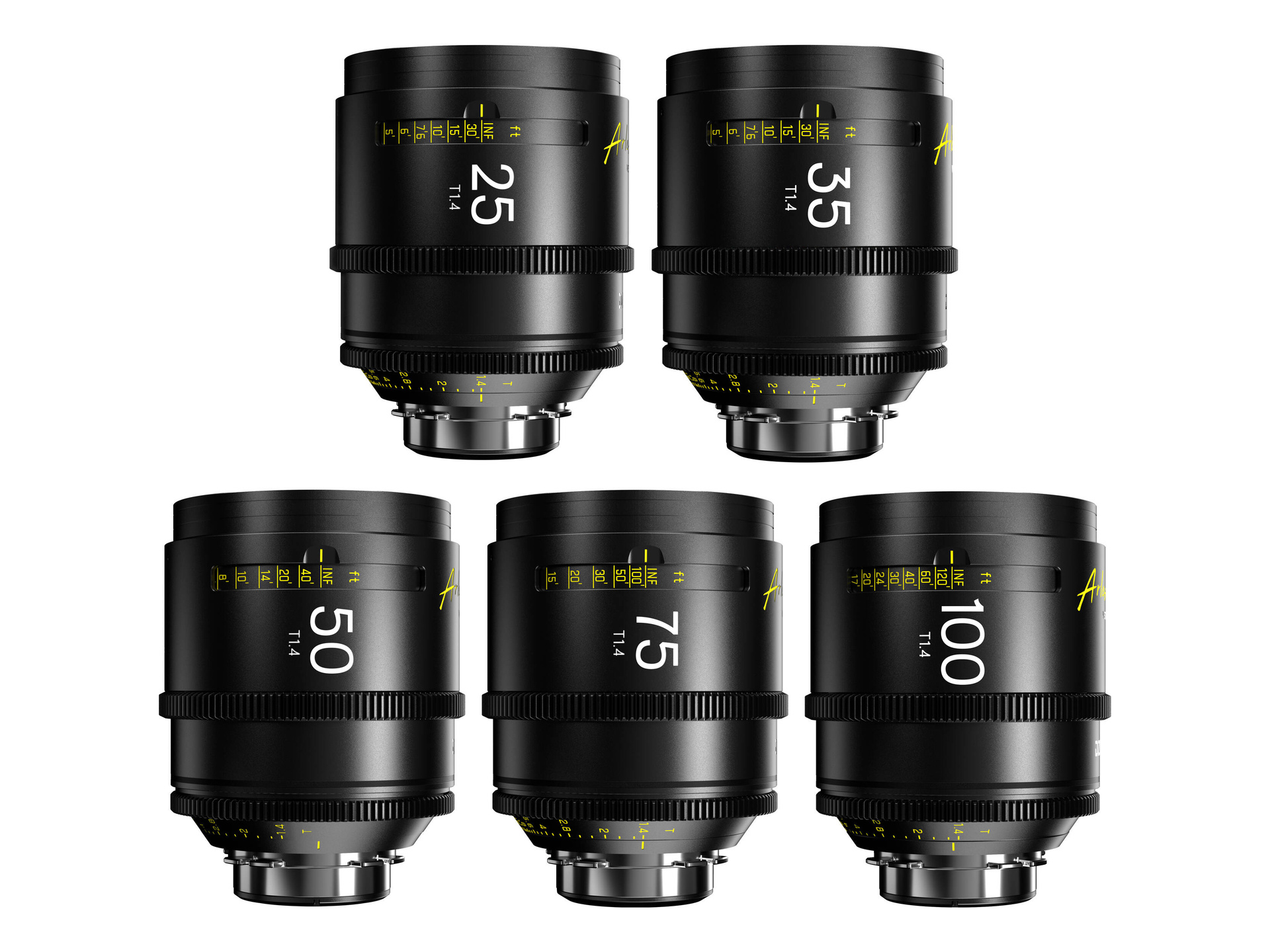

DZOFilm Arles FF/VV Prime Cine 5-Lens Set (ARRI PL, Feet)

Product #114994 | SKU DZO-SAP5A25IPL | DZOFilm
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
Our Price $13,449 AUD
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to New South Wales for $37 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 25, 35, 50, 75, and 100mm Lenses
  • All Lenses Cover Full-Frame Format
  • T1.4 to T22 Aperture Range
  • 16-Blade Iris, M86 Filter Thread
  • 95mm Front Diameter
  • Cinema-Standard Gearing

Description

Equip your full-frame ARRI PL-mount camera with the Arles 25mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 14 elements in 12 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 77° for intuitive manual adjustments.

The lens features an 87.44° diagonal field of view to ensure your subject remains in the frame. A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.

Specifications

DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 80.36°
Vertical: 47.28°
Diagonal: 87.44°
Focus Scales Imperial
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 13.78" / 0.35 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus 270° (Manual Only)
Iris 77° (Manual Only)
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.3 lb / 1490 g
DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 61.1°
Vertical: 34.23°
Diagonal: 67.15°
Focus Scales Imperial
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 13.78" / 0.35 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus 270° (Manual Only)
Iris 80° (Manual Only)
Coatings Multi-Coating
Environmental Protection No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.6 lb / 1650 g
DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 45.17°
Vertical: 24.61°
Diagonal: 50.23°
Focus Scales Imperial
Optical Design 13 Elements in 9 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 19.7" / 0.5 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus 270° (Manual Only)
Iris 80° (Manual Only)
Coatings Multi-Coating
Environmental Protection No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.7 lb / 1688 g
DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 30.45°
Vertical: 16.35°
Diagonal: 34.1°
Focus Scales Imperial
Optical Design 13 Elements in 9 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 2.46' / 0.75 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus 270° (Manual Only)
Iris 82° (Manual Only)
Coatings Multi-Coating
Environmental Protection No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.7 lb / 1662 g
DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
Horizontal: 23.12°
Vertical: 12.34°
Diagonal: 25.96°
Focus Scales Imperial
Optical Design 13 Elements in 8 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 3.0' / 0.9 m
Diaphragm Blades 16
Image Stabilisation No
Gear Standard Focus: 0.8 MOD
Iris: 0.8 MOD
Gear Rotation Focus 270° (Manual Only)
Iris 90° (Manual Only)
Coatings Multi-Coating
Environmental Protection No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 4 lb / 1830 g

In The Box

  • DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Feet)
  • DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Feet)
  • DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Feet)
  • DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Feet)
  • DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Feet)

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: DZOFilm Arles FF/VV Prime Cine 5-Lens Set (ARRI PL, Feet)
  • Manufacturer: DZOFilm
  • Model: DZO-SAP5A25IPL
  • SKU: DZO-SAP5A25IPL
  • RM Product #: 114994
  • Maximum Aperture: T1.4
  • Lens Mount: Arri PL
  • Zoom or Prime Lens: Prime
