The DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens but with a twist. ...a 90° angle! This zoom features a constant T8 aperture, 2.1x magnification, 300° focus rotation, and standard M0.8 focus gear pitch for cinematic workflows. The M0.8 rotating ring design allows for 360° rotation with full flexibility in shooting angles. With controlled distortion and breathing, a waterproof, dustproof, and anti-fog durable build, this probe is ready to tackle some of the most demanding, creative projects.

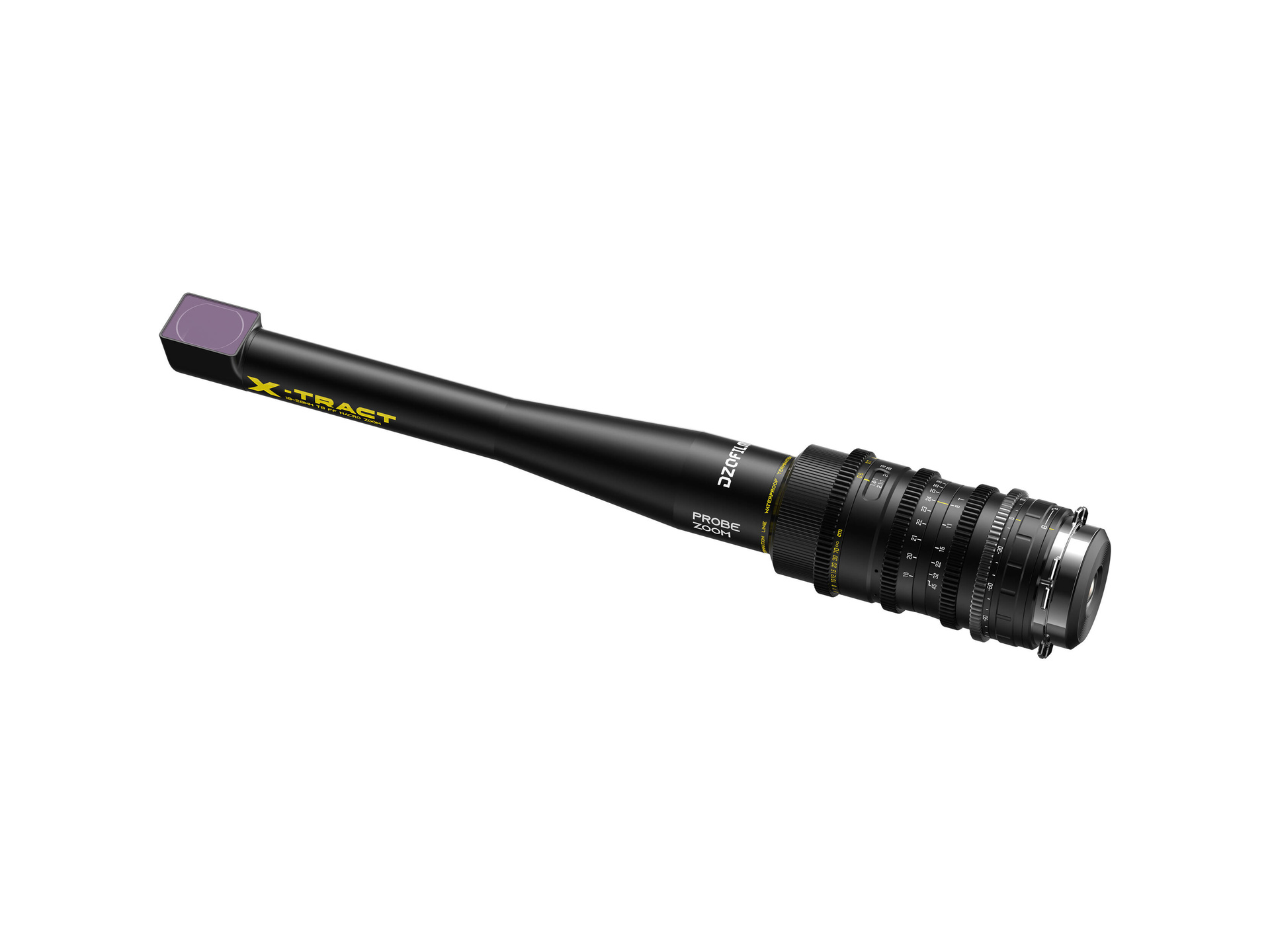

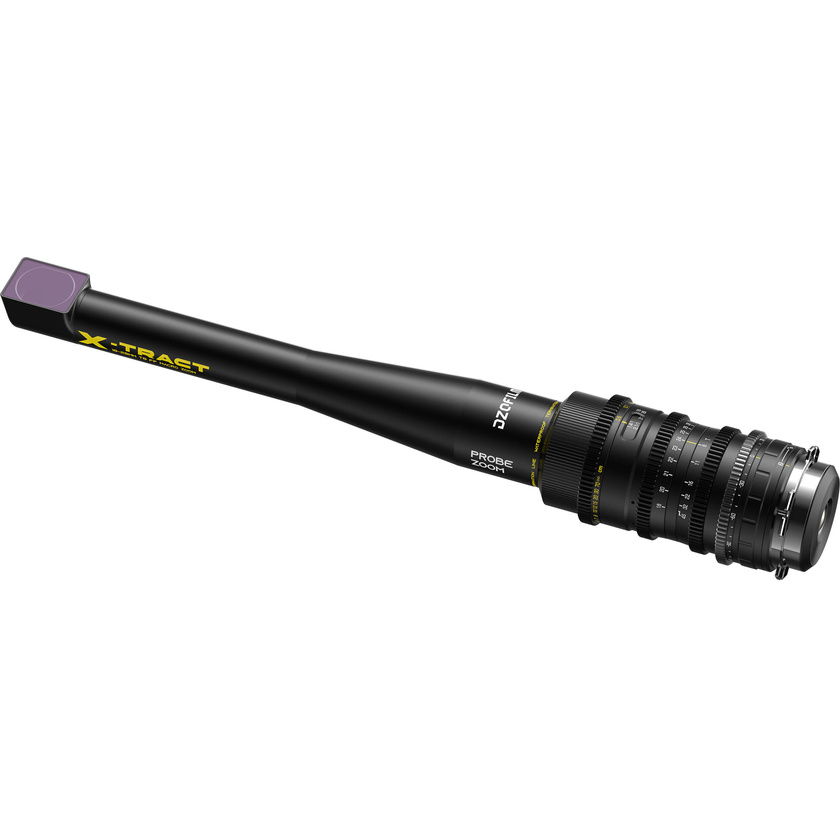

DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (90 Degrees, ARRI PL)
Usually ships in 4 - 6 weeks
Our Price
$6,549
AUD
Usually ships in 4 - 6 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 4 - 6 weeks.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
4 - 6 weeks
Click & Collect
Features
- Full Frame | T8 Maximum Aperture
- Innovative 90° Probe Zoom
- 0.8 MOD FIZ Gears, 300° Focus Rotation
- 2.1:1 Image Magnification
- Versatile 73 to 100° Angle of View
- Minimum Focus: 0.24"
Description
Specifications
| Maximum Aperture | T8 |
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | No |
| Lens Format Coverage | Full Frame |
| Angle of View | Full Frame Horizontal: 100 to 73° |
| Focus Scales | Metric |
| Filter Thread | No |
| Zoom Ratio | 1.56x |
| Minimum Focus Distance | From Front of Lens: 0.2" / 6 mm |
| Maximum Magnification Ratio | 2.1:1 |
| Image Stabilisation | No |
| Lens Mounting | 1x 1/4"-20 (via Included Support Foot) 3x 3/8"-16 (via Included Support Foot) |
| Gear Standard | Focus: 0.8 MOD Iris: 0.8 MOD Zoom: 0.8 MOD |
| Gear Rotation | Focus: 300° |
| Electronic Communication | No |
| Coating | Multi- & Resistance-Coated |
| Environmental Resistance | Water-Resistant (Unrated) |
| Diameter | Front: 1.2" / 30 mm |
| Length | 16.3" / 415 mm |
| Weight | 2.38 lb / 1.08 kg |
In The Box
- DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (90°, ARRI PL)
- 90° Tube
- Front Cap
- Rear Cap
- Y-Bracket Support
- Bolt Driver
- Shim Set
- Hard Case with Foam Inlay
- Support Ring
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (90 Degrees, ARRI PL)
- Manufacturer: DZOFilm
- Model: DZO-X1828B
- SKU: DZO-X1828B
- RM Product #: 121056
- Lens Type: Probe
- Maximum Aperture: T8
- Lens Mount: Arri PL
- Zoom or Prime Lens: Zoom
