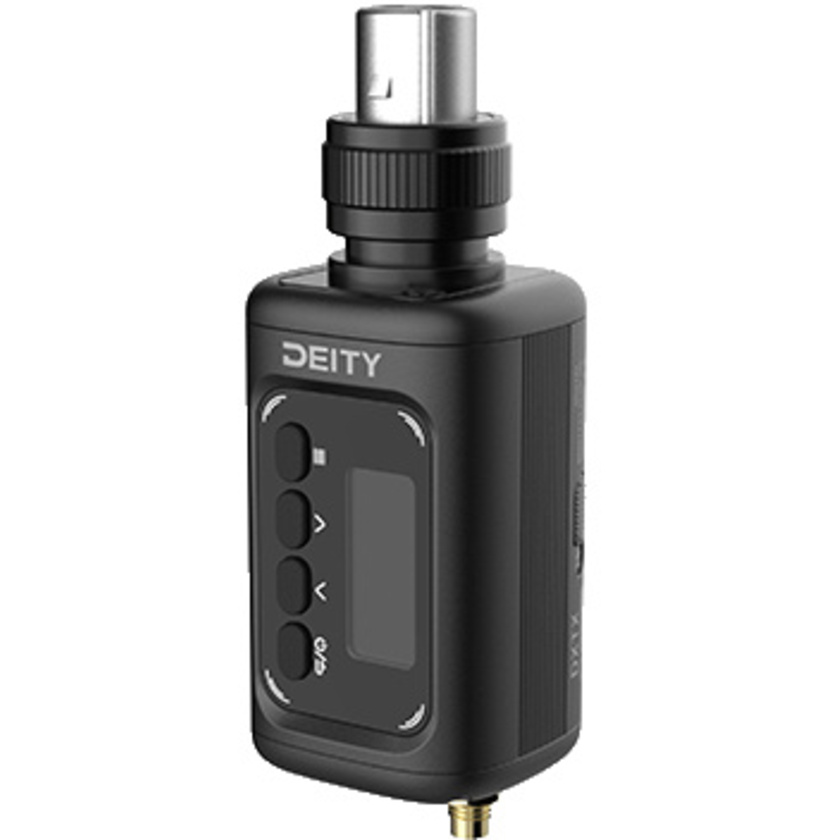

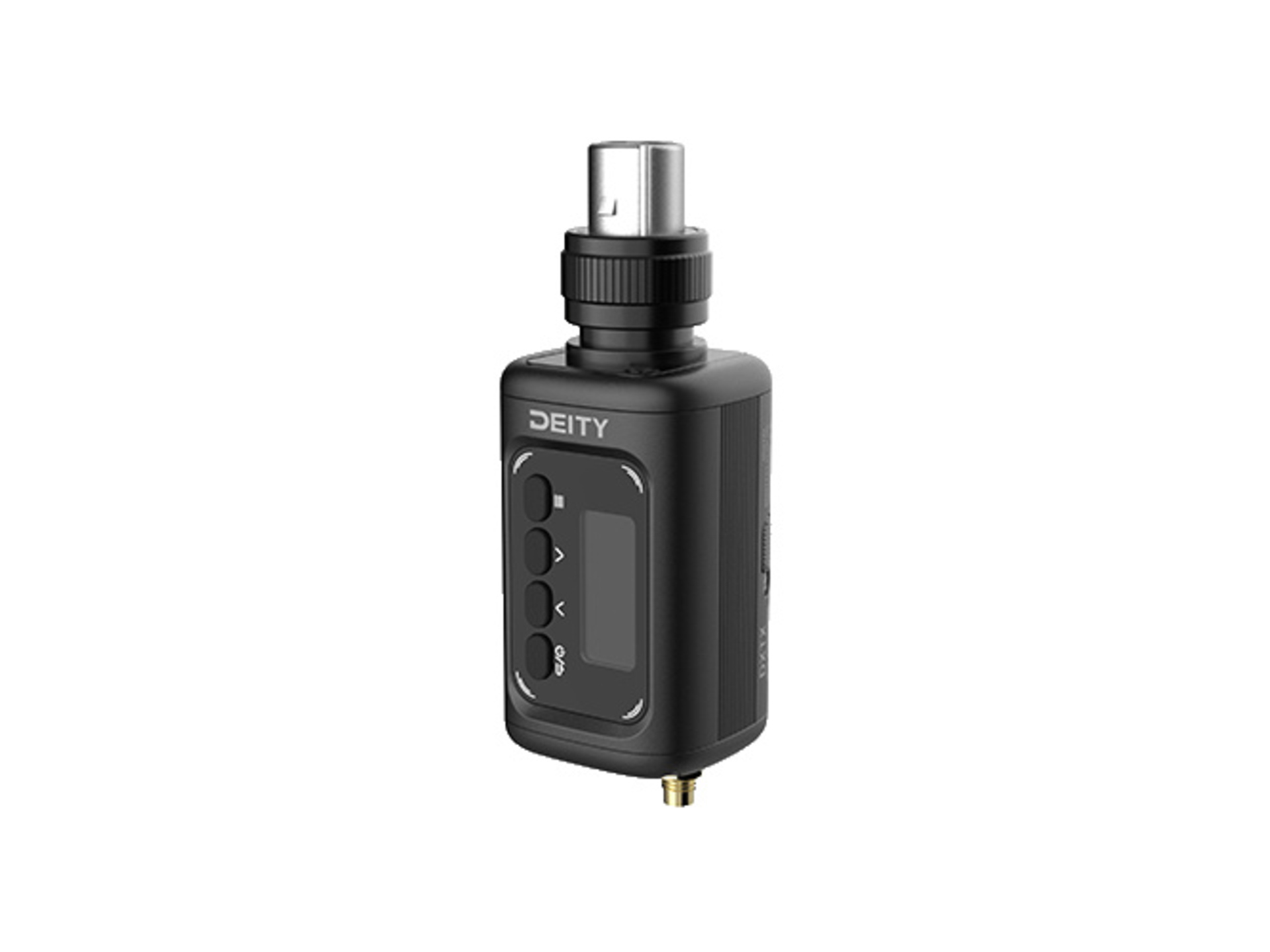

The Deity Theos DXTX Plug-On Transmitter features a Neutrik XLR locking female panel mount connector, simultaneous transmission and recording. a color screen, and up to fourteen hours of battery life on two AA batteries. Inside the battery door is an included 32Gb microSD card.
The EMC-XLR Series from Neutrik is a specifically designed to give it enhanced RF suppression during critical applications where there are radio transmission near the microphone.
The XLR connector on the DXTX also features 5V Bias. Today the majority of video microphones used on cameras either need bias voltage to run (ie. Deity V-Mic D4 Mini, RODE VideoMic GOii, or Sennheiser MKE400) or they need bias voltage to trigger themselves awake (like the Deity V-Mic D3 / D3 Pro or RODE VideoMic NTG**)
Rather than mounting the LEDS on the side of the unit, it's placed under the device for easy spotting when flying it on a boom pole, as well as hiding them from the camera lens when the DXTX is being used on-camera with handheld microphone during interviews.
Also on the bottom is the 50 Ohm SMA antenna port and USB-C port. This allow the DXTX to be integrated into larger systems like using it as an IFB or camera hop transmitter with a built-in backup recorder that could always be running as a safety take.
Features
- Colour Screen
- 550MHz ~ 960MHz; ≤100mW*
- Featuring a Neutrik XLR Locking Input
- Dual AA Battery; Up To 14Hrs** of Battery Life
- 32-Bit Float / 24-Bit – With Timecode (Supports ≤128Gb MicroSD)
- Remote Control the DXTX with BitConnectify™ 2.0; Up To 76.2m Bluetooth Range
- Audio Input compatible feature analog 5V Mic Bias and Line signals
- Analog Limiter
- Supports 48V Phantom Power
- External SMA Antenna
- External Power via USB-C
Firmware Updatable
