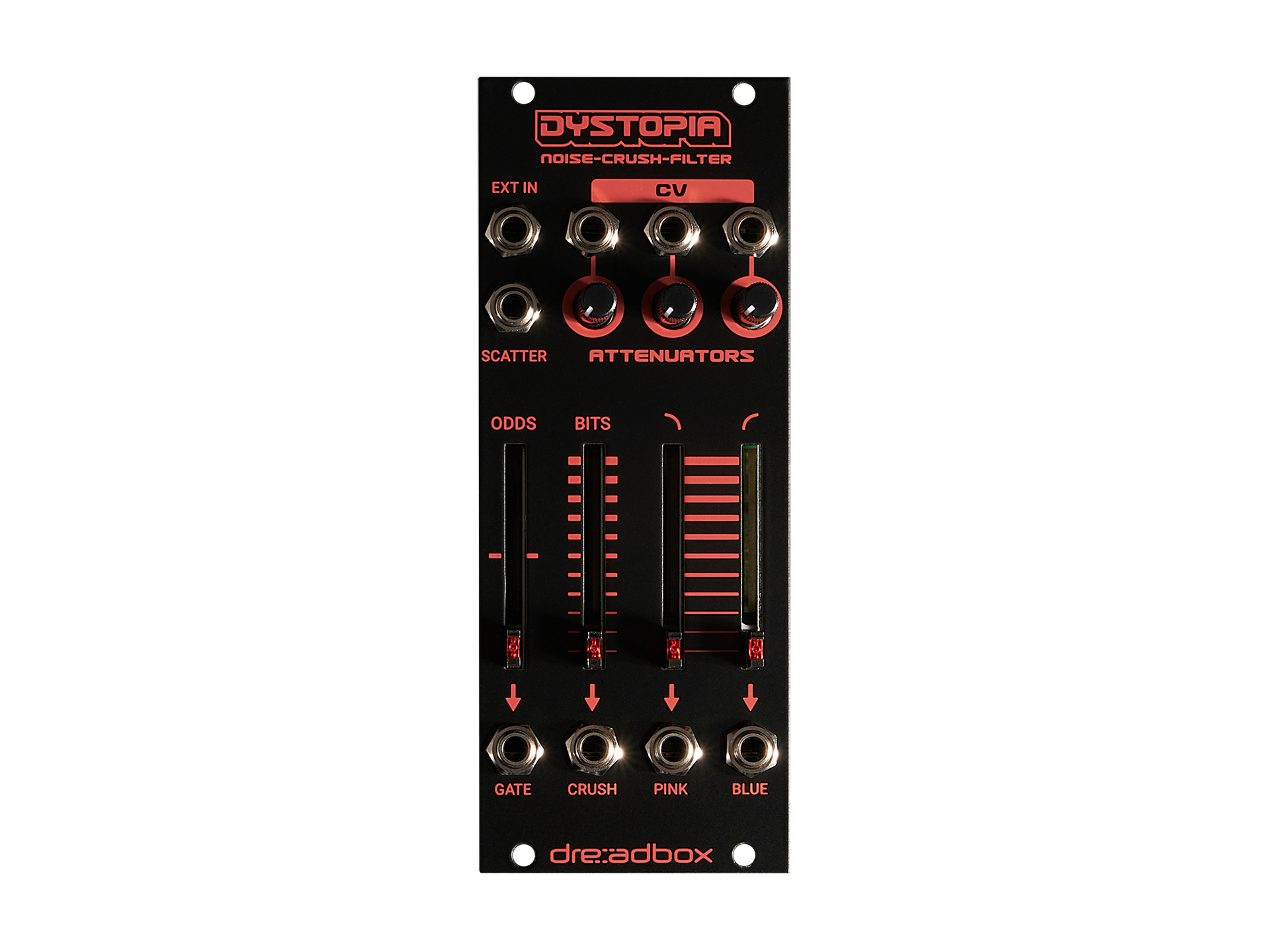

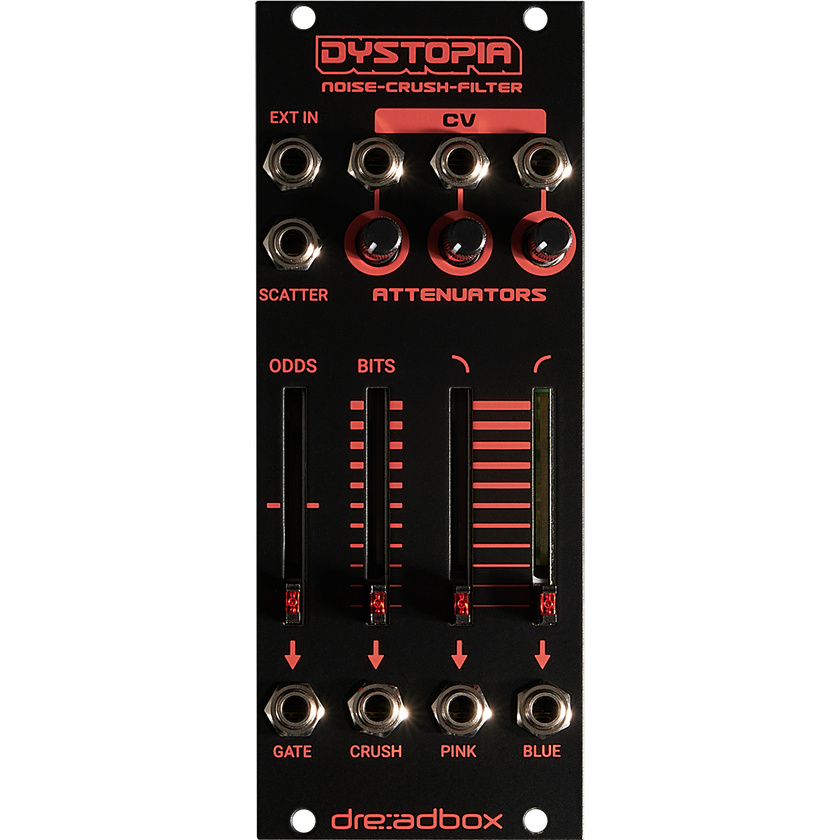

The 10 HP Dreadbox Dystopia BL is a noise, crush, and dual-filter module in Eurorack format, capable of processing audio and CV signals for a wide variety of tones, textures, and rhythmic sequences. The module features multiple noise sources with white, white to pink, white to blue, scatter, digital, and pitch. The bit crusher offers a range from 1 Hz up to 8 kHz, while the dual 12 dB filter offers high-pass and low-pass in parallel. The digital noise source can be used as a random gate generator as well.
When a signal is patched into the External Input, the internal noise generator is canceled, and the external signal is in process. Each circuit of the module offers a fader control with a scaling knob and a CV input for patched control from other modules such as LFOs, filter, and oscillators. Additionally, there is a gate output, which is triggered when the CV signal input is raised above the ground signal. LED indicators illustrate the controls for the current CV sum. The 10 HP module has a depth of 1.4" and ships with a power ribbon cable.
Features
- Noise Generator (white, white to pink, white to blue, scatter, digital, pitch)
- Bit Crusher with range from 1 Hz up to 8 kHz
- Digital Noise can also be used as a random gate generator
- Dual Filter (parallel) 12 dB low-pass and high-pass filter
- When you insert a signal to the External In, the internal noise generator is canceled and the External signal is in process
- LED indicator for all controls to illustrate the current CV sum
