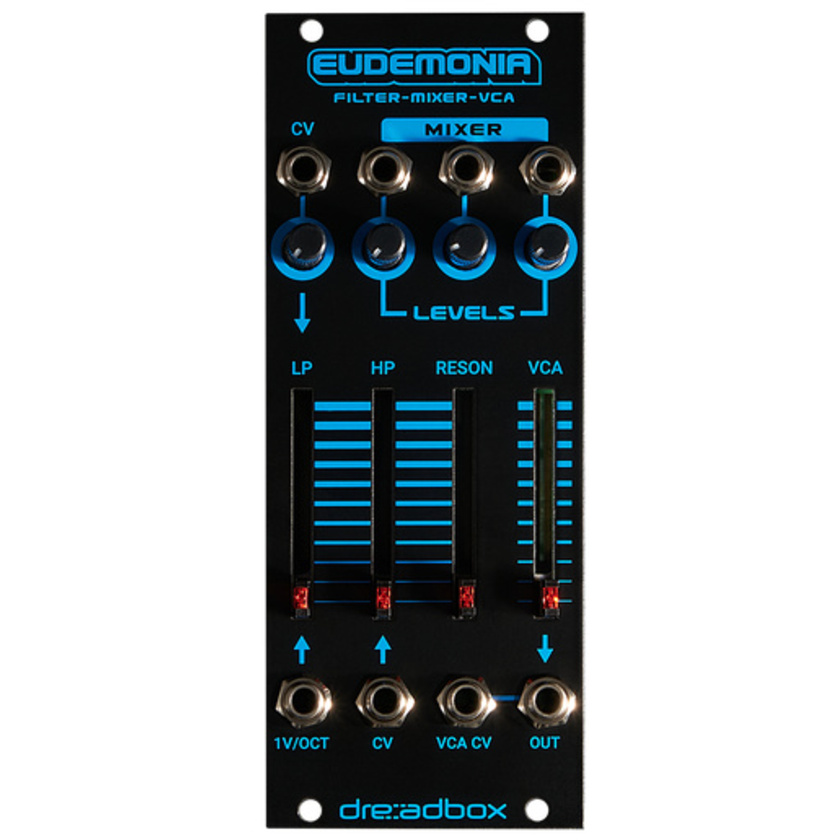

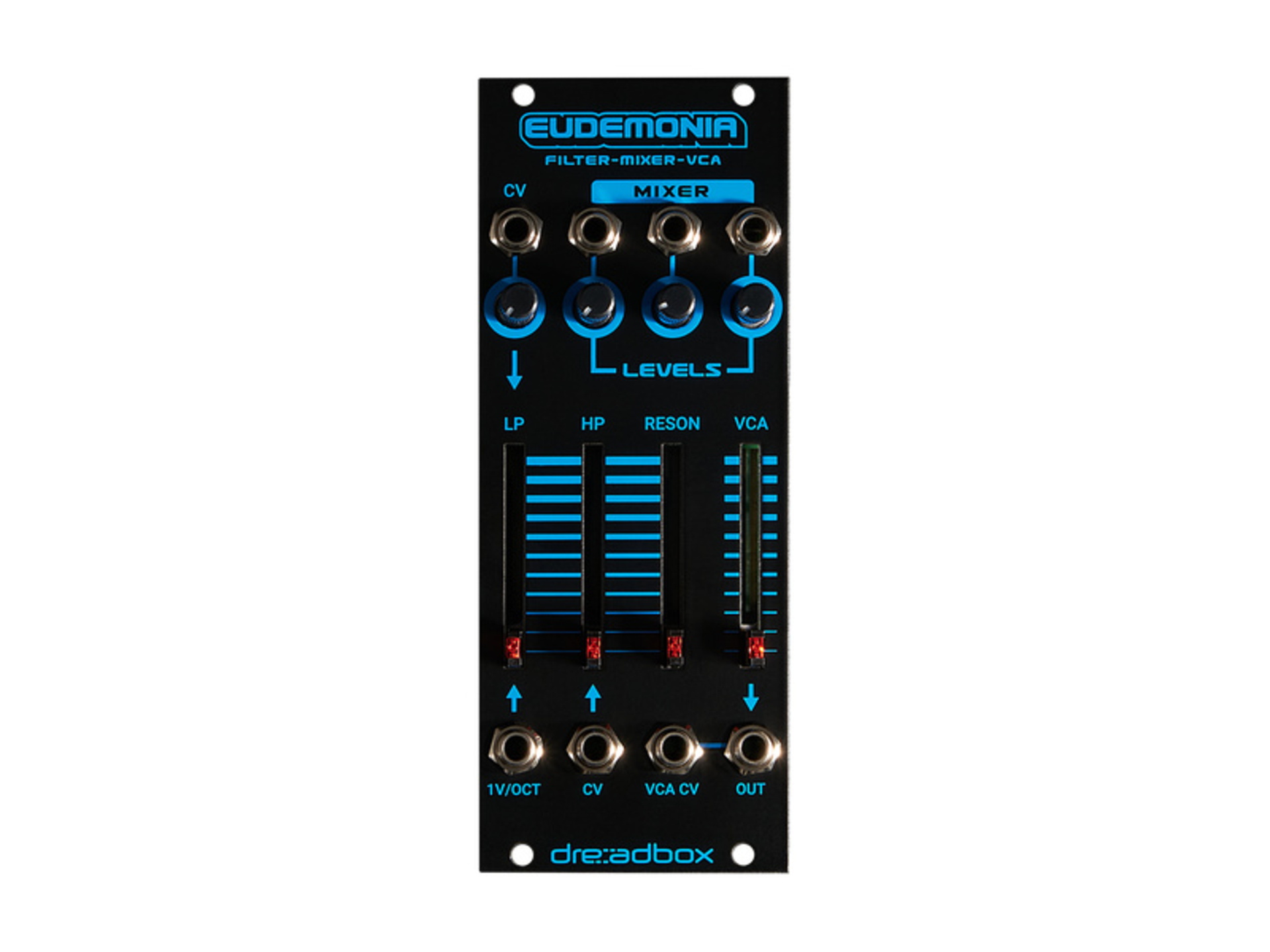

The 10 HP Dreadbox Eudemonia BL is a highly flexible filter, mixer, and VCA module in Eurorack format, capable of processing audio signals for a wide variety of tones, textures, and rhythms. The module features three inputs, each with their own level control, which are capable of overdriving the filter for larger-than-life saturation effects. The signal is passed into the dual LP and HP filter, which is configured in series.
The 24 dB low-pass filter features resonance and is capable of self oscillation. The 1V/Oct CV input allows the filter to generate a Sinae wave and may be used as an oscillator. The 18 dB high-pass filter is non-resonant and when used with the low-pass filter, operates as a flexible band-pass filter. Both filters can be controlled from an external envelope generator via the CV input, as well as the dedicated VCA input, which adds additional voltage to the VCA's static slider setting. The 10 HP module has a depth of 1.4" and ships with a power ribbon cable.
Features
- Analogue Wave Generator Processor
- 3-to-1 mixer
- Dual filters in series
- 24 dB resonant low-pass filter
- 18 dB non-resonant high-pass filter
- Exponential VCA with peak indicator (above 10 p-p)
- LED indicator for all controls to illustrate the current CV sum
