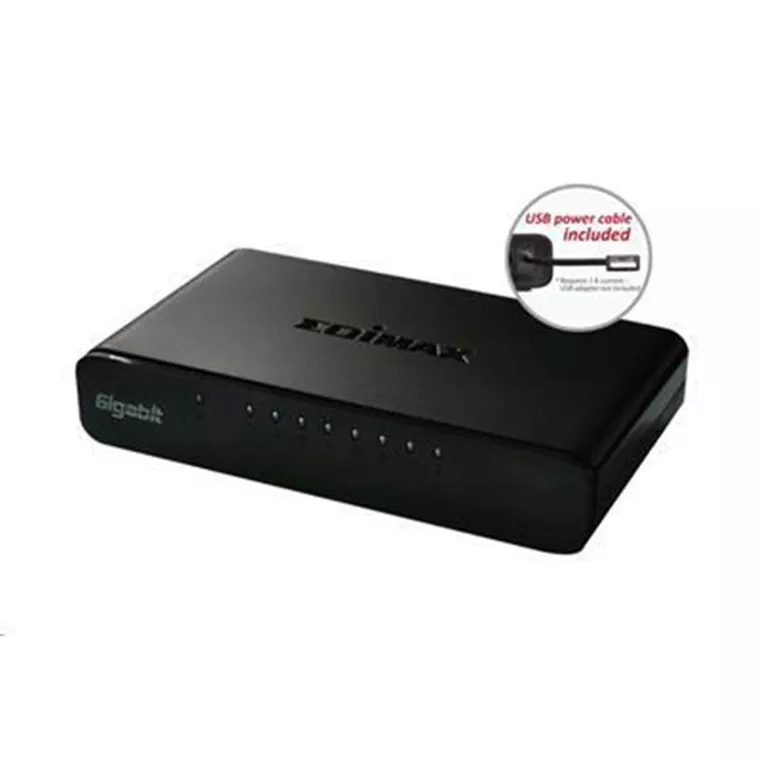

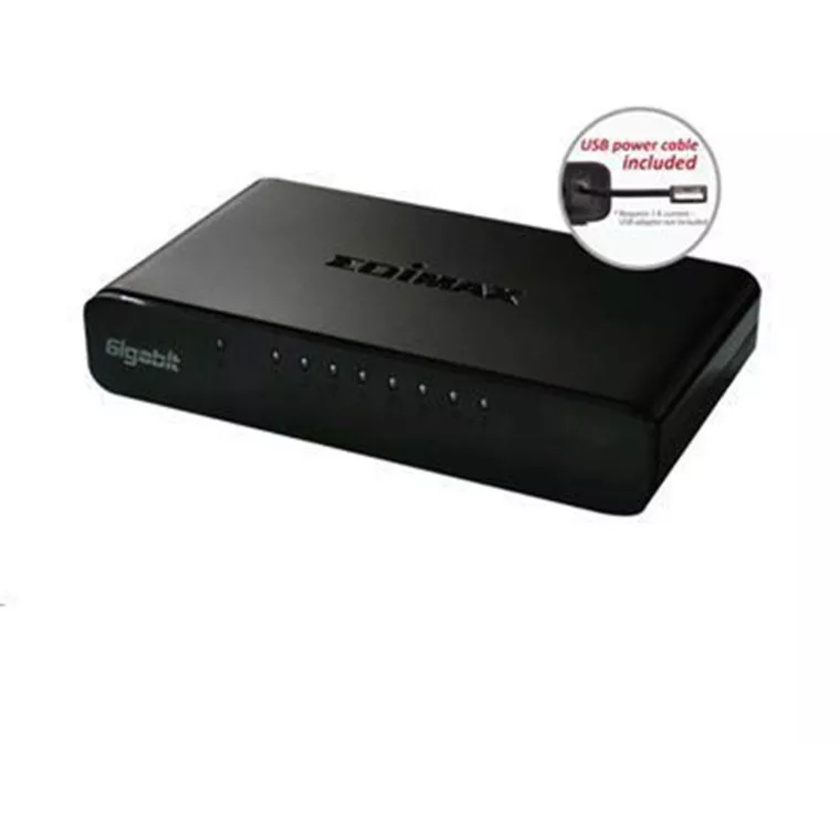

Edimax 8 Port 10/100/1000 Gigabit Desktop Switch

Product #97767 | SKU SW5800GV3 | Edimax
| Write a review
This product is no longer available what does this mean?
Edimax 8 Port 10/100/1000 Gigabit Desktop Switch
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards.
  • Supports auto MDI/MDI-X crossover detecting and auto correction.
  • Supports full and half duplex for 10/100Mbps, and full duplex for 1000Mbps.
  • Wire-speed packet filtering and forwarding rate.
  • Store-and-forward architecture filters fragment & CRC error packets.
  • Supports jumbo frames up to 9K bytes.

Description

Inactive Link Detection : When a network device is shut down and/or an inactive link is detected, the power usage adjustment feature automatically reduces power usage. The switch’s power consumption will be dynamically adjusted according to the link status and the number of active network devices.

Cable Length Detection : Devices equipped with this feature automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.

APPLICATION DIAGRAM

  • Connect the ES-5800G V3 to your router or cable/xDSL modem.
  • Connect a print server, NAS, smart TV, laptop, media player, game console and/or IP Camera to the ES-5800G V3.

Specifications
Standard •IEEE 802.3 10BASE-T
•IEEE 802.3u 100BASE-TX
•IEEE 802.3ab 1000BASE-TX
•IEEE 802.3x Flow Control
•IEEE 802.3az Energy Efficient Ethernet
Features
RJ45 Port 8
MAC Address 8K
Buffer Memory 128K
Jumbo Frame 9K
Transmission Method Store and Forward
Filtering / Forwarding Rates 1000Mbps Port – 1,488,000pps
100Mbps Port – 148,800pps
10Mbps Port – 14,880pps
Transmission Media 10BASE-T Cat3/4/5 UTP/STP
100BASE-TX Cat5 UTP/STP
1000BASE-T Cat5E UTP/STP
LED Indicators
Per Port Link/Act
Per Unit Power
Power Requirement DC 5V 1A
Temperature
Operating 0°C ~ 40°C
Storage -20°C ~ 70°C
Humidity
Operating 10% ~ 90% RH (Non-condensing)
Storage 5% ~ 90% RH (Non-condensing)
Power Consumption 3W (Max)
Dimensions 136 × 76 × 25.5mm (L x W x H)
Weight 148g
Certifications CE
FCC Class B

Reviews

0.0 (no ratings yet)

Details

  • Product: Edimax 8 Port 10/100/1000 Gigabit Desktop Switch
  • Manufacturer: Edimax
  • Model: SW5800GV3
  • SKU: SW5800GV3
  • RM Product #: 97767
  • Warranty: Click here for warranty terms view terms
