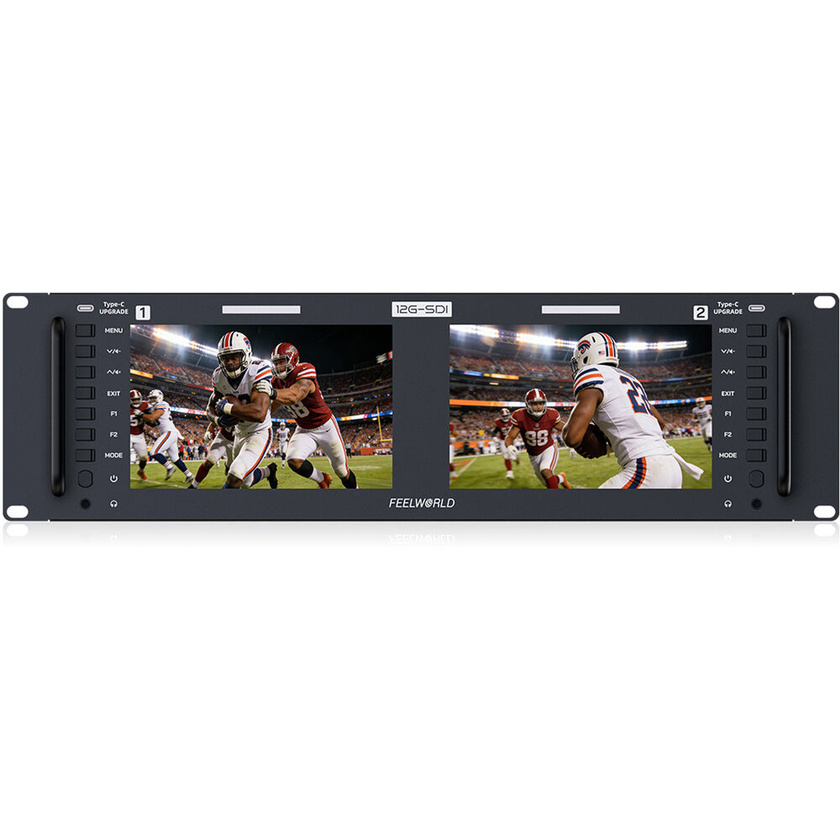

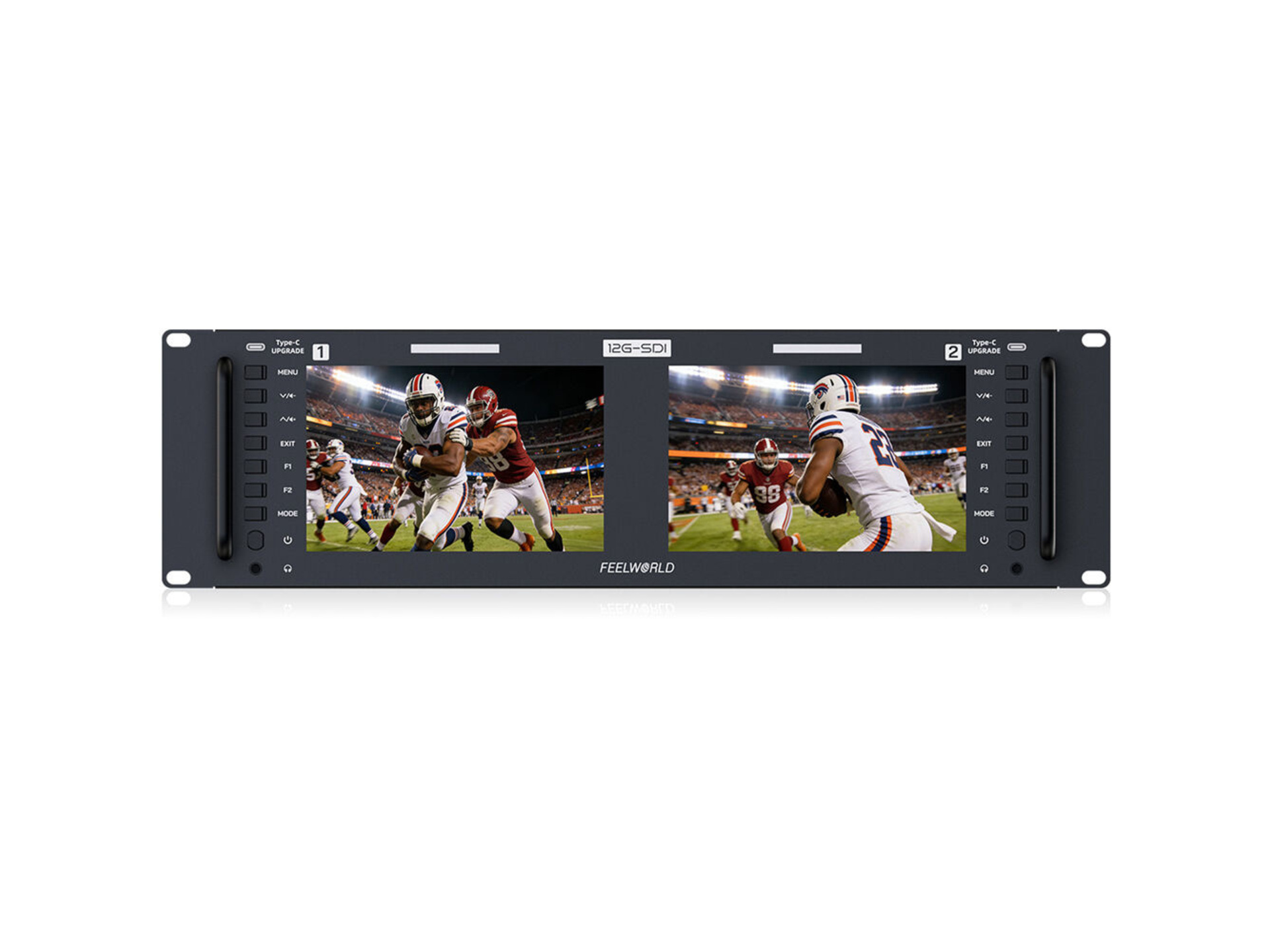

The FeelWorld FRM701G Dual 7" 12G-SDI/HDMI 4K Rackmount Monitor features two 7" 1920 x 1200 resolution displays in a 3 RU rackmount enclosure for integration into your broadcast studio. The rear panel includes two sets of 12G-SDI, HDMI, and composite BNC inputs and outputs, two sets of RCA audio inputs, and a tally port for adding the included tally kit. You can upload up to 32 custom LUTs using the USB-C ports and control the monitor software via an Ethernet LAN connection. For power, the FRM701G provides both a DC barrel input and a 4-pin XLR input, along with an included DC power adapter. Monitoring features include all waveforms, focus assist, image flip, and false colour, among other modes.
FeelWorld FRM701G Dual 7" 12G-SDI/HDMI 4K Rackmount Monitor
Usually ships in 3 - 4 weeks
Our Price
$1,029
AUD
Usually ships in 3 - 4 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 3 - 4 weeks.
Deliver to
New South Wales
for $7.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
3 - 4 weeks
Click & Collect
Features
- Two 7" 1920 x 1200 Displays
- 12G-SDI, HDMI, Composite I/O
- Two L/R RCA Audio Inputs
- Tally Port, Included Tally Kit
- Video Monitoring Functions
- DC Barrel and 4-Pin XLR Power Inputs
Description
Specifications
| Display | |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 80° |
| Touchscreen | No |
| Maximum Brightness | 450 nits / cd/m2 |
| Contrast Ratio | 1200:1 |
| HDR Support | Not Specified by Manufacturer |
| LUT Support | Yes |
| Image Controls | False Colour, Focus Assist, Histogram, Vectorscope, Waveform |
| Inputs/Outputs | |
| Video I/O | 2x HDMI Input 2x HDMI Output 2x BNC (12G-SDI) Input 2x BNC (12G-SDI) Output 2x BNC (Composite) Output 2x BNC (Composite) Input |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 2x RCA Input 2x 1/8" / 3.5 mm Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (12 VDC) Input 1x XLR 4-Pin Input |
| Other I/O | 1x DE-9/DB-9 (Tally) 1x RJ45 (LAN) 2x USB-C (Firmware/LUT Upload) |
| Media/Memory Card Slot | No |
| Wireless | |
| Wireless | No |
| Wi-Fi | Yes |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI DCI 4K: 60/50/30/29.97/25/24/23.98 UHD 4K: 60/50/30/29.97/25/24/23.98 1080p: 60/50/30/29.97/25/24/23.98 720p: 60/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 480i 480p 576i 576p SDI DCI 4K: 60/50/30/29.97/25/24/23.98 UHD 4K: 60/50/30/29.97/25/24/23.98 1080p: 60/50/30/29.97/25/24/23.98 720p: 60/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 |
| Power | |
| Input Power | 12 VDC at 3 A 9 to 24 VDC |
| Battery | No |
| Power Consumption | 26 W |
| Mounting | |
| Rack Form Factor | 3 RU |
| General | |
| Environmental Resistance | No |
| Operating Conditions | 14 to 140°F / -10 to 60°C |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Material of Construction | Metal |
| Dimensions | 19 x 5.2 x 1.2" / 482.6 x 132 x 30.5 mm |
| Weight | 4.16 lb / 1890.00 g |
In The Box
- FeelWorld FRM701G Dual 7" 12G-SDI/HDMI 4K Rackmount Monitor
- Power Adapter
- Tally Kit
- USB-A to USB-C Adapter
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: FeelWorld FRM701G Dual 7" 12G-SDI/HDMI 4K Rackmount Monitor
- Manufacturer: Feelworld
- Model: FRM701G
- SKU: FRM701G
- RM Product #: 127575
- Screen Size: 7"
- Screen Resolution: 1920 x 1200
- Warranty: 1 year manufacturer warranty
