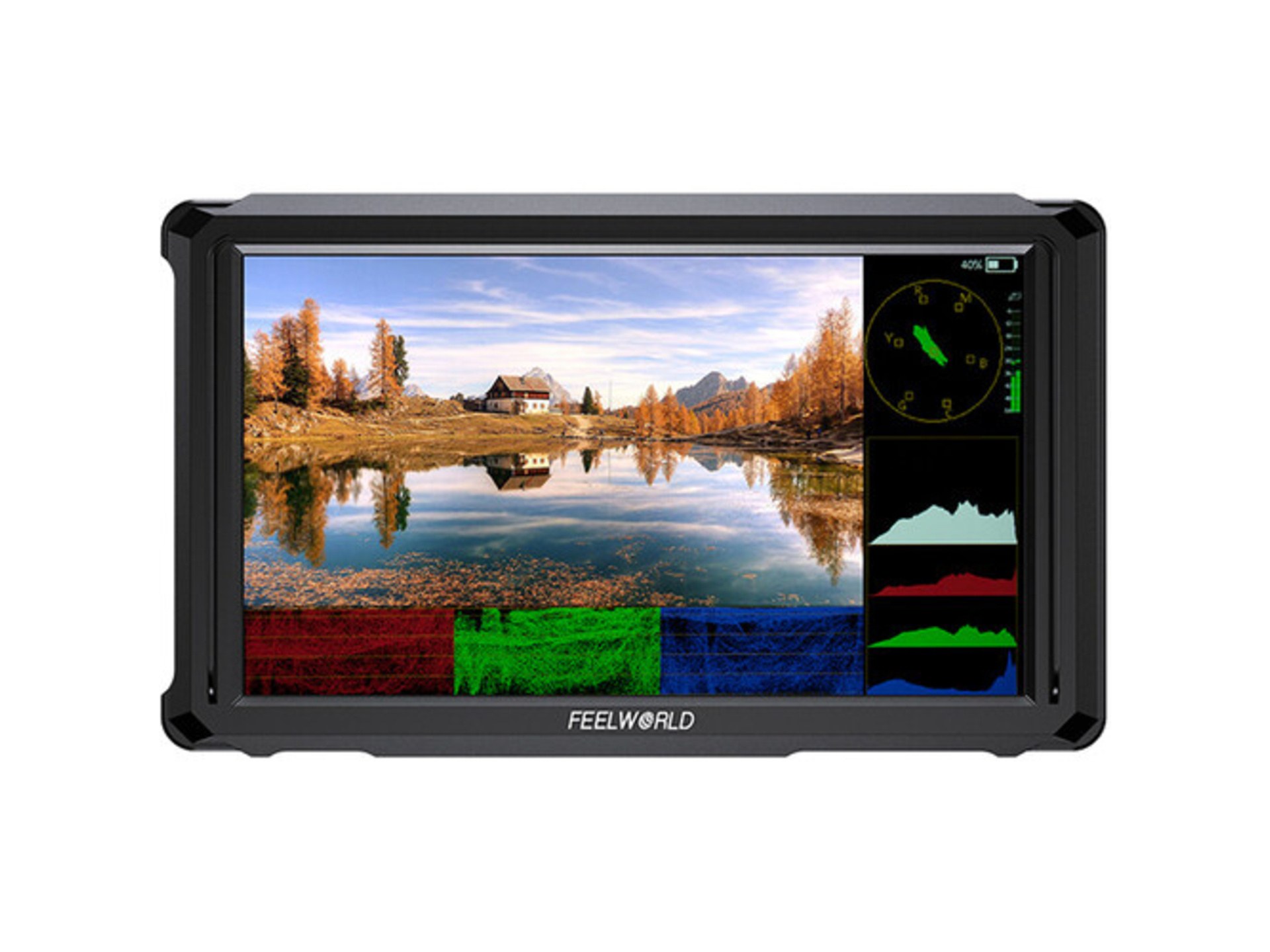

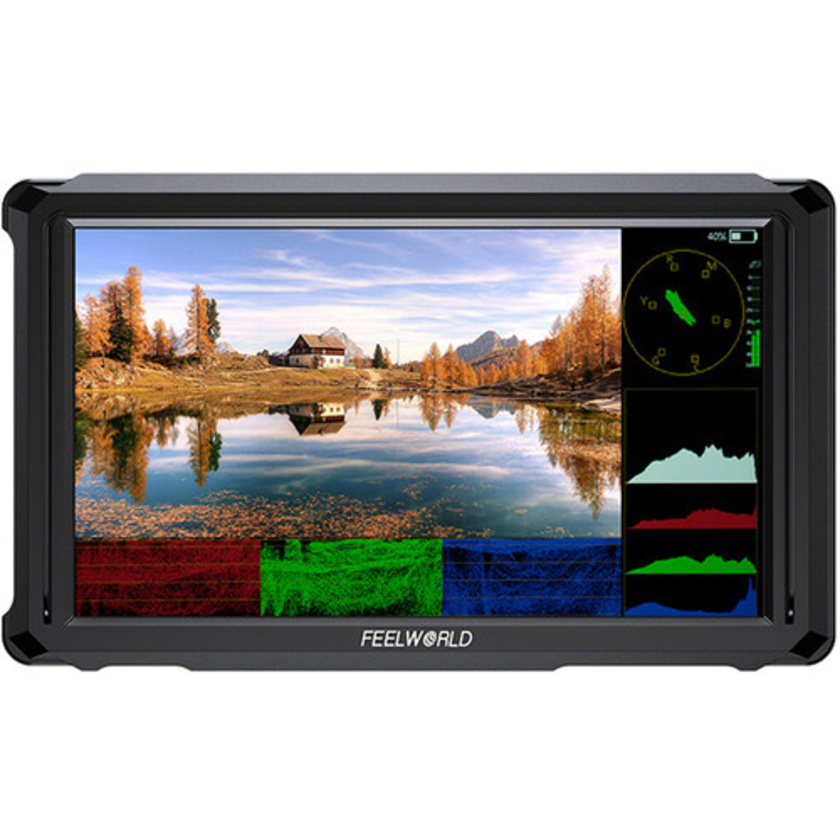

FeelWorld FW568 PRO 6" High-Bright On-Camera 4K HDMI Monitor

Product #121509 | SKU FW568 PRO | Feelworld
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
Our Price $179 AUD
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • Touchscreen 1920 x 1080 Display
  • Up to DCI 4K HDMI Input; HDMI Output
  • Custom 3D LUT Import via SD Card Slot
  • High 1200 cd/m² Brightness
  • USB-C L-Series/LP-E6 Power Input
  • 8.4 VDC 2.1mm Barrel Power Output

Description

The FeelWorld FW568 PRO 6" High-Bright On-Camera 4K HDMI Monitor has moderate size, ultra light weight, high bright screen, up to 4K@60Hz HDMI transmission rate and a series of camera auxiliary functions. It is a monitor that can meet your creative needs anytime and anywhere.

6-inch Full HD Screen

Clearly checking and capture every nuance. With extremely high resolution 6-inch IPS panel, provides excellent details, accurately reflect the original colors.Wide viewing clearly present more detailed image.

1200Nit, Daylight Viewable

High brightness 1200nit is viewable in almost every kind of light.Indoors, outdoors or anywhere you need.

Lightweight Design, Ideal Partner for Gimbal

The weight of FW568 PRO only 204g, this lightweight design make it ideal for work with gimbal for moving shooting.

Intuitive Button Operation

FW568 PRO provides multiple intuitive buttons,you can control the menu easily. Especially the three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

9:16 Vertical Screen Marker

FW568 PRO has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.

Menu User Switch

FW568 PRO provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically, and can be called directly or switch next time.

Specifications

Display
Panel Type IPS-Type LCD
Display Size 6.0" / 15.2 cm
Native Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 160° (80/80)
Vertical: 160° (80/80)
Touchscreen No
Maximum Brightness 1200 nits / cd/m2
Contrast Ratio 1000:1
HDR Support Yes
LUT Support Yes
Image Controls Anamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Assist, Histogram, Image Flip, Image Freeze, Image Rotate, Marker Colour, Overscan, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O 1x HDMI 2.0 Input
1x Mini-HDMI 2.0 Output
Embedded Audio HDMI
Audio I/O 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker Mono
Power I/O 1x USB-C (5 VDC) Input
1x Barrel (12 VDC) Input
1x Barrel (8.4 VDC) Output
Other I/O No
Media/Memory Card Slot No
Wi-Fi No
Bluetooth No
Mobile App Compatible No
Format Support
Video Format HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
480p
480i
576p
576i
Gamma Curve ARRI Log C, Sony S-Log 2, Sony S-Log 3, V-Log
Power
Input Power 7 to 24 VDC
Battery 1x L-Series Mount on Fixed Plate
Power Consumption 11 W (Maximum)
Mounting
Tripod/Accessory Mounting Bottom/Left
1x Anti-Twist 1/4"-20 Female
General
Environmental Resistance No
Operating Conditions 32 to 122°F / 0 to 50°C
Storage Conditions 14 to 140°F / -10 to 60°C
Dimensions 6.3 x 3.8 x 1.3" / 161 x 96 x 33.3 mm
Weight 7.2 oz / 204.00 g

In The Box

  • FeelWorld FW568 PRO 6" High-Bright On-Camera 4K HDMI Monitor
  • HDMI Cable
  • Micro-HDMI Cable
  • Sun Hood
  • Shoe Mount
  • Hex Wrench
  • USB-A to USB-C Adapter
  • Cable Tie

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: FeelWorld FW568 PRO 6" High-Bright On-Camera 4K HDMI Monitor
  • Manufacturer: Feelworld
  • Model: FW568 PRO
  • SKU: FW568 PRO
  • RM Product #: 121509
  • Screen Size: 6"
  • Screen Resolution: 1920 x 1080
  • Warranty: 1 year manufacturer warranty
