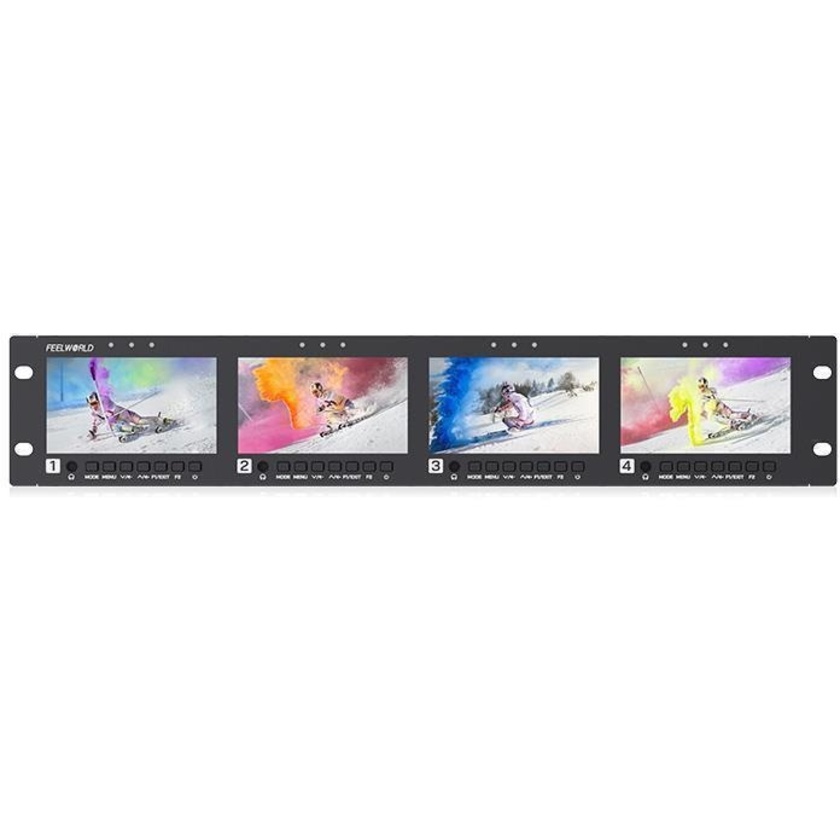

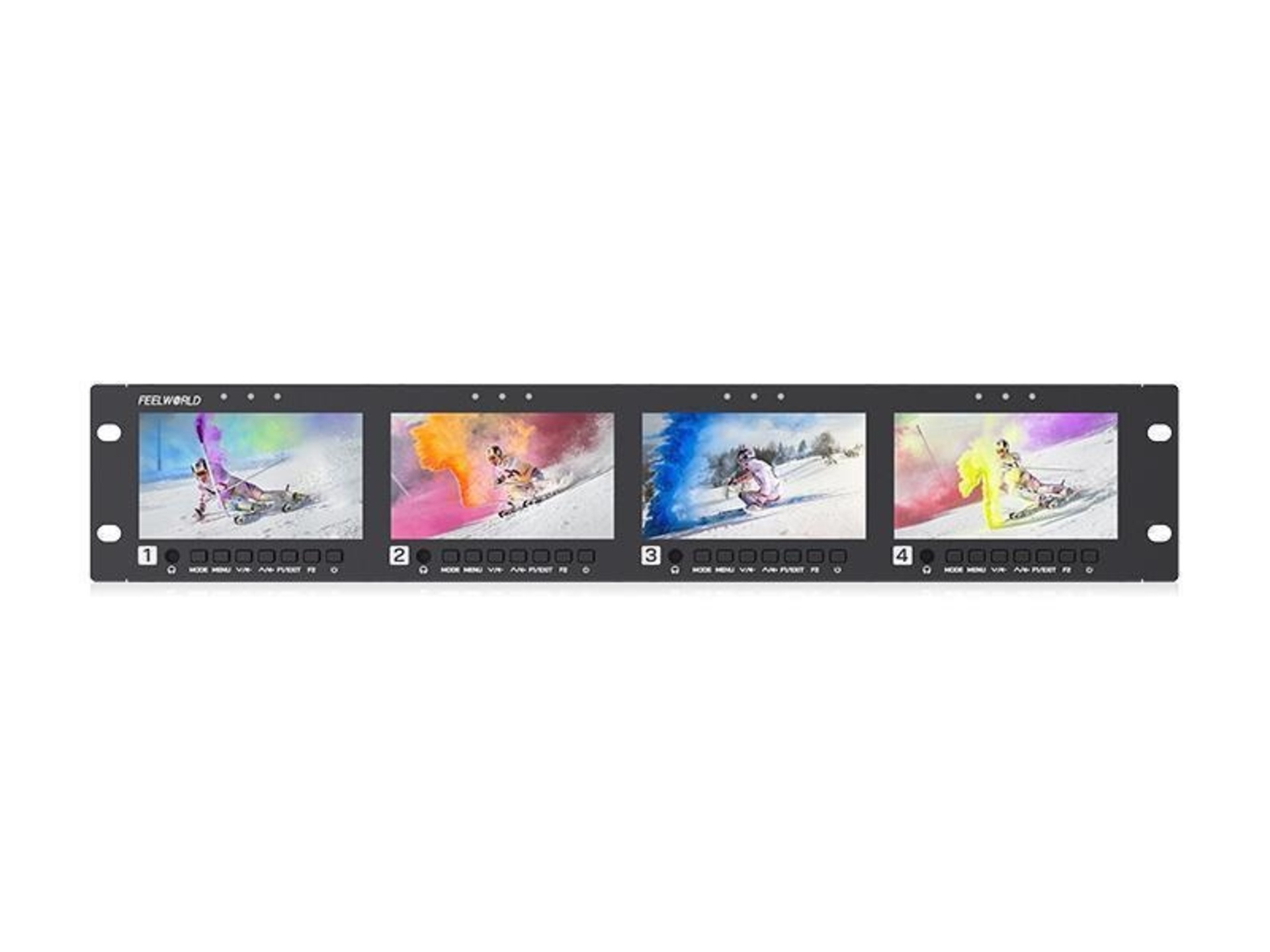

FeelWorld Quad 4.5" Rack-Mountable Monitor

Product #121529 | SKU Q41 | Feelworld
In Stock Ships in 1 - 2 working days
Our Price $1,179 AUD
In Stock Ships in 1 - 2 working days
- +

Shipping & Availability
Ships Monday. Deliver to New South Wales for $27.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • Four 4.5" 1280 x 720 LCD Monitors
  • Supports SD & HD Video up to 1080p60
  • HDMI 2.0, 3G-SDI & Composite Inputs
  • SDI, HDMI & Composite Loop Outputs
  • Tally Input with 3-Colour Border Display
  • Markers, Peaking & Other Imaging Tools

Description

The FeelWorld Quad 4.5" Rack-Mountable Monitor has four independently controlled screens that can monitor images from different signals. For live production of large-scale event, performance, competition and other projects, always need to consider the portability of equipment.Take your Q41 monitors anywhere in the world by mounting them in portable fly away kits.The metal housing can effectively dissipate the heat to prevent the portable rack trap too much heat.

Perfect for Mobile Broadcast Truck

In mobile broadcast truck, you need to save every inch of space.Q41 with compact design, ideal for install on monitor wall of broadcast truck.

4 x 4.5-inch HD Screen

Q41 is equipped with 4 independently 4.5-inch high resolution IPS panel,a wider field of view and clearly present more detailed image. 8bit color depth with 16.7M colors display.

2RU Rackmount Design

Suitable for 19 inch width cabinet installation with 2RU mounting height and slim metal design,occupying only a small part of volume, ideal for installation in equipment racks and monitor walls.

Specifications

Display
Panel Type IPS-Type LCD
Display Size 4.5" / 11.4 cm
Native Resolution 1280 x 720
Aspect Ratio 16:9
Viewing Angle Horizontal: 160° (80/80)
Vertical: 160° (80/80)
Touchscreen No
Maximum Brightness 350 nits / cd/m2
Contrast Ratio 1200:1
Colour Support 16.7 Million Colours (8-Bit)
HDR Support No
LUT Support No
Image Controls Anamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Assist, Histogram, Image Flip, Image Freeze, Overscan, Underscan, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O 4x HDMI 2.0 Input
4x HDMI 2.0 Output
4x BNC (3G-SDI) Input
4x BNC (3G-SDI) Output
4x BNC (Composite) Input
4x BNC (Composite) Output
Embedded Audio HDMI/SDI
Audio I/O 4x RCA Line Input
4x RCA Line Output
4x 1/8" / 3.5 mm Headphone Input
Built-In Speaker No
Power I/O 1x Barrel (3 A / 12 VDC) Input
Other I/O 4x USB-C (Firmware/LUT Upload)
4x DE-15/DB-15 (Tally)
Media/Memory Card Slot No
Wi-Fi No
Bluetooth No
Mobile App Compatible No
Format Support
Video Format HDMI
DCI 4K: 60/50/30/29.97/25/24/23.98
UHD 4K: 60/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
Gamma Curve ARRI Log C, Panasonic V-Log, Sony S-Log, Sony S-Log
Power
Input Power 7 to 24 VDC
Battery No
Power Consumption 32 W (Maximum)
Mounting
Rack Form Factor 2 U
General
Environmental Resistance No
Operating Conditions 14 to 122°F / -10 to 50°C
Storage Conditions -4 to 140°F / -20 to 60°C
Dimensions 19 x 3.4 x 1.4" / 482.5 x 87.5 x 35.8 mm
Weight 4.03 lb / 1.83 kg

In The Box

  • FeelWorld Quad 4.5" Rack-Mountable Monitor
  • Power Adapter
  • 4 x Tally Kit
  • USB-A to USB-C Adapter

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: FeelWorld Quad 4.5" Rack-Mountable Monitor
  • Manufacturer: Feelworld
  • Model: Q41
  • SKU: Q41
  • RM Product #: 121529
  • Screen Size: 4.5"
  • Screen Resolution: 1280 x 720
  • Warranty: 1 year manufacturer warranty
