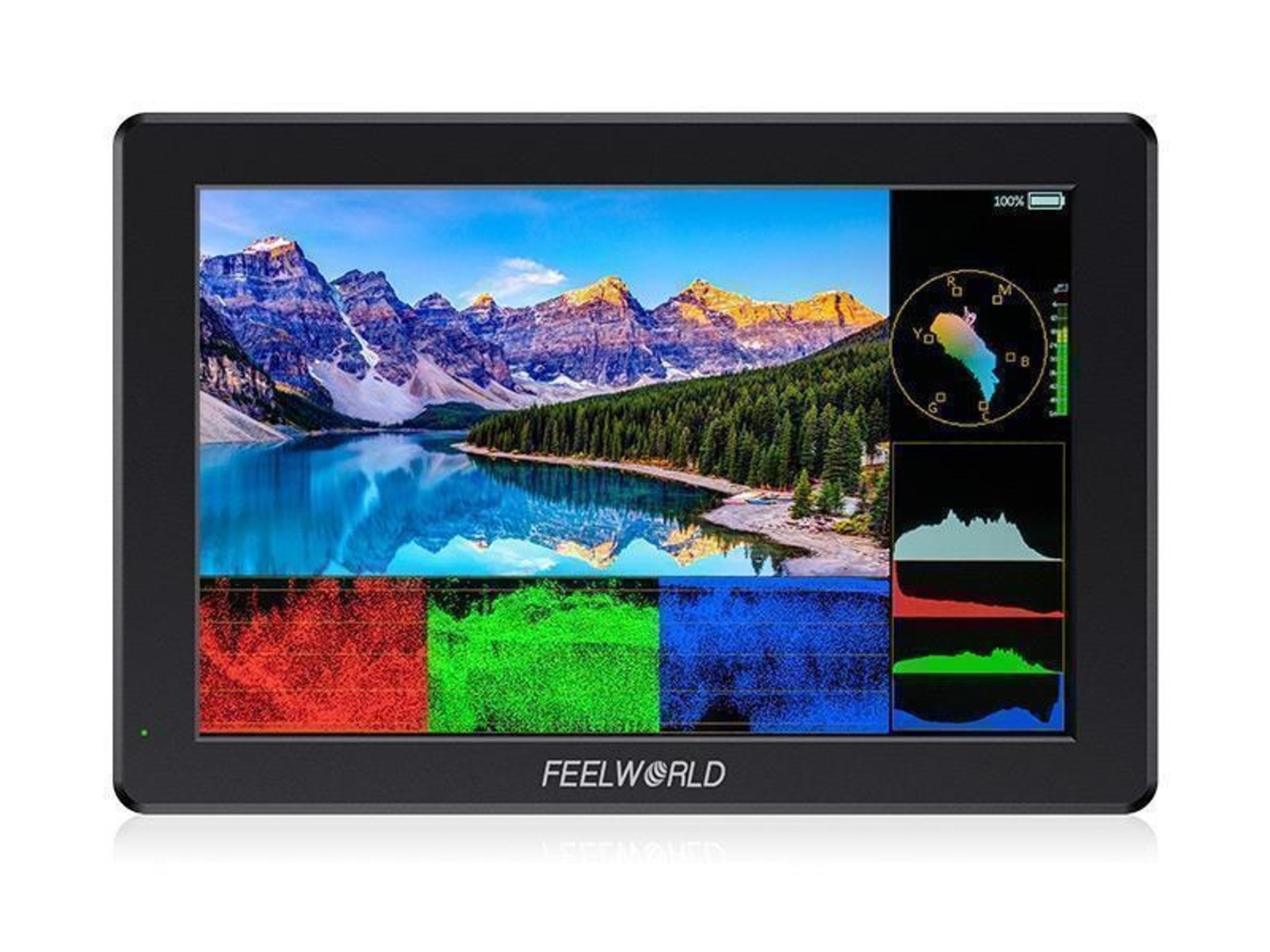

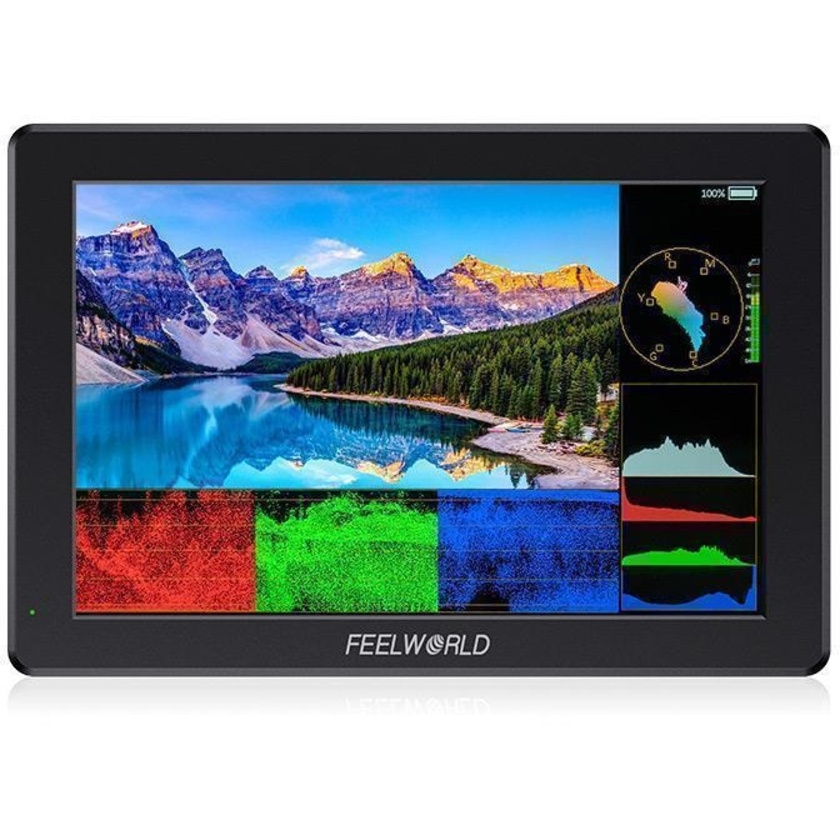

FeelWorld T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs

Product #121527 | SKU T7S PRO | Feelworld
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
Our Price $309 AUD
In Stock with Supplier Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 7" 1920 x 1200 IPS LCD Monitor
  • Up to UHD/DCI 4K60 HDMI Input/Output
  • Up to 1080p60 3G-SDI Input/Output
  • 2000 cd/m² Brightness
  • L-Series/NP-F Battery Plate
  • 1200:1 Contrast Ratio, 3D LUT Support

Description

The FeelWorld T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs is a full HD field monitor with 2000 nits ultra-high brightness, featuring an aluminum housing for heat dissipation and stable operation in high brightness mode. Equipped with professional 3G-SDI and 4K HDMI high-speed transmission interfaces directly connected to professional device, built-in waveform, focus assist, HDR, 3D-LUT allow you to quickly make videos. It is perfect for filmming, video creation, and live production.

2000Nits Ultra-Brightness, Daylight Viewable

The peak brightness of T7S PRO is 2000nits, lets you see your images clearly, even in bright daylight.

True-to-life colors and crystal-clear details

With extremely high resolution 7-inch IPS panel,provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.

Rugged and Durable Aluminium Housing

T7S PRO features a rugged aluminum housing with excellent heat dissipation. Suitable for various shooting environments.

Quick Access with Custom Buttons

T7S PRO provides multiple intuitive buttons for easy menu navigation. Three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.

Specifications

Display
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Native Resolution 1920 x 1200
Aspect Ratio 16:10
Viewing Angle Horizontal: 160° (80/80)
Vertical: 160° (80/80)
Touchscreen No
Maximum Brightness 2000 nits / cd/m2
Contrast Ratio 1200:1
HDR Support Yes
LUT Support Yes
Image Controls Anamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Assist, Histogram, Image Flip, Image Freeze, Marker Colour, Overscan, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O 1x HDMI 2.0 Input
1x HDMI 2.0 Output
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output
Embedded Audio HDMI
Audio I/O 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker Mono
Power I/O 1x Barrel Input
Other I/O 1x Mini-USB (Firmware/LUT Upload) Input
Media/Memory Card Slot No
Wi-Fi No
Bluetooth No
Mobile App Compatible No
Format Support
Video Format HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
Gamma Curve ARRI Log C, Sony S-Log 2, Sony S-Log 3, V-Log
Power
Input Power 7 to 24 VDC
Battery 1x L-Series Mount on Fixed Plate
Power Consumption 18 W (Maximum)
Mounting
Tripod/Accessory Mounting Bottom
1x Anti-Twist 1/4"-20 Female
General
Environmental Resistance No
Operating Conditions -4 to 122°F / -20 to 50°C
Storage Conditions -22 to 149°F / -30 to 65°C
Material of Construction Aluminium
Dimensions 7.2 x 4.8 x 0.9" / 182.8 x 122.8 x 24 mm
Weight 13.1 oz / 370.00 g

In The Box

  • FeelWorld T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs
  • Mini-USB Cable
  • HDMI Cable
  • Sun Hood
  • Shoe Adapter Mount
  • L-Series Battery Plate

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: FeelWorld T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs
  • Manufacturer: Feelworld
  • Model: T7S Pro
  • SKU: T7S PRO
  • RM Product #: 121527
  • Screen Size: 7"
  • Screen Resolution: 1900 x 1200
  • Warranty: 1 year manufacturer warranty
