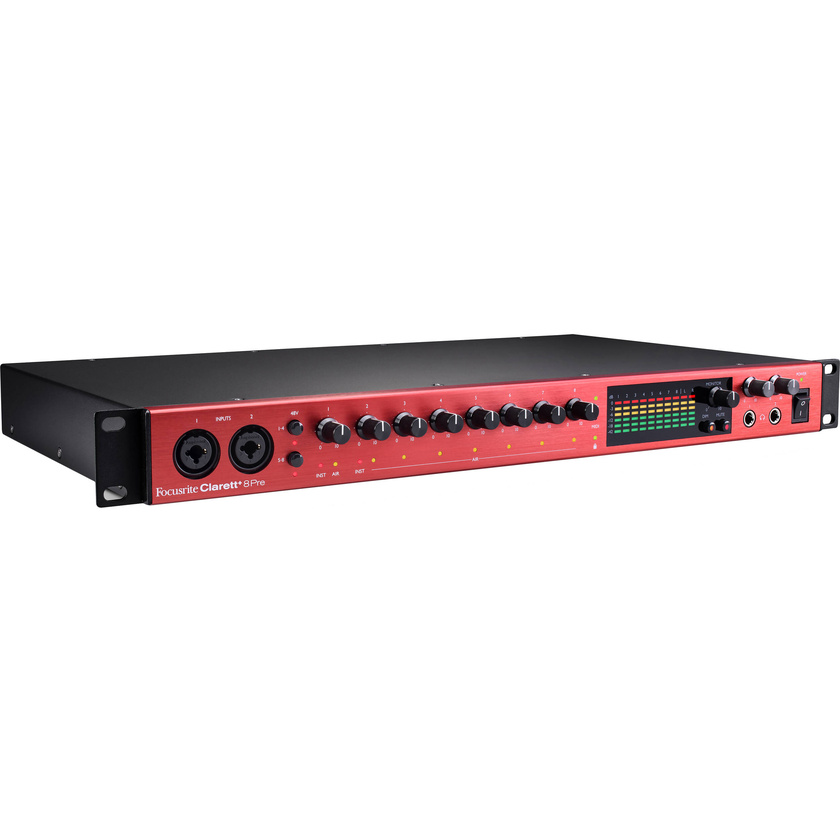

Focusrite Clarett+ 8Pre Rackmount 18x20 USB Type-C Audio/MIDI Interface

Product #92075 | SKU FOCCLAPLUS8PREUSB | Focusrite
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $1,694 AUD
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to New South Wales for $6.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • Bands, Project Studios, and Producers
  • USB Type-C and Type-A Connectivity
  • Inputs: 8 Mic/Line Preamps (2 with Hi-Z)
  • Outputs: 2 Headphone, 2 Monitor, 4 Line
  • Upgraded 24-Bit / 192 kHz Conversion

Description

Focusrite Clarett+ 8Pre is a high-performance and immensely capable studio centrepiece for PC and Mac, which inspires producers, engineers and artists to create their best work.

Key Features:

Eight High-Performance Clarreyy+ Preamps

Eight high-headroom, low-noise, low-distortion Clarett+ mic preamps — featuring All-analogue Air with impedance switching and relay control — capture vocals, drums and acoustic instruments with precise clarity. Two JFET instrument inputs preserve the natural tone of guitars, just like plugging into an amplifier.

New and Improved A-D and D-A Converters

Independent A-D and D-A converters bring recording artists closer than ever to their music, with extremely wide dynamic range, low noise and low distortion.

Greatly improved D-A dynamic range brings every detail into focus, so engineers and producers can embrace no-compromise audio quality in abundance. Incredibly low A-D converter distortion lets you capture signals with more clarity, for greater transparency and sonic accuracy. Two powerful and transparent headphone outputs inspire artists to hear every nuance of their sound on any type of headphones, customise their foldback mix, and perform their best.

Anything, Anywhere

Whether you’re multi-tracking a drum kit or connecting to synths and outboard equipment, Clarett+ 8Pre lets you constantly develop your musical ideas while always maintaining analogue purity and extreme audio clarity. Expand via ADAT to add eight inputs and outputs using Clarett OctoPre, and connect to MIDI and S/PDIF equipment to maximise your creative potential.

Hitmaker Expansion

Create studio quality vocals, powerful guitars, luscious keys and huge drums, then mix and master with iconic Focusrite studio hardware – all in the box. Every new Scarlett 3rd Gen, Clarett and Red interface comes with an unbeatable range of tried-and-tested studio tools from some of the biggest names in the business.

Hitmaker Expansion – available with every Scarlett 3rd Gen, Clarett+, Clarett USB and Red interface purchased and registered on or after October 1st 2021 – is built to get you creating records immediately. These are all the plug-ins you need to write, produce, mix and master your music in studio quality.

Hitmaker Expansion features exclusive content from legendary Auto-Tune creators Antares, along with Brainworx, Softube, XLN Audio, Relab and more.

Emulate Iconic Focusrite Hardware

Get the full Focusrite sound with three classic processors from Focusrite’s 40 year legacy of precision studio sound.

Brainworx bx_console Focusrite SC is an authentic emulation of the classic ISA 110 module found in Focusrite Studio Console. ISA 110 was created when Sir George Martin asked Rupert Neve for custom modules for AIR Montserrat studios.

The Red 2 & Red 3 Plug-in Suite accurately models Focusrite’s classic Red range equaliser and compressor hardware. Coveted by producers and engineers for their exceptional clarity and versatility, the original Red 2 and Red 3 remain prized fixtures in professional recording studios the world over. Now, you can use these revered pieces, easily and flexibly, in your own mixes.

Specifications

Form Factor Rackmount
Display 10 x Multi-Segment LED Metre
Channels of I/O Analogue:
8 Inputs / 10 Outputs
Digital:
10 Inputs / 10 Outputs
Max Sample Rate/Resolution 192 kHz / 24-Bit
Number of Mic Preamps 8
Input Level Adjustment 8 x Knob
Gain/Trim Range Mic/Line/Hi-Z Inputs:
+57 dB
Connectivity
Analogue Audio I/O 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
6 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
2 x 1/4" TRS Balanced Monitor Output
8 x 1/4" TRS Balanced Line Output
2 x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power 48 V, Selectable On/Off (on 8 Channels)
Digital Audio I/O 1 x TOSLINK Optical ADAT Input (S/MUX Support)
1 x TOSLINK Optical ADAT Output (S/MUX Support)
1 x RCA Coaxial S/PDIF Input
1 x RCA Coaxial S/PDIF Output
Host Connection / USB 1 x USB Type-C (USB 2.0)
Sync I/O 1 x BNC Word Clock Output
MIDI I/O 1 x DIN 5-Pin Input
1 x DIN 5-Pin Output
Performance
Frequency Response Mic Inputs:
20 Hz to 20 kHz ±0.03 dB
20 Hz to 35 kHz ±0.15 dB
Line Inputs:
20 Hz to 20 kHz ±0.05 dB
20 Hz to 35 kHz ±0.15 dB
Hi-Z Inputs:
20 Hz to 20 kHz ±0.04 dB
20 Hz to 35 kHz ±0.15 dB
Line, Monitor Outputs:
20 Hz to 20 kHz ±0.02 dB
20 Hz to 35 kHz ±0.02 dB
Headphone Outputs:
20 Hz to 20 kHz ±0.06 dB
20 Hz to 35 kHz ±0.07 dB
Max Input Level Mic Inputs:
+18 dBu
Line Inputs:
+26 dBu
Hi-Z Inputs:
+15 dBu
Max Output Level Line/Monitor Outputs:
+18 dBu
Headphone Outputs:
+16 dBu
Impedance Inputs:
2.2 Kilohms
Dynamic Range Mic Inputs:
118 dB (Min Gain)
Line Inputs:
118 dB (Min Gain)
Hi-Z Inputs:
116 dB
Line/Monitor Outputs:
124 dB
Headphone Outputs:
> 118 dB
THD+N Mic Inputs:
-110 dB (+20 dB Input, at -1 dBFS)
Line Inputs:
-100 dB (Min Gain, at -1 dBFS)
Hi-Z Inputs:
-96.5 dB (Min Gain, at -1 dBFS)
Line/Monitor Outputs:
-106 dB
Headphone Outputs:
-104 dB
EIN Mic Inputs:
< -129 dBu
Digital Audio
Sample Rates 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion None
Bit Depths 24-Bit (AD/DA Conversion)
Sync Sources ADAT, Internal, S/PDIF
Compatibility
OS Compatibility macOS 10.11 or Later
macOS 11
Windows 7 or Later
Included Software None
Compatible Software (Not Included) Any Core Audio (Mac) Compliant Software
Included Plug-Ins Preamp & Channel Strip:
Brainworx bx_console Focusrite SC
Dynamics:
Focusrite Red 3 Compressor
Equalisation:
Focusrite Red 2 Equaliser
Supported Drivers/API & Plug-Ins Proprietary
Mobile Device Compatibility None
Required Hardware Available USB 2.0 Port, USB 3.0 / 3.1 Gen 1 Port, or USB Type-C Port
USB Cable (Included)
Internet Connection Required for Registration, Software/Driver Download
Power
Power Requirements AC Input
AC Input Power Universal:
100 to 240 VAC, 50 / 60 Hz
Physical
Rackmount Size 1 RU
Dimensions 19 x 11.5 x 1.7" / 48.3 x 29.2 x 4.3 cm
Weight 9.0 lb / 4.1 kg

In The Box

  • Focusrite Clarett+ 8Pre Rackmount 18x20 USB Type-C Audio/MIDI Interface
  • USB Type-C Cable
  • USB Type-C to USB Type-A Cable
  • Power Cable
  • Brainworx bx_console Focusrite SC Plug-In (Download)
  • Focusrite Red 2 and Red 3 Plug-Ins (Download)
