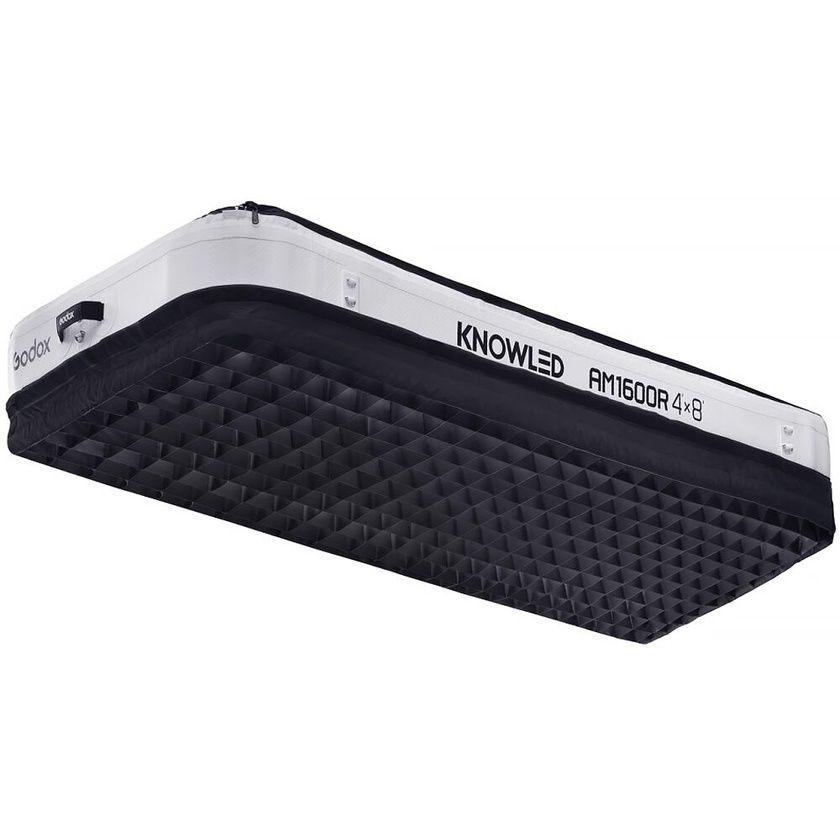

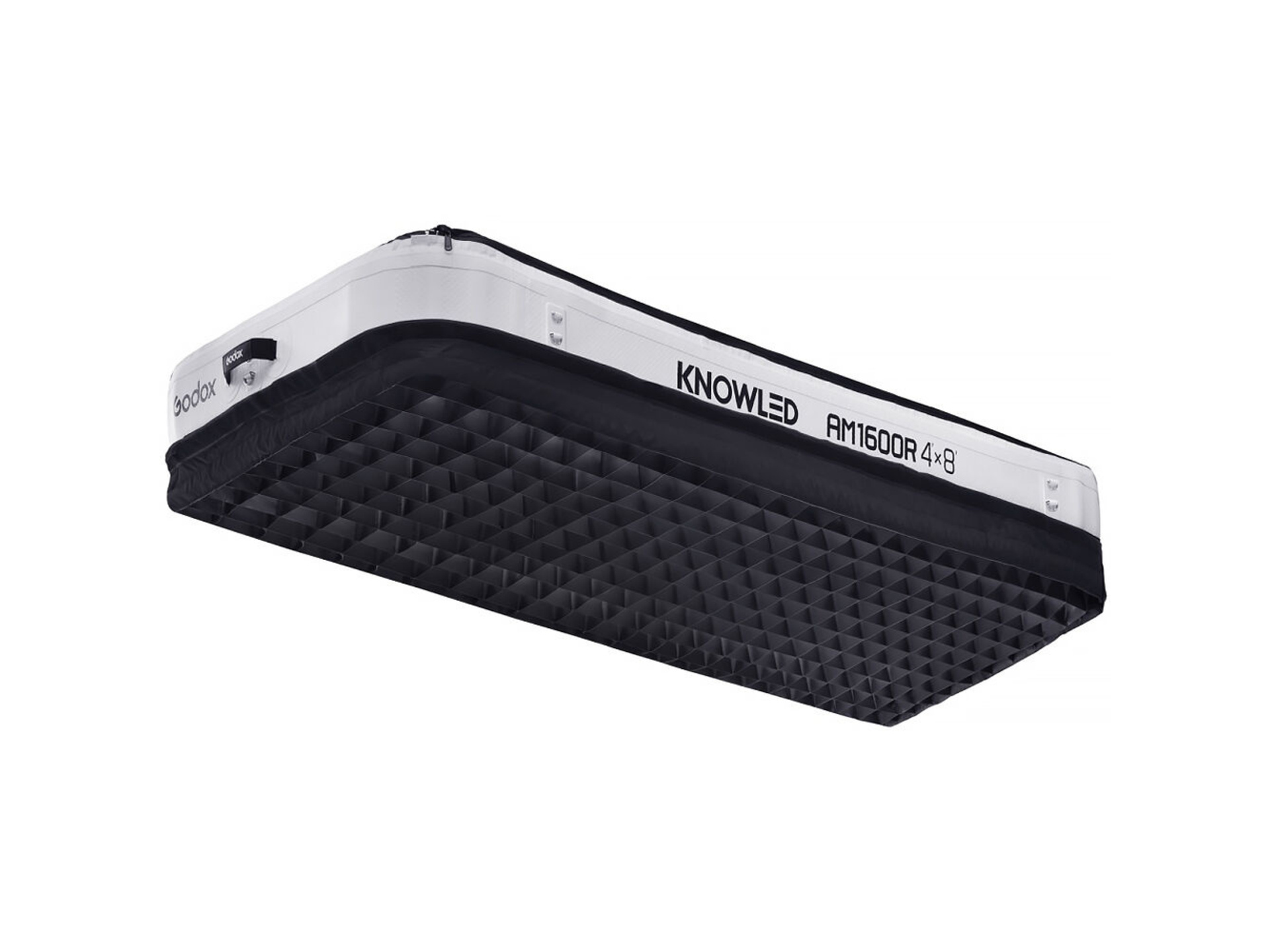

Godox KNOWLED AM1600R RGB Inflatable LED Light Mat (4 x 8')

Product #123660 | SKU AM1600R 48K | Godox
Usually ships in 4 - 6 weeks what does this mean?
Our Price $13,295 AUD
Usually ships in 4 - 6 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 4 - 6 weeks. Deliver to New South Wales for $319 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 4 - 6 weeks
Click & Collect

Features

  • For Studio & Film/TV Production
  • 1800W Fixture with NFC Controller
  • 1800-10,000K; RGB Colour Control
  • 4 x 8' Light Body; AC Power
  • Onboard, DMX/RDM, CRMX & App Control
  • Supports Art-Nett & sACN Protocols

Description

Engineered for flexibility and efficiency, the Godox KNOWLED AM1600R RGB Inflatable LED Light Mat (4 x 8') delivers a comprehensive full-colour lighting solution, specifically designed for the demands of large-scale film and television production environments.

Innovative Inflatable Design

At the core of the AM1600R is a resilient, inflatable butterfly frame, eliminating the need for truss support during overhead applications. This IP54-rated light system supports rapid high-pressure inflation up to 8 PSI, allowing it to remain suspended for as long as 15 days without requiring reinflation, making it a dependable fixture for extended shoots.

Advanced Lighting Features

The fixture features a multitude of lighting modes. With an extraordinary CCT range from 1800 to 10,000K, users gain precise control over their white balance, complemented by the ability to adjust green or magenta bias for accurate colour reproduction.

Exceptional Soft Light Output

The expansive 4 x 8' surface area of the AM1600R produces intensely bright and beautifully soft lighting. Two diffusers are included to tailor the softness, while a suite of additional modifiers—such as a pancake lantern, grid, and skirt—enable lighting designers to adapt the fixture for various creative requirements.

Complete Professional Kit

Godox completes this offering by providing an air pump and all necessary accessories, neatly packed inside a rugged flight case, ensuring the fixture is both portable and protected for professional use.

Specifications

Light Fixture
Item Type 1x LED Inflatable Light Panel
Included Light Modifier 2x Diffuser
Included Storage Case Yes
Photometrics Not Specified by Manufacturer
Colour Temperature 1800 to 10,000K
Colour Modes RGB, Daylight, Tungsten
Colour Accuracy Standard CRI 96
TLCI 95
Dimming Built-In Dimmer / DMX / RDM
Built-In Flash No
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type Wireless CRMX
Mobile App Compatible Yes: Android & iOS
Power & I/O
Power Source AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Inputs/Outputs Light Fixture
1x Unspecified Power Input
Power Supply/Controller
1x RJ45 Network Input
1x USB-A Power Output (5 VDC at 1.5 A)
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
To Light Fixture: 1x Unspecified Power Output
1x Unspecified AC Power Input
Included Adapter / Cable Yes
Power Pass-Thru No
Power Consumption 1800 W
Mounting
Fixture Mounting Not Specified by Manufacturer
General
Display Yes
Environmental Resistance Dust/Water-Resistant (IP54)
Operating Conditions -4 to 113°F / -20 to 45°C
Dimensions 90.6 x 43.3" / 230 x 110 cm (Fixture)
14.6 x 10.6 x 8.7" / 37 x 27 x 22 cm (Power Supply/Controller)
Weight 14.8 lb / 6.7 kg (Fixture)
24.3 lb / 11 kg (Power Supply/Controller)

In The Box

  • Godox KNOWLED AM1600R RGB Inflatable LED Light Mat (4 x 8')
  • Light Body
  • Inflatable Butterfly Frame
  • Controller
  • Controller Mount Bracket
  • Air Pump
  • 2 x Diffuser Fabric
  • Pancake Lantern
  • Grid
  • Skirt
  • Repair Kit
  • Optical Accessories Kit
  • AC Power Cord
  • DC Power Cord
  • Flight Case

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Godox KNOWLED AM1600R RGB Inflatable LED Light Mat (4 x 8')
  • Manufacturer: Godox
  • Model: AM1600
  • SKU: AM1600R 48K
  • RM Product #: 123660
  • Colour Temperature: 1800 - 10,000K
  • Warranty: Click here for warranty terms view terms
