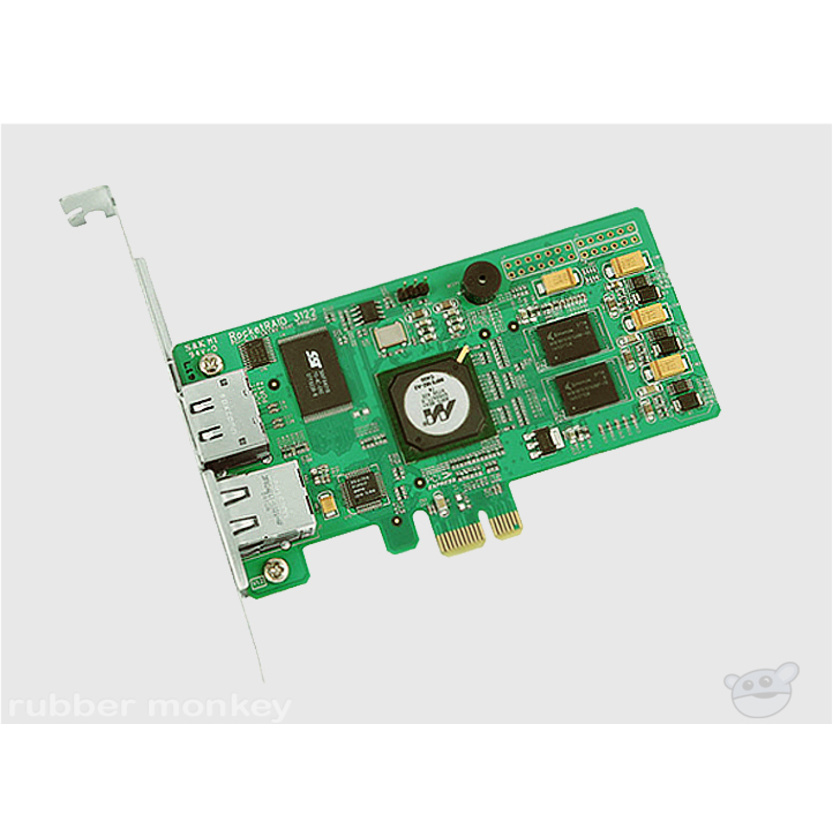

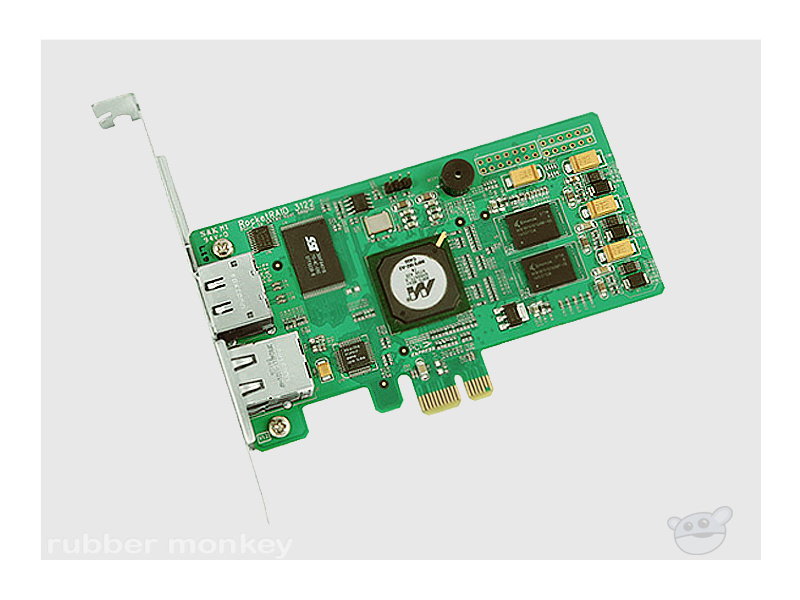

The HighPoint RR3122 External RAID Controller
8 ports, 2x SATA ports, PCI-E x1, Host Adapter (IOP/SATA II)
Features:
Host Adapter Architecture:
Hardware RAID IOP (400MHz)
PCI -Express x1 (x4, x8 and x16 slot compatible)
128 MB of DDR II memory
Write through and write back cache
2 external eSATA II channels at 3Gb/s per port
Support up to 2 SATA Hard Drives, 10 with port multiple (PM) support
BIOS booting support
BIOS PnP and BBS (BIOS boot specification) support
RoHS compliant
Supported RAID Feature:
Support RAID 0, 1 and JBOD
Multiple Logical Drive Support
Online array roaming
Online capacity expansion (OCE) and Online RAID level migration (ORLM)
Quick and Background initialization for instant RAID configuration
Automatic drive insertion / removal detection and rebuild
64bit LBA support greater than 2TB per volume
S.M.A.R.T monitoring hard drive status for reliability
VSS (Variable Sector Size) for over 2TB single volume in 32bit LBA OS
MAID (Massive Array of Idle Disks)
HighPoint RAID Management (HRM) Suite:
TerabyteGuard for Reliability
Firmware update in the Operating System
Hot key (ctrl-h) boot-up RAID manager via BIOS
API library for customizing AP
Command Line Interface (CLI)
Web browser-base RAID management software
Disk scrubbing to prevent degraded RAID arrays
Bad sector repair and remapping to reduce dropped drives
ATA pass-through mode support
Array Monitors, Alerts and Indicators:
Active/Failed LED
SMTP for email notification
SAF-TE (I2C) enclosure management
Ethernet board for OBM (Out of Band Management)
Alarm/ Buzzer alerts for array activity
Specifications:
Operating Temperature:
- Work Temp +5° C ~+ 55° C
- Storage Temp ~20°C ~ 80° C
- Relative Humidity 5% ~ 60% non condensing
Operating Voltage PCI-e: 3.3V / Power: 10W
Regulator Certification:
- FCC / CE
- MTBF Mean Time Before Failure 920,585 Hours
Operating System Support:
Microsoft Windows 2008/2003/XP/ 2000/x64 Edition/Vista 32 and 64 bit
Red Hat Enterprise Linux, Open SuSE, Fedora Core, Debian
FreeBSD
Mac OS X
Linux Open Source Drivers
Package Contents:
RocketRAID 3122 Series SATA Hardware RAID Controller
RocketRAID SATA user manual
Software CD with (Drivers and Manual)
Low Profile
3 year warranty
