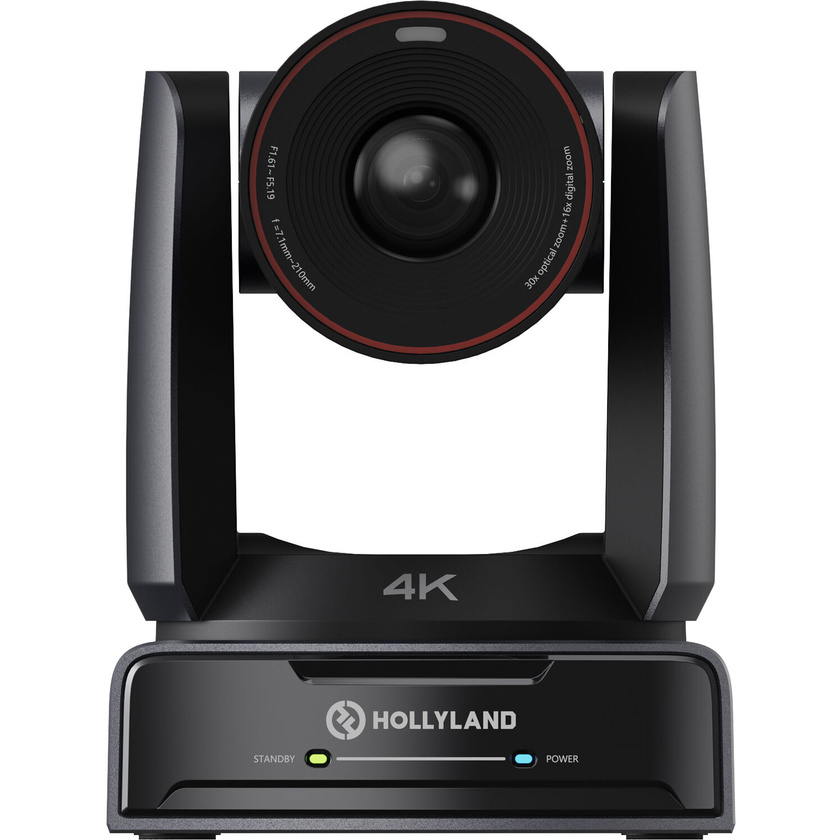

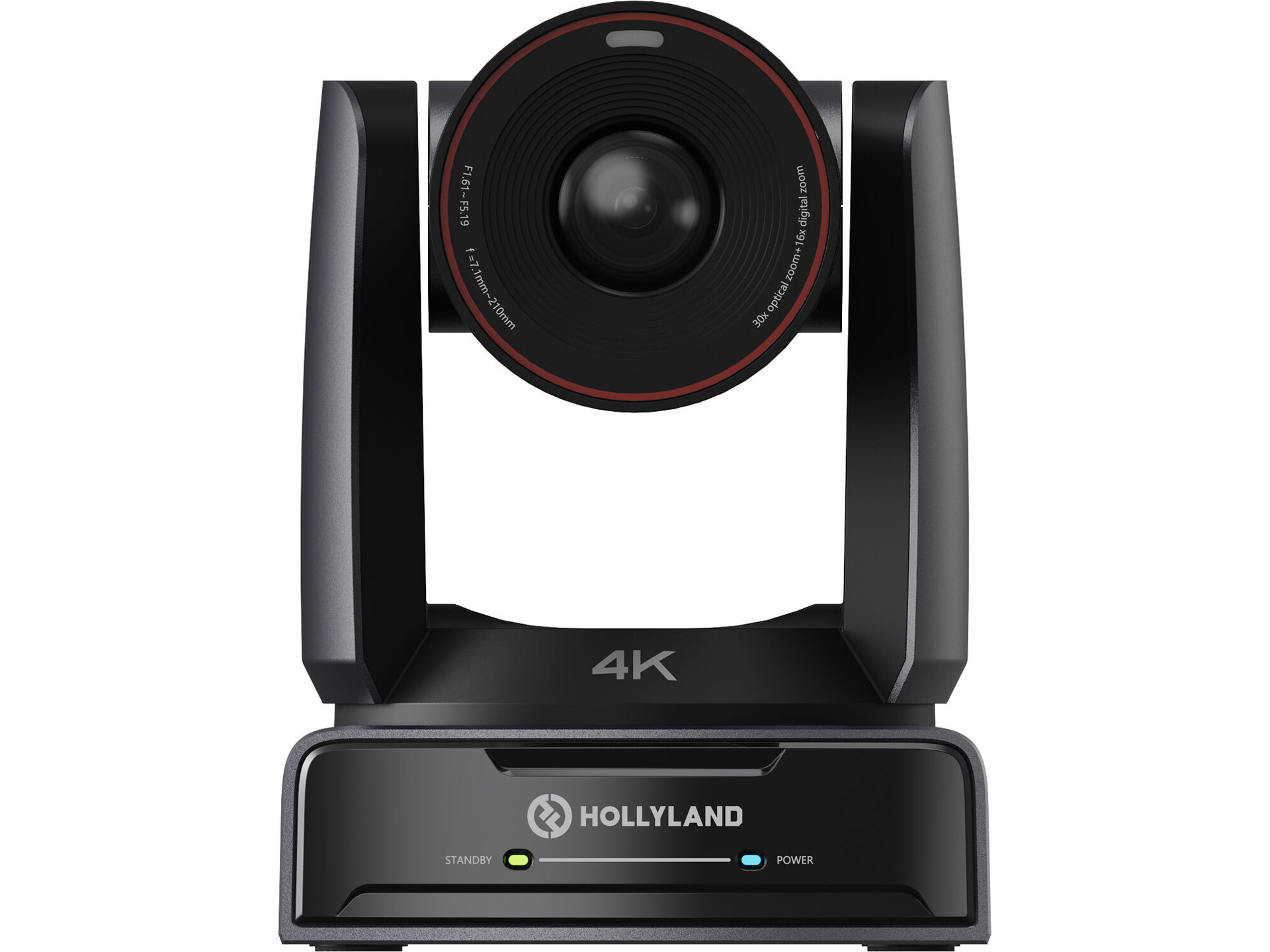

Hollyland Astra P1 UHD 4K PTZ Camera with 30x Optical Zoom

Name: Hollyland Astra P1 UHD 4K PTZ Camera with 30x Optical Zoom
Brand: Hollyland
SKU: 126273
Price: 3799.00 NZD
Availability: BackOrder

Product #126273 | SKU ASTRA P1 | Hollyland

| Write a review

Coming Soon ETA to be confirmed

Hollyland Astra P1 UHD 4K PTZ Camera with 30x Optical Zoom

Our Price $3,609 AUD

Coming Soon ETA to be confirmed

Email me when stock arrives

Request price match

Talk to our experts

Shipping & Availability

ETA to be confirmed. Deliver to New South Wales for $6^.90 Change location

Click & Collect

Check availability

Features

1/1.8" High-Quality 8.42MP CMOS Sensor
30x Optical/16x Digital Zoom
HDMI and 3G-SDI Connectivity
UHD 4K60 Resolution, AI Auto Tracking
Supports NDI HX3
Intelligent Face Detection AE

Description Specifications In The Box

Description

Capture crisp and vibrant 4K images during live events with the Hollyland Astra P1 UHD 4K PTZ Camera with 30x Optical Zoom. Equipped with a built-in 1/1.8" high-quality 8.42MP CMOS sensor and HDMI and 3G-SDI connectivity for flexible compatibility, the Astra P1 is ideal for houses of worship and other presentation halls. It offers 30x optical and 16x digital zoom, supports AI auto-tracking, intelligent face detection AE, and NDI HX3, and boasts capture resolutions up to UHD 4K at 60 fps. You can store up to 255 positions with an accuracy of 0.1°.

Features

Captures UHD 4K video at up to 60 fps
Built-in 1/1.8" high-quality 8.42MP CMOS sensor
HDMI and 3G-SDI connectivity for flexible integration
30x optical zoom and 16x digital zoom
Supports AI auto-tracking and intelligent face detection AE
Compatible with NDI HX3 workflows
Stores up to 255 preset positions with 0.1° accuracy

Specifications


Imaging
Image Sensor	1/1.8"-Type CMOS
Effective Sensor Resolution	8.42 Megapixel
IR Cut Filter	No
Exposure Control
Shutter Speed	1/10000 to 1/30 Second
Precise Scan Rate Control	No
Signal-to-Noise Ratio	55 dB
Minimum Illumination	0.5 Lux at f/1.8 Aperture
Flip / Mirror Support	Image Flip, Mirror (Vertical)
Lens
Focal Length	7.1 to 210mm
Max Optical Zoom	30x
Max Digital Zoom	16x
Field of View	Horizontal: 59.2 to 2.5° Vertical: 34.6 to 1.4°
Maximum Aperture	f/1.61 to 5.19
Video Capture
Video Output	via HDMI 3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 59.94/60.00 fps via SDI/BNC 1920 x 1080 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 59.94/60.00 fps
Embedded Audio	HDMI/SDI
Internal Recording	No
Broadcast Output	NTSC/PAL
Supported Protocols	Video Streaming DHCP/HTTP/NDI	HX3/RTMP/RTMPS/RTSP/SRT/TCP
IP Streaming	320 x 240 to 3840 x 2160
Control
Presets	255
Pan/Tilt	Pan: 170° Tilt: 120° (30 to 90°)
Networking
Wireless	No
Interface
Video I/O	1x HDMI 2.0 Output 1x BNC (3G-SDI) Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Line Input 1x 1/8" / 3.5 mm TRS Stereo Line Output
Other I/O	1x Block 2-Pin (RS-485) 1x Mini-DIN 8-Pin (RS-232) 1x RJ45 (Ethernet) 1x USB-A (USB 2.0) 1x USB-B (USB 3.0)
Built-In Microphone	No
Built-In Speaker	No
Power
PoE Support	Yes: PoE+ 802.3at
Power I/O	1x Barrel (12VDC at 2 A)
Power Consumption	18 W
Environmental
Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 140°F / -20 to 60°C
Impact Resistance	No
Environmental Resistance	No
General
Mounting	1x Proprietary for Ceiling 1x Proprietary for Wall
Dimensions (W x H x D)	7.4 x 8.9 x 6.7" / 188 x 226 x 169 mm
Weight	5.1 lb / 2.3 kg (Body Only)
