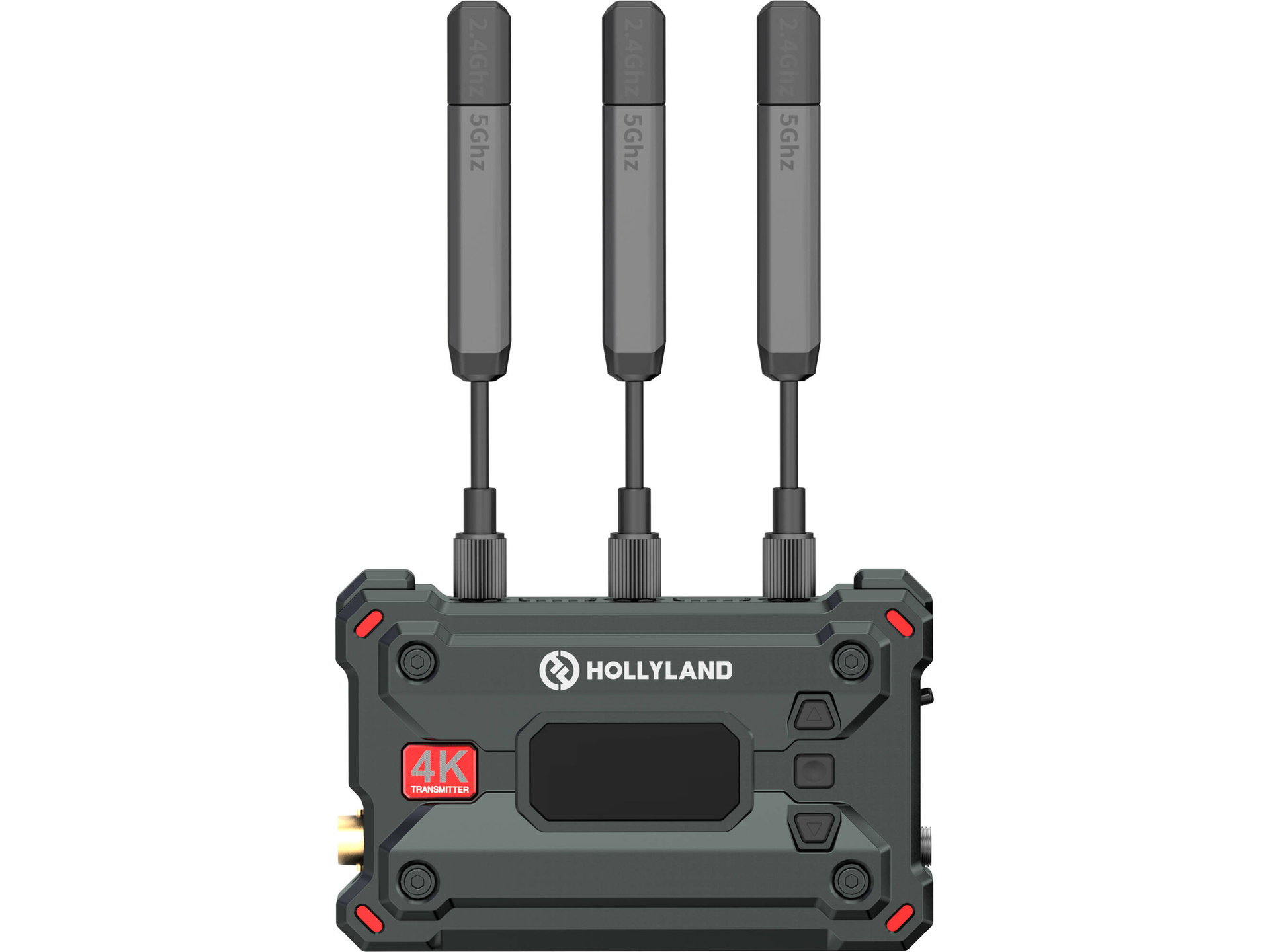

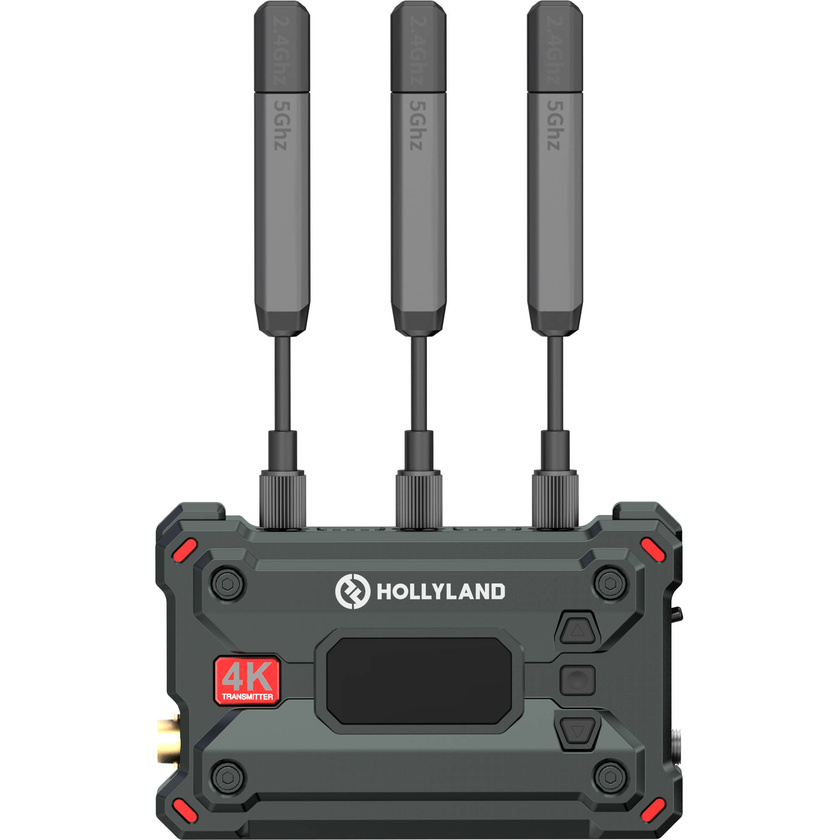

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter

Product #115388 | SKU Pyro S-TX-AU | Hollyland
Usually ships in 4 - 6 weeks what does this mean?
SAVE $25
Sale Price $424 AUD
was $449.00
Usually ships in 4 - 6 weeks what does this mean?
YOU SAVE $25
- +
ON SALE in Easter Sale 2025 while stock lasts

Email me when stock arrives

Shipping & Availability
Usually ships in 4 - 6 weeks. Deliver to New South Wales for $4.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 4 - 6 weeks
Click & Collect

Features

  • Professional Video Transmitter
  • Transmit UHD 4K30 Video up to 1300'
  • HDMI and SDI Inputs
  • 2.4 and 5 GHz Frequency Bands
  • Supports UVC and RTMP for Streaming
  • 650' Transmission in Broadcast Mode

Description

Add 4K30 wireless video transmission to your production with the versatile Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter. This transmitter offers HDMI and SDI inputs and delivers a low 50 ms latency, allowing for line-of-sight transmission up to 400m away. In broadcast mode, the system can support up to 650' away when used with four receivers and two mobile devices.

The Pyro H transmitter is equipped with a USB-C port that can power the unit and enable plug-and-play UVC operation. This means that it can easily connect to a computer for streaming and conferencing applications. It also features a built-in frequency scanner, allowing you to choose the clearest frequency for your transmission. The transmitter's configuration is made simple with its bright LCD screen. Aside from the multifunction USB-C port, the Pyro S can be powered using a locking DC power adapter (sold separately) or an optional battery plate compatible with L-series type batteries.

Specifications

Key Specs
Display Size Not Specified by Manufacturer
Touchscreen No
Video I/O 1x HDMI 1.4b Input
1x BNC (3G-SDI) Input
Embedded Audio HDMI/SDI
Latency 50 ms
Video Format HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Battery Type 1x L-Series
Power Consumption 11 W
Mounting 1x 1/4"-20 Female
Display
Panel Type LCD
Display Size Not Specified by Manufacturer
Touchscreen No
Inputs / Outputs
Antenna I/O 3x RP-SMA Male
Video I/O 1x HDMI 1.4b Input
1x BNC (3G-SDI) Input
Embedded Audio HDMI/SDI
Audio I/O No
Power I/O 1x Barrel Input
1x USB-C Input
Encryption No
Wireless
Wireless Range 1300' / 396.2 m (Line-of-Sight)
650' / 198.1 m
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range 5.15 to 5.25 GHz
5.25 to 5.35 GHz
5.47 to 5.725 GHz
5.725 to 5.85 GHz
2.412 to 2.484 GHz
Latency 50 ms
RF Sensitivity -85 dBm
Wi-Fi Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)
Bluetooth No
Mobile App Compatible Yes: Android & iOS
Cellular Support No
Format Support
Video Format HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Wireless Video Compression Uncompressed
Timecode Support Yes
Power
Input Power 6 to 16 VDC
Battery Type 1x L-Series
Power Consumption 11 W
Mounting
Mounting 1x 1/4"-20 Female
Environmental
Environmental Protection No
Certifications No
Operating Temperature 14 to 113°F / -10 to 45°C
Storage Temperature -40 to 140°F / -40 to 60°C
General
Material of Construction Magnesium
Dimensions 4.4 x 2.8 x 1.3" / 112 x 71.2 x 34.1 mm
Weight 7.3 oz / 207 g

In The Box

  • Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter
  • Hollyland Paddle Antenna for Pyro Series (2.4/5 GHz)
  • Hollyland Rotatable Cold Shoe Adapter Mount for Wireless Unit
  • USB-C OTG Adapter
