IK Multimedia iLoud MTM MKII Immersive Bundle 11

Product #118324 | SKU IP-ILOUDMTMMKII11X-IN | IK Multimedia
Usually ships in 8 - 12 weeks what does this mean?
Our Price $6,449 AUD
Usually ships in 8 - 12 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 8 - 12 weeks. Deliver to New South Wales for $427.50 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 8 - 12 weeks
Click & Collect

Features

  • 11-Speaker Bundle for Immersive Audio
  • Two 3.5" Composite Cellulose Mid-Woofers
  • Back-Chamber Silk-Dome Tweeter
  • Class-D, Bi-Amped, 100W RMS
  • DSP-Tuned Bass Reflex
  • Frequency Response: 48 Hz to 28 kHz

Description

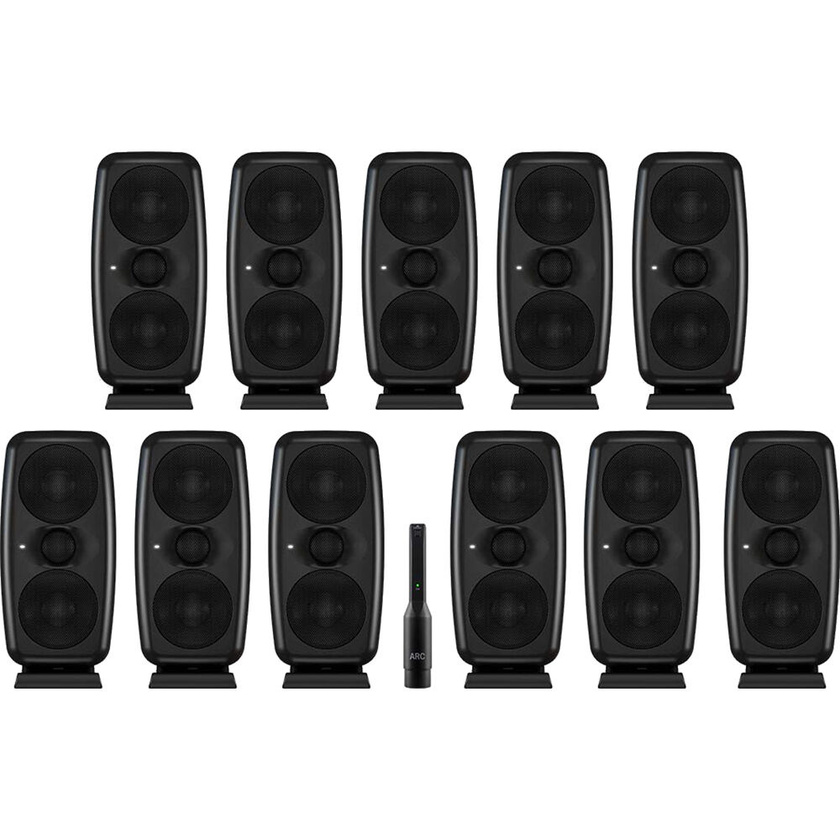

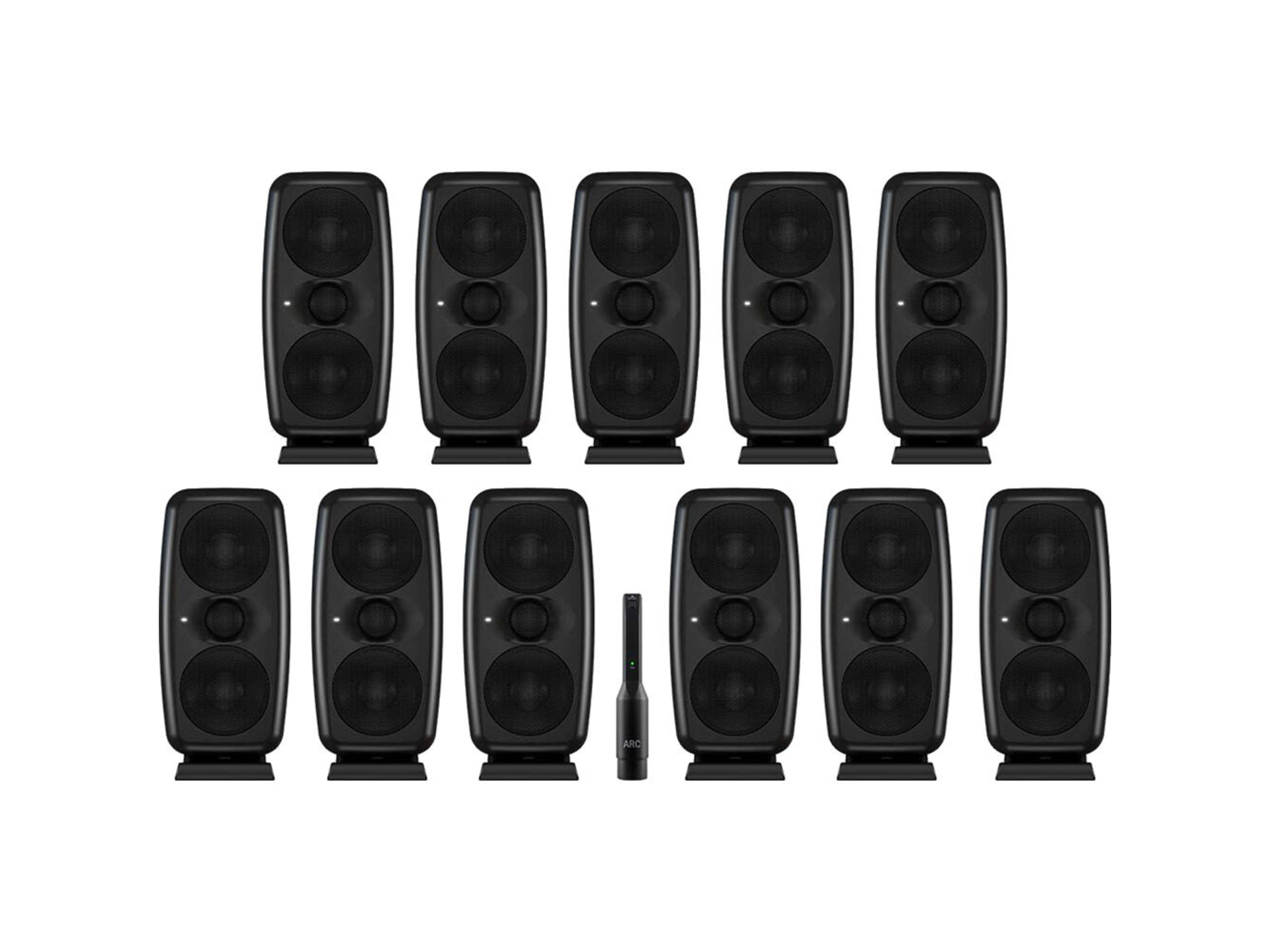

Add immersive audio to your studio monitoring setup with the IK Multimedia iLoud MTM MKII Immersive Bundle 11. This speaker package comes with eleven iLoud MTM MKII speakers and an ARC MEMS microphone, offering a compact and cost-effective solution. The iLoud MTM MKII studio monitors are now compatible with the latest Dolby Audio Room Design Tool (DARDT) for Atmos systems, allowing you to easily set up a multimonitor configuration that meets Dolby's standards, no matter where you are.

The MTM MKII speakers are specifically designed for professional recording studios, project studios, and broadcast applications. IK Multimedia has integrated their advanced design and ARC autocalibration system into these monitors, enabling you to tailor the system's performance to your specific mixing space. This ensures a flat frequency response, accurate phase relationships, and a well-balanced bass output that can rival larger monitors.

Each MTM MKII speaker is equipped with a 100W Class-D bi-amplifier, dividing 70W to the two 3.5" high-performance woofers and 30W to the single silk-dome tweeter. With a frequency response of 48 Hz to 28 kHz (±2 dB) and a maximum peak SPL output of 112.5 dB, these speakers deliver reliable and powerful performance. The iLoud MTM MKII also offers built-in acoustic self-calibration using the included ARC reference microphone, ensuring precise phase coherency and defined sound. The rear panel of the speakers provides additional options to customize user settings, including LF extension, LF boost/cut, and HF boost/cut.

Specifications

Key Specs
Monitor Type & Configuration Active 2-Way
Total Power Output 100 W RMS per Monitor
Tweeter 1x 1" / 25.4 mm Silk Dome
Woofer 2x 3.5" / 8.89 cm Composite Cone
Frequency Range 48 Hz to 24 kHz ± 2 dB
36 Hz to 32 kHz (-10 dB)
Audio I/O 1x Combo XLR-1/4" TRS Balanced Line Input
1x 1/8" / 3.5 mm TS Unbalanced Line Input
Digital Audio I/O No
Network I/O No
Wireless No
Number of Included Monitors 11-Channel Surround
Enclosure Bass-Reflex/Ported, Shielded
Total Power Output 100 W RMS per Monitor
Drivers per Monitor
Tweeter 1x 1" / 25.4 mm Silk Dome
Woofer 2x 3.5" / 8.89 cm Composite Cone
Amplifiers LF: 70 W RMS Class-D
HF: 30 W RMS Class-D
Performance
Frequency Range 48 Hz to 24 kHz ± 2 dB
36 Hz to 32 kHz (-10 dB)
Frequency Response 48 Hz to 24 kHz ± 2 dB
Maximum Sound Pressure Level (SPL) 110.5 dB (Peak)
97 dB (Continuous)
Speaker Sensitivity 94 dB
AEQ 1x LF Shelf: -3 to +2 dB at 100 Hz
1x HF Shelf: -3 to +2 dB at 8 kHz
Low-Mid Notch/Peak: -4 dB at 150 Hz
HF Notch/Peak: +1 dB at 1.8 kHz
Filters 1 x Low-Pass at 40 to 80 Hz
Parametric AEQ No
Crossover Frequency High-Pass: 2.8 kHz
Crossover Type Active
Phase Adjustment No
Calibration Mic Included
App-Based Signal Processing GLM Software Adjustment
Connectivity
Audio I/O 1x Combo XLR-1/4" TRS Balanced Line Input
1x 1/8" / 3.5 mm TS Unbalanced Line Input
Digital Audio I/O No
Network I/O No
USB 1x USB-B
Wireless No
Mobile App Compatible No
Power
AC Input Power 90 to 240 VAC, 50/60 Hz
Power Consumption 120 W (Maximum)
Physical
Colour Black
Monitor Orientation Vertical
Fan-Cooled No
Mounting Points No
Dimensions (W x H x D) 5.1 x 10.4 x 6.3" / 130 x 264 x 160 mm (Each)
Weight 5.5 lb / 2.5 kg (Each)

In The Box

  • IK Multimedia iLoud MTM MKII Immersive Bundle 11
  • IK Multimedia iLoud MTM MKII High-Resolution Compact Studio Monitor (Single, Black)
  • ARC MEMS Microphone
