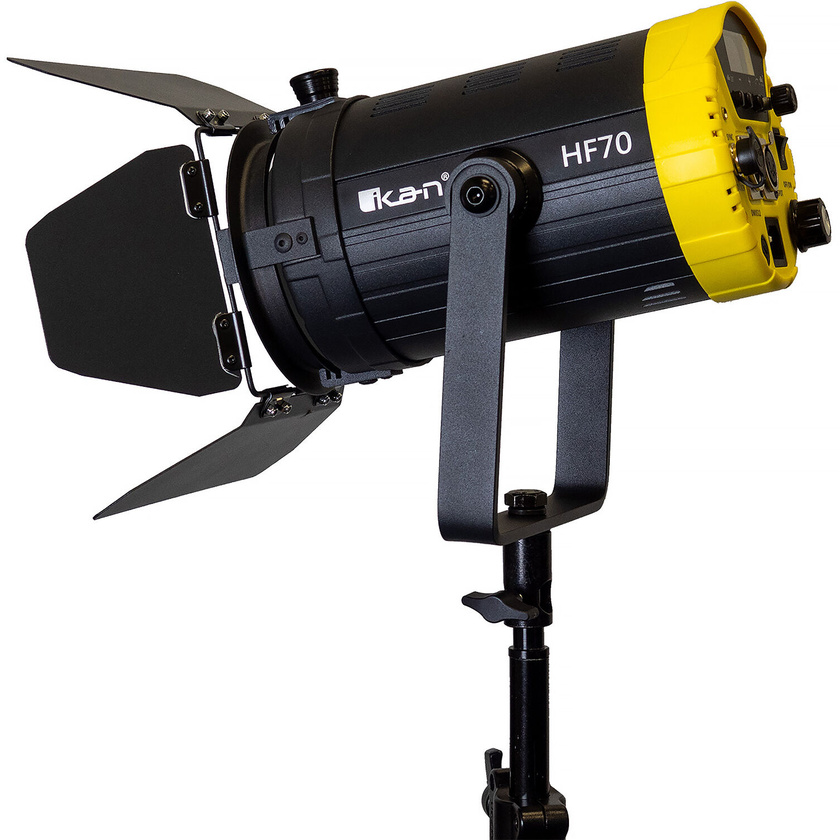

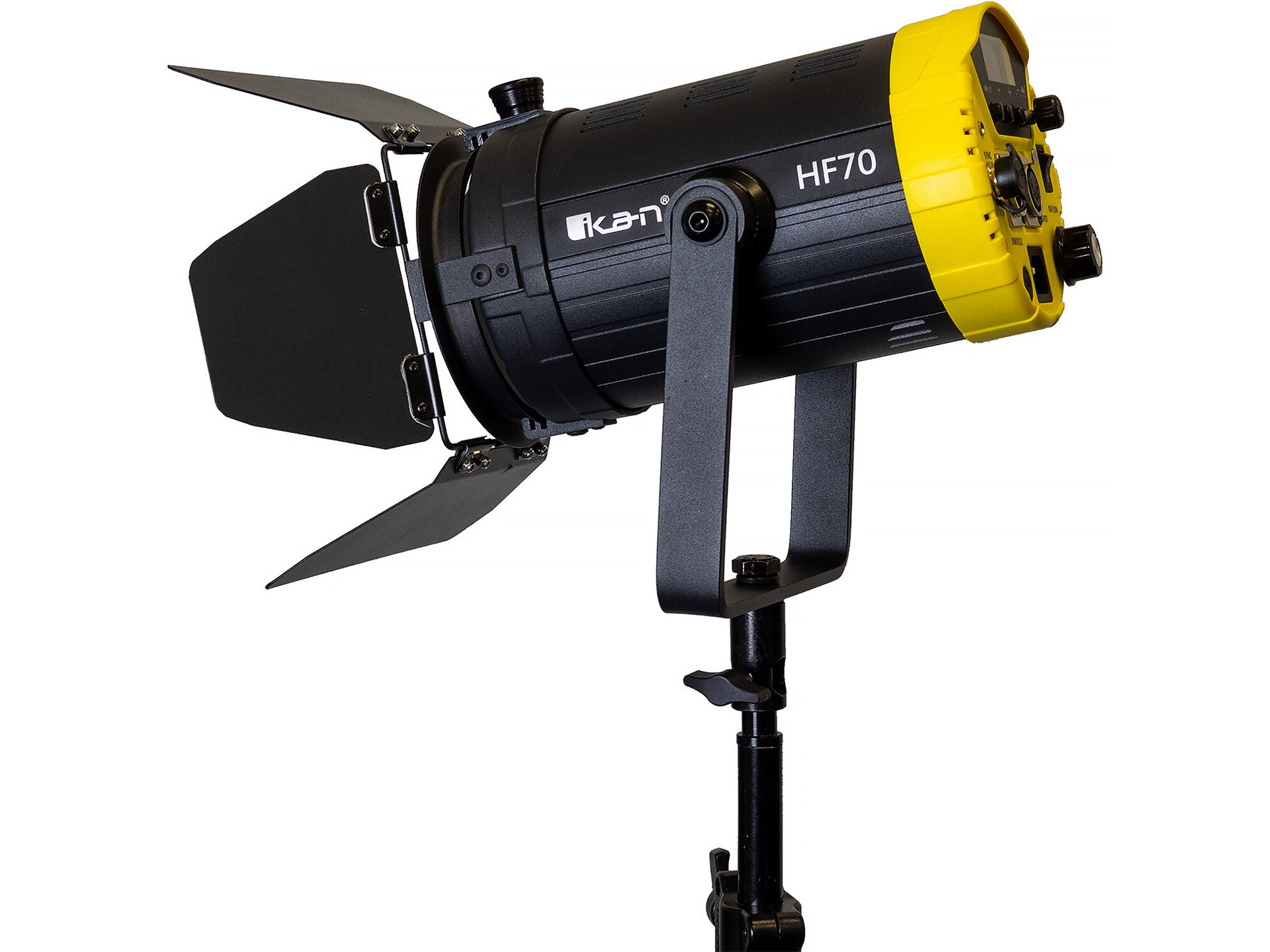

The Ikan Helia 70W Daylight LED Fresnel Light is a versatile lighting option with a 70W daylight output, adjustable beam spread, and DMX control capability. It is designed with a sturdy aluminium housing and a 4" acrylic Fresnel lens, allowing users to change the beam angle from 28 to 70° for spot or flood lighting options. This lighting fixture offers precise illumination and control, with the ability to make adjustments through knobs and LCD readout on the fixture itself or use DMX control via in and out ports. The Helia 70W is equipped for AC power and comes with a 6' power cable included for convenience.
Ikan Helia 70W Daylight LED Fresnel Light (DMX)
Usually ships in 1 - 2 weeks
Our Price
$1,169
AUD
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
New South Wales
for $86
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- For Film, Broadcast & Video Production
- Output: 18,308 Lux at 3.3' (Spot, 5600K)
- 5600K CCT
- Beam Angle: 28-70°
- AC Power
- CRI 97 | TLCI 98
Description
Specifications
| Key Specs | |
| Item Type | 1x LED Fresnel |
| Included Light Modifier | 1x Barndoors 1x Gel/Filter Frame |
| Included Storage Case | No |
| Photometrics | Spot Beam at 5600K: 1700 fc / 18,308 Lux at 3.3' / 1 m* 755 fc / 8137 Lux at 4.9' / 1.5 m 254 fc / 2735 Lux at 9.8' / 3 m 96 fc / 1042 Lux at 14.8' / 4.5 m Flood Beam at 5600K: 351 fc / 3786 Lux at 3.3' / 1 m* 156 fc / 1683 Lux at 4.9' / 1.5 m 53 fc / 577 Lux at 9.8' / 3 m 20 fc / 226 Lux at 14.8' / 4.5 m *Standardised Measurement Calculated Internally Based on Closest Distance |
| Colour Temperature | 5600K |
| Colour Modes | Daylight |
| Colour Accuracy Standard | CRI 97 TLCI 98 |
| Dimming | Built-In Dimmer • 10 to 100% |
| Front Accessory Mount | Proprietary |
| Power Source | AC Power (Cable Included) |
| Input Power | 120 VAC, 60 Hz |
| Power Consumption | 70 W |
| Fixture Mounting | 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount) |
| Light Fixture | |
| Item Type | 1x LED Fresnel |
| Included Light Modifier | 1x Barndoors 1x Gel/Filter Frame |
| Included Storage Case | No |
| Photometrics | Spot Beam at 5600K: 1700 fc / 18,308 Lux at 3.3' / 1 m* 755 fc / 8137 Lux at 4.9' / 1.5 m 254 fc / 2735 Lux at 9.8' / 3 m 96 fc / 1042 Lux at 14.8' / 4.5 m Flood Beam at 5600K: 351 fc / 3786 Lux at 3.3' / 1 m* 156 fc / 1683 Lux at 4.9' / 1.5 m 53 fc / 577 Lux at 9.8' / 3 m 20 fc / 226 Lux at 14.8' / 4.5 m *Standardised Measurement Calculated Internally Based on Closest Distance |
| Colour Temperature | 5600K |
| Colour Modes | Daylight |
| Colour Accuracy Standard | CRI 97 TLCI 98 |
| Dimming | Built-In Dimmer • 10 to 100% |
| Cooling System | Fan |
| Beam Angle | 28 to 70° |
| Built-In Flash | No |
| Preprogrammed Effects | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
| Lens | |
| Lens Type | Fresnel |
| Lens Diameter | 4" / 10.16 cm |
| Lens Material | Acrylic |
| Connectivity | |
| Mobile App Compatible | No |
| Power & I/O | |
| Power Source | AC Power (Cable Included) |
| Inputs/Outputs | 1x IEC Power Input 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output |
| Input Power | 120 VAC, 60 Hz |
| Included Adapter / Cable | 1x Unspecified to Unspecified Cable (6' / 1.83 m) |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 70 W |
| Mounting | |
| Yoke Type | Manually-Operated Yoke |
| Fixture Mounting | 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount) |
| General | |
| Display | LCD |
| Environmental Resistance | No |
| Materials | Aluminium (Housing) |
| Dimensions | 11 x 10 x 6" / 27.9 x 25.4 x 15.2 cm (Fixture with Yoke & Pin) |
| Weight | 6.3 lb / 2.9 kg |
In The Box
- ikan Helia 70W Daylight LED Fresnel Light (DMX)
- Yoke
- Barndoors
- Gel Frame
- Power Cord (6')
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Ikan Helia 70W Daylight LED Fresnel Light (DMX)
- Manufacturer: Ikan
- Model: HF70
- SKU: HF70
- RM Product #: 120171
- Colour Temperature: 5600K
