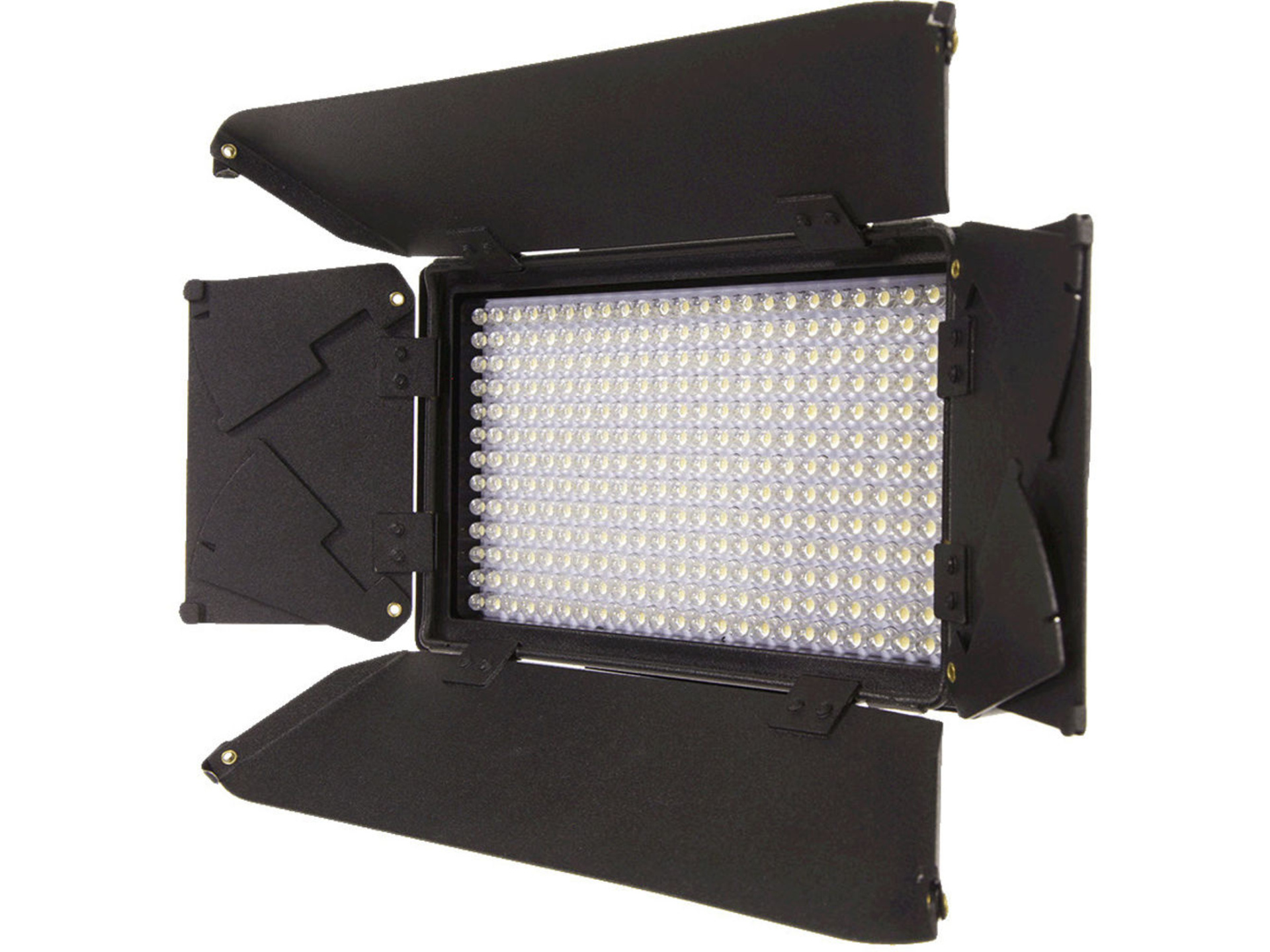

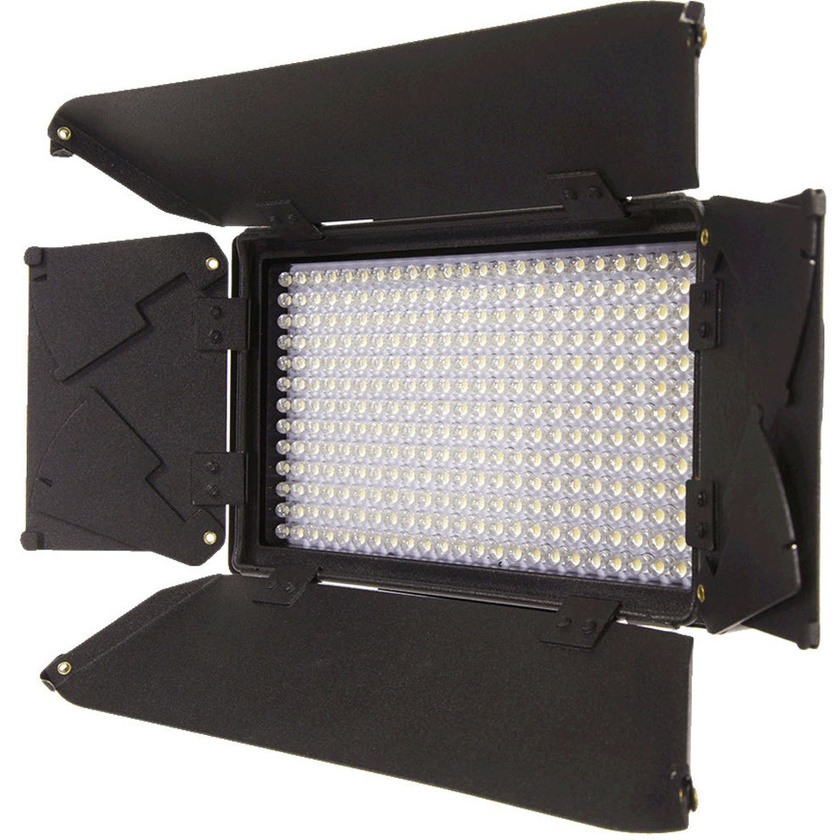

The Ikan Lyra LBX5 Bi-Color LED Light Panel is a versatile lighting fixture housed in a durable moulded plastic chassis. This lightweight yet sturdy panel offers a range of features including flicker-free dimming from 100-10%, controllable locally or via DMX, and an LCD display for easy operation. Equipped with 510 LEDs, the Lyra delivers a 110° beam spread with a high CRI of 96 and a TLCI of 98 for accurate colour reproduction. Its integrated 1/2 stop diffuser ensures soft lighting with a single-source shadow pattern. The panel operates on a universal 110-220 VAC power supply, making it suitable for worldwide use. Included are four-leaf barndoors with removable light intensifiers for controlling light spill, along with a yoke angled forward 30° to allow full opening of the barn-doors without obstruction. Additionally, a combo Baby receiver/Junior pin on the yoke enables versatile mounting options on stands or grids using optional clamps.
Ikan Lyra LBX5 Bi-Color LED Light Panel (with DMX)
Usually ships in 1 - 2 weeks
Our Price
$1,349
AUD
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- For Studio & Film/TV Production
- Output: 1327 Lux at 3.3' (5600K)
- 3200-5600K Bi-Colour
- 8 x 14" Panel; AC/DC Operation
- CRI 96 | TLCI 98 at 5600K
- Built-In Controls plus DMX512 In/Out
Description
Specifications
| Key Specs | |
| Item Type | 1x LED Light Panel |
| Included Light Modifier | 1x Barndoors (Built-In) |
| Included Storage Case | No |
| Photometrics | 3200K: 106 fc / 1145 Lux at 3.3' / 1 m* 11 fc / 123 Lux at 9.8' / 3 m 5600K: 123 fc / 1327 Lux at 3.3' / 1 m* 13 fc / 140 Lux at 9.8' / 3 m Standardised Measurement Calculated Internally Based on Closest Distance |
| Colour Temperature | 3200 to 5600K |
| Colour Accuracy Standard | CRI 96 at 3200K CRI 96 at 5600K TLCI 98 at 3200K TLCI 98 at 5600K |
| Dimming | Built-In Dimmer |
| Front Accessory Mount | Proprietary |
| Power Source | AC to DC Adapter (Included) |
| Input Power | 18 VDC 110 to 220 VAC, 50 / 60 Hz |
| Power Consumption | 51 W |
| Fixture Mounting | 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount) |
| Light Fixture | |
| Item Type | 1x LED Light Panel |
| Included Light Modifier | 1x Barndoors (Built-In) |
| Included Filters | Soft Diffusion (Built-In) |
| Included Storage Case | No |
| Photometrics | 3200K: 106 fc / 1145 Lux at 3.3' / 1 m 11 fc / 123 Lux at 9.8' / 3 m 5600K: 123 fc / 1327 Lux at 3.3' / 1 m* 13 fc / 140 Lux at 9.8' / 3 m *Standardised Measurement Calculated Internally Based on Closest Distance |
| Colour Temperature | 3200 to 5600K |
| Colour Accuracy Standard | CRI 96 at 3200K CRI 96 at 5600K TLCI 98 at 3200K TLCI 98 at 5600K |
| Dimming | Built-In Dimmer |
| Cooling System | Passive |
| Beam Angle | 110° |
| Built-In Flash | No |
| Preprogrammed Effects | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
| Connectivity | |
| Mobile App Compatible | No |
| Power & I/O | |
| Power Source | AC to DC Adapter (Included) |
| Inputs/Outputs | 1x XLR 4-Pin Power Input 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output |
| Input Power | 18 VDC 110 to 220 VAC, 50 / 60 Hz |
| Included Adapter / Cable | 1x USA Type-A/B to XLR 4-Pin AC to DC Adapter • 15 VDC |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 51 W |
| Mounting | |
| Yoke Type | Manually-Operated Yoke |
| Fixture Mounting | 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount) |
| General | |
| Display | No |
| Environmental Resistance | No |
| Materials | Resin (Housing) |
| Dimensions | 14 x 8 x 3" / 35.6 x 20.3 x 7.6 cm (Fixture) |
| Weight | 4 lb / 1.8 kg |
In The Box
- ikan Lyra LBX5 Bi-Colour LED Light Panel (with DMX)
- ikan AC Adapter for LB5 / LW5 / MB8 / MW8 / RB5 / RW5 LED Lights
- Barndoors with Removable Intensifiers
- Yoke with Stand Receiver/Pin
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Ikan Lyra LBX5 Bi-Color LED Light Panel (with DMX)
- Manufacturer: Ikan
- Model: LBX5
- SKU: LBX5
- RM Product #: 120167
- Colour Temperature: 3200 - 5600K
