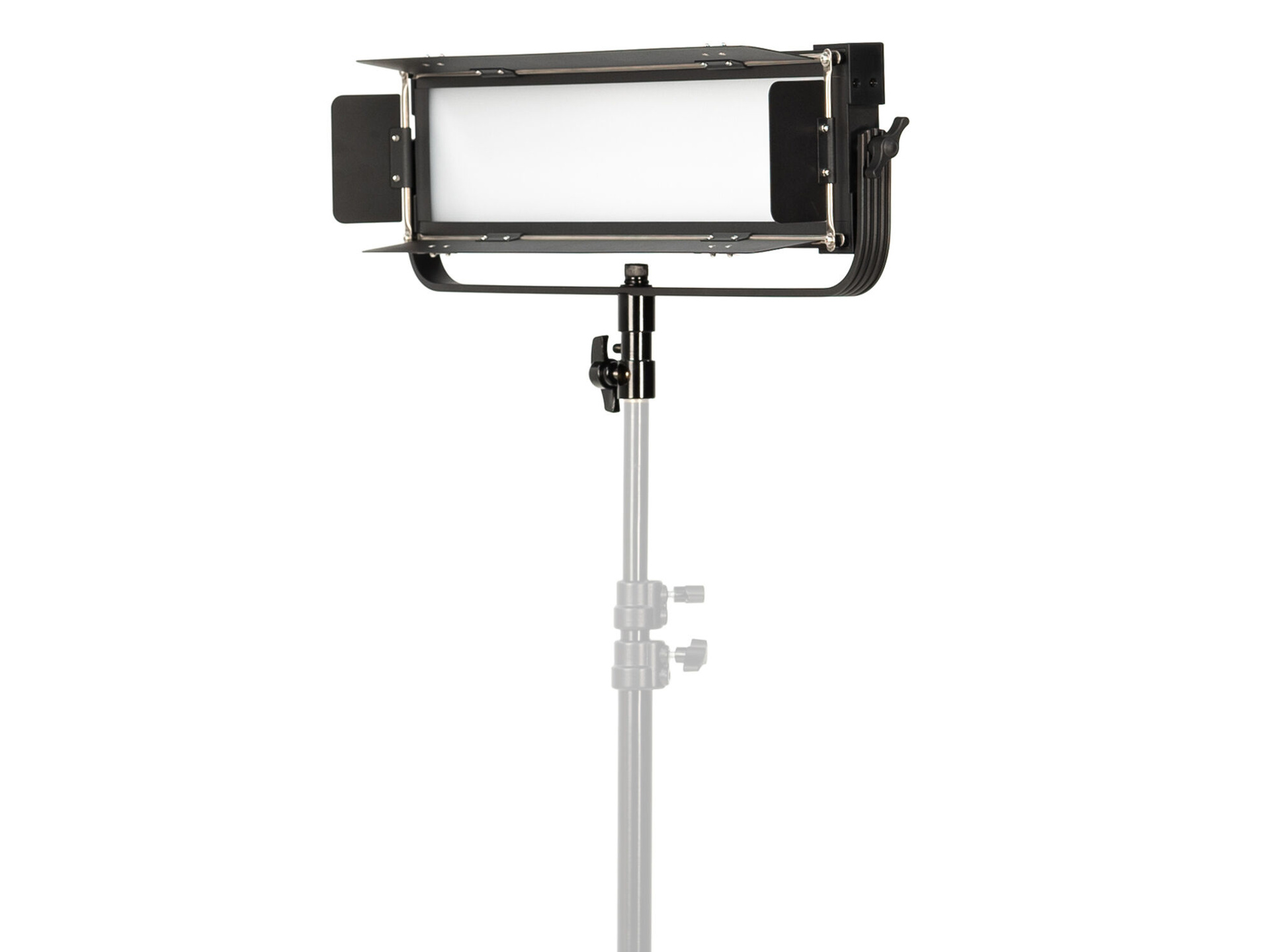

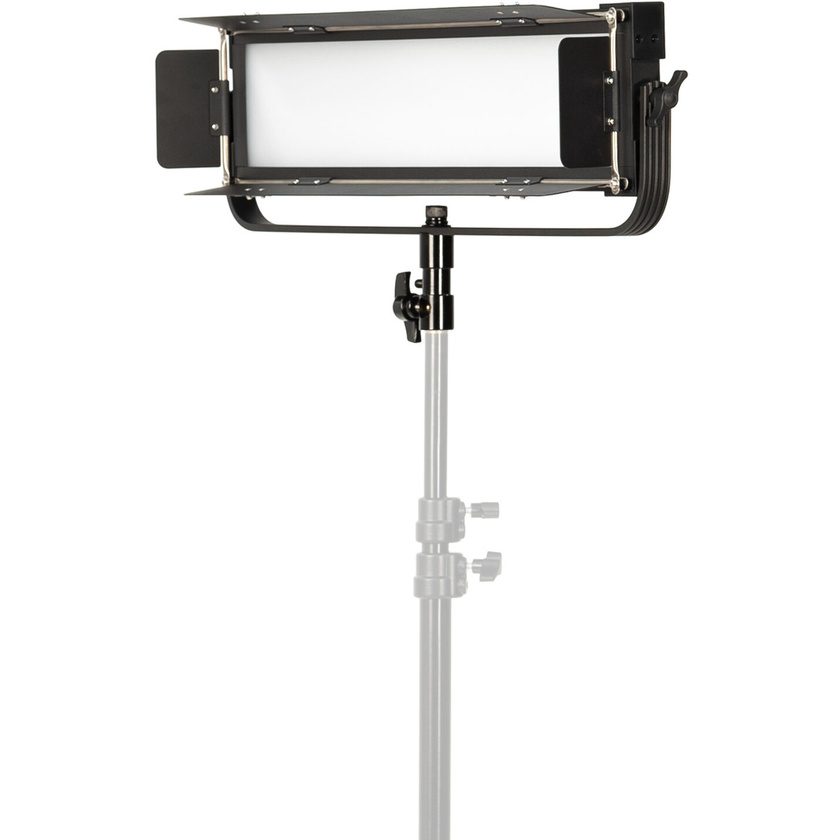

Ideally designed for studios and compact spaces, the Ikan Lyra LBX8 Bi-Color LED Light Panel offers high CRI LEDs paired with an integrated soft panel. With a 110° wide beam angle, this light fixture provides diffused light with minimal shadows, delivering soft illumination and ample coverage. Featuring a variable colour temperature of 3200-5600K, the LBX8 is versatile for various lighting scenarios and can produce strong, bright diffused light with 1565 lux at 3.3' distance, making it perfect for interviews and broadcast setups. The fixture includes a yellow dimming knob for adjusting light output from 10 to 100%, as well as DMX in and out ports for external control. The onboard LED readout screen allows for easy monitoring of settings. The LBX8 utilizes a silent passive cooling system and is compatible with 110-220 VAC power input. Additionally, it comes with a yoke featuring a 5/8" (baby) and 1-1/8" (junior) combo pin for use with most grip stands.
Ikan Lyra LBX8 Bi-Color LED Light Panel
Usually ships in 1 - 2 weeks
Our Price
$1,619
AUD
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
New South Wales
for $52.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- For Studio & Film/TV Production
- Output: 1565 Lux at 3.3' (5600K)
- 3200-5600K CCT
- 24 x 7" Panel; AC Power
- CRI 97
- Onboard & DMX Control
Description
Specifications
| Key Specs | |
| Item Type | 1x LED Light Panel |
| Included Light Modifier | 1x Barndoors (Built-In) |
| Included Storage Case | No |
| Photometrics | 3200K: 127 fc / 1370 Lux at 3.3' / 1 m* 16 fc / 178 Lux at 9.8' / 3 m 8 fc / 88 Lux at 14.8' / 4.5 m 4400K: 143 fc / 1543 Lux at 3.3' / 1 m* 18 fc / 196 Lux at 9.8' / 3 m 9 fc / 98 Lux at 14.8' / 4.5 m 5600K: 145 fc / 1565 Lux at 3.3' / 1 m* 18 fc / 204 Lux at 9.8' / 3 m 9 fc / 102 Lux at 14.8' / 4.5 m *Standardised Measurement Calculated Internally Based on Closest Distance |
| Colour Temperature | 3200 to 5600K |
| Colour Modes | Daylight, Tungsten |
| Colour Accuracy Standard | CRI 96 at 3200 to 4400K CRI 97 at 5600K TLCI 98 at 3200 to 5600K |
| Dimming | Built-In Dimmer |
| Front Accessory Mount | Proprietary |
| Power Source | AC to DC Adapter (Included) |
| Input Power | 24 VDC at 2.75 A 110 to 220 VAC, 50 / 60 Hz |
| Power Consumption | 50 W |
| Fixture Mounting | 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount) |
| Light Fixture | |
| Item Type | 1x LED Light Panel |
| Included Light Modifier | 1x Barndoors (Built-In) |
| Included Filters | Soft Diffusion |
| Included Storage Case | No |
| Photometrics | 3200K: 127 fc / 1370 Lux at 3.3' / 1 m* 16 fc / 178 Lux at 9.8' / 3 m 8 fc / 88 Lux at 14.8' / 4.5 m 4400K: 143 fc / 1543 Lux at 3.3' / 1 m* 18 fc / 196 Lux at 9.8' / 3 m 9 fc / 98 Lux at 14.8' / 4.5 m 5600K: 145 fc / 1565 Lux at 3.3' / 1 m* 18 fc / 204 Lux at 9.8' / 3 m 9 fc / 102 Lux at 14.8' / 4.5 m *Standardised Measurement Calculated Internally Based on Closest Distance |
| Colour Temperature | 3200 to 5600K |
| Colour Modes | Daylight, Tungsten |
| Colour Accuracy Standard | CRI 96 at 3200 to 4400K CRI 97 at 5600K TLCI 98 at 3200 to 5600K |
| Dimming | Built-In Dimmer |
| Cooling System | Passive |
| Beam Angle | 110° |
| Built-In Flash | No |
| Preprogrammed Effects | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietar |
| Connectivity | |
| Mobile App Compatible | No |
| Power & I/O | |
| Power Source | AC to DC Adapter (Included) |
| Inputs/Outputs | 1x Barrel / Coax Power Input 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output |
| Input Power | 24 VDC at 2.75 A 110 to 220 VAC, 50 / 60 Hz |
| Included Adapter / Cable | 1x USA Type-A/B to Barrel / Coax AC to DC Adapter |
| Power Pass-Thru | No |
| Power Consumption | 50 W |
| Mounting | |
| Yoke Type | Manually-Operated Yoke |
| Fixture Mounting | 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount) |
| General | |
| Display | LED |
| Environmental Resistance | No |
| Materials | Metal, Resin |
| Dimensions | 24.5 x 7 x 1.9" / 62.2 x 17.8 x 4.8 cm (Fixture) |
| Weight | 4.9 lb / 2.2 kg (Fixture) |
In The Box
- ikan Lyra LBX8 Bi-Colour LED Light Panel
- Yoke Mount
- Power Supply
- Power Cord
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Ikan Lyra LBX8 Bi-Color LED Light Panel
- Manufacturer: Ikan
- Model: LBX8
- SKU: LBX8
- RM Product #: 120174
- Colour Temperature: 3200 - 5600K
