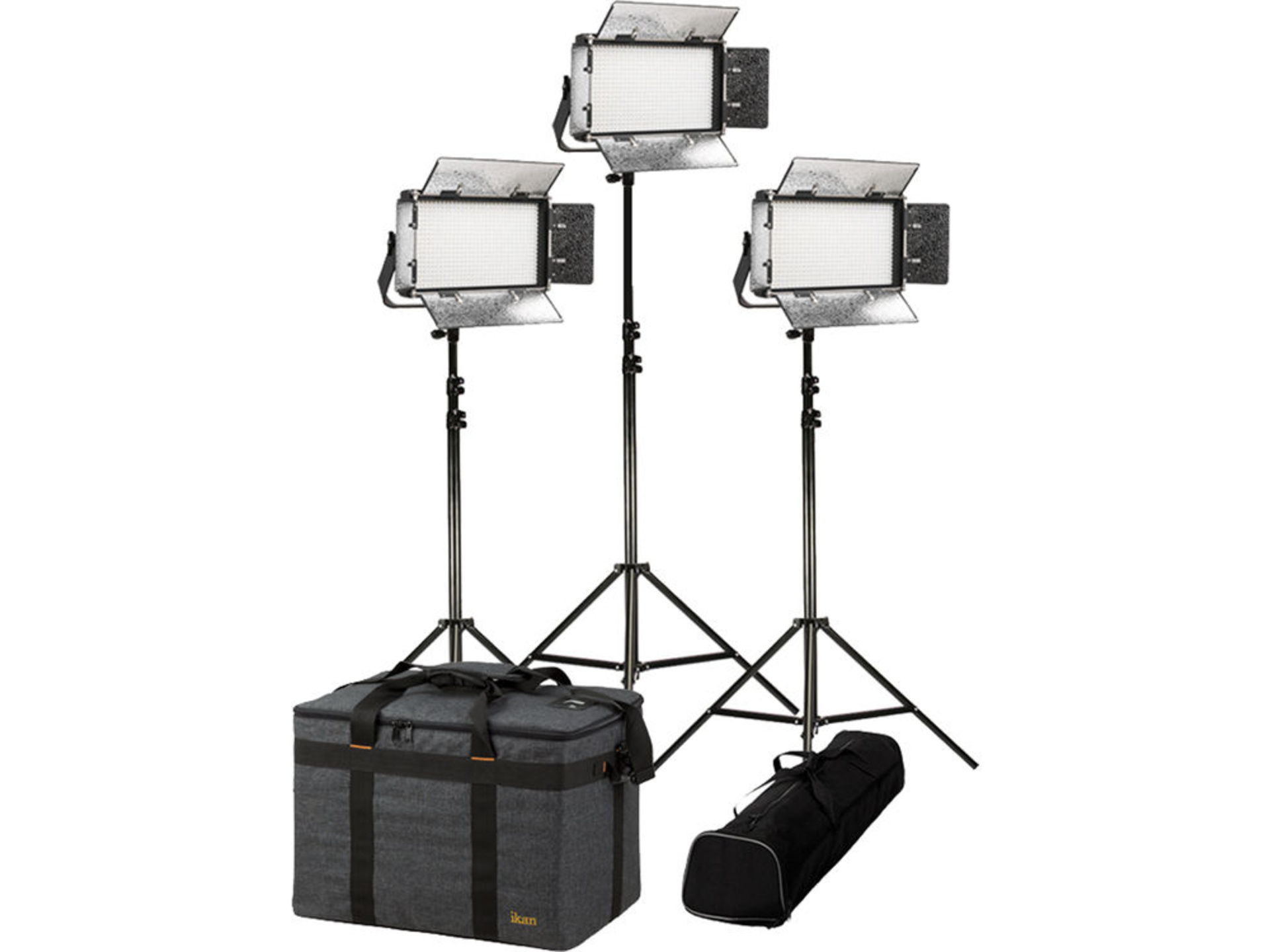

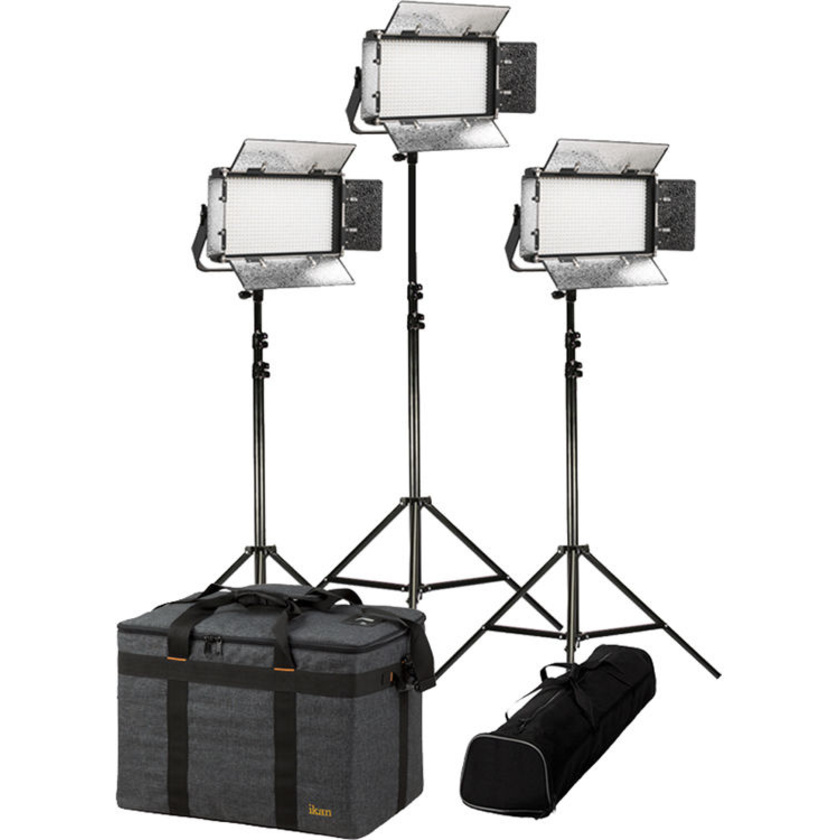

Ikan Rayden Half x1 Daylight 5600 3-Point LED Light Kit

Product #115117 | SKU RW5-3PT-KIT | Ikan
Usually ships in 1 - 2 weeks what does this mean?
Our Price $5,149 AUD
Usually ships in 1 - 2 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to New South Wales for $1,026 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • 3 x Rayden RW5 Fixtures
  • 3 x Gold Mount Battery Plates
  • 3 x V-Mount Battery Plates
  • 3 x Power Supplies
  • 3 x Diffusion Panels
  • 3 x Remote Controls

Description

The Ikan Rayden Half x1 Daylight 5600 3-Point LED Light Kit is the perfect lighting kit for photographers and videographers, whether they are working in a studio or on location. This comprehensive kit includes three Rayden RW5 fixtures, each equipped with Gold mount and V-mount battery plates, an AC power supply and cable, a wireless remote control, a light stand, a diffusion panel, and a yoke mount. To ensure easy transportation, a convenient case is also provided to store the lights and stands.

Designed with a heavy-duty moulded plastic chassis, the Rayden RW5 Daylight Half x 1 Studio & Field LED Light is both lightweight and durable. Featuring advanced functionalities such as 100-10% flicker-free dimming, an LCD display, and a wireless remote, this lighting fixture truly stands out. It emits a 50° beam spread, while its barndoors come with integrated gel clips.

For easy power supply, the fixture is DC powered and includes a 4-pin XLR connector, as well as an AC/DC power supply for mains power. With interchangeable Gold and V-Mount plates, you can rest assured that the fixture will perfectly match your battery system. Additionally, the four-leaf barndoors allow you to control light spill and can be customized to suit your preferences by removing light intensifiers. The yoke is specifically designed with a 30° forward angle, allowing you to fully open the barndoors without any obstruction from the yoke when the light is directed straight ahead. The yoke also features a versatile combo Baby pin/Junior stud, enabling you to either mount it on a stand or hang it from a grid using optional clamps.

Specifications

Key Specs
Item Type 1x LED Light Panel
Included Light Modifier 1x Barndoors
Included Storage Case No
Photometrics 5600K:
474 fc / 5074 Lux at 3.3' / 1 m*
210 fc / 2255 Lux at 4.9' / 1.5 m
50 fc / 538 Lux at 9.8' / 3 m
23 fc / 250 Lux at 14.8' / 4.5 m

*Standardised Measurement Calculated Internally Based on Closest Distance
Colour Temperature 5600K
Colour Modes Daylight
Colour Accuracy Standard CRI 95
TLCI 96
Dimming Built-In Dimmer (Stepped)
 • 10 to 100%
Front Accessory Mount Proprietary
Wireless Remote Control Type Unspecified Type *Remote Included
Power Source AC to DC Adapter (Included)
Battery (Not Included)
Battery Plate Type 1x Gold Mount (Built-In)
1x V-Mount (Included)
Battery Per Light: 1x Rechargeable, 14 to 18 VDC (Not Included)
Input Power 110 to 220 VAC, 50 / 60 Hz
14 to 18 VDC
Power Consumption 51 W
Fixture Mounting 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
Light Fixture
Item Type 1x LED Light Panel
Included Light Modifier 1x Barndoors
Included Filters Diffusion
Included Storage Case No
Photometrics 5600K:
474 fc / 5074 Lux at 3.3' / 1 m*
210 fc / 2255 Lux at 4.9' / 1.5 m
50 fc / 538 Lux at 9.8' / 3 m
23 fc / 250 Lux at 14.8' / 4.5 m

*Standardised Measurement Calculated Internally Based on Closest Distance
Colour Temperature 5600K
Colour Modes Daylight
Colour Accuracy Standard CRI 95
TLCI 96
Dimming Built-In Dimmer (Stepped)
 • 10 to 100%
Cooling System Passive
Beam Angle 50°
Built-In Flash No
Preprogrammed Effects No
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type Unspecified Type *Remote Included
Mobile App Compatible No
Power & I/O
Power Source AC to DC Adapter (Included)
Battery (Not Included)
Inputs/Outputs 1x XLR 4-Pin Power Input
Battery Plate Type 1x Gold Mount (Built-In)
1x V-Mount (Included)
Battery Per Light: 1x Rechargeable, 14 to 18 VDC (Not Included)
Input Power 110 to 220 VAC, 50 / 60 Hz
14 to 18 VDC
Included Adapter / Cable 1x USA Type-A/B to XLR 4-Pin AC to DC Adapter
 • 15 VDC at 4 A
Inline Switch No
Power Pass-Thru No
Power Consumption 51 W
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
Environmental
Environmental Protection No
General
Display No
Materials Resin
Dimensions 14 x 8 x 3" / 35.6 x 20.3 x 7.6 cm (Fixture)
Weight 6 lb / 2.7 kg
Key Specs
Stand Type 1 x General Purpose Stand
Maximum Working Height 95" / 241.3 cm
Minimum Working Height 38.5" / 97.8 cm
Load Capacity 8 lb / 3.6 kg
Stand/Column Top Mount 5/8" Stud
Air Cushioned Yes
Maximum Working Height 95" / 241.3 cm
Minimum Working Height 38.5" / 97.8 cm
Load Capacity 8 lb / 3.6 kg
Closed Length 36" / 91.4 cm
Mounting
Stand/Column Top Mount 5/8" Stud
Features
Accepts Second Riser No
Air Cushioned Yes
General
Finish Black

In The Box

  • ikan Rayden RW5 Daylight Half x 1 Studio & Field LED Light
  • ikan V2 Heavy Duty Light Stand (8')
  • Case for the Lights
  • Case for the Stands

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Ikan Rayden Half x1 Daylight 5600 3-Point LED Light Kit
  • Manufacturer: Ikan
  • Model: RW5-3PT-KIT
  • SKU: RW5-3PT-KIT
  • RM Product #: 115117
  • Colour Temperature: 5600K
